Model LG 32LQ630H – Common Parts & Diagrams

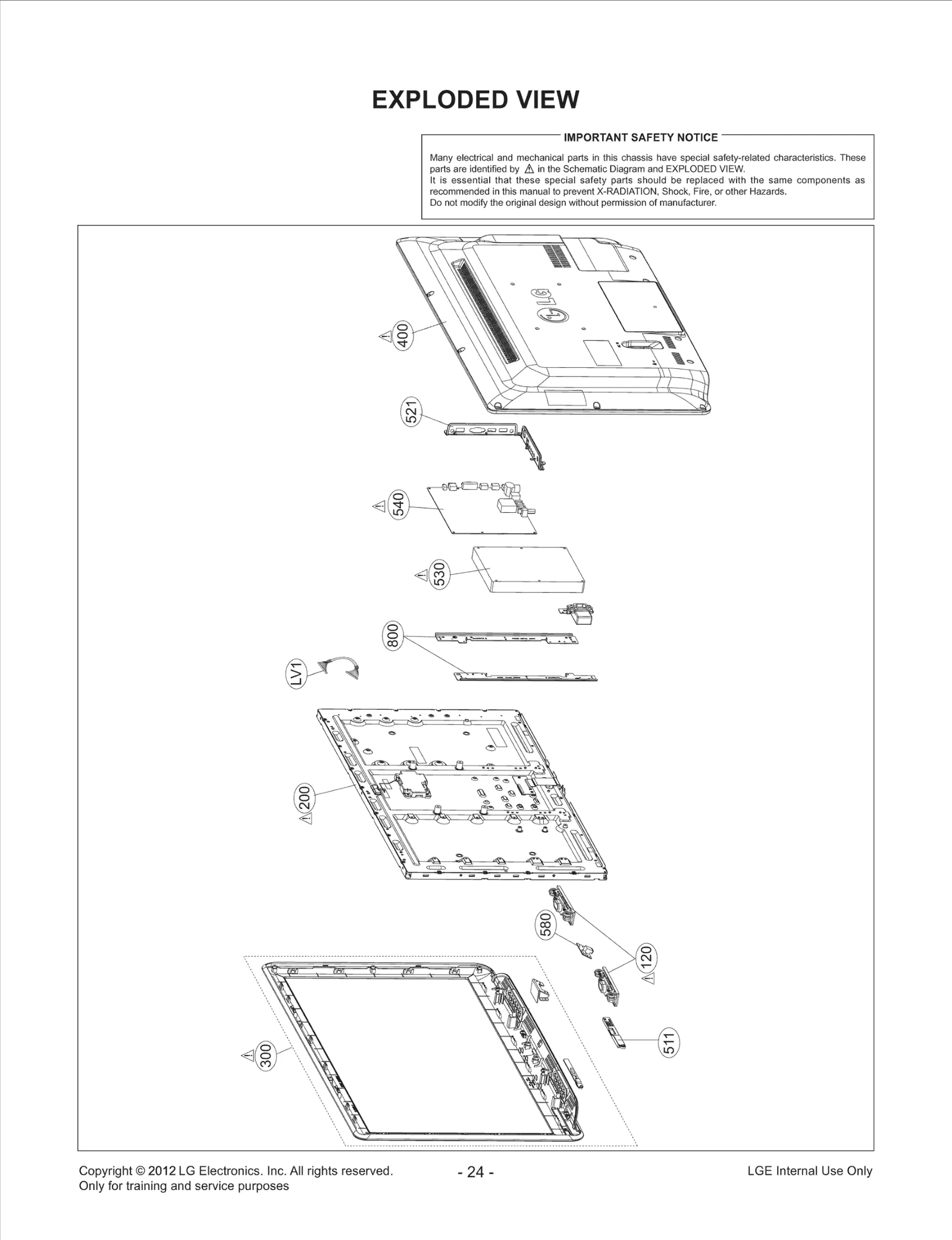

Diagram 0
Diagram 1
Common parts from model LG 32LQ630H
120
Speaker,Full Range LGE EAB62088504 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73767103 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85892803 Contact Us For Availability
511
Bracket LGE MAZ63238102 Contact Us For Availability
521
Bracket Assembly LGE ABA74108302 Contact Us For Availability
540
DMS Chassis Assembly LGE EBT62063604 Contact Us For Availability
580
Package Assembly LGE AGF76458301 Contact Us For Availability
800
Supporter LGE MJH62573108 Contact Us For Availability
800
Supporter LGE MJH62573106 Contact Us For Availability
A3
Power Cord,Detach LGE EAD61728001 Contact Us For Availability
AR103
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C2
Capacitor,Ceramic,Chip LGE 0CZZB00042A Contact Us For Availability
C112
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C205
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C245
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C415
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C448
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C467
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C472
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C523
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C533
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C535
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C800
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C1128
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1134
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1470
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1502
Capacitor,AL,Chip LGE EAE61782302 Contact Us For Availability
C1517
Capacitor,AL,Chip LGE EAE38362601 Contact Us For Availability
C1518
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C1519
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C1521
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C1523
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1600
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C1606
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1607
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C1616
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C1620
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C1626
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1650
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1785
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C1802
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C1805
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C1830
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C2189
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C2263
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C2271
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C2280
Filter,LCR LGE EAM62070601 Contact Us For Availability
C2709
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C2713
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C4071
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CA
Harness,Single LGE 6631900049A Contact Us For Availability
CA1
Harness,Single LGE EAD60673314 Contact Us For Availability
CA2
Harness,Single LGE EAD61646258 Contact Us For Availability
CA3
Harness,Single LGE EAD57675123 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD32659601 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61273104 Contact Us For Availability
D200
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D903
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1007
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D1600
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
D1602
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D1785
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D2401
Diode,TVS LGE EAH39491701 Contact Us For Availability
D2405
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
GAS2
Gasket LGE MDS61887701 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62139301 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC103
IC,EEPROM LGE EAN61925801 Contact Us For Availability
IC200
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC407
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC409
IC,Reset LGE EAN60670101 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC800
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC1100
IC,PERIPHERALS LGE 0IPRPTI063A Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61667501 Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN61857101 Contact Us For Availability
IC1209
IC,Video Processors LGE EAN62096701 Contact Us For Availability
IC1401
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC1600
IC,Charge Pump LGE EAN61132201 Contact Us For Availability
IC1601
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC1606
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC1608
IC,FRAM LGE 0IMMRRA001B Contact Us For Availability
IC1785
IC,Multiplexer LGE EAN61151201 Contact Us For Availability
IC2700
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC3703
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
JK10
Jack,Complex LGE 6612J10024B Contact Us For Availability
JK801
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1100
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK1104
CONNECTOR (CIRC),D-S LGE 6630TGA004A Contact Us For Availability
JK1401
JACK,MODULAR LGE 6612E00008A Contact Us For Availability
JK1500
Jack,DIN LGE EAG42923503 Contact Us For Availability
JK9901
Jack,Phone LGE EAG61030002 Contact Us For Availability
L2
Filter,Bead LGE EAM38769505 Contact Us For Availability
L202
Filter,Bead LGE EAM32500903 Contact Us For Availability
L400
Filter,Bead LGE EAM58113401 Contact Us For Availability
L408
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L503
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1504
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L2704
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
LD502
LED,Chip LGE 0DL210009GC Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P704
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
P800
Connector,USB LGE EAG62571101 Contact Us For Availability
P2402
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P2405
Connector,Wafer LGE 6602T20009D Contact Us For Availability
Q807
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1471
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q1505
FET LGE EBK60706901 Contact Us For Availability
Q1603
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q1804
FET LGE EBK60752501 Contact Us For Availability
Q2600
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R102
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R147
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R171
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R187
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R217
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R260
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ1201D477 Contact Us For Availability
R448
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R465
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R467
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R496
RESISTOR CHIP 3.9K 1/10W 5 D. LGE 0RH3901D622 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R519
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R885
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1026
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1115
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R1117
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R1130
Resistor,Chip LGE EBC60972101 Contact Us For Availability
R1135
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1202
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1226
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1236
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1473
Resistor,Chip LGE EBC60973201 Contact Us For Availability
R1485
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R1524
Resistor,Chip LGE 0RJ7500E472 Contact Us For Availability
R1526
Resistor,Chip LGE 0RJ4700J688 Contact Us For Availability
R1530
Resistor,Chip LGE 0RH2000D422 Contact Us For Availability
R1555
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R1556
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
R1600
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
R1602
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R1603
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R1704
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1721
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R1738
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1755
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R2413
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R2444
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R2463
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R2586
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R2701
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R2772
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R3766
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R4023
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R4024
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R5031
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R9905
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R9915
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
RL1501
Relay,Contact LGE EBB43539401 Contact Us For Availability
T1501
Transformer,Switching LGE EBJ61330101 Contact Us For Availability
TU1003
Tuner,RF Modulator LGE EBL61179901 Contact Us For Availability
X1600
Crystal LGE EAW30067102 Contact Us For Availability
× ![]()
Login and Registration Form
