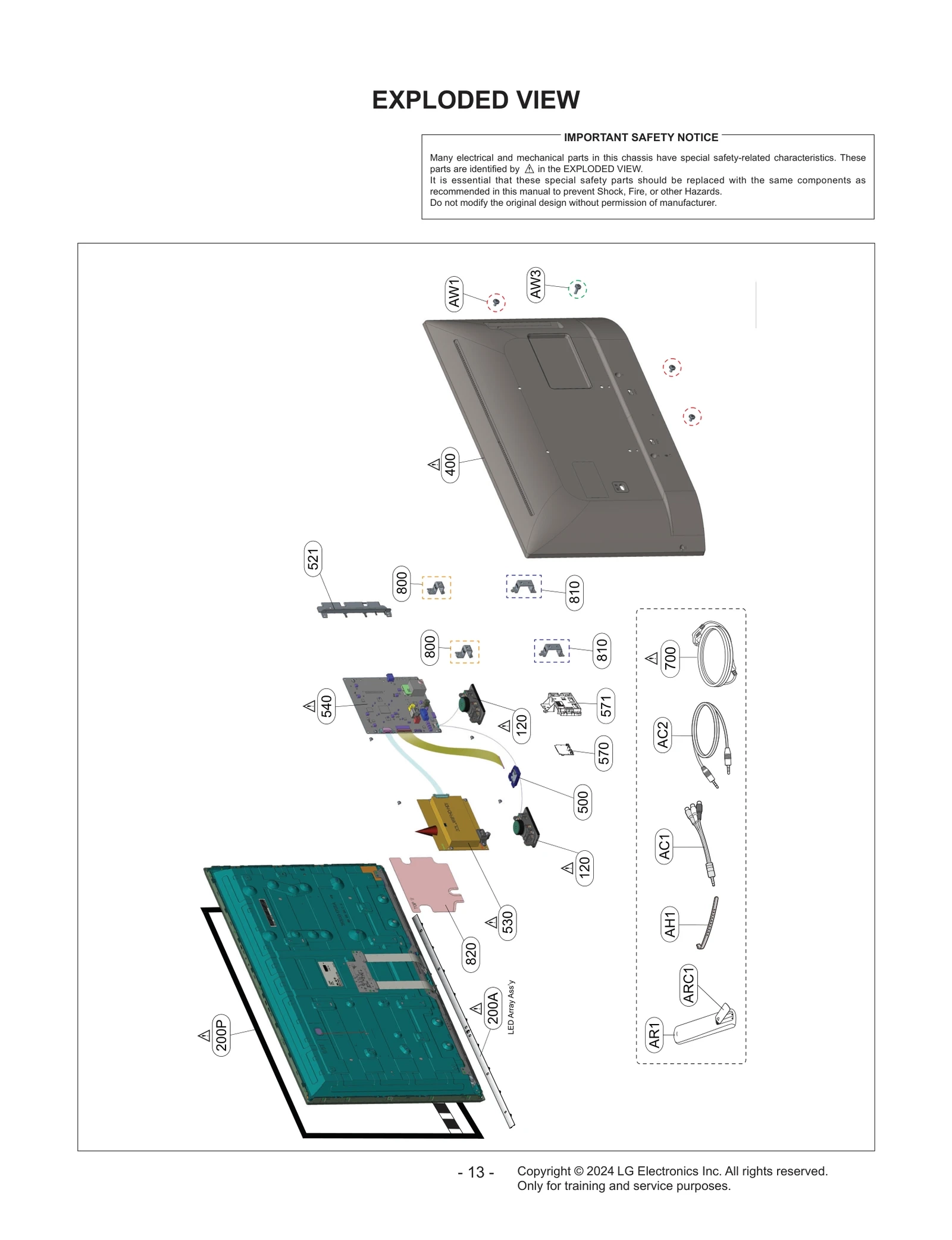

Model LG 32LN662VBUC – Common Parts & Diagrams

120
Speaker,Full Range
Speaker,Full Range LGE EAB64048404 Contact Us For Availability
View on Model
200

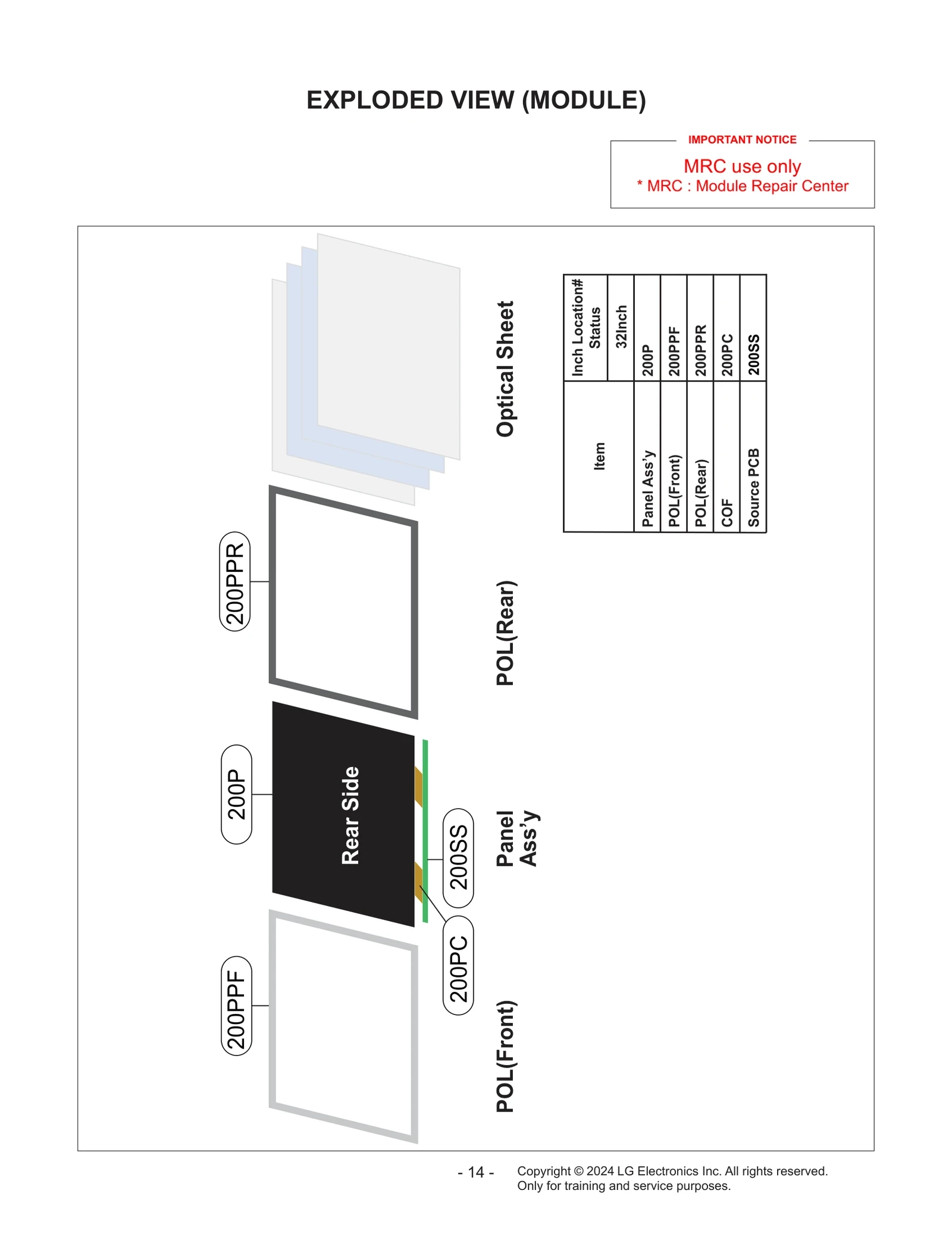

LCD,Module-TFT
LCD,Module-TFT LGE EAJ64148204 Contact Us For Availability
View on Model
200A
Package Assembly,LED Array
Package Assembly,LED Array LGE AGF79058902 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30489848 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30489860 Contact Us For Availability
View on Model
521
Bracket
Bracket LGE MAZ67494580 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY64548917 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU30031301 Contact Us For Availability
View on Model
810
Supporter,VESA
Supporter,VESA LGE MJH64514802 Contact Us For Availability
View on Model
820
Insulator
Insulator LGE MEV65899701 Contact Us For Availability
View on Model
AC1
Cable,Assembly
Cable,Assembly LGE EAD61273123 Contact Us For Availability
View on Model
AC2
Cable,Assembly
Cable,Assembly LGE EAD63647508 Contact Us For Availability
View on Model
ARC1
Cover,Rear
Cover,Rear LGE MCK62976101 Contact Us For Availability
View on Model
AW1
Screw,Machine
Screw,Machine LGE FAB31843211 Contact Us For Availability
View on Model
AW3
Screw,Taptite
Screw,Taptite LGE FAB31639801 Contact Us For Availability
View on Model

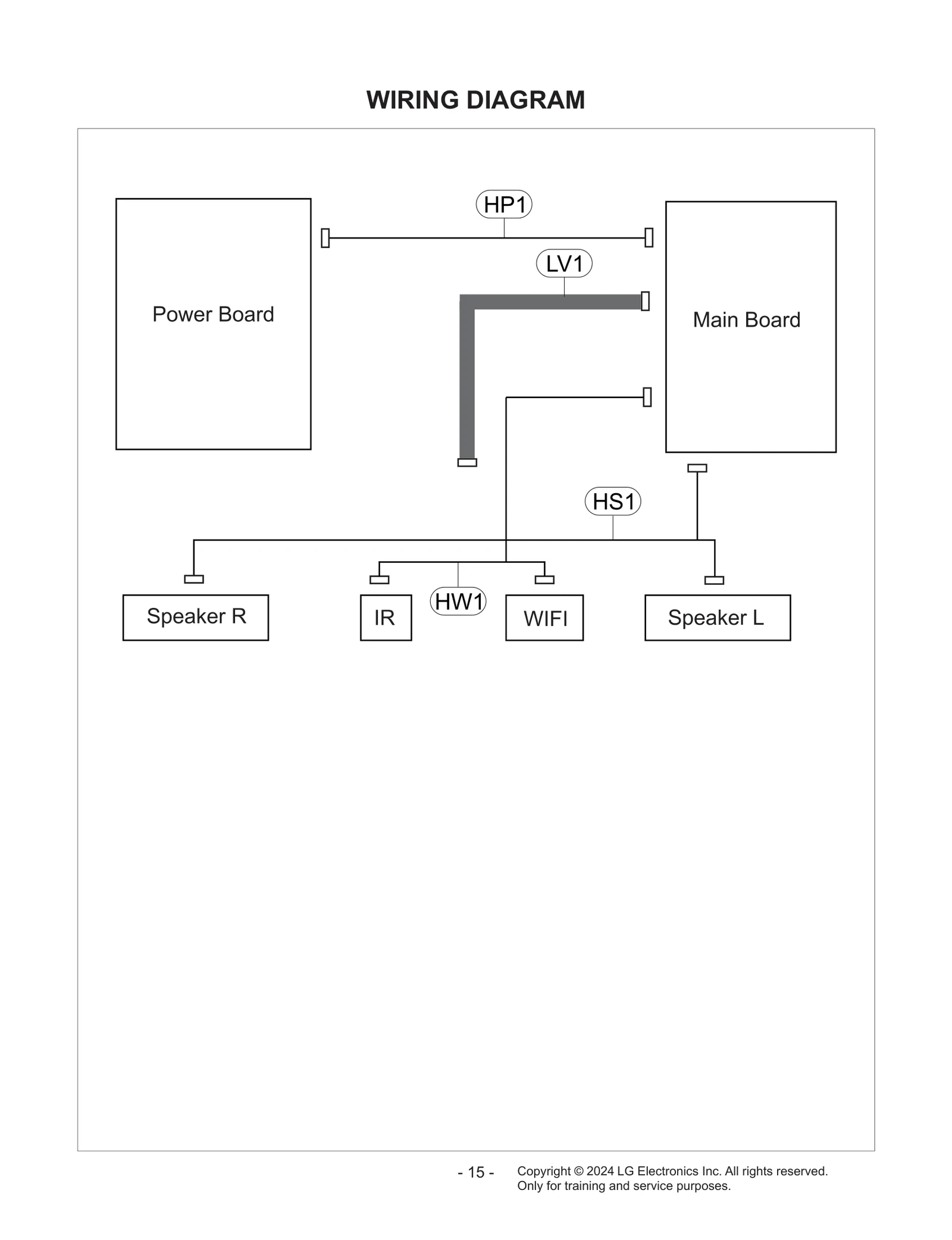

HP1
Harness,Single
Harness,Single LGE EAD64586004 Contact Us For Availability
View on Model
HS1
Harness,Multi
Harness,Multi LGE EAD63566314 Contact Us For Availability
View on Model
HW1
Cable,FFC
Cable,FFC LGE EAD65387310 Contact Us For Availability
View on Model
