Model LG 32LN549E – Common Parts & Diagrams

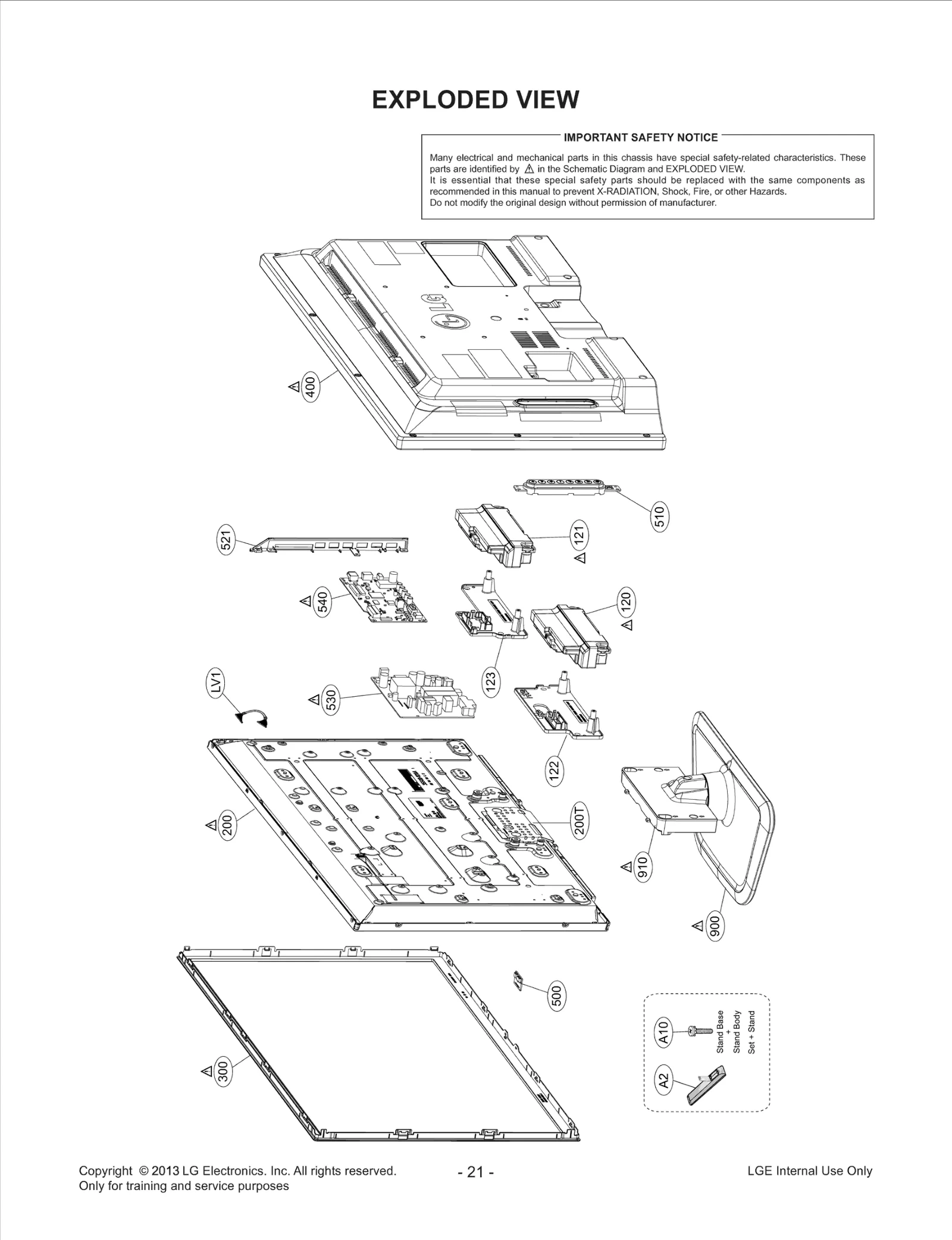

Diagram 0
Diagram 1
Common parts from model LG 32LN549E
200
LCD,Module-TFT LGE EAJ62309801 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF78180101 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF78280701 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF78202101 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF78240701 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF78180001 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF78202301 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF78280501 Contact Us For Availability
200T
Time Control LGE EAT61973901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73947445 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86510106 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR76931301 Contact Us For Availability
521
Bracket Assembly LGE ABA74489632 Contact Us For Availability
530
Power Supply Assembly LGE EAY62810301 Contact Us For Availability
540
Chassis Assembly LGE EBT62504303 Contact Us For Availability
900
Base Assembly LGE AAN74328803 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76692613 Contact Us For Availability
AM
Manual Assembly LGE AFN75916212 Contact Us For Availability
AM1
Manual,Owners LGE MFL67694912 Contact Us For Availability
AR104
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
B1
Box LGE MAY65928403 Contact Us For Availability
C1
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C2
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C233
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C247
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C278
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C406
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C411
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C429
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C431
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C433
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C437
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C444
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C503
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C532
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C534
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C701
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C708
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C717
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C721
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C901
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C912
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C915
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C916
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C917
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C921
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C924
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C927
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1006
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1217
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
CA1
Harness,Single LGE EAD60958305 Contact Us For Availability
CA2
Harness,Single LGE EAD61646275 Contact Us For Availability
D702
Diode,TVS LGE EAH39491701 Contact Us For Availability
D707
Diode,Switching LGE EAH60666101 Contact Us For Availability
D803
Diode,Switching LGE EAH61714301 Contact Us For Availability
IC1
Receiver Module LGE EAV62055001 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62354101 Contact Us For Availability
IC301
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN62574801 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN62673301 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC702
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC901
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC1001
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
JK704
Connector,USB LGE EAG62571101 Contact Us For Availability
JK705
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK706
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK901
Jack,Modular LGE EAG61453603 Contact Us For Availability
L203
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L404
Inductor,Wire Wound,Chip LGE EAP62326501 Contact Us For Availability
L408
Filter,Bead LGE EAM62091201 Contact Us For Availability
L411
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L501
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L504
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L904
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
LV1
Cable,FFC LGE EAD62296502 Contact Us For Availability
P401
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P601
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P1101
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
Q602
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1002
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R148
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R411
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R434
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R436
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R437
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R458
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R513
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R715
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R718
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R812
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R815
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R1031
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R1205
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1226
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R4023
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
TU1002
Tuner,Analog/Digital LGE EBL61060103 Contact Us For Availability
VA704
Varistor LGE EAF61530301 Contact Us For Availability
ZD902
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
