Model LG 32LK450-UB – Common Parts & Diagrams

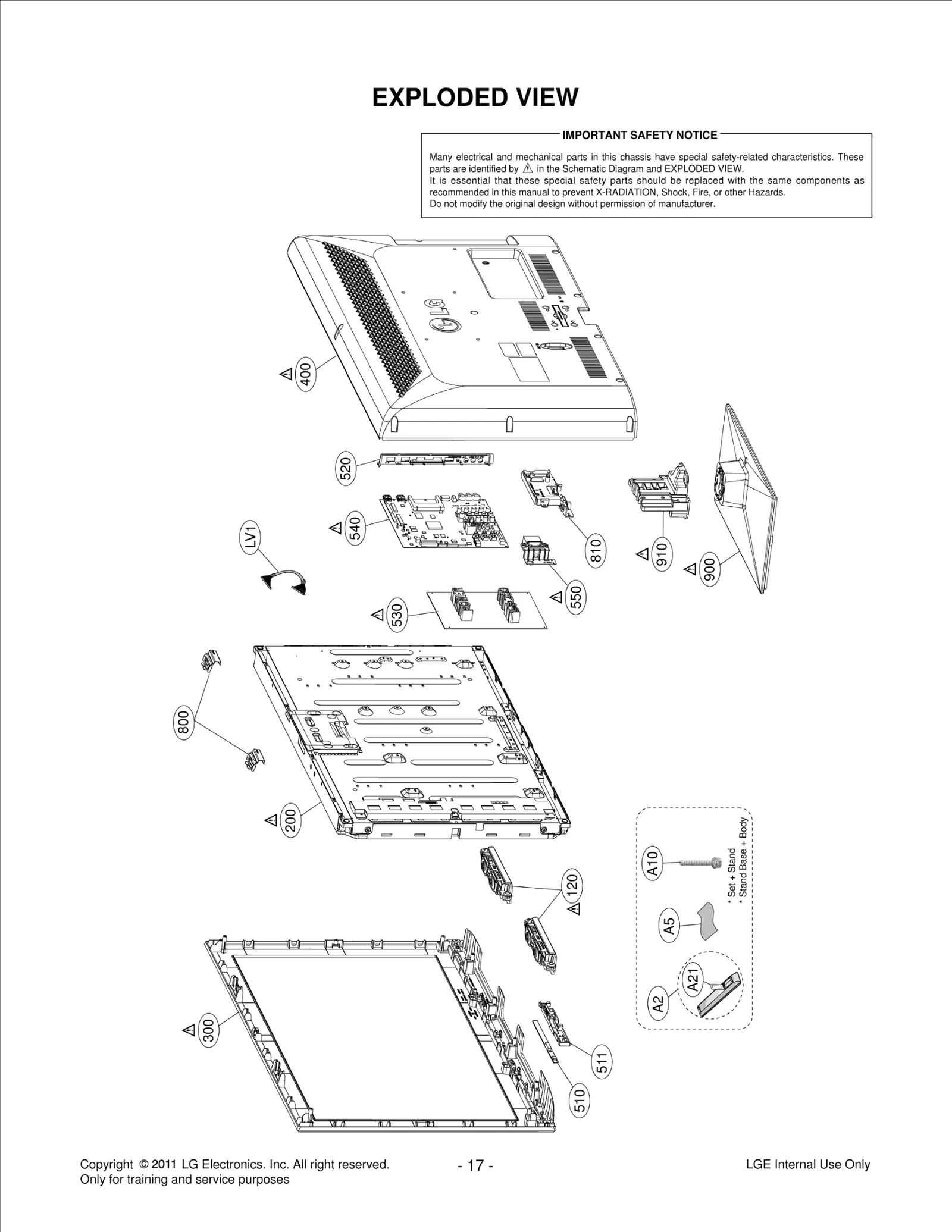

Diagram 0
Diagram 1
Common parts from model LG 32LK450-UB
200
LCD,Module-TFT LGE EAJ61752201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73289406 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83854606 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671301 Contact Us For Availability
530
Power Supply Assembly LGE EAY62308801 Contact Us For Availability
540
BPR Total Assembly LGE EBU61369611 Contact Us For Availability
550
PCB Assembly,Sub LGE EBR65472301 Contact Us For Availability
800
Supporter LGE MJH61884803 Contact Us For Availability
810
Supporter LGE MJH61879302 Contact Us For Availability
900
Base Assembly LGE AAN73532602 Contact Us For Availability
910
Supporter LGE MJH62255903 Contact Us For Availability
A1
Title LGE SAC34134216 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A8
Screw,Tapping LGE FAB30021301 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
C466
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
D2404
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
P703
Connector,Wafer LGE 6630V93270J Contact Us For Availability
R403
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R409
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R447
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R448
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R891
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R1014
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
× ![]()
