Model LG 32LH20 – Common Parts & Diagrams

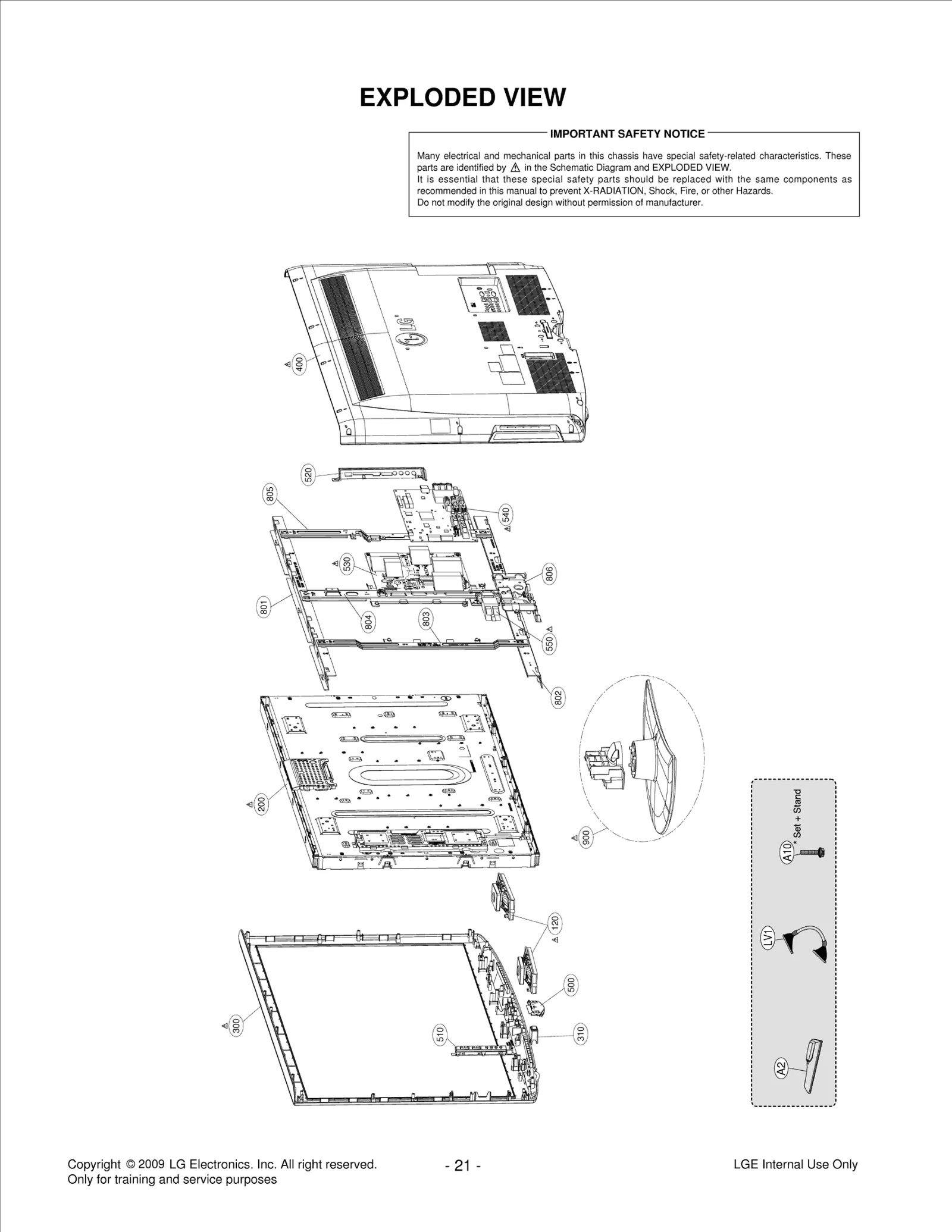

Diagram 0
Diagram 1
Common parts from model LG 32LH20
120
Speaker,Full Range LGE EAB58304302 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60719401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ58042701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ65676808 Contact Us For Availability
310
Switch,Rocker LGE EBF58261504 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ65676932 Contact Us For Availability
500
PCB Assembly,Front LGE EBR59217407 Contact Us For Availability
500
PCB Assembly,Front LGE EBR59217408 Contact Us For Availability
500
PCB Assembly,Front LGE EBR59217401 Contact Us For Availability
510
PCB Assembly LGE EBR60148103 Contact Us For Availability
520
Bracket LGE MAZ57320502 Contact Us For Availability
530
SMPS,AC/DC LGE EAY58582801 Contact Us For Availability
540
BPR Total Assembly LGE EBU60680301 Contact Us For Availability
801
Supporter LGE MJH56735411 Contact Us For Availability
802
Supporter LGE MJH56735608 Contact Us For Availability
803
Supporter LGE MJH56735801 Contact Us For Availability
804
Supporter LGE MJH56735901 Contact Us For Availability
805
Supporter LGE MJH56736001 Contact Us For Availability
900
Base Assembly LGE AAN67005513 Contact Us For Availability
A1
Manual,Owners LGE MFL58558501 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB69680401 Contact Us For Availability
A8
Screw,Tapping LGE FAB30021301 Contact Us For Availability
AR6
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR102
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR109
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1079
Resistor,Array LGE EBC32260601 Contact Us For Availability
C30
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C110
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C120
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C123
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C144
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C161
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C181
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C186
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C600
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C619
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C626
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C632
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C722
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C728
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C737
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C748
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C756
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C780
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C791
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C800
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1004
CAPACITOR,FIXED CERA LGE 0CC820CK41A Contact Us For Availability
C1006
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C1012
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C1035
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1036
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C1054
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C1078
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1207
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1208
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C1223
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1234
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1235
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
D500
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D1244
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC2
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC2
IC,DDR2 SDRAM LGE EAN60762901 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351601 Contact Us For Availability
IC103
IC,Reset LGE EAN43244901 Contact Us For Availability
IC105
IC,EEPROM LGE EAN61925801 Contact Us For Availability
IC105
IC,EEPROM LGE EAN62344701 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC107
IC,Reset LGE EAN60670101 Contact Us For Availability
IC500
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC503
TRANSISTOR,FETS LGE 0TFTH80001A Contact Us For Availability
IC600
IC,Audio Amplifier LGE EAN62449801 Contact Us For Availability
IC701
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC705
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC1002
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC1003
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC1200
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
JK501
Jack,DIN LGE EAG39789402 Contact Us For Availability
JK501
Jack,DIN LGE 6612B00015D Contact Us For Availability
JK601
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1200
Jack,Complex LGE EAG59952301 Contact Us For Availability
JK1201
Connector,DSUB LGE 6630G00001D Contact Us For Availability
JK1204
Connector,DSUB LGE 6630TGA004P Contact Us For Availability
JK1204
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK1205
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK1205
Jack,Phone LGE 6612F00099F Contact Us For Availability
L707
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L726
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L1001
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L1002
Inductor,Multilayer,Chip LGE EAP57674101 Contact Us For Availability
L1004
Inductor,Multilayer,Chip LGE EAP39314706 Contact Us For Availability
L1010
Filter,Bead LGE EAM42641602 Contact Us For Availability
L1218
Filter,Bead LGE EAM38769501 Contact Us For Availability
LD1000
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Harness,Single LGE EAD60690908 Contact Us For Availability
P600
WAFER LGE 6602T25009C Contact Us For Availability
P801
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
Q701
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q705
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q706
FET LGE EBK60706901 Contact Us For Availability
Q1000
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R6
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R9
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R44
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R151
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R192
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R227
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R260
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R530
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R542
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R617
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R621
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R626
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R713
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R723
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
R735
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R742
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R770
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R1011
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R1012
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1019
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R1062
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R1200
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1207
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R1220
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1228
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1240
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1243
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1249
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1298
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1299
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R2110
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R2115
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R2217
Resistor,Chip LGE 0RJ5111D477 Contact Us For Availability
R3003
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
SW100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW100
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW3005
SWITCH TACT LGE 140-313B Contact Us For Availability
TU1001
Tuner,Analog/Digital LGE EBL60152901 Contact Us For Availability
VR509
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1005
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
