Model LG 32LG3DCH – Common Parts & Diagrams

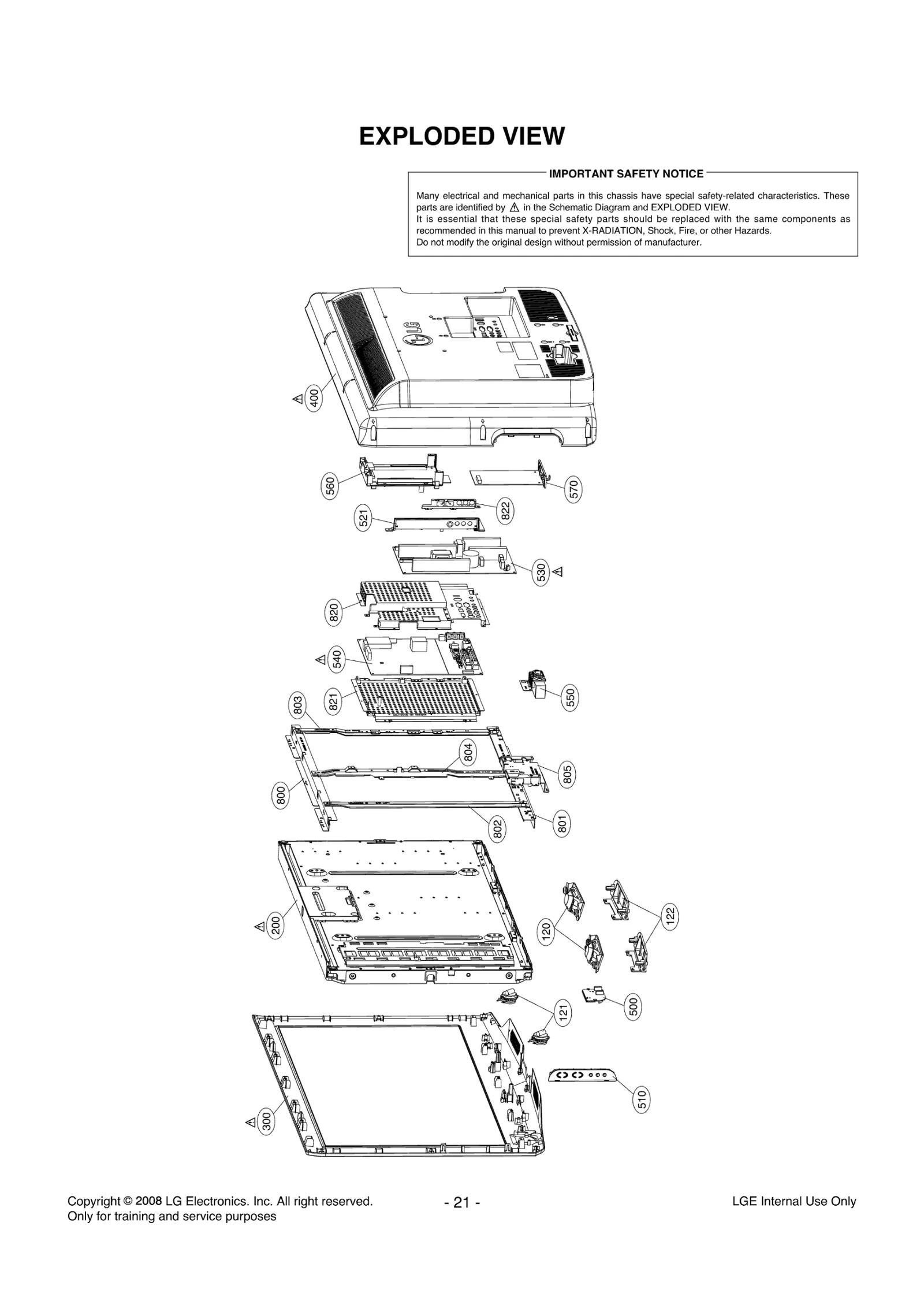

Diagram 0
Diagram 1
Common parts from model LG 32LG3DCH
120
Speaker,Full Range LGE EAB41280201 Contact Us For Availability
121
Speaker,Tweeter LGE EAB41284401 Contact Us For Availability
122
Bracket Assembly LGE ABA35815702 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ36191201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35835014 Contact Us For Availability
400
Cover Assembly LGE ACQ36519604 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR54300001 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR43245702 Contact Us For Availability
521
Bracket Assembly LGE ABA35157205 Contact Us For Availability
530
SMPS,AC/DC LGE EAY43953101 Contact Us For Availability
540
Main Total Assembly LGE EBU43176202 Contact Us For Availability
550
Chassis Assembly LGE EBT36115118 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR37151801 Contact Us For Availability
570
Chassis Assembly LGE EBT35739901 Contact Us For Availability
800
Supporter LGE MJH40621406 Contact Us For Availability
801
Supporter LGE MJH40619108 Contact Us For Availability
802
Plate,Metal LGE MGJ40618304 Contact Us For Availability
803
Plate LGE MGJ41869502 Contact Us For Availability
804
Plate LGE MGJ41869302 Contact Us For Availability
805
Plate,Metal LGE MGJ40620502 Contact Us For Availability
820
Plate,Metal LGE MGJ47305602 Contact Us For Availability
821
Plate,Shield LGE MGJ40842104 Contact Us For Availability
822
Plate,Shield LGE MGJ40651702 Contact Us For Availability
A1
Manual,Owners LGE MFL34797072 Contact Us For Availability
A3
Power Cord LGE EAD52200001 Contact Us For Availability
A4
Title LGE SAC30708026 Contact Us For Availability
AR102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1001
Resistor,Array LGE EBC32260601 Contact Us For Availability
C1
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C100
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C103
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C121
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C131
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C142
Capacitor,Ceramic,Chip LGE 0CH3224K946 Contact Us For Availability
C406
Capacitor,Ceramic,Ch LGE 0CH5240K416 Contact Us For Availability
C412
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C423
CAPACITOR,FIXED CERA LGE 0CK225DFK4A Contact Us For Availability
C433
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C441
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C519
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C523
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C538
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C549
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C564
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C566
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
C612
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C702
CAPACITOR,FIXED CERA LGE 0CK225DH94A Contact Us For Availability
C704
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C708
CAPACITOR,FIXED ELEC LGE 0CE337WH6DC Contact Us For Availability
C712
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C732
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C769
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C787
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C790
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C808
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C903
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C910
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C917
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C918
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C923
CAPACITOR,FIXED CERA LGE 0CK222CK51A Contact Us For Availability
C1003
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C1008
Capacitor,TA,Niobium LGE 0CS335EFKDC Contact Us For Availability
C1107
CAPACITOR,FIXED CERA LGE 0CK476FD67A Contact Us For Availability
C1110
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1204
LGE 0CK2230K945 LGE 0CK2230K945 Contact Us For Availability
C1205
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK1040K945 Contact Us For Availability
C1206
Capacitor,Ceramic,Radial LGE 0CK22201510 Contact Us For Availability
C1208
Capacitor,AL,Chip LGE 0CE106SH6DC Contact Us For Availability
C1213
CAPACITOR,FIXED CERA LGE 0CK152CK51A Contact Us For Availability
C1214
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C1216
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C1702
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C1706
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
D2
JACK,MODULAR LGE 6612E00008A Contact Us For Availability
D505
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D506
LGE 0DD181009AB LGE 0DD181009AB Contact Us For Availability
D618
Diode,TVS LGE EAH33945901 Contact Us For Availability
D904
DIODE,RECTIFIERS LGE 0DRON00228B Contact Us For Availability
D1200
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D1204
Diode,Switching LGE EAH32415201 Contact Us For Availability
IC100
REMOTE CONTROLLER RE LGE 6712SCA232A Contact Us For Availability
IC102
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC104
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC105
IC,Serial Flash Memory LGE EAN42961201 Contact Us For Availability
IC200
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC400
IC,Data Controller LGE 0ICTMLG019C Contact Us For Availability
IC500
IC,Audio Amplifier LGE EAN41584001 Contact Us For Availability
IC501
IC,PERIPHERALS LGE 0IPRPTI063A Contact Us For Availability
IC502
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
IC701
IC,DC,DC Converter LGE EAN33143501 Contact Us For Availability
IC703
IC,LDO Voltage Regulator LGE 0IPMG78342A Contact Us For Availability
IC707
IC,MICRO CONTROLLER LGE 0IMCRSJ001A Contact Us For Availability
IC708
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC710
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC800
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC900
IC,Unclassified LGE 0IMCR02109D Contact Us For Availability
IC901
IC,FRAM LGE 0IMMRRA001A Contact Us For Availability
IC903
IC,DC,DC Converter LGE 0IPMG78506A Contact Us For Availability
IC1000
DTV A/V SoC 1 LGE EAN38068401 Contact Us For Availability
IC1100
IC,Analog Switch LGE EAN30193401 Contact Us For Availability
IC1204
IC,POWER MANAGEMENT LGE 0IPMGON013B Contact Us For Availability
IC1204
IC,PWM Controller LGE EAN30840501 Contact Us For Availability
JK600
Jack,RCA LGE 6612J10038A Contact Us For Availability
JK605
CONNECTOR (CIRC),D-S LGE 6630G70016A Contact Us For Availability
JK800
Jack,DIN LGE 6612B00015C Contact Us For Availability
JK900
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK1100
Connector,DSUB LGE 6630G00001A Contact Us For Availability
JK1103
Jack,DIN LGE EAG42923501 Contact Us For Availability
JK1200
JACK,PHONE LGE 6612F00001D Contact Us For Availability
L100
Filter,Bead LGE EAM38769506 Contact Us For Availability
L315
Filter,Bead LGE EAM38769501 Contact Us For Availability
L402
INDUCTOR,CHIP LGE 0LCML00020B Contact Us For Availability
L407
Inductor,Multilayer, LGE EAP39314701 Contact Us For Availability
L516
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L700
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L710
Filter,Bead LGE EAM30764101 Contact Us For Availability
L908
Inductor,Multilayer,Chip LGE EAP39314710 Contact Us For Availability
L911
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L913
COIL,CHOKE LGE 6140TBZ048B Contact Us For Availability
L1004
Filter,Bead LGE EAM38769505 Contact Us For Availability
LD102
LED LGE 0DL200000CA Contact Us For Availability
LD904
LED LGE 0DL233309AC Contact Us For Availability
LV1
Harness,Single LGE EAD43289502 Contact Us For Availability
P101
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P103
Connector,Wafer LGE 366-921K Contact Us For Availability
P301
Connector,Wafer LGE EAG39798202 Contact Us For Availability
P900
Conector,Wafer LGE 6602T20009K Contact Us For Availability
P1200
WAFER LGE 6602T25009C Contact Us For Availability
P1200
Conector,BtoB LGE 6630B00171A Contact Us For Availability
Q102
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q1908
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1910
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R100
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R101
RESISTOR CHIP 6.2K 1/10W 5 D.R LGE 0RH6201D622 Contact Us For Availability
R102
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R106
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R107
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R108
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R110
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R113
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R116
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R175
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R215
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R226
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R301
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R411
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R423
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R542
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R543
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R560
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R603
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R616
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R638
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R670
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R706
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R707
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R715
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R740
Resistor,Chip LGE 0RJ4320D477 Contact Us For Availability
R769
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R813
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R910
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R928
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R936
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R937
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R943
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R966
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R989
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R994
RESISTOR CHIP 6.8K 1/10W 5 D. LGE 0RH6801D622 Contact Us For Availability
R1208
Resistor,Carbon Film LGE 0RD0221A609 Contact Us For Availability
R1210
Resistor,Metal Film LGE 0RKZVTA001D Contact Us For Availability
R1233
RESISTOR,METAL GLAZE LGE 0RJ1001G476 Contact Us For Availability
R1234
Resistor,Chip LGE 0RJ0101G676 Contact Us For Availability
R1235
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R1237
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
RL1201
Relay,Contact LGE EBB43539401 Contact Us For Availability
S1
Harness,Single LGE 6631V12031J Contact Us For Availability
S2
Harness,Single LGE EAD42560501 Contact Us For Availability
S3
Harness,Single LGE EAD39295713 Contact Us For Availability
S5
S/W,Firmware LGE SAA32908109 Contact Us For Availability
S6
CONNECTOR ASSEMBLY LGE 6631T20023A Contact Us For Availability
S8
S/W,Firmware LGE SAA30928415 Contact Us For Availability
S9
Harness,Single LGE 6631900049N Contact Us For Availability
SW100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW106
SWITCH TACT LGE 140-313B Contact Us For Availability
SW1200
Switch,Slide LGE 6600H000005 Contact Us For Availability
T1200
Transformer,Switching LGE EBJ48974601 Contact Us For Availability
T1203
Transformer,Switching LGE EBJ48974701 Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
ZD905
DIODE,ZENERS LGE 0DZ120009BG Contact Us For Availability
× ![]()
Login and Registration Form
