Model LG 32LD655H – Common Parts & Diagrams

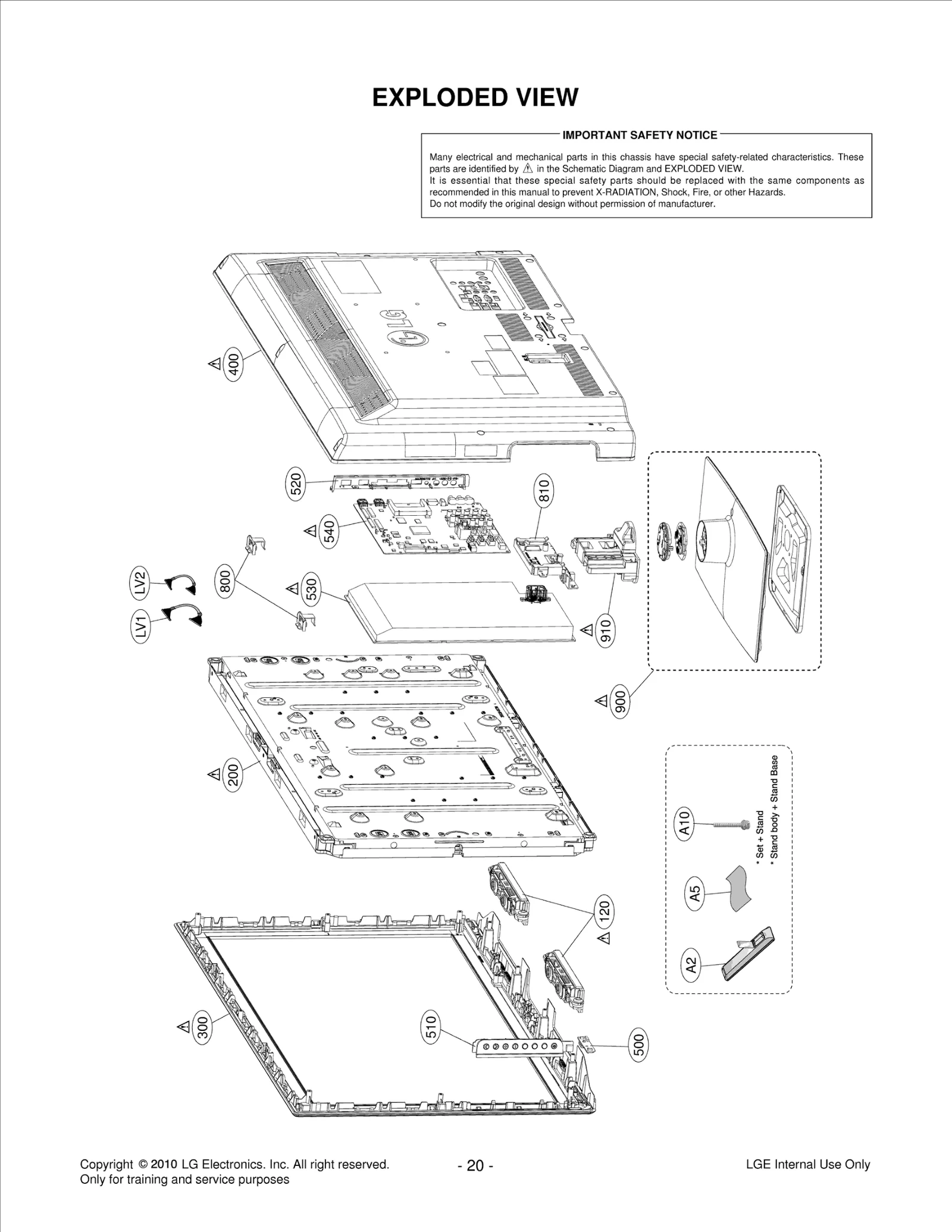

Diagram 0
Diagram 1
Common parts from model LG 32LD655H
120
Speaker,Full Range LGE EAB60961401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60870501 Contact Us For Availability
300
Cover Assembly LGE ACQ74876233 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ77094305 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64966003 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR71642501 Contact Us For Availability
520
Bracket Assembly LGE ABA72942718 Contact Us For Availability
530
SMPS,AC/DC LGE EAY61209301 Contact Us For Availability
540
PCB Assembly LGE EBR71650301 Contact Us For Availability
560
Package Assembly LGE AGF73983404 Contact Us For Availability
610
Supporter LGE MJH59708302 Contact Us For Availability
800
Supporter LGE MJH61884804 Contact Us For Availability
810
Supporter LGE MJH61879302 Contact Us For Availability
900
Base Assembly LGE AAN73230508 Contact Us For Availability
910
Bracket Assembly LGE ABA73428502 Contact Us For Availability
A2
Remote Controller LGE MKJ40653832 Contact Us For Availability
A3
Power Cord LGE 6410VUH005F Contact Us For Availability
A3
Power Cord,Detach LGE EAD60817903 Contact Us For Availability
A4
Cover LGE MCK62680202 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A10
Screw Assembly, stand LGE FAB30016106 Contact Us For Availability
AR602
Resistor,Array LGE EBC37094001 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C126
CAPACITOR,FIXED CERA LGE 0CC820CK41A Contact Us For Availability
C136
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C139
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C302
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C310
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C322
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C327
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C340
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C354
Capacitor,Ceramic,Chip LGE 0CH2122K516 Contact Us For Availability
C400
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C407
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C426
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C437
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C440
Capacitor,Ceramic,Ch LGE EAE36882801 Contact Us For Availability
C441
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C445
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C453
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C501
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C515
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C525
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C526
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE 0CC050CK11A Contact Us For Availability
C801
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C803
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C804
Capacitor,Ceramic,Chip LGE 0CK475FHG6A Contact Us For Availability
C904
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C1011
Capacitor,Ceramic,Chip LGE EAE60685701 Contact Us For Availability
C1023
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C1033
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1039
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C1069
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C1127
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C1246
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1405
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1412
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1502
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1503
Capacitor,AL,Chip LGE EAE38362601 Contact Us For Availability
C1505
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C1509
Capacitor,Ceramic,Chip LGE EAE37992001 Contact Us For Availability
C1529
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C1612
Capacitor,AL,Chip LGE EAE30840201 Contact Us For Availability
C1613
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C1617
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1729
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C1819
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C1831
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1832
CAPACITOR,FIXED ELEC LGE 0CE476VH6DC Contact Us For Availability
C1833
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C1834
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1837
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C2226
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
CA2
Harness,Single LGE EAD52821212 Contact Us For Availability
CA3
Harness,Single LGE EAD60676306 Contact Us For Availability
CA4
CONNECTOR ASSEMBLY LGE 6631T20020Q Contact Us For Availability
CA4
Harness,Single LGE EAD60958515 Contact Us For Availability
CA5
Harness,Single High Power (6 inch) LGE EAD35908101 Contact Us For Availability
D2
JACK,MODULAR LGE 6612E00008A Contact Us For Availability
D400
Diode,Schottky LGE EAH39250401 Contact Us For Availability
D501
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
D1403
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1405
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D1510
Diode,TVS LGE EAH33945901 Contact Us For Availability
IC101
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC102
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC201
IC,Analog Switch LGE EAN43489301 Contact Us For Availability
IC300
IC,PERIPHERALS LGE 0IPRPTI063A Contact Us For Availability
IC400
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC401
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC402
IC,POWER MANAGEMENT LGE 0IPMG00063A Contact Us For Availability
IC403
IC,Charge Pump LGE EAN61132201 Contact Us For Availability
IC404
IC,DC,DC Converter LGE EAN60660801 Contact Us For Availability
IC501
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC505
IC,FRAM LGE 0IMMRRA001A Contact Us For Availability
IC602
IC,DDR2 SDRAM LGE EAN60221201 Contact Us For Availability
IC800
DTV A/V SoC 1 LGE EAN38068401 Contact Us For Availability
IC901
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC902
IC,NAND Flash Memory LGE EAN60762401 Contact Us For Availability
IC903
IC,Reset LGE EAN60670101 Contact Us For Availability
IC1400
IC,Analog Switch LGE EAN43439401 Contact Us For Availability
IC1401
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC1501
IC,Video Decode LGE 0IPRP00630E Contact Us For Availability
IC1603
IC,DC,DC Converter LGE EAN60911601 Contact Us For Availability
IC1604
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC1700
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC1701
IC,Inverter LGE 0IPH741400C Contact Us For Availability
JK201
Jack,DIN LGE EAG59023303 Contact Us For Availability
JK300
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK500
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK1402
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1701
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK1801
Jack,Modular LGE 6612E00008C Contact Us For Availability
JK1803
Connector,BtoB LGE EAG60981201 Contact Us For Availability
L104
Inductor,Multilayer,Chip LGE EAP39314706 Contact Us For Availability
L107
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L402
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
L408
Filter,Bead LGE EAM38769501 Contact Us For Availability
L416
Inductor,Wire Wound,Chip LGE EAP40632501 Contact Us For Availability
L706
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1011
Inductor,Wire Wound, LGE EAP37991401 Contact Us For Availability
L1201
Filter,Bead LGE EAM42557601 Contact Us For Availability
LD501
LED LGE 0DL233309AC Contact Us For Availability
LD502
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Harness,Single LGE EAD35683002 Contact Us For Availability
LV2
Harness,Single LGE EAD60673304 Contact Us For Availability
M1
Gasket LGE MDS62110202 Contact Us For Availability
P101
Connector,BtoB LGE EAG61233801 Contact Us For Availability
P103
Connector,Wafer LGE 366-921K Contact Us For Availability
P300
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P400
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P501
Conector,BtoB LGE 6630V25002F Contact Us For Availability
P701
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P702
Connector,Wafer LGE 6630V90116A Contact Us For Availability
P703
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P1000
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P1200
Connector,BtoB LGE EAG61233701 Contact Us For Availability
P1700
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P3000
Connector,Wafer LGE 6630V90141B Contact Us For Availability
Q302
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q402
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q500
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q1806
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R100
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R101
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R103
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R106
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R109
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R112
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R113
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R117
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R128
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R132
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R307
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R340
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R355
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R359
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R410
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R412
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R445
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R446
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R601
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R962
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R973
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R982
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R995
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R997
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1014
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R1015
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R1065
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1082
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1124
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R1128
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R1153
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1431
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1433
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R1444
Resistor,Chip LGE 0RJ0492D477 Contact Us For Availability
R1450
Resistor,Chip LGE EBC35172101 Contact Us For Availability
R1457
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1464
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R1506
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R1606
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1626
Resistor,Chip LGE 0RJ9103C478 Contact Us For Availability
R1733
Resistor,Chip LGE 0RJ0342D477 Contact Us For Availability
R1743
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R1761
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1800
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1855
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1878
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1885
Resistor,Chip LGE EBC60973201 Contact Us For Availability
R1893
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R1894
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R2226
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R3001
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R3003
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R3004
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R5080
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R5099
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R5100
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R5102
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R5128
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R5136
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R5178
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R9114
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R9115
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R9118
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R9122
Resistor,Chip LGE 0RJ0182D677 Contact Us For Availability
SW900
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW3007
Switch,Tact LGE EBF60693201 Contact Us For Availability
TU100
Tuner,Analog/Digital LGE EBL60720402 Contact Us For Availability
TU1800
Tuner,RF Modulator LGE EBL60659402 Contact Us For Availability
X500
Crystal LGE EAW39040101 Contact Us For Availability
ZD506
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
ZD1067
Diode,Zener LGE EAH37908001 Contact Us For Availability
ZD1500
Diode,Zener LGE 0DZVH00348A Contact Us For Availability
ZD1717
Diode,TVS LGE EAH39491701 Contact Us For Availability
× ![]()
Login and Registration Form
