Model LG 32LD360L – Common Parts & Diagrams
Diagram 0
Diagram 1

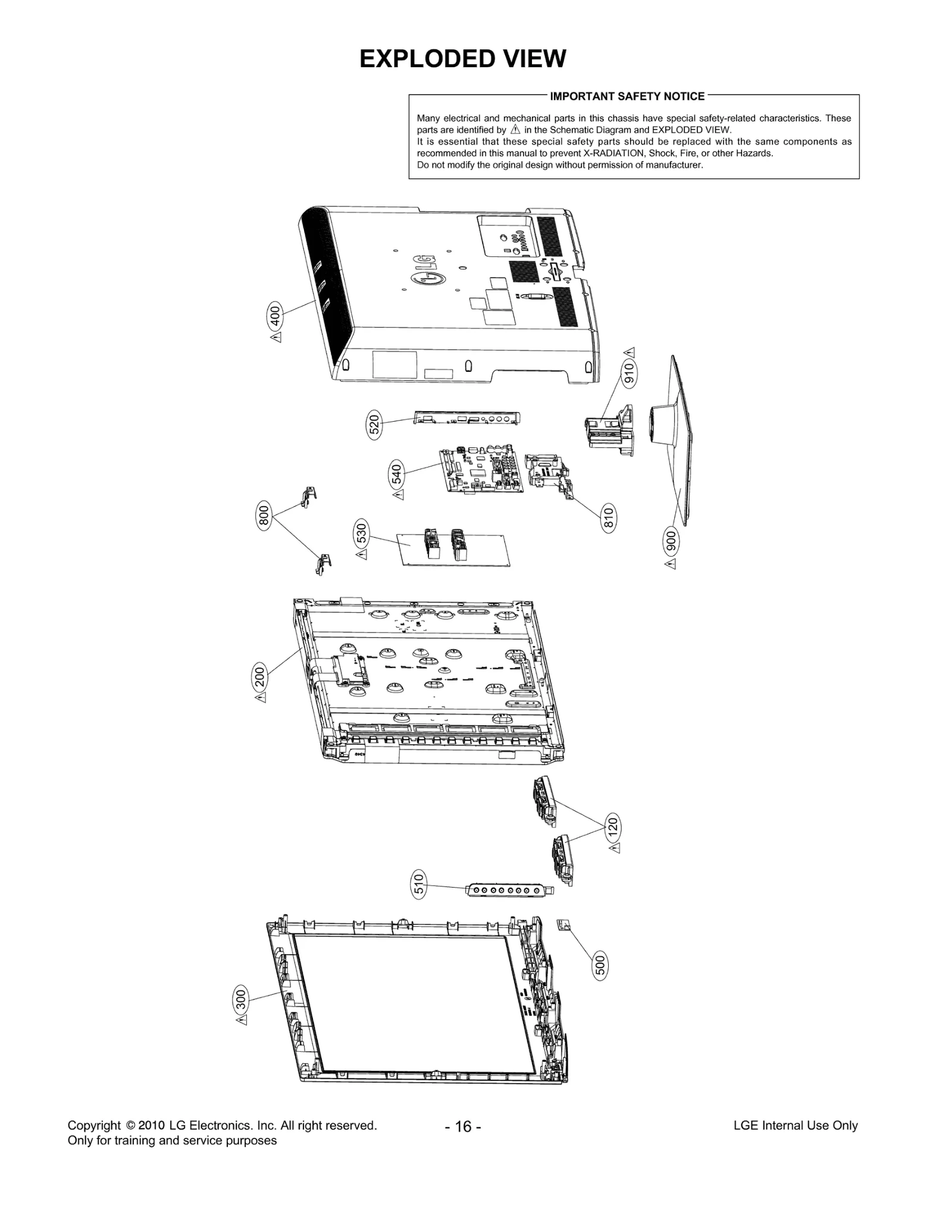

Common parts from model LG 32LD360L
120
Speaker,Full Range LGE EAB60961401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60870501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72926519 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75183424 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64965302 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR69844101 Contact Us For Availability
520
Bracket Assembly LGE ABA73009521 Contact Us For Availability
530
Power Supply Assembly LGE EAY60869101 Contact Us For Availability
540
PCB Assembly,Main LGE EBR69485503 Contact Us For Availability
800
Supporter LGE MJH61884804 Contact Us For Availability
810
Supporter LGE MJH61887501 Contact Us For Availability
900
Base Assembly LGE AAN72947815 Contact Us For Availability
A1
Manual,Owners LGE MFL62194606 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73075301 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A10
Screw Assembly, stand LGE FAB30016106 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
A23
Cover LGE MCK62680204 Contact Us For Availability
AR14
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR108
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C13
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C105
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C132
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C137
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C181
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C187
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C451
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C458
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C630
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C642
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C646
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C1003
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1028
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C1068
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1072
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1129
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1230
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1243
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C2111
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C3302
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5000
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C5012
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
CA2
Harness,Single LGE EAD60673312 Contact Us For Availability
CA3
Harness,Single LGE EAD35908416 Contact Us For Availability
CA4
Harness,Single LGE EAD60958506 Contact Us For Availability
CA5
Harness,Single LGE EAD52821207 Contact Us For Availability
CA6
Harness,Single LGE EAD60676306 Contact Us For Availability
D1000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D7703
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC2
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351601 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC407
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC602
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC5001
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK1106
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1201
Connector,DSUB LGE 6630G00001E Contact Us For Availability
L118
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L422
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
LV1
Cable,FFC LGE EAD61070453 Contact Us For Availability
P600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P2401
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P3000
Connector,Wafer LGE 6630V90141B Contact Us For Availability
Q600
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q7703
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R11
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R23
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R31
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R106
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R173
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R187
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R232
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R623
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R1077
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1102
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1108
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R1142
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1143
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1302
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R2112
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R2118
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R3001
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R3004
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R3005
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R5018
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R5033
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R7703
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R7745
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R7759
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R9815
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
SW100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW3006
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
TU5001
Tuner,Analog/Digital LGE EBL60720401 Contact Us For Availability
VR7700
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1005
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
ZD504
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
ZD505
Diode,Zener LGE EAH37908001 Contact Us For Availability
× ![]()
