Model LG 32LD350C – Common Parts & Diagrams
Diagram 0

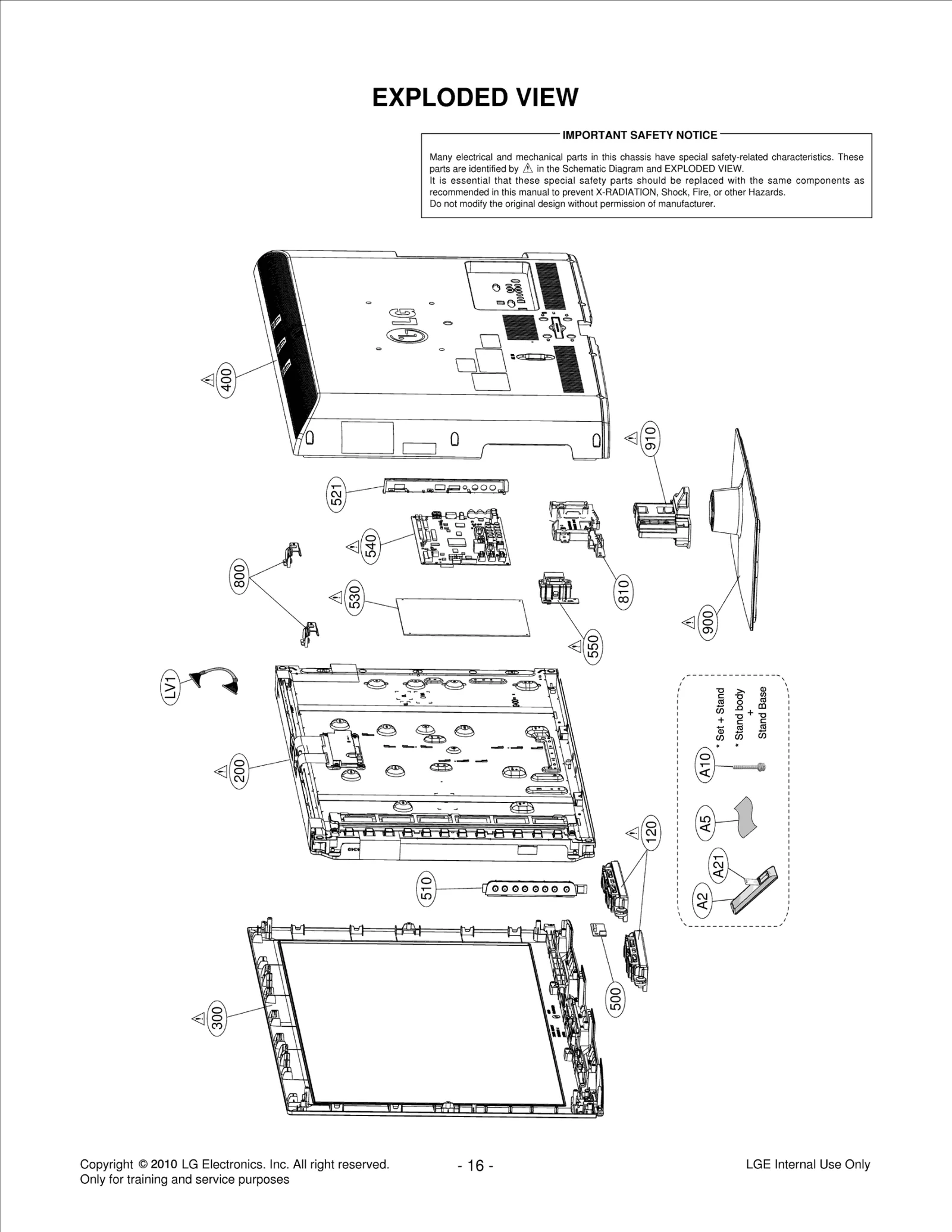

Diagram 1
Common parts from model LG 32LD350C
120
Speaker,Full Range LGE EAB60961401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60890301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72926520 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75183424 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64965302 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR69844101 Contact Us For Availability
521
Bracket Assembly LGE ABA73009521 Contact Us For Availability
530
Power Supply Assembly LGE EAY60868901 Contact Us For Availability
540
PCB Assembly,Main LGE EBR70047001 Contact Us For Availability
550
Filter,AC Line LGE EAM60352209 Contact Us For Availability
800
Supporter LGE MJH61884806 Contact Us For Availability
810
Supporter LGE MJH61887501 Contact Us For Availability
900
Base Assembly LGE AAN72947816 Contact Us For Availability
A1
Manual,Owners LGE MFL62194606 Contact Us For Availability
A4
Cover LGE MCK62680202 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A10
Screw Assembly, stand LGE FAB30016106 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR8
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR109
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1079
Resistor,Array LGE EBC32260601 Contact Us For Availability
C3
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C30
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C111
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C118
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C120
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C121
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C145
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C181
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C187
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C402
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C451
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C459
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C464
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C603
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C617
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C621
CAPACITOR,FIXED ELEC LGE 0CE226WJ6DC Contact Us For Availability
C622
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C629
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C642
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C658
Capacitor,AL,Chip LGE JCE8106J691 Contact Us For Availability
C659
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C663
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C670
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C808
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1003
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1004
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C1038
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C1072
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1127
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1232
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1239
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1243
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C2138
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2306
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C3303
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5000
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C5010
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C5012
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
CA3
Harness,Single LGE EAD60673312 Contact Us For Availability
CA4
Harness,Single LGE EAD60958506 Contact Us For Availability
CA4
Harness,Single LGE 6631900049P Contact Us For Availability
CA5
Harness,Single LGE EAD52821207 Contact Us For Availability
CA6
Harness,Single LGE EAD60676306 Contact Us For Availability
D1000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D7703
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D9807
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC2
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351601 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC103
IC,Reset LGE EAN43244901 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC400
IC,LDO Voltage Regulator LGE EAN60990601 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC409
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC602
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC1000
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC1104
IC,CMOS LGE EAN42650901 Contact Us For Availability
IC2301
IC,Analog Switch LGE EAN43439401 Contact Us For Availability
IC5001
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC7700
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK1106
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1201
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK3302
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK9800
Jack,RCA LGE EAG61008003 Contact Us For Availability
L116
Filter,Bead LGE EAM38769501 Contact Us For Availability
L414
Filter,Bead LGE EAM58042501 Contact Us For Availability
L415
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L424
Filter,Bead LGE EAM58113401 Contact Us For Availability
L2301
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD1000
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Cable,FFC LGE EAD61070403 Contact Us For Availability
P403
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P802
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
P2401
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P3000
Connector,Wafer LGE 6630V90141B Contact Us For Availability
Q500
FET LGE EBK60752501 Contact Us For Availability
Q7701
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q7703
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R114
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R225
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R260
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R409
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R414
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R448
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R619
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R624
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R626
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R810
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1012
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1018
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R1062
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R1063
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1077
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1103
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1108
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R1111
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1273
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1302
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R2108
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R2115
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R2301
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R2414
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3005
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R3006
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R3301
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R5008
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R5011
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R5022
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R5033
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R7745
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R7759
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R9812
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R9815
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
SW100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW3008
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
TU5001
Tuner,Analog/Digital LGE EBL60720401 Contact Us For Availability
VR7700
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1005
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
ZD501
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
ZD505
Diode,Zener LGE EAH37908001 Contact Us For Availability
× ![]()
Login and Registration Form
