Model LG 32LD325H – Common Parts & Diagrams

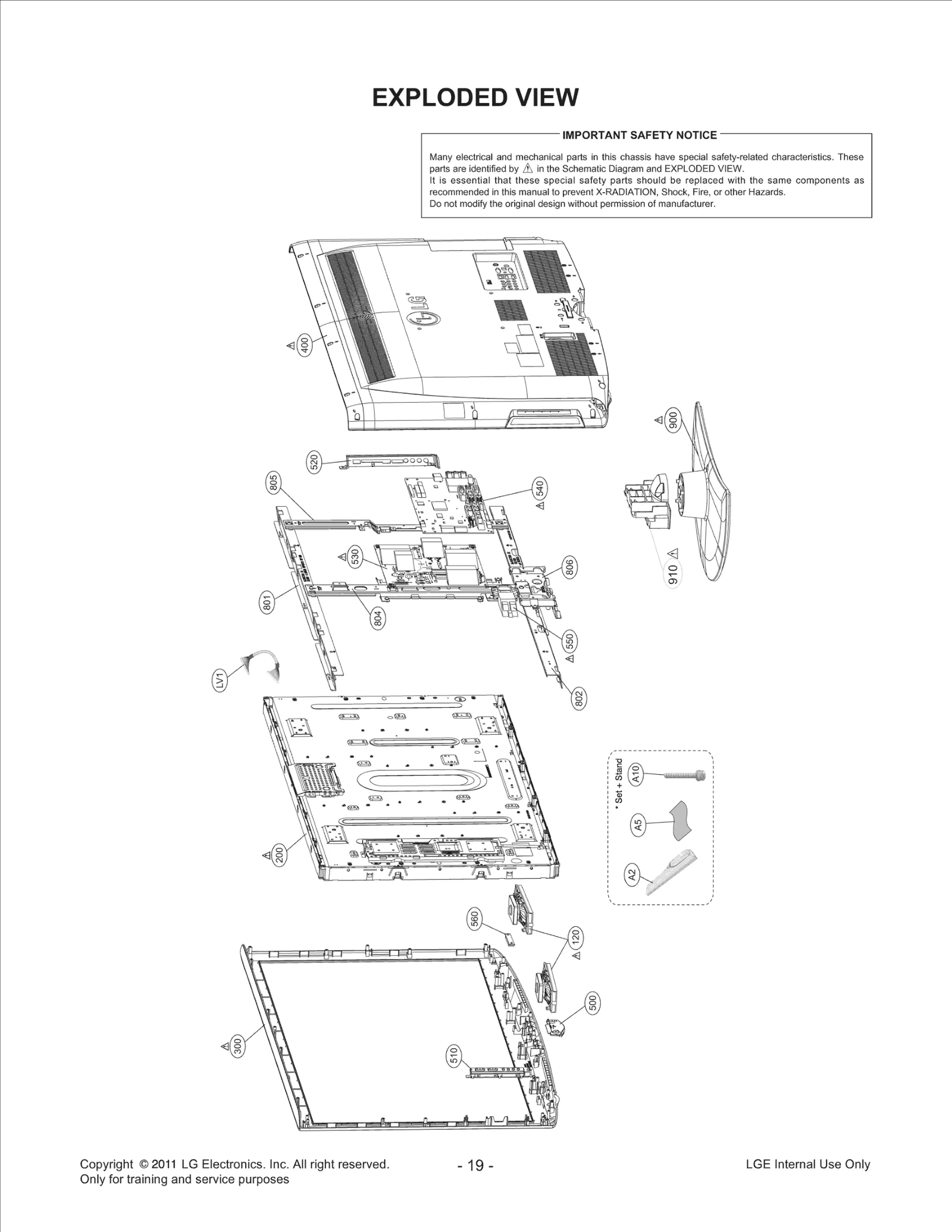

Diagram 0
Diagram 1
Common parts from model LG 32LD325H
120
Speaker,Full Range LGE EAB58304302 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60870501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ65676822 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ74113210 Contact Us For Availability
500
Package Assembly LGE AGF73983701 Contact Us For Availability
510
Package Assembly LGE AGF73983607 Contact Us For Availability
520
Bracket Assembly LGE ABA73131909 Contact Us For Availability
530
SMPS,AC/DC LGE EAY61209301 Contact Us For Availability
540
PCB Assembly LGE EBR63424021 Contact Us For Availability
550
Filter,AC Line LGE EAM60352206 Contact Us For Availability
560
Package Assembly LGE AGF73983403 Contact Us For Availability
801
Supporter LGE MJH56735405 Contact Us For Availability
802
Supporter LGE MJH56735604 Contact Us For Availability
804
Supporter LGE MJH62015406 Contact Us For Availability
805
Supporter LGE MJH62015504 Contact Us For Availability
806
Supporter LGE MJH56736102 Contact Us For Availability
900
Base Assembly LGE AAN73230508 Contact Us For Availability
910
Bracket Assembly LGE ABA73831102 Contact Us For Availability
A1
Manual,Owners LGE MFL62194612 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915231 Contact Us For Availability
A3
Power Cord LGE 6410VUH005F Contact Us For Availability
A21
Cover LGE MCK57173102 Contact Us For Availability
AR104
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1220
Resistor,Array LGE EBC32260404 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C212
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C287
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C402
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C414
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C465
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C488
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C489
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C522
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C531
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C537
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C802
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1004
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1009
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1011
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1131
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C1134
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C1136
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C1412
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C1470
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1481
CAPACITOR,FIXED ELEC LGE 0CE476VH6DC Contact Us For Availability
C1482
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C1484
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1510
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1601
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C1603
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C1618
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C1620
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C1626
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C2001
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C2004
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C2185
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C2189
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C2191
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C4060
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C5019
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C5031
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C6018
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
CA1
Harness,Single LGE EAD39295754 Contact Us For Availability
CA2
Harness,Single LGE EAD35983004 Contact Us For Availability
CA3
Harness,Single LGE EAD35908416 Contact Us For Availability
CA3
Harness,Single LGE EAD60676302 Contact Us For Availability
CA5
Harness,Single LGE EAD60673305 Contact Us For Availability
CA6
CONNECTOR ASSEMBLY LGE 6631T20020Q Contact Us For Availability
CAB1
CABLE,COAXIAL LGE 68509A0004A Contact Us For Availability
D2
JACK,MODULAR LGE 6612E00008A Contact Us For Availability
D607
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D1002
Diode,TVS LGE EAH39491701 Contact Us For Availability
D1004
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D1602
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
HGF
Tape,Non Woven LGE RAB33013802 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN60920002 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC103
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC200
IC,Serial Flash Memory LGE EAN60970401 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC410
IC,DC,DC Converter LGE EAN60922901 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC801
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC1000
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC1100
IC,PERIPHERALS LGE 0IPRPTI063A Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN60899901 Contact Us For Availability
IC1209
DTV A/V SoC 1 LGE EAN38068401 Contact Us For Availability
IC1401
IC,Multiplexer LGE EAN61151201 Contact Us For Availability
IC1500
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC1600
IC,Charge Pump LGE EAN61132201 Contact Us For Availability
IC1601
IC,DC,DC Converter LGE EAN60660801 Contact Us For Availability
IC1607
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC1608
IC,FRAM LGE 0IMMRRA001A Contact Us For Availability
IC2000
Receiver Module LGE EAV57327102 Contact Us For Availability
IC5001
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
JK1000
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK1401
Jack,Modular LGE 6612E00008C Contact Us For Availability
JK6000
Jack,Modular LGE 6612E00043A Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L416
Filter,Bead LGE EAM58113401 Contact Us For Availability
L421
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L1233
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1601
Inductor,Wire Wound,Chip LGE EAP40632501 Contact Us For Availability
L2000
Filter,Bead LGE EAM38769505 Contact Us For Availability
L6001
Filter,Bead LGE EAM38769501 Contact Us For Availability
LD501
LED LGE 0DL233309AC Contact Us For Availability
LD503
LED,Chip LGE 0DL210009GC Contact Us For Availability
LED2000
LED,Chip LGE EAV44273501 Contact Us For Availability
LV1
Harness,Single LGE EAD35683002 Contact Us For Availability
M3
Gasket LGE MDS61887701 Contact Us For Availability
P101
Connector,BtoB LGE EAG61233801 Contact Us For Availability
P103
Connector,Wafer LGE 366-921K Contact Us For Availability
P502
WAFER LGE 6602T25009C Contact Us For Availability
P705
Connector,Wafer LGE 6630V90116A Contact Us For Availability
P1000
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P1103
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P1200
Connector,BtoB LGE EAG61233701 Contact Us For Availability
P1400
Connector,BtoB LGE EAG60981201 Contact Us For Availability
P1601
Conector,BtoB LGE 6630V25002F Contact Us For Availability
P6000
Connector,Wafer LGE EAG58732902 Contact Us For Availability
Q102
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q407
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q1114
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1471
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q2001
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
R100
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R103
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R106
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R109
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R112
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R113
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R207
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R280
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R291
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R488
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R492
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R493
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R521
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R1036
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1041
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1103
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1117
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R1118
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R1132
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1133
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1203
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1228
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1238
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1432
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1473
Resistor,Chip LGE EBC60973201 Contact Us For Availability
R1492
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R1500
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R1525
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1609
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1612
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R1613
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R1617
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1646
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1651
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R1664
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1705
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R1726
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1737
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R2002
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R2564
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R3004
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R3005
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R3814
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R3823
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R5018
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R5033
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R6007
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R6008
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R6105
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
SW3008
SWITCH TACT LGE 140-313B Contact Us For Availability
TU1002
Tuner,RF Modulator LGE EBL60659401 Contact Us For Availability
TU5001
Tuner,Analog/Digital LGE EBL60720402 Contact Us For Availability
X1600
Crystal LGE EAW39040101 Contact Us For Availability
ZD6009
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
Login and Registration Form
