Model LG 32LC7DC – Common Parts & Diagrams

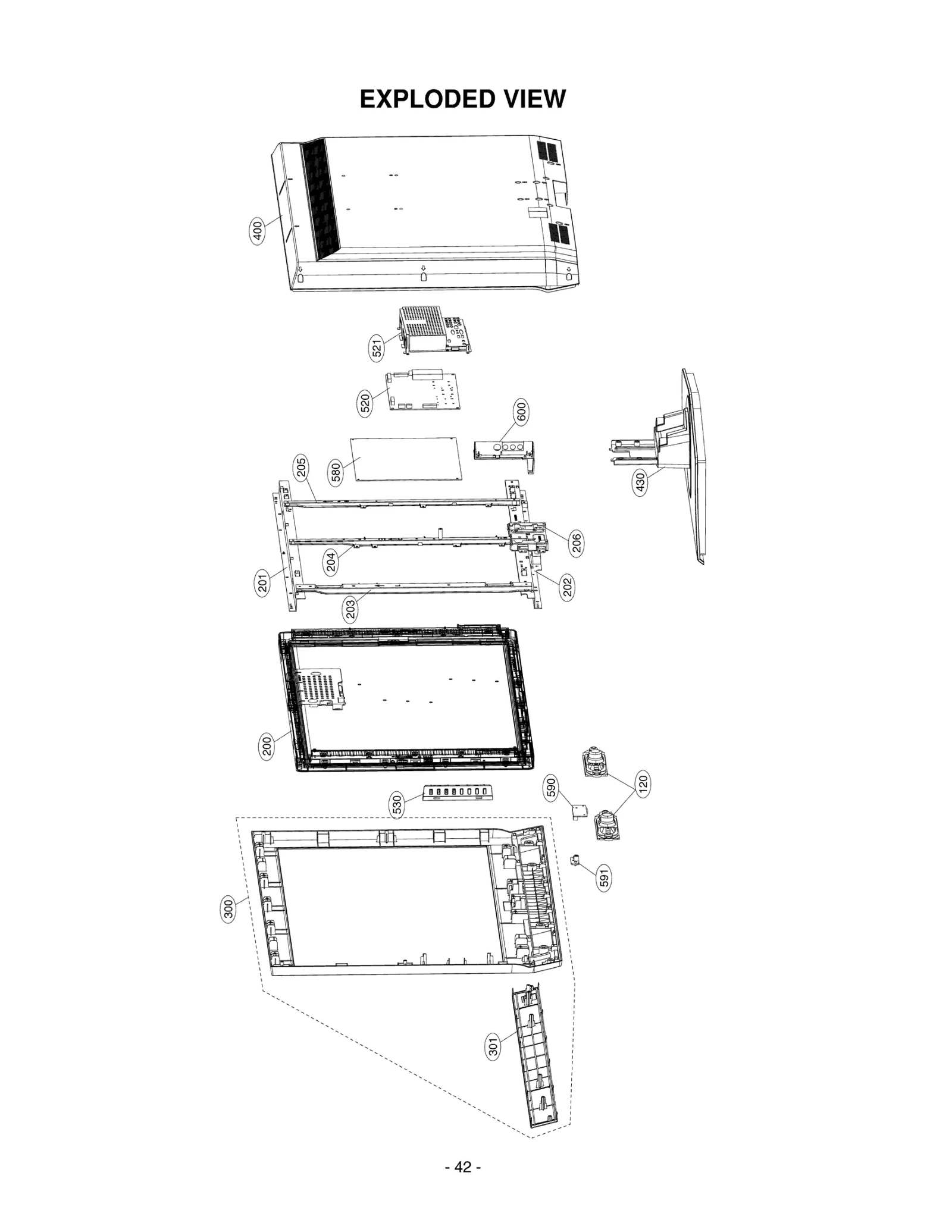

Diagram 0
Diagram 1
Common parts from model LG 32LC7DC
0
Screw Assembly LGE FAB30009502 Contact Us For Availability
0
CARTON PLATE LGE 3918TKK040B Contact Us For Availability
0
Chassis Assembly LGE EBT36115101 Contact Us For Availability
0
Screw Assembly LGE FAB30007701 Contact Us For Availability
0
Screw,Taptite LGE FAB30013614 Contact Us For Availability
0
Harness,Single LGE 6631900048B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T25026C Contact Us For Availability
0
Screw,Taptite LGE FAB30018405 Contact Us For Availability
0
Box LGE 3890TKD002P Contact Us For Availability
0
CARTON PLATE LGE 3918TKK038S Contact Us For Availability
0
CARTON PLATE LGE 3918TKK040A Contact Us For Availability
0
Harness,Single LGE EAD30302101 Contact Us For Availability
0
Harness,Single LGE EAD35907902 Contact Us For Availability
0
Harness,Single LGE 6631900018H Contact Us For Availability
0
Harness,Single LGE 6631900094A Contact Us For Availability
0
Harness,Single LGE EAD35907801 Contact Us For Availability
0
Box LGE MAY36699801 Contact Us For Availability
0
CARTON PLATE LGE 3918TKK038J Contact Us For Availability
0
CORD,A/V LGE 6852TAZ010F Contact Us For Availability
0
Harness,Single LGE EAD35683002 Contact Us For Availability
0
Screw,Taptite LGE FAB30005105 Contact Us For Availability
0
Screw,Taptite LGE FAB30013210 Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631900010F Contact Us For Availability
0
Screw Assembly LGE FAB30012001 Contact Us For Availability
0
Bag LGE 38809P0013G Contact Us For Availability
0
Bag LGE 38809P0013S Contact Us For Availability
0
Harness,Single LGE 6631900012C Contact Us For Availability
0
Cable,Assembly LGE 68509A0004W Contact Us For Availability
1
Remote Controller LGE MKJ39927801 Contact Us For Availability
2
Remote Controller LGE MKJ39927802 Contact Us For Availability
3
Remote Controller LGE MKJ39927803 Contact Us For Availability
4
Remote Controller LGE MKJ39927805 Contact Us For Availability
5
Remote Controller LGE MKJ39927808 Contact Us For Availability
6
Remote Controller LGE MKJ39927809 Contact Us For Availability
7
Remote Controller LGE MKJ39927812 Contact Us For Availability
8
Remote Controller LGE MKJ39927814 Contact Us For Availability
120
Speaker,Full Range LGE EAB33496901 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ37543301 Contact Us For Availability
201
Supporter LGE MJH32520205 Contact Us For Availability
202
Supporter LGE MJH32520405 Contact Us For Availability
203
Supporter LGE MJH32520503 Contact Us For Availability
204
Supporter LGE MJH32520606 Contact Us For Availability
205
Supporter LGE MJH32520704 Contact Us For Availability
206
Plate LGE MGJ32973601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ32885612 Contact Us For Availability
301
Bracket Assembly LGE ABA33211303 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ32467618 Contact Us For Availability
430
Base Assembly LGE AAN31752704 Contact Us For Availability
520
Main Total Assembly LGE EBU38099801 Contact Us For Availability
521
Plate,Shield LGE MGJ32918110 Contact Us For Availability
530
PCB Assembly LGE EBR35527701 Contact Us For Availability
580
Power Supply Assembly LGE EAY34795001 Contact Us For Availability
590
PCB Assembly LGE EBR36011401 Contact Us For Availability
600
PCB Assembly LGE EBR36010601 Contact Us For Availability
A1
Manual,Owners LGE MFL34797017 Contact Us For Availability
A2
Remote Controller As LGE AKB32559904 Contact Us For Availability
A6
Cover LGE MCK32795001 Contact Us For Availability
AR2209
Resistor,Array LGE EBC32260405 Contact Us For Availability
AR3021
Resistor,Array LGE 0RJ1001C687 Contact Us For Availability
AR6007
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C1060
Capacitor,Ceramic,Chip LGE 0CH2122K516 Contact Us For Availability
C3022
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C3040
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C3054
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C4001
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C4011
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C4014
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C4058
Capacitor,AL,Chip LGE EAE30840201 Contact Us For Availability
C4063
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C4083
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C4100
Capacitor,Ceramic,Chip LGE 0CK153CK51A Contact Us For Availability
C4101
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C4102
CAPACITOR,FIXED CERA LGE 0CK476FD67A Contact Us For Availability
C4905
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C5031
CAPACITOR,CHIP[AL. E LGE 0CH8226F691 Contact Us For Availability
C5033
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C5044
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C5058
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C5079
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C5108
Capacitor,Ceramic,Chip LGE 0CH2474F566 Contact Us For Availability
C7025
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C7035
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C7039
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C7041
CAPACITOR,FIXED CERA LGE 0CK225DH94A Contact Us For Availability
C7042
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C7044
Capacitor,AL,Chip LGE 0CE106WH6DC Contact Us For Availability
C7045
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C7066
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C7080
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C7098
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C7099
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C7152
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C7154
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C7157
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C7158
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
D4002
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D4006
LED LGE 0DL233309AC Contact Us For Availability
D4007
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
D4008
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D5015
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
IC1001
IC,Data Controller LGE 0IPRP00702A Contact Us For Availability
IC2001
S/W,Firmware LGE SAA30851202 Contact Us For Availability
IC2002
IC,SDRAM LGE 0IMMRIH038B Contact Us For Availability
IC3001
IC,Analog Switch LGE EAN30267601 Contact Us For Availability
IC4001
IC,PERIPHERALS LGE 0IPRP00009A Contact Us For Availability
IC4006
IC,PERIPHERALS LGE 0IPRPFA015B Contact Us For Availability
IC4007
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC4008
IC,LDO Voltage Regul LGE 0IPMGS1006B Contact Us For Availability
IC4010
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC4011
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
IC4012
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC4014
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC4015
S/W,Firmware LGE SAA30911401 Contact Us For Availability
IC4016
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC4017
IC,DC,DC Converter LGE EAN31513601 Contact Us For Availability
IC4500
IC,POWER MANAGEMENT LGE 0IPMG78391A Contact Us For Availability
IC5001
IC,Analog Switch LGE EAN30744301 Contact Us For Availability
IC5002
IC,Analog Switch LGE EAN30744401 Contact Us For Availability
IC5003
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC5004
IC,PERIPHERALS LGE 0IPRPCI016A Contact Us For Availability
IC6004
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
IC7001
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC7004
IC,PERIPHERALS LGE 0IPRP00696A Contact Us For Availability
IC7005
IC,MEMORIES LGE 0IMMRCS012B Contact Us For Availability
IC7013
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC7015
IC,Receiver LGE 0IPRP00623A Contact Us For Availability
IC7017
IC,Audio Amplifier LGE 0IPRP00700A Contact Us For Availability
J4002
Jack,Complex LGE 6612J10024A Contact Us For Availability
J4003
JACK,PHONE LGE 6612F00099A Contact Us For Availability
J5007
Jack,RCA LGE 6612J10006K Contact Us For Availability
JK100
Jack,Fiber Optic LGE EAG32151101 Contact Us For Availability
JK101
JACK,RCA LGE 6612J10033A Contact Us For Availability
L3002
Inductor,Multilayer, LGE EAP35756201 Contact Us For Availability
L4004
Filter,Bead LGE 6210TCE001E Contact Us For Availability
L4007
FILTER(CIRC),EMC LGE 6200J000123 Contact Us For Availability
L4022
COIL,CHOKE LGE 6140TBZ047B Contact Us For Availability
L6004
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L7008
INDUCTOR,CHIP LGE 0LC2000005J Contact Us For Availability
L7032
COIL,ENERGY RECOVERY LGE 6140VR0008A Contact Us For Availability
L7044
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
LED1
LED LGE 0DLBE0138AA Contact Us For Availability
P100
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P4001
Connector,DSUB LGE 6630G00001A Contact Us For Availability
P4003
WAFER LGE 6602T25008J Contact Us For Availability
P4004
WAFER LGE 6602T25008M Contact Us For Availability
P4007
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
P6002
Connector,Wafer LGE 6630V90116A Contact Us For Availability
P7004
CONNECTOR (CIRC),D-S LGE 6630G70016A Contact Us For Availability
P7010
Connector,Wafer LGE 6602T25008B Contact Us For Availability
Q5014
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q7013
TRANSISTOR,BIPOLARS LGE 0TRIH80003A Contact Us For Availability
Q7201
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R105
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R106
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R1006
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R1008
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R1015
Resistor,Chip LGE 0RJ0182D677 Contact Us For Availability
R1019
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R1030
Resistor,Chip LGE 0RH1504D622 Contact Us For Availability
R1046
RESISTOR,METAL GLAZE LGE 0RJ4990D477 Contact Us For Availability
R1137
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R1160
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R2607
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R3011
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R3016
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R4015
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R4048
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R4084
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R4137
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R4164
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R4184
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R5034
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R5039
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R5042
Resistor,Chip LGE 0RJ7500D677 Contact Us For Availability
R5072
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R5076
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R5087
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R5095
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R5114
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R5121
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R5128
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R6017
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R7006
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R7021
Resistor,Chip LGE 0RJ6801D677 Contact Us For Availability
R7022
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R7039
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R7043
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R7045
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R7051
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R7089
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R7191
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R7199
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R7221
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R7242
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R26101
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R71003
RESISTOR,METAL GLAZE LGE 0RJ5602D677 Contact Us For Availability
SW108
SWITCH TACT LGE 140-313B Contact Us For Availability
TU4001
Tuner,Analog/Digital LGE EBL32758001 Contact Us For Availability
VR701
VARISTOR LGE 6102W5V016A Contact Us For Availability
X3001
Crystal LGE 6212AA2600B Contact Us For Availability
X7001
CRYSTAL LGE 6202TST001A Contact Us For Availability
ZD1001
Diode,Zener LGE 0DZDI00078A Contact Us For Availability
ZD5005
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
× ![]()
Login and Registration Form
