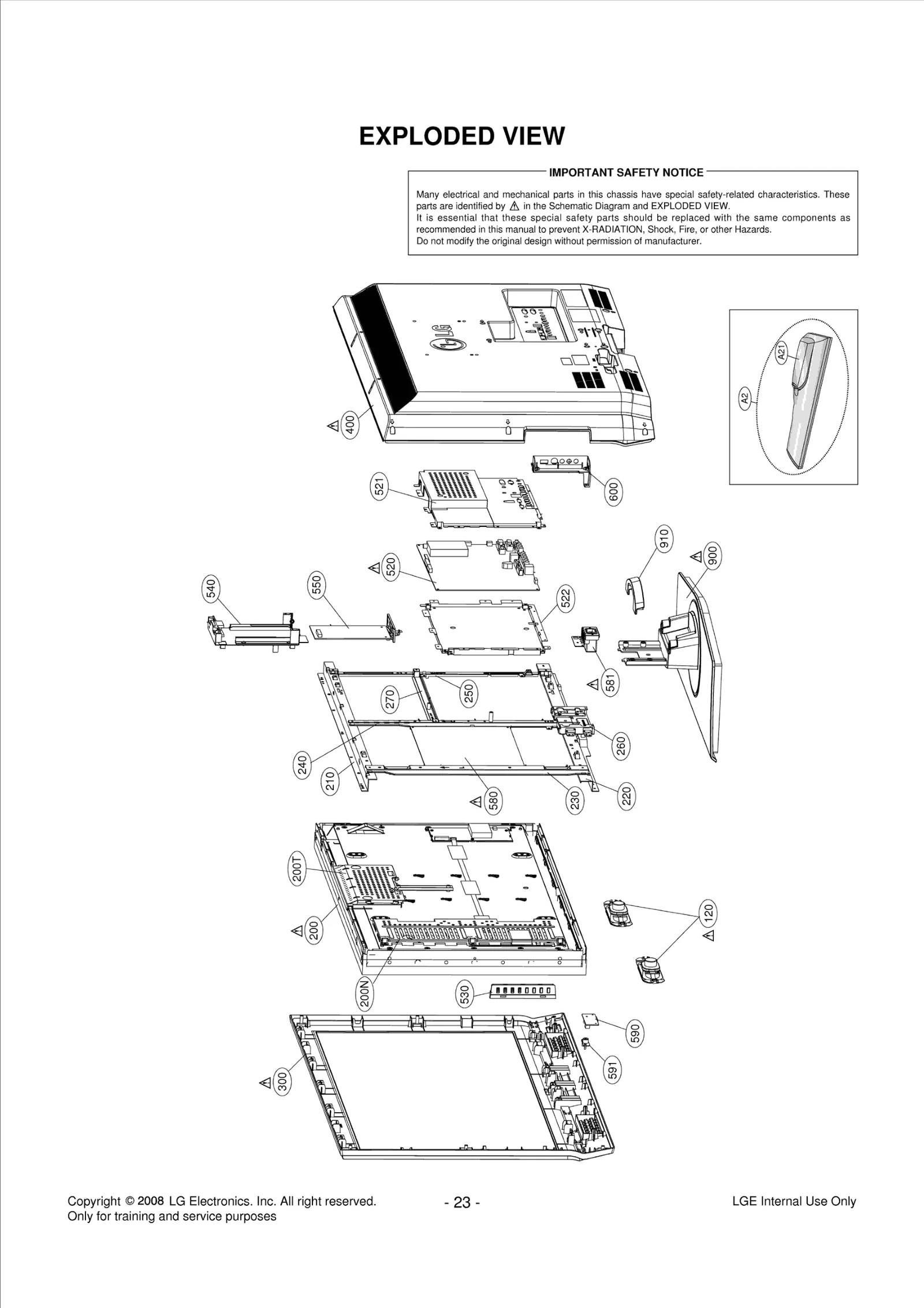

Model LG 32LC5DC – Common Parts & Diagrams

120
Speaker,Full Range
Speaker,Full Range LGE EAB33496901 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ41825601 Contact Us For Availability
View on Model
200N
Inverter Assembly
Inverter Assembly LGE EAY56797501 Contact Us For Availability
View on Model
200T
Time Control
Time Control LGE EAT56801301 Contact Us For Availability
View on Model
210
Supporter
Supporter LGE MJH32520215 Contact Us For Availability
View on Model
220
Supporter
Supporter LGE MJH32520423 Contact Us For Availability
View on Model
230
Supporter
Supporter LGE MJH32520504 Contact Us For Availability
View on Model
240
Supporter
Supporter LGE MJH32520609 Contact Us For Availability
View on Model
250
Supporter
Supporter LGE MJH37167002 Contact Us For Availability
View on Model
260
Plate
Plate LGE MGJ32973602 Contact Us For Availability
View on Model
270
Supporter
Supporter LGE MJH39385204 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ32273904 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ32805705 Contact Us For Availability
View on Model
520
Main Total Assembly
Main Total Assembly LGE EBU36270603 Contact Us For Availability
View on Model
521
Plate,Shield
Plate,Shield LGE MGJ36247002 Contact Us For Availability
View on Model
522
Plate,Shield
Plate,Shield LGE MGJ39197502 Contact Us For Availability
View on Model
530
PCB Assembly
PCB Assembly LGE EBR36274201 Contact Us For Availability
View on Model
540
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR37151801 Contact Us For Availability
View on Model
550
Chassis Assembly
Chassis Assembly LGE EBT35739901 Contact Us For Availability
View on Model
581
Chassis Assembly
Chassis Assembly LGE EBT36230501 Contact Us For Availability
View on Model
590
PCB Assembly
PCB Assembly LGE EBR36278201 Contact Us For Availability
View on Model
591
Indicator
Indicator LGE MES34241701 Contact Us For Availability
View on Model
600
PCB Assembly
PCB Assembly LGE EBR36283201 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN33240103 Contact Us For Availability
View on Model
910
Cover
Cover LGE MCK32795001 Contact Us For Availability
View on Model
A1
Manual,Owners
Manual,Owners LGE MFL34797007 Contact Us For Availability
View on Model
A1
Manual,Owners
Manual,Owners LGE MFL34797025 Contact Us For Availability
View on Model
A2
Remote Controller
Remote Controller LGE MKJ32022820 Contact Us For Availability
View on Model
A3
Power Cord
Power Cord LGE 6410VUH005F Contact Us For Availability
View on Model
A21
Cover
Cover LGE 3550V00590A Contact Us For Availability
View on Model
CA1
Harness,Single
Harness,Single LGE 6631900018H Contact Us For Availability
View on Model
CA2
CONNECTOR ASSEMBLY
CONNECTOR ASSEMBLY LGE 6631T25026C Contact Us For Availability
View on Model
CA3
Harness,Single
Harness,Single LGE EAD30302101 Contact Us For Availability
View on Model
CA4
Harness,Single
Harness,Single LGE 6631T20032A Contact Us For Availability
View on Model
