Model LG 32LB9D – Common Parts & Diagrams

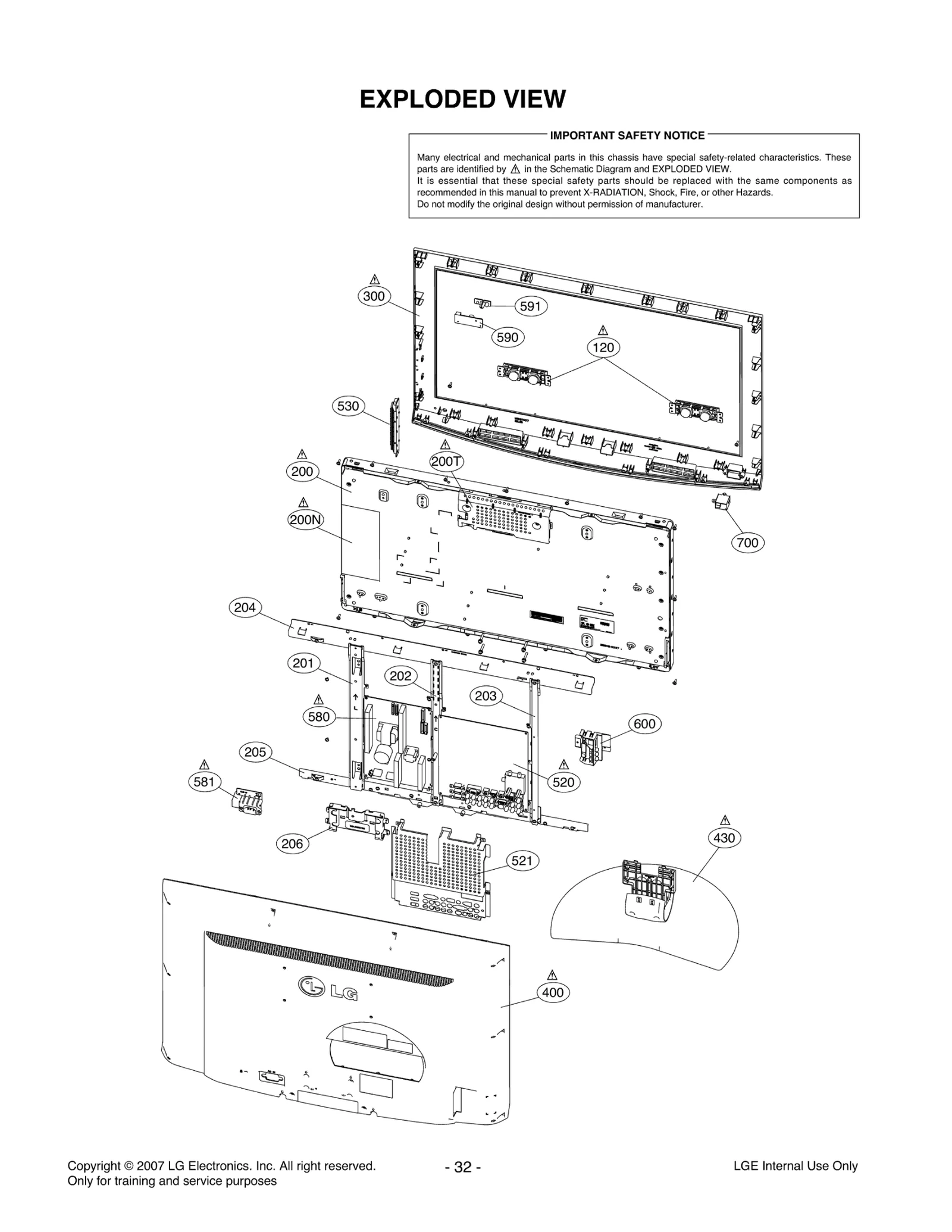

Diagram 0
Diagram 1
Common parts from model LG 32LB9D
0
Harness,Single LGE 6631900133F Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20032B Contact Us For Availability
0
Harness,Single LGE 6631900015R Contact Us For Availability
0
Harness,Single LGE 6631900049A Contact Us For Availability
0
Cable,Assembly LGE 68509A0004E Contact Us For Availability
0
LGE 0CC1300K415 LGE 0CC1300K415 Contact Us For Availability
0
Jack,Fiber Optic LGE EAG32151101 Contact Us For Availability
0
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
0
Harness,Single LGE EAD36548801 Contact Us For Availability
0
Harness,Single LGE 6631900018C Contact Us For Availability
0
Harness,Single LGE EAD35522202 Contact Us For Availability
1
Remote Controller LGE MKJ39927801 Contact Us For Availability
3
Remote Controller LGE MKJ39927803 Contact Us For Availability
4
Remote Controller LGE MKJ39927805 Contact Us For Availability
5
Remote Controller LGE MKJ39927808 Contact Us For Availability
6
Remote Controller LGE MKJ39927809 Contact Us For Availability
7
Remote Controller LGE MKJ39927812 Contact Us For Availability
8
Remote Controller LGE MKJ39927814 Contact Us For Availability
120
Speaker,Full Range LGE EAB37526301 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ39826001 Contact Us For Availability
200N
Inverter Assembly LGE EAY56797401 Contact Us For Availability
200T
Time Control LGE EAT56801001 Contact Us For Availability
201
Supporter LGE MJH32520504 Contact Us For Availability
202
Supporter LGE MJH32520609 Contact Us For Availability
203
Supporter LGE MJH32520704 Contact Us For Availability
204
Supporter LGE MJH37025103 Contact Us For Availability
205
Supporter LGE MJH37056403 Contact Us For Availability
206
Supporter LGE MJH38810201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ32936003 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ32936404 Contact Us For Availability
430
Base Assembly LGE AAN32984802 Contact Us For Availability
520
Main Total Assembly LGE EBU36872902 Contact Us For Availability
521
Plate,Shield LGE MGJ32918114 Contact Us For Availability
530
PCB Assembly,Sub LGE EBR37862601 Contact Us For Availability
581
PCB Assembly,Sub LGE EBR37577301 Contact Us For Availability
590
PCB Assembly,Sub LGE EBR36866101 Contact Us For Availability
591
Indicator LGE MES36332302 Contact Us For Availability
600
PCB Assembly,Main LGE EBR36873401 Contact Us For Availability
700
Sensor,Ambient Light LGE 6500VR0003E Contact Us For Availability
A1
Manual,Owners LGE MFL35930208 Contact Us For Availability
A2
Remote Controller LGE MKJ39927802 Contact Us For Availability
A6
CORD,A/V LGE 6852TAZ010F Contact Us For Availability
A7
Bracket Assembly LGE ABA32985001 Contact Us For Availability
A9
Screw,Tapping LGE FAB30021301 Contact Us For Availability
A21
Cover LGE 3550V00684B Contact Us For Availability
AR100
Resistor,Array LGE EBC32260901 Contact Us For Availability
AR206
Resistor,Array LGE EBC33751901 Contact Us For Availability
AR453
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR807
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
AR814
RESISTOR,METAL GLAZE LGE 0RJ0512C687 Contact Us For Availability
B101
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C108
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C220
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C313
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C323
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C329
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C337
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C342
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C352
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C536
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C548
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C570
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C583
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C590
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C605
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C666
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C687
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C723
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C725
Capacitor,AL,Chip LGE EAE32720101 Contact Us For Availability
C727
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C733
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C737
CAPACITOR,FIXED ELEC LGE 0CE337WH6DC Contact Us For Availability
C809
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C874
Capacitor,Ceramic,Chip LGE 0CK4R7CKFDA Contact Us For Availability
C877
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C883
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C2124
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2173
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C2189
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C2191
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4001
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C5016
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C5033
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C5042
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C6017
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C6023
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C8004
CAPACITOR,FIXED CERA LGE 0CK225DH94A Contact Us For Availability
C8005
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
D300
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D301
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
IC101
IC,Video Processors LGE EAN32808701 Contact Us For Availability
IC202
IC,CMOS LGE EAN33931901 Contact Us For Availability
IC203
IC,DDR2 SDRAM LGE EAN33624401 Contact Us For Availability
IC205
S/W,Firmware LGE SAA30722114 Contact Us For Availability
IC207
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC304
IC,PWM Controller LGE EAN33573001 Contact Us For Availability
IC305
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC306
IC,PERIPHERALS LGE 0IPRP00009A Contact Us For Availability
IC307
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC309
S/W,Firmware LGE SAA30643735 Contact Us For Availability
IC310
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC400
IC,POWER MANAGEMENT LGE 0IMCRSJ001B Contact Us For Availability
IC402
IC,A/D Converter LGE 0IPRP00696C Contact Us For Availability
IC403
IC,Analog Switch LGE EAN32724701 Contact Us For Availability
IC404
IC,MEMORIES LGE 0IMMRCS012B Contact Us For Availability
IC406
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC409
IC,Analog Switch LGE EAN35942401 Contact Us For Availability
IC501
IC,Receiver LGE 0IPRPCI017A Contact Us For Availability
IC505
IC,Audio Amplifier LGE EAN32404601 Contact Us For Availability
IC508
IC,MICRO CONTROLLER LGE 0IMCRMN028C Contact Us For Availability
IC600
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC601
IC,Tx/Rx LGE EAN32174001 Contact Us For Availability
IC602
IC,POWER MANAGEMENT LGE 0IPMGSH019A Contact Us For Availability
IC700
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC712
IC,DC,DC Converter LGE EAN32013101 Contact Us For Availability
IC800
IC,Video Processors LGE EAN32354202 Contact Us For Availability
IC801
IC,DDR SDRAM LGE EAN34140301 Contact Us For Availability
IC802
IC,POWER MANAGEMENT LGE 0IPMG78391A Contact Us For Availability
IC803
IC,POWER MANAGEMENT LGE 0IPMGS1012A Contact Us For Availability
IC804
IC,LDO Voltage Regul LGE 0IPMGS1006B Contact Us For Availability
IC805
IC,LDO Voltage Regul LGE EAN34140401 Contact Us For Availability
IC806
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC807
IC,Clock Generator LGE EAN33913401 Contact Us For Availability
J101
Jack,RCA LGE 6612J10003X Contact Us For Availability
J405
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
J501
Jack,RCA LGE EAG35542202 Contact Us For Availability
J600
Jack,Complex LGE 6612J10024A Contact Us For Availability
J702
JACK,PHONE LGE 6612F00099A Contact Us For Availability
J704
Jack,RCA LGE 6612J10043A Contact Us For Availability
J705
Jack,Complex LGE 6612J00062H Contact Us For Availability
L100
Inductor,Wire Wound, LGE EAP32632801 Contact Us For Availability
L510
Inductor,Wire Wound, LGE EAP32842805 Contact Us For Availability
L624
INDUCTOR,CHIP LGE 0LCML00020B Contact Us For Availability
L701
LGE 0LC2220101A LGE 0LC2220101A Contact Us For Availability
L725
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L744
Filter,LCR LGE EAM33010401 Contact Us For Availability
L753
Filter,LCR LGE EAM37276902 Contact Us For Availability
LED1
LED LGE 0DLBE0138AA Contact Us For Availability
P102
Connector,Wafer LGE 6602T20008N Contact Us For Availability
P102
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P500
PWB(PCB) ASSEMBLY,SU LGE 6871VSMFA8A Contact Us For Availability
P501
Harness,Single LGE EAD30301901 Contact Us For Availability
P502
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P600
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P701
WAFER LGE 6602T25008M Contact Us For Availability
P702
WAFER LGE 6602T25008J Contact Us For Availability
P702
CONNECTOR ASSEMBLY LGE 6631900012E Contact Us For Availability
P703
CONNECTOR ASSEMBLY LGE 6631900010N Contact Us For Availability
P712
Connector,Wafer LGE 6602T20008D Contact Us For Availability
Q102
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q510
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q513
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q805
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
R103
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R106
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R108
Resistor,Chip LGE 0RH9100D622 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R142
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R148
Resistor,Chip LGE EBC33834501 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R228
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ4302D677 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R305
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R321
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R345
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R358
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R373
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R405
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R424
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R425
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R434
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R540
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R582
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R585
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R638
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R672
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R718
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R827
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R4020
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R4060
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R4100
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R4139
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R4143
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R5002
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R5016
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R5020
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R5035
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R5038
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R5042
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R5063
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R5070
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R5077
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R5079
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R5081
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R6044
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R8004
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R8054
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
SW107
SWITCH TACT LGE 140-313B Contact Us For Availability
TU600
Tuner,Analog/Digital LGE EBL34917003 Contact Us For Availability
VR411
VARISTOR LGE 6102W5V016A Contact Us For Availability
X100
Crystal LGE EAW30352304 Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
X500
Crystal LGE 6202VDT002H Contact Us For Availability
X601
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
X800
CRYSTAL,STANDARD LGE 6202VDT002E Contact Us For Availability
ZD502
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
× ![]()
Login and Registration Form
