  • LG 32HL714S-W Parts List

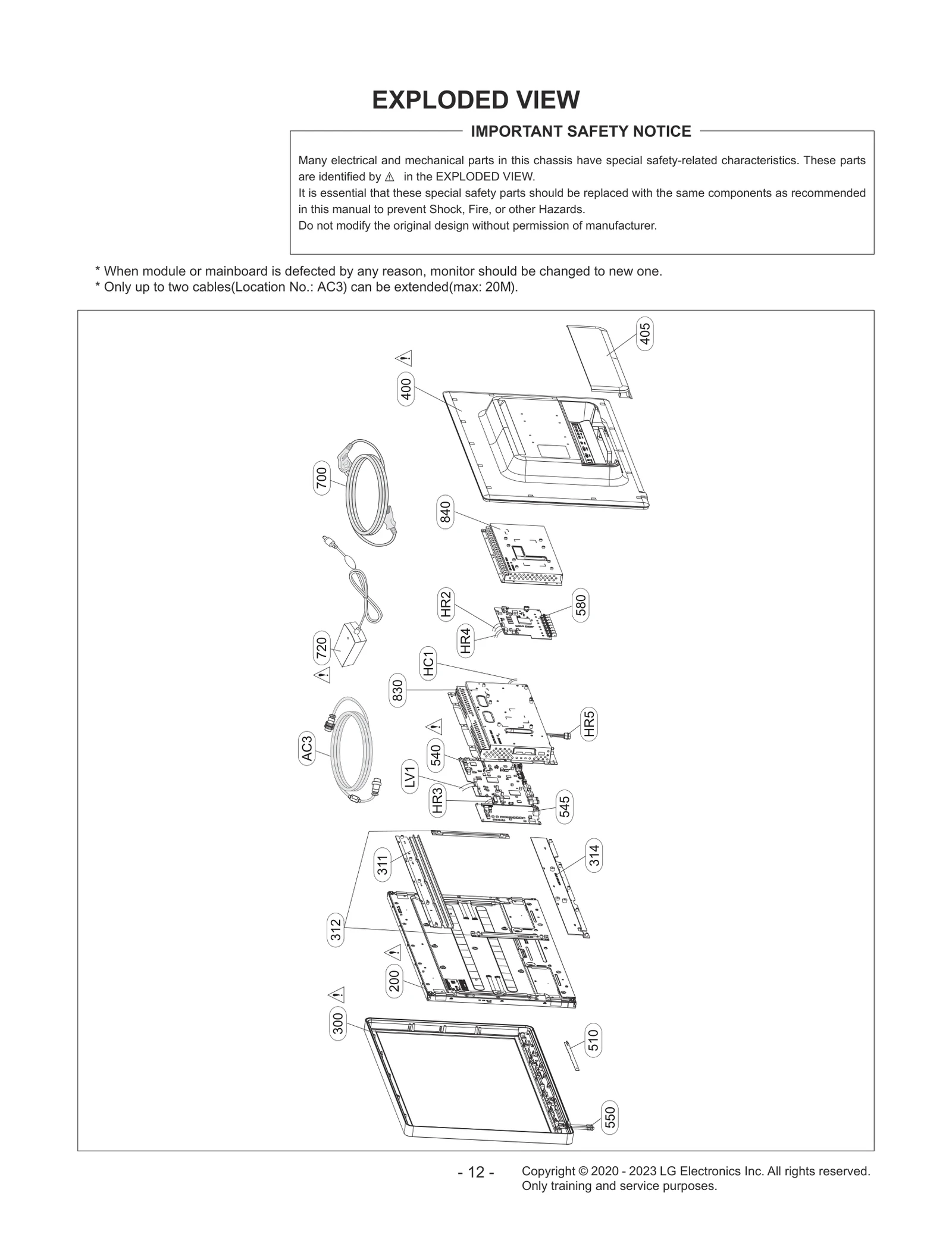

Model LG 32HL714S-W – Common Parts & Diagrams

200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65433801 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ76547101 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ76547104 Contact Us For Availability
View on Model
311
Supporter
Supporter LGE MJH65753701 Contact Us For Availability
View on Model
312
Supporter
Supporter LGE MJH65353405 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ91535008 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ91535010 Contact Us For Availability
View on Model
405
Cover Assembly
Cover Assembly LGE ACQ91535102 Contact Us For Availability
View on Model
405
Cover Assembly
Cover Assembly LGE ACQ91535105 Contact Us For Availability
View on Model
510
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR83031003 Contact Us For Availability
View on Model
540
BPR Total Assembly
BPR Total Assembly LGE EBU65661803 Contact Us For Availability
View on Model
545
BPR Total Assembly
BPR Total Assembly LGE EBU65601802 Contact Us For Availability
View on Model
580
BPR Total Assembly
BPR Total Assembly LGE EBU66047101 Contact Us For Availability
View on Model
700
Power Cord,Detach
Power Cord,Detach LGE EAD64005902 Contact Us For Availability
View on Model
830
Frame Assembly
Frame Assembly LGE ADV77746302 Contact Us For Availability
View on Model
840
Frame Assembly
Frame Assembly LGE ADV30008904 Contact Us For Availability
View on Model
840
Frame Assembly
Frame Assembly LGE ADV30008901 Contact Us For Availability
View on Model
AC3
Cable,Assembly
Cable,Assembly LGE EAD65879601 Contact Us For Availability
View on Model
HR3
Harness,Single
Harness,Single LGE EAD62595308 Contact Us For Availability
View on Model
HR4
Harness,Single
Harness,Single LGE EAD64748703 Contact Us For Availability
View on Model
HR5
Harness,Multi
Harness,Multi LGE EAD65839201 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63787811 Contact Us For Availability
View on Model
