Model LG 32GK650G-B – Common Parts & Diagrams

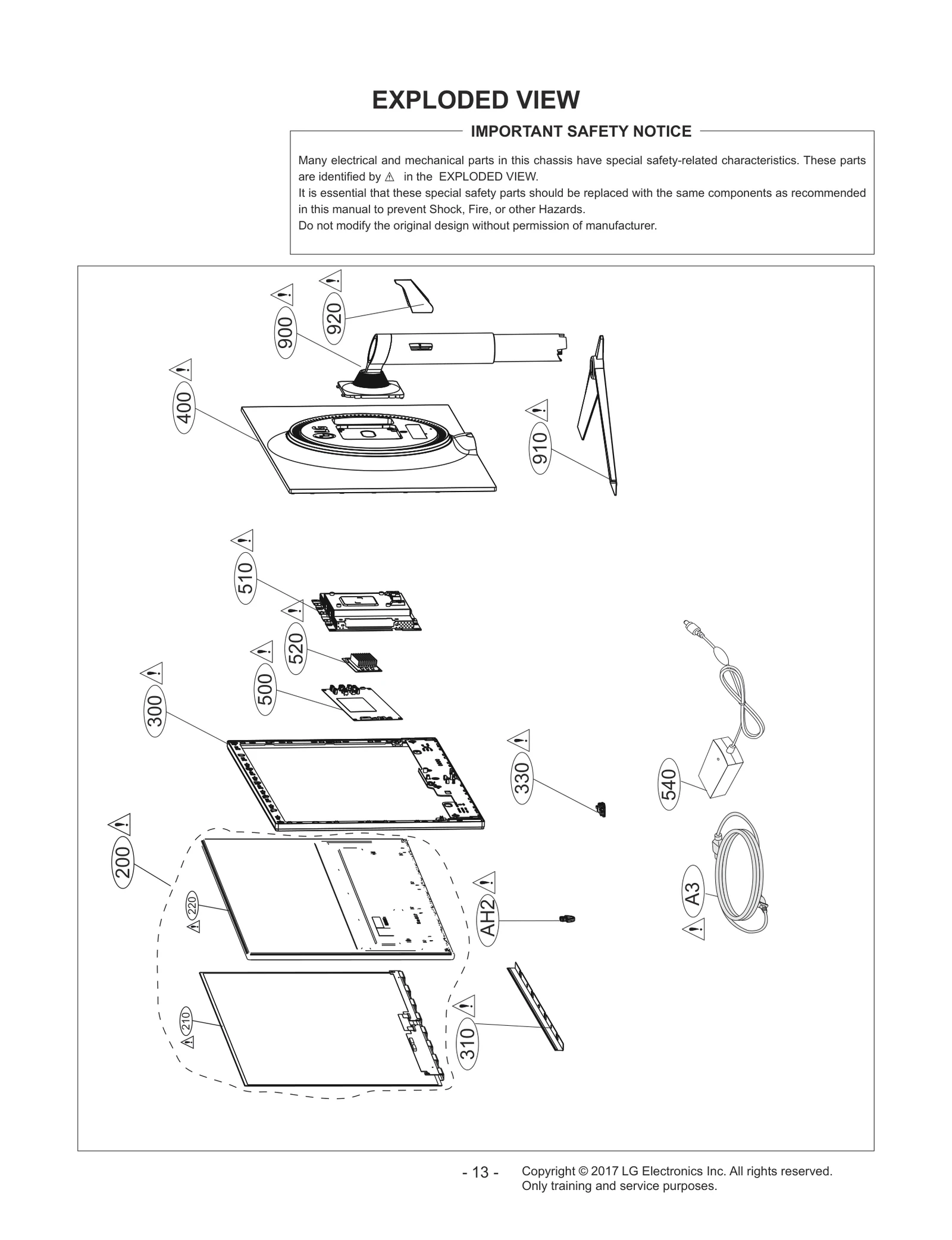

Diagram 0
Diagram 1
Common parts from model LG 32GK650G-B
210
LCD,Panel-TFT LGE EAJ64307601 Contact Us For Availability
220
Back Light Assembly LGE EBV61678005 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75767302 Contact Us For Availability
310
Cover Assembly LGE ACQ90030601 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ90030708 Contact Us For Availability
500
Main Board,BPR Total Assembly LGE EBU65141901 Contact Us For Availability
520
S/W Package LGE SAB37139403 Contact Us For Availability
900
Base Assembly LGE AAN76348901 Contact Us For Availability
A1
Manual Assembly LGE AFN78732121 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE MBM66208062 Contact Us For Availability
A9
Card LGE 3840TWL061C Contact Us For Availability
C138
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C169
Capacitor,Ceramic,Chip LGE 0CK105CFG6A Contact Us For Availability
C316
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C335
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C462
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C470
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C612
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C613
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C616
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C711
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C829
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
IC306
IC,STANDARD LOGIC LGE 0ISTLPH065A Contact Us For Availability
LV1
Cable,FFC LGE EAD63990512 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P801
Connector,Wafer LGE 6630V90141B Contact Us For Availability
R118
Resistor,Chip LGE 0RH1103D622 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R150
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R167
RESISTOR,METAL GLAZE LGE 0RJ2490C477 Contact Us For Availability
R182
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R261
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R263
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R266
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R365
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R384
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R458
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R624
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R629
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R633
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ2700C478 Contact Us For Availability
R639
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R651
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R653
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R712
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R755
Resistor,Chip LGE 0RJ2003C678 Contact Us For Availability
R757
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R758
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R759
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R762
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R763
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R780
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R783
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R784
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R799
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R818
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
SW300
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
× ![]()
