Model Maytag 3287XUA-N GAS RANGE – Common Parts & Diagrams

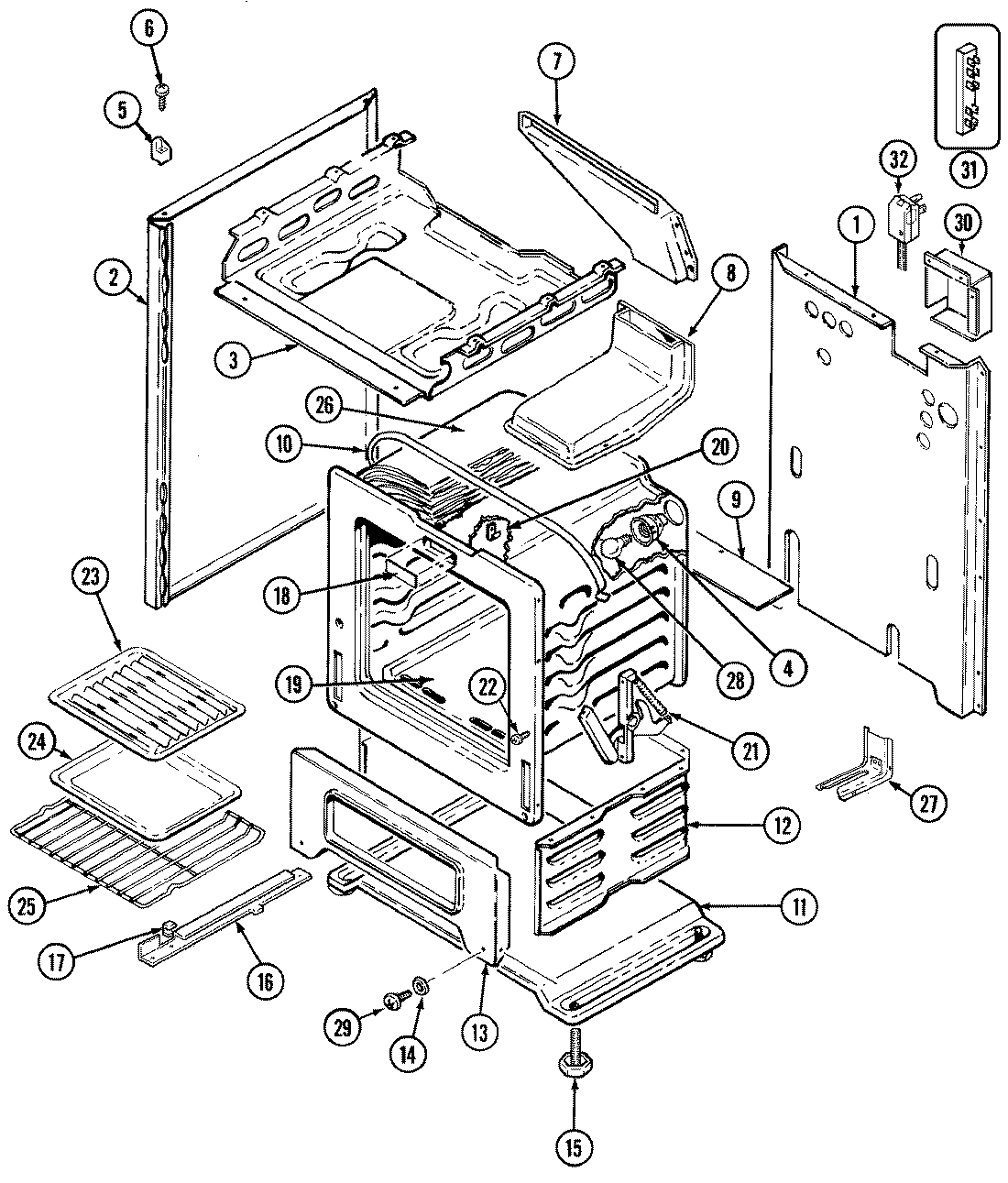

01 - BODY
02 - CONTROL PANEL
03 - DOOR/DRAWER
04 - GAS CONTROLS
Common parts from model Maytag 3287XUA-N GAS RANGE
1
MAY 4001F088-51 MAY 4001F088-51 Contact Us For Availability
1
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
1
MAY 7513P120-60 MAY 7513P120-60 Contact Us For Availability
2
MAY 7101P148-60 MAY 7101P148-60 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
MAY 7701P103-60 MAY 7701P103-60 Contact Us For Availability
2
MAY 7502P218-60 MAY 7502P218-60 Contact Us For Availability
3
MAY 4851S037-59 MAY 4851S037-59 Contact Us For Availability
4
MAY 7404P087-60 MAY 7404P087-60 Contact Us For Availability
4
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
4
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
4
MAY 7101P291-60 MAY 7101P291-60 Contact Us For Availability
5
MAY 3807F406-71 MAY 3807F406-71 Contact Us For Availability
5
MAY 7744P078-60 MAY 7744P078-60 Contact Us For Availability
5
MAY 4005F334-51 MAY 4005F334-51 Contact Us For Availability
6
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
6
MAY 7407P004-60 MAY 7407P004-60 Contact Us For Availability
6
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
6
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
7
MAY 4022W003-51 MAY 4022W003-51 Contact Us For Availability
7
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
7
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
7
MAY 8010P075-60 MAY 8010P075-60 Contact Us For Availability
7
MAY 3807F432-45 MAY 3807F432-45 Contact Us For Availability
7
MAY 7431P023-60 MAY 7431P023-60 Contact Us For Availability
8
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
8
MAY 7408P029-60 MAY 7408P029-60 Contact Us For Availability
8
MAY 7408P030-60 MAY 7408P030-60 Contact Us For Availability
8
MAY 3601F219-45 MAY 3601F219-45 Contact Us For Availability
8
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
8
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
9
MAY 3807F416-45 MAY 3807F416-45 Contact Us For Availability
9
MAY 7118P019-60 MAY 7118P019-60 Contact Us For Availability
9
MAY 7726P047-60 MAY 7726P047-60 Contact Us For Availability
9
MAY 7726P048-60 MAY 7726P048-60 Contact Us For Availability
9
MAY 7501P099-60 MAY 7501P099-60 Contact Us For Availability
10
MAY 4820F001-59 MAY 4820F001-59 Contact Us For Availability
10
MAY 7415P001-60 MAY 7415P001-60 Contact Us For Availability
10
MAY 4804F011-60 MAY 4804F011-60 Contact Us For Availability
10
MAY 7507P123-60 MAY 7507P123-60 Contact Us For Availability
10
MAY 7510P050-60 MAY 7510P050-60 Contact Us For Availability
10
MAY 8020P007-60 MAY 8020P007-60 Contact Us For Availability
11
MAY 4003W028-80 MAY 4003W028-80 Contact Us For Availability
11
MAY 3801F330-45 MAY 3801F330-45 Contact Us For Availability
11
MAY 7907P016-60 MAY 7907P016-60 Contact Us For Availability
11
MAY 3414F104-44 MAY 3414F104-44 Contact Us For Availability
12
MAY 4016F039-45 MAY 4016F039-45 Contact Us For Availability
12
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
12
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
13
MAY 2201F073-19 MAY 2201F073-19 Contact Us For Availability
13
MAY 7602P122-60 MAY 7602P122-60 Contact Us For Availability
13
MAY 2402W193-19 MAY 2402W193-19 Contact Us For Availability
13
MAY 3403D023-45 MAY 3403D023-45 Contact Us For Availability
14
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
14
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
14
MAY 3601F229-45 MAY 3601F229-45 Contact Us For Availability
14
MAY 7103P129-60 MAY 7103P129-60 Contact Us For Availability
14
MAY 7212P034-60 MAY 7212P034-60 Contact Us For Availability
15
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
15
MAY 7724P054-60 MAY 7724P054-60 Contact Us For Availability
15
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
15
MAY 7507P084-60 MAY 7507P084-60 Contact Us For Availability
16
MAY 3404F018-51 MAY 3404F018-51 Contact Us For Availability
16
MAY 3404F021-51 MAY 3404F021-51 Contact Us For Availability
16
MAY 7412P007-60 MAY 7412P007-60 Contact Us For Availability
16
MAY 2403F028-70 MAY 2403F028-70 Contact Us For Availability
16
MAY 7507P085-60 MAY 7507P085-60 Contact Us For Availability
17
MAY 8016P010-60 MAY 8016P010-60 Contact Us For Availability
17
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
18
MAY 8114P335-60 MAY 8114P335-60 Contact Us For Availability
18
MAY 5180D138-60 MAY 5180D138-60 Contact Us For Availability
18
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
19
MAY 3804F010-50 MAY 3804F010-50 Contact Us For Availability
19
MAY 5504A001-19 MAY 5504A001-19 Contact Us For Availability
19
MAY 8113P012-60 MAY 8113P012-60 Contact Us For Availability
19
MAY 4804F025-60 MAY 4804F025-60 Contact Us For Availability
19
MAY 3807F451-45 MAY 3807F451-45 Contact Us For Availability
19
MAY 7101P343-60 MAY 7101P343-60 Contact Us For Availability
20
MAY 2404F035-19 MAY 2404F035-19 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
21
MAY 7106P055-60 MAY 7106P055-60 Contact Us For Availability
21
MAY 16000329 MAY 16000329 Contact Us For Availability
21
MAY 3407F012-19 MAY 3407F012-19 Contact Us For Availability
21
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
22
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
22
MAY 3404F022-51 MAY 3404F022-51 Contact Us For Availability
22
MAY 3404F023-51 MAY 3404F023-51 Contact Us For Availability
22
MAY 5185D250-60 MAY 5185D250-60 Contact Us For Availability
22
MAY 7101P296-60 MAY 7101P296-60 Contact Us For Availability
23
MAY 8016P011-60 MAY 8016P011-60 Contact Us For Availability
23
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
23
MAY 8016P013-60 MAY 8016P013-60 Contact Us For Availability
23
MAY 5187D025-60 MAY 5187D025-60 Contact Us For Availability
24
MAY 7801P036-60 MAY 7801P036-60 Contact Us For Availability
24
MAY 3418F079-51 MAY 3418F079-51 Contact Us For Availability
24
MAY 3418F080-51 MAY 3418F080-51 Contact Us For Availability
25
MAY 4804F017-60 MAY 4804F017-60 Contact Us For Availability
25
MAY 4804F018-60 MAY 4804F018-60 Contact Us For Availability
25
MAY 7803P064-60 MAY 7803P064-60 Contact Us For Availability
25
MAY 7803P065-60 MAY 7803P065-60 Contact Us For Availability
26
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
26
MAY 7103P022-60 MAY 7103P022-60 Contact Us For Availability
27
MAY 7407P027-60 MAY 7407P027-60 Contact Us For Availability
27
MAY 7113P012-60 MAY 7113P012-60 Contact Us For Availability
28
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
28
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
28
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
29
MAY 7402P045-60 MAY 7402P045-60 Contact Us For Availability
30
MAY 4005F385-51 MAY 4005F385-51 Contact Us For Availability
31
MAY 7101P300-60 MAY 7101P300-60 Contact Us For Availability
32
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
32
MAY 7510P046-60 MAY 7510P046-60 Contact Us For Availability
× ![]()
