Model Whirlpool 3267XUW GAS RANGE – Common Parts & Diagrams

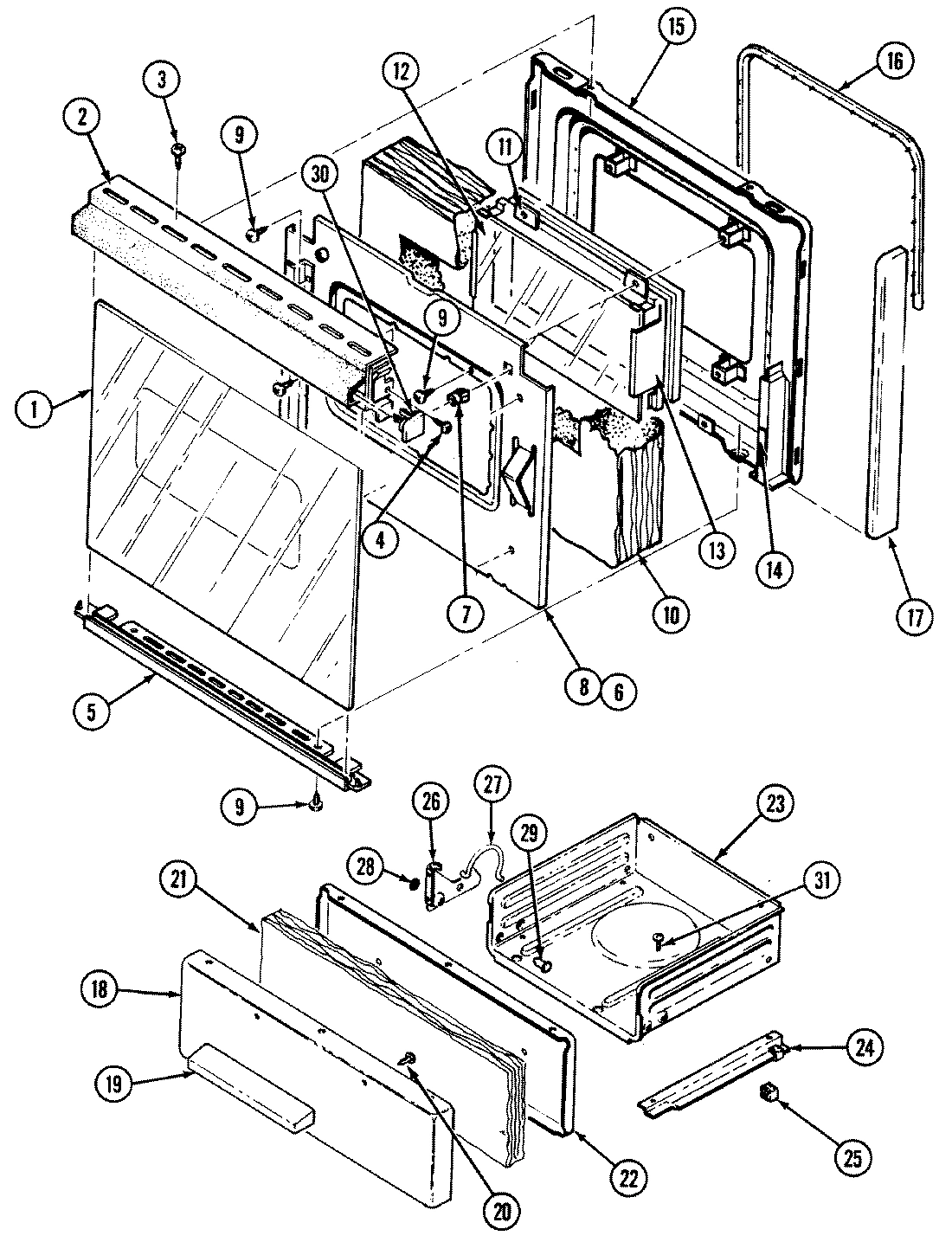

02 - DOOR/DRAWER

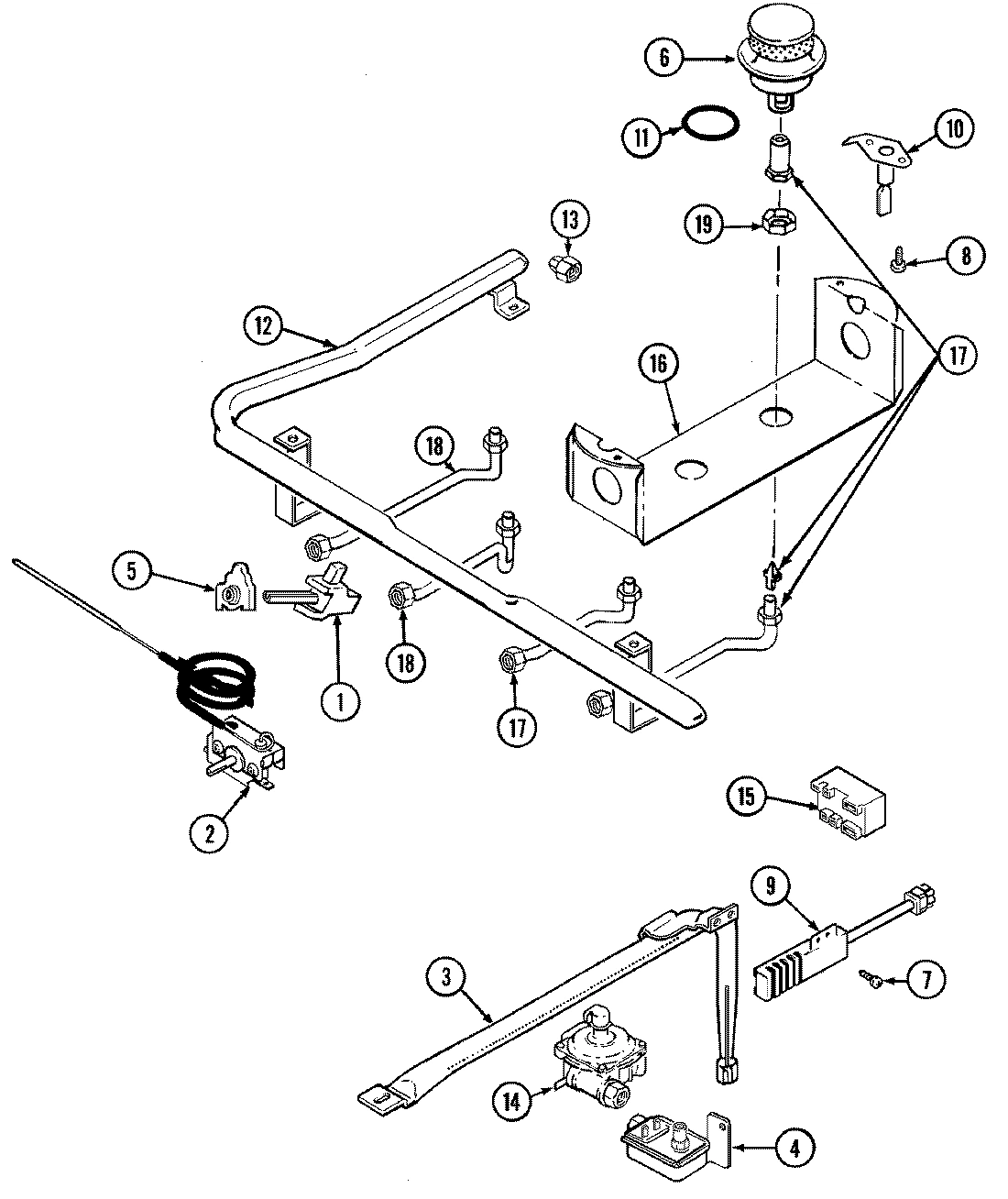

03 - GAS CONTROLS

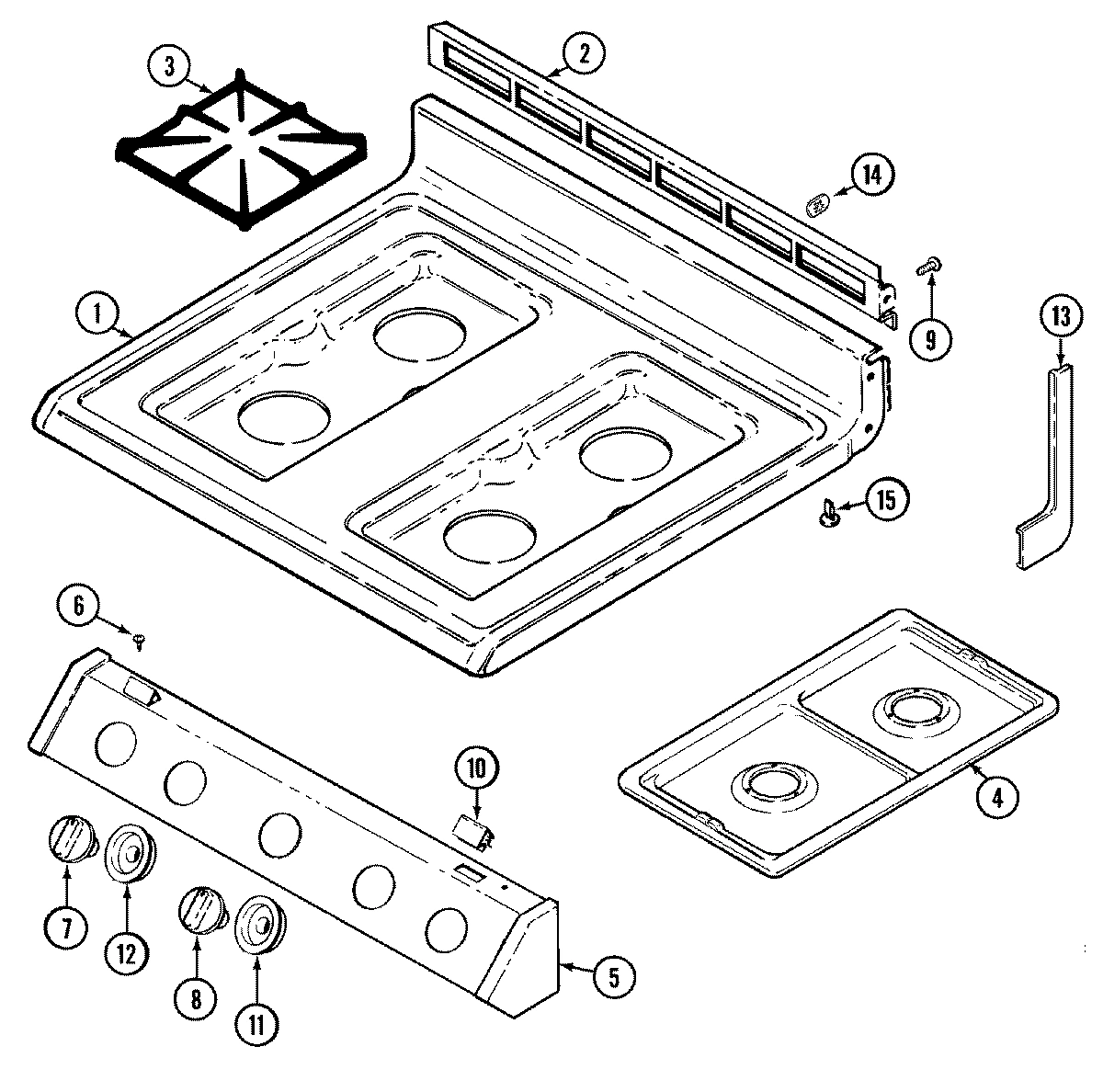

05 - TOP ASSEMBLY

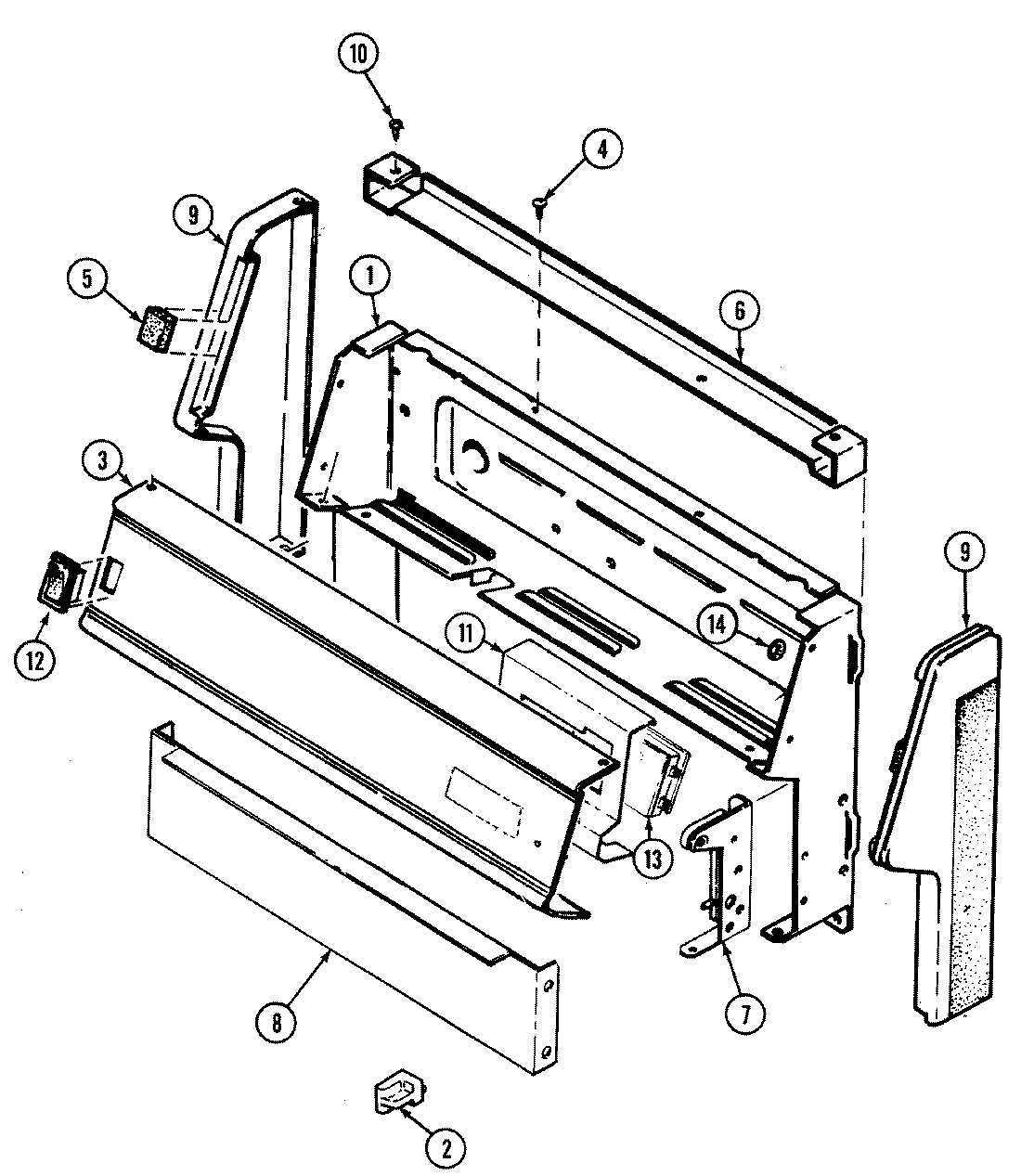

01 - CONTROL PANEL

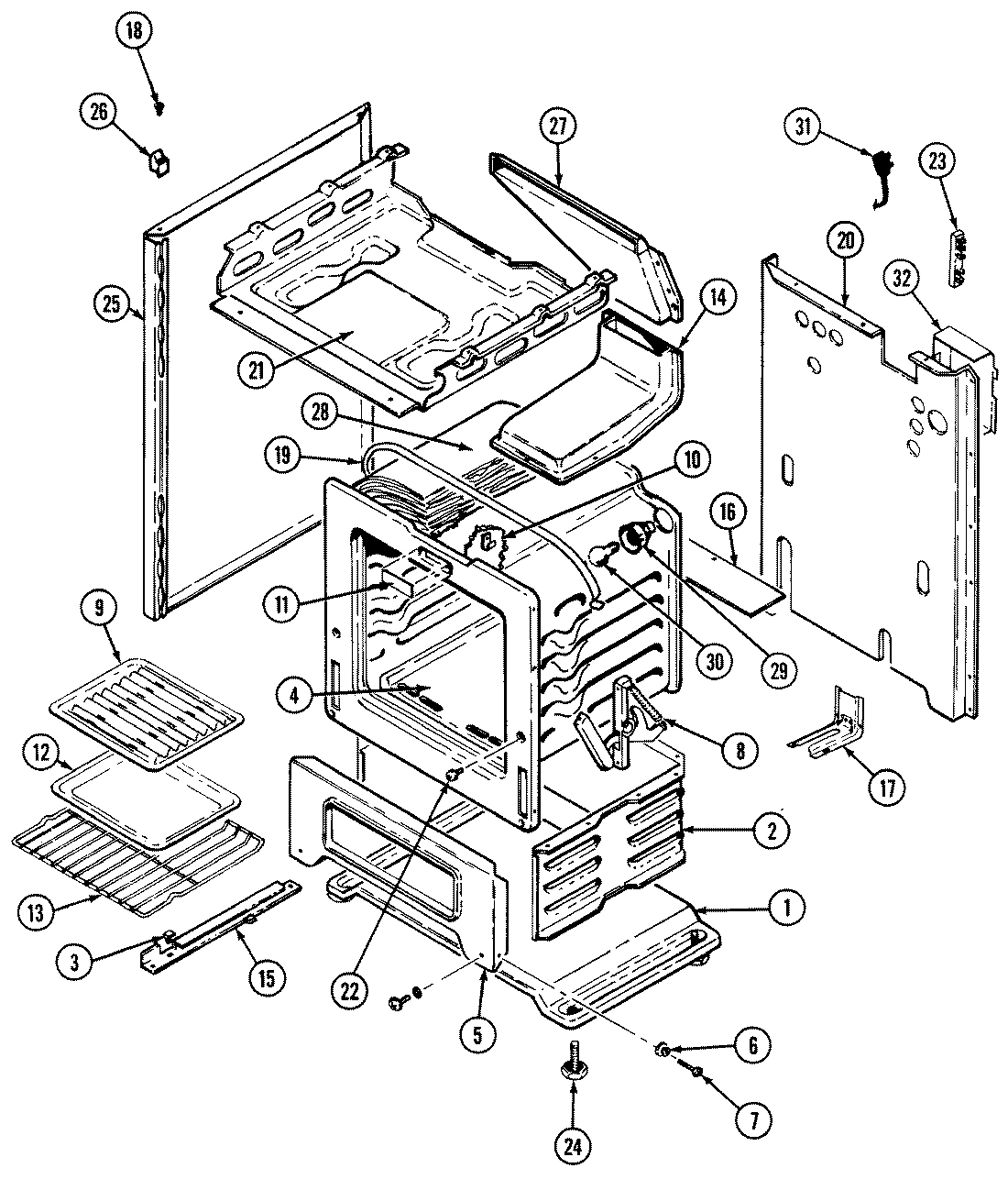

04 - OVEN
Common parts from model Whirlpool 3267XUW GAS RANGE
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08281 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 2001W08284 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
1
BASE, MAIN WPL 4003W02880 Contact Us For Availability
1
NUT WPL 7103P12560 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
2
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
2
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
2
THERMOSTAT WPL 7404P08760 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
3
PANEL, CONTROL (BLK) WPL 7703P56860 Contact Us For Availability
3
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
4
COVER, VALVE WPL 4005F43351 Contact Us For Availability
4
VALVE, OVEN WPL 7501P13760 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
4
RETAINER WPL 3804F01050 Contact Us For Availability
4
OVEN BOTTOM ASSY. WPL 5504A00116 Contact Us For Availability
5
SCREW WPL 7101P29160 Contact Us For Availability
5
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
5
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P13160 Contact Us For Availability
5
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
6
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
6
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
6
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
7
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
7
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
7
SCREW WPL 7101P30060 Contact Us For Availability
8
BAFFLE WPL 3601F23645 Contact Us For Availability
8
SCREW WPL 7101P31560 Contact Us For Availability
8
KNOB, VALVE (BLK) WPL 7733P08460 Contact Us For Availability
8
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
8
HINGE WPL 7106P05560 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P04660 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05060 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
INSULATION, DOOR WPL 7002P15660 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
10
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
10
SCREW WPL 7118P01960 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
FRAME, WINDOW WPL 3603F03680 Contact Us For Availability
11
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
11
BEZEL, KNOB (BLK) WPL 7740P05860 Contact Us For Availability
11
BRACKET WPL 3801F33145 Contact Us For Availability
11
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
12
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
12
TUBING WPL 3414F11444 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
12
BEZEL, THERMOSTAT KNOB (BLK) WPL 7740P01960 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
13
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
13
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
13
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
13
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
13
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
13
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
13
RACK, OVEN WPL 7801P04760 Contact Us For Availability
14
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P06360 Contact Us For Availability
14
NUT, SPEED WPL 7103P12960 Contact Us For Availability
14
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
14
HARNESS, CONTROL PANEL WPL 5180D13860 Contact Us For Availability
14
BOX, VENT WPL 4006W11345 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
LINING, DOOR WPL 2402W21316 Contact Us For Availability
15
GLIDE WPL 8016P01360 Contact Us For Availability
15
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
15
MODULE, SPARK WPL 7431P02460 Contact Us For Availability
15
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
15
MANUAL, USE & CARE WPL 8113P04360 Contact Us For Availability
15
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
15
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
16
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
16
SUPPORT, ORIFICE FITTING WPL 3807F45145 Contact Us For Availability
16
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
16
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
16
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
16
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
17
FITTING, ORIFICE (R.R.) WPL 7507P08560 Contact Us For Availability
17
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
18
PANEL, DRAWER (WHT) WPL 2403F02871 Contact Us For Availability
18
FITTING, ORIFICE (L.R.) WPL 7507P11360 Contact Us For Availability
18
SCREW WPL 7118P01360 Contact Us For Availability
19
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
19
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
19
FITTING, ORIFICE (L.F. 9,200) WPL 7507P08460 Contact Us For Availability
19
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
20
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
20
FITTING, ORIFICE (R.F.) WPL 7507P09160 Contact Us For Availability
20
BACK, MAIN WPL 4002F18880 Contact Us For Availability
21
INSULATION WPL 4804F02560 Contact Us For Availability
21
PALNUT WPL 7103P11960 Contact Us For Availability
21
BOX, BURNER WPL 4011F23080 Contact Us For Availability
22
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
22
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
22
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
22
SCREW WPL 7101P29660 Contact Us For Availability
22
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
23
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
24
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
24
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
24
SCREW WPL 7101P06160 Contact Us For Availability
24
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
25
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
25
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
26
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
26
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
26
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
26
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
27
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
27
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
27
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
28
NUT, GRIP WPL 7103P02260 Contact Us For Availability
28
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
28
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
29
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
29
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
30
END CAP (RT) WPL 7744P07560 Contact Us For Availability
30
END CAP (LT) WPL 7744P07660 Contact Us For Availability
30
BULB, OVEN WPL 7407P09560 Contact Us For Availability
31
CORD, POWER WPL 7402P04360 Contact Us For Availability
32
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
× ![]()
