Model Whirlpool 3221WPA GAS RANGE – Common Parts & Diagrams

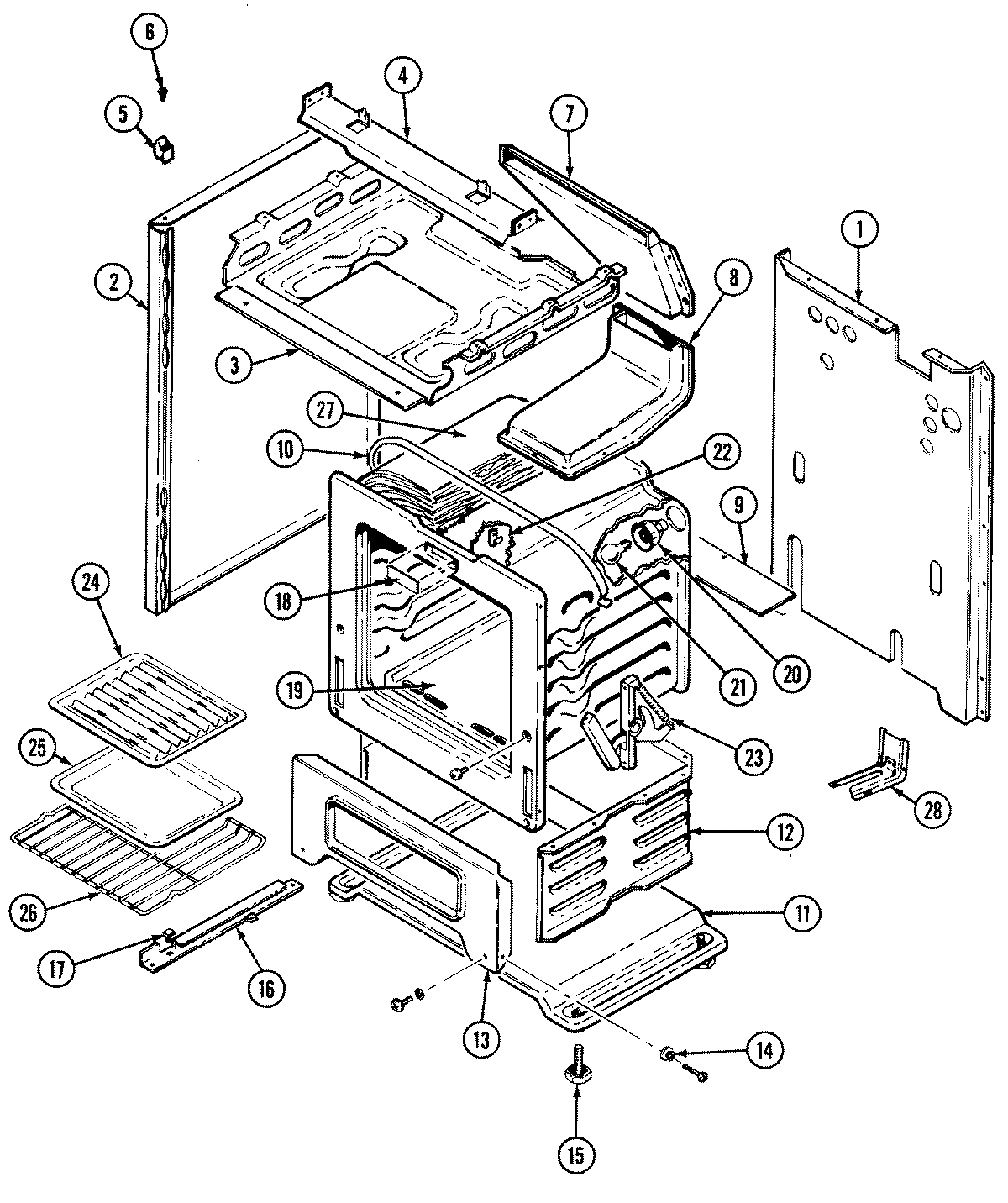

01 - BODY/OVEN
Common parts from model Whirlpool 3221WPA GAS RANGE
0
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
1
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
3
BOX, BURNER WPL 4011F20980 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
11
BASE WPL 4003F02480 Contact Us For Availability
11
BASE, MAIN WPL 4003W02880 Contact Us For Availability
12
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
13
EXTENSION, OVEN FRONT WPL 2201F07319 Contact Us For Availability
14
SCREW WPL 7101P30060 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
15
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
16
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
16
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
17
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
18
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
19
SCREW WPL 7101P29060 Contact Us For Availability
19
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
19
RETAINER WPL 3804F01050 Contact Us For Availability
19
OVEN BOTTOM ASSY. WPL 5504A00116 Contact Us For Availability
20
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
21
BULB, OVEN WPL 7407P02660 Contact Us For Availability
22
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
23
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
23
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
24
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
25
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
26
RACK, OVEN WPL 7801P03660 Contact Us For Availability
27
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
27
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
28
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
28
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
28
HARNESS, SUPPLY WPL 5185D25060 Contact Us For Availability
28
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
28
CORD, POWER WPL 7402P04360 Contact Us For Availability
× ![]()
