Model Electrolux 32-2757-00-06 RANGE – Common Parts & Diagrams

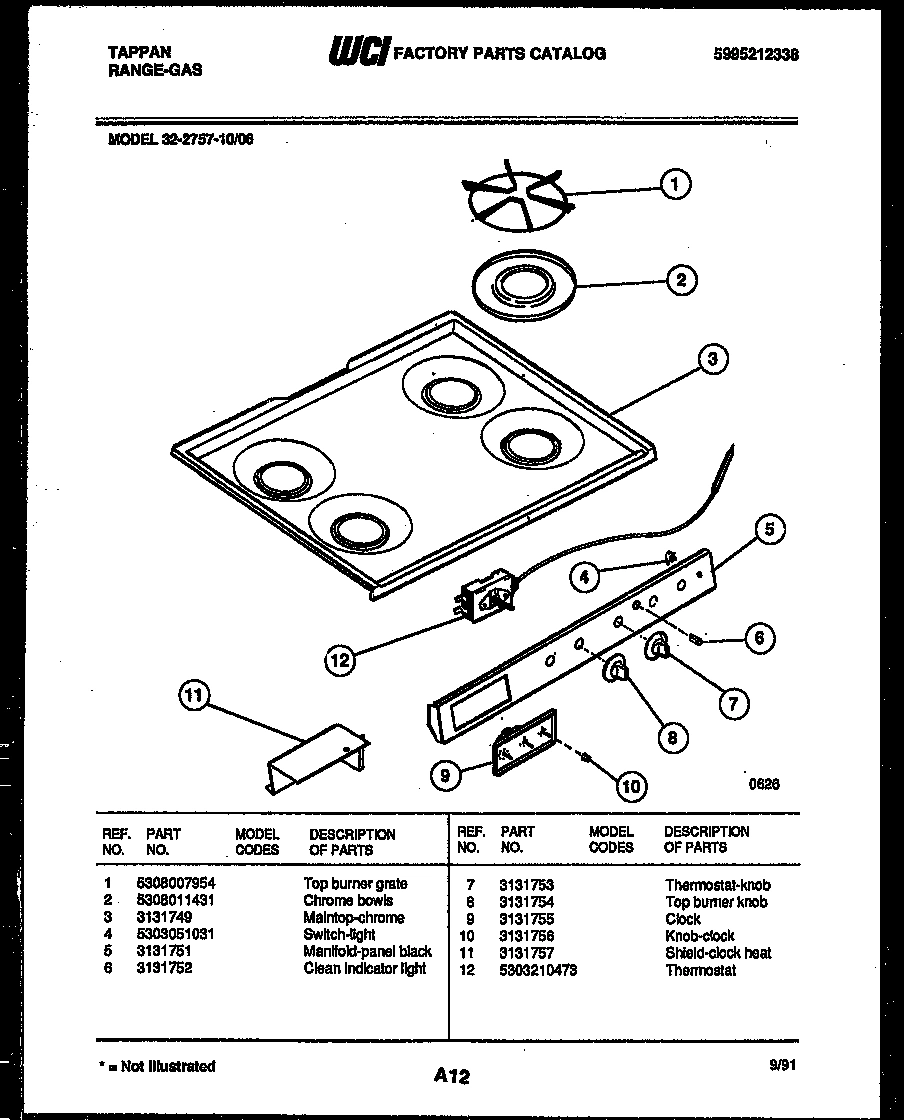

02 - COOKTOP PARTS

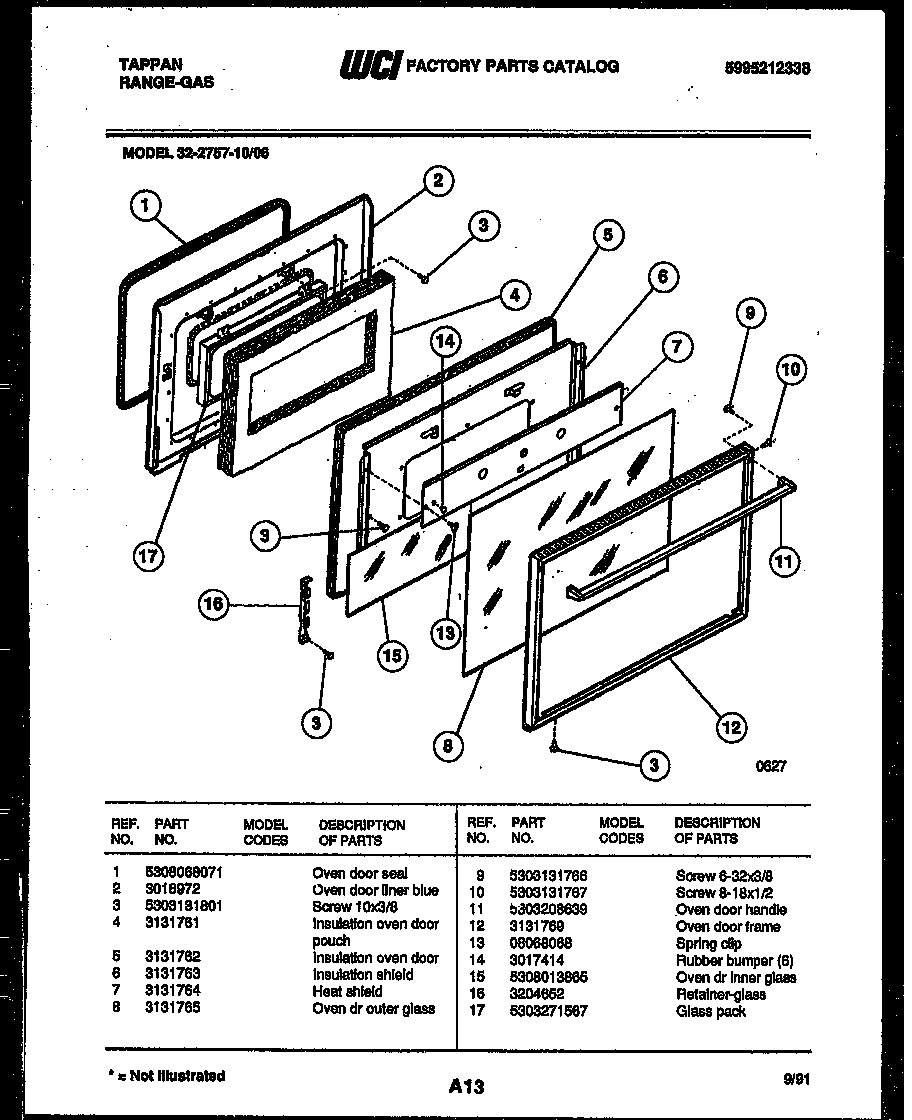

03 - DOOR PARTS

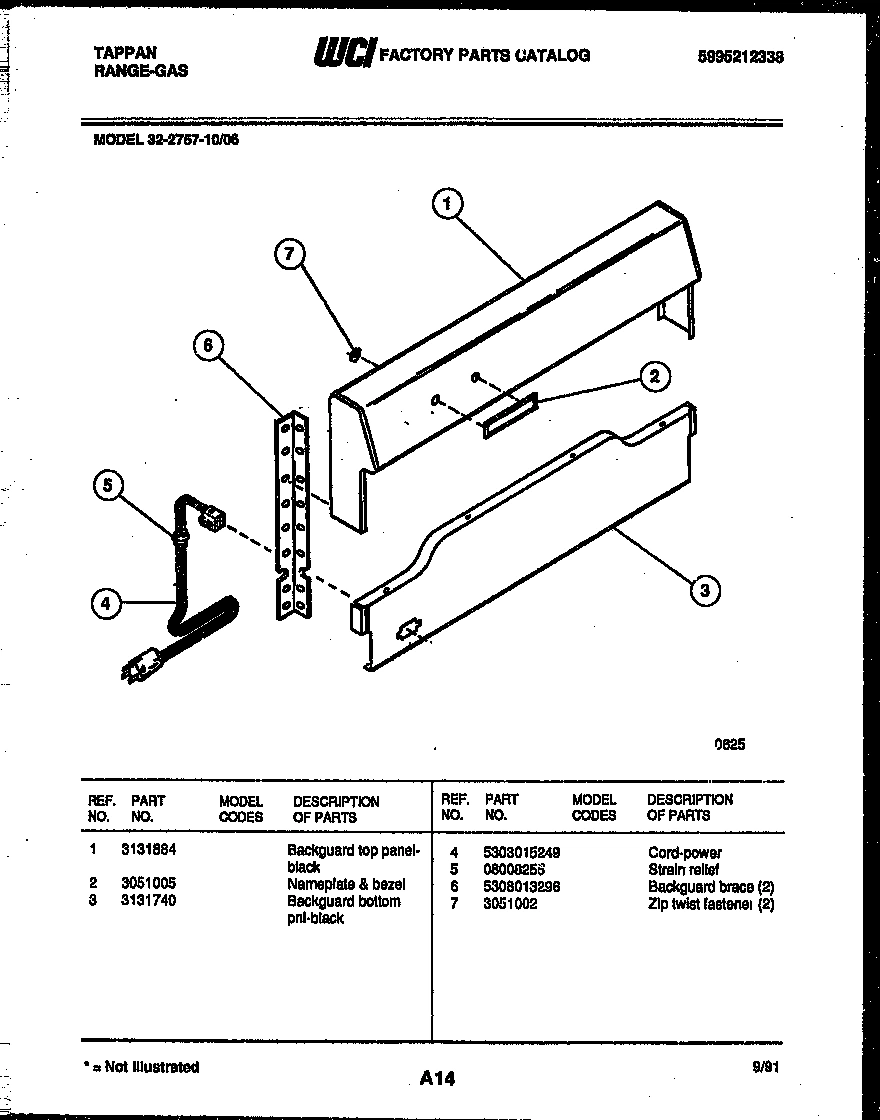

04 - BACKGUARD

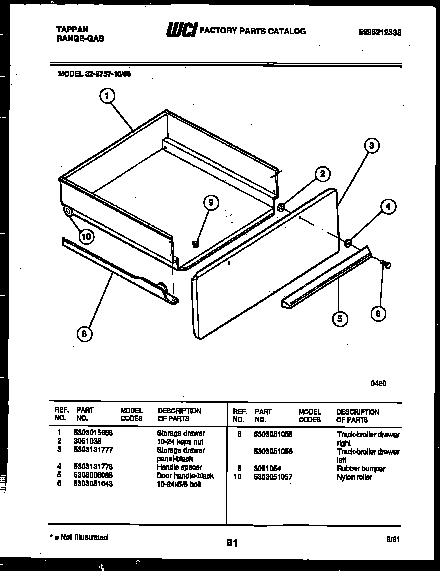

05 - DRAWER PARTS

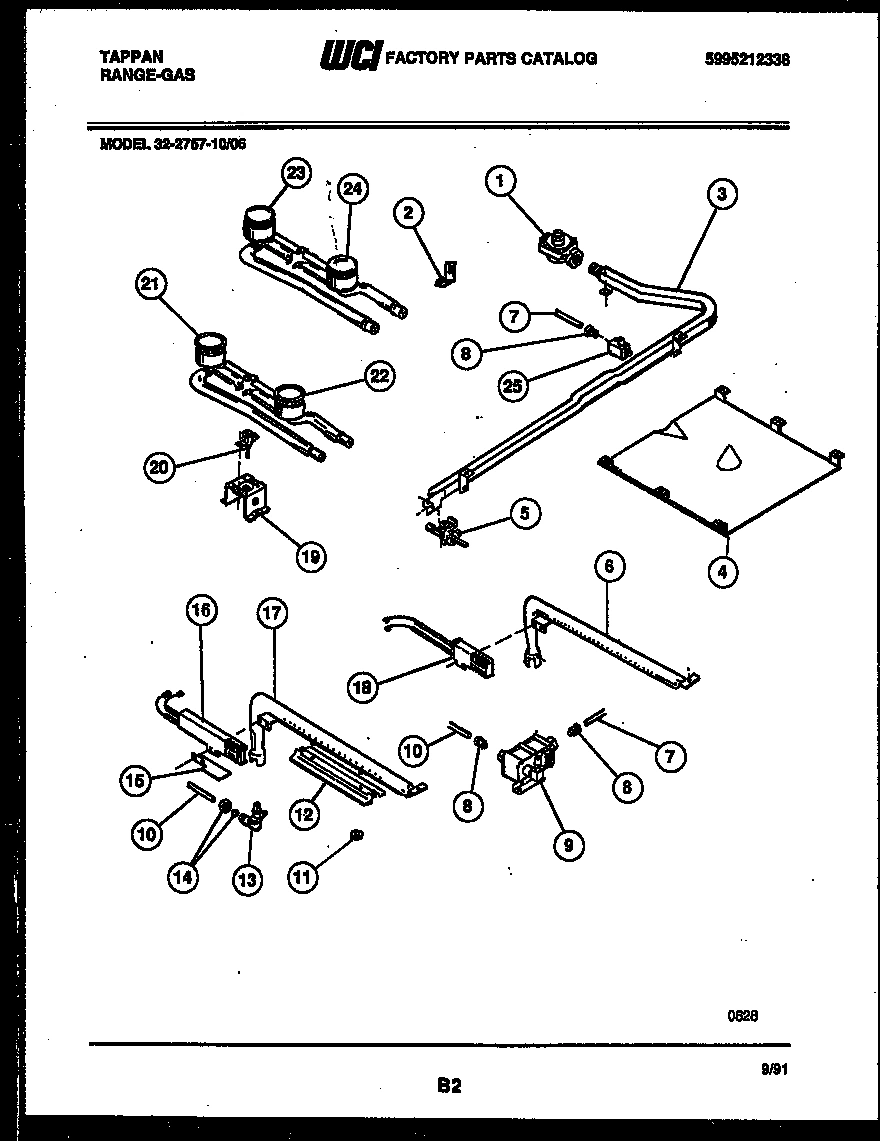

06 - BURNER, MANIFOLD AND GAS CONTROL

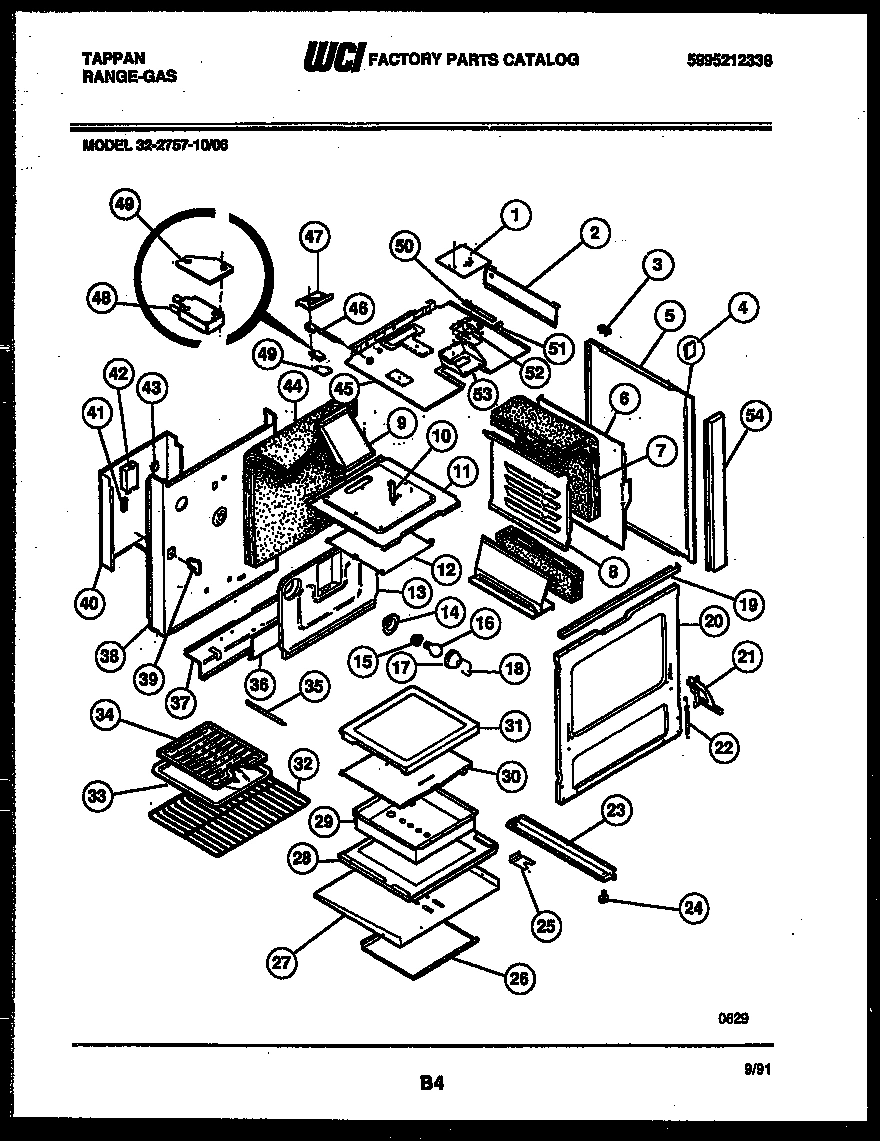

07 - BODY PARTS
Common parts from model Electrolux 32-2757-00-06 RANGE
*60020
WCI 191S018F254 WCI 191S018F254 Contact Us For Availability
*60020
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
1
WCI 5308068071 WCI 5308068071 Contact Us For Availability
1
WCI 3131884 WCI 3131884 Contact Us For Availability
1
STORAGE DRAWER WCI 5303015688 Contact Us For Availability
1
DOOR LOCK COVER WCI 3016970 Contact Us For Availability
2
CHROME BOWLS WCI 5308011431 Contact Us For Availability
2
OVEN DOOR LINER BLUE WCI 3016972 Contact Us For Availability
2
NAMEPLATE BEZEL WCI 3051005 Contact Us For Availability
2
WCI 5300009126 WCI 5300009126 Contact Us For Availability
2
HEAT SHIELD RIGHT WCI 5303131053 Contact Us For Availability
2A
HEAT SHIELD LEFT WCI 5303131054 Contact Us For Availability
3
SCREW, 10 X 3/8 WCI 5303131801 Contact Us For Availability
3
BACKGUARD BOTTOM PNL-BLACK WCI 3131740 Contact Us For Availability
3
WCI 5303131777 WCI 5303131777 Contact Us For Availability
3
WCI 3131855 WCI 3131855 Contact Us For Availability
3
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
4
INSULATION OVEN DOOR POUCH WCI 3131761 Contact Us For Availability
4
CORD - POWER WCI 5303015249 Contact Us For Availability
4
HANDLE SPACER WCI 5303131778 Contact Us For Availability
4
BODYSIDE CORNER CLIP WCI 3131791 Contact Us For Availability
5
INSULATION, OVEN DOOR WCI 3131762 Contact Us For Availability
5
WCI 08008255 WCI 08008255 Contact Us For Availability
5
DOOR HANDLE-BLACK WCI 5308008085 Contact Us For Availability
5
TOP BURNER VALVE WCI 3200709 Contact Us For Availability
5
WCI 3131792 WCI 3131792 Contact Us For Availability
6
INSULATION SHIELD WCI 3131763 Contact Us For Availability
6
BACKGUARD BRACE (2) WCI 5308013296 Contact Us For Availability
6
WCI 5303210388 WCI 5303210388 Contact Us For Availability
6
BODYSIDE HEAT SHIELD WCI 3131794 Contact Us For Availability
7
HEAT SHIELD WCI 3131764 Contact Us For Availability
7
ZIP TWIST FASTENER (2) WCI 3051002 Contact Us For Availability
7
WCI 08068028 WCI 08068028 Contact Us For Availability
7
INSULATION OVEN WRAPPER WCI 3131795 Contact Us For Availability
8
OVEN DR OUTER GLASS WCI 3131765 Contact Us For Availability
8
TRACK-BROILER DRAWER RIGHT WCI 5303051055 Contact Us For Availability
8
WCI 3131864 WCI 3131864 Contact Us For Availability
8
OVEN LINER SIDE RT WCI 3016533 Contact Us For Availability
8A
TRACK-BROILER DRAWER LEFT WCI 5303051056 Contact Us For Availability
8A
OVEN LINER SIDE LT WCI 3016534 Contact Us For Availability
9
WCI 5303131766 WCI 5303131766 Contact Us For Availability
9
RUBBER BUMPER WCI 3051054 Contact Us For Availability
9
WCI 5303017415 WCI 5303017415 Contact Us For Availability
9
WCI 3016877 WCI 3016877 Contact Us For Availability
10
WCI 3131756 WCI 3131756 Contact Us For Availability
10
NYLON ROLLER WCI 5303051057 Contact Us For Availability
10
BROIL BURNER FEED TUBE WCI 3131866 Contact Us For Availability
10
BURNER BOX BTTM BRKT WCI 3131800 Contact Us For Availability
11
WCI 3131757 WCI 3131757 Contact Us For Availability
11
WCI 5303208639 WCI 5303208639 Contact Us For Availability
11
OVEN TOP LINING WCI 3131802 Contact Us For Availability
12
WCI 5303210473 WCI 5303210473 Contact Us For Availability
12
OVEN DOOR FRAME WCI 3131769 Contact Us For Availability
12
BAFFLE BROILER BURNER WCI 3131803 Contact Us For Availability
12
WCI 5308011508 WCI 5308011508 Contact Us For Availability
13
WCI 08068068 WCI 08068068 Contact Us For Availability
13
WCI 5308011470 WCI 5308011470 Contact Us For Availability
13
OVEN BACK LINER WCI 3200915 Contact Us For Availability
14
WCI 3051511 WCI 3051511 Contact Us For Availability
14
RUBBER BUMPER (6) WCI 3017414 Contact Us For Availability
14
COMPRESSION NUT & SLEEVE WCI 3131072 Contact Us For Availability
15
WCI 5308013865 WCI 5308013865 Contact Us For Availability
15
IGNITER SHIELD WCI 3131871 Contact Us For Availability
16
WCI 3204652 WCI 3204652 Contact Us For Availability
17
WCI 5303271567 WCI 5303271567 Contact Us For Availability
17
WCI 5303210389 WCI 5303210389 Contact Us For Availability
18
WCI 5303205904 WCI 5303205904 Contact Us For Availability
19
TOP BURNER SUPPORT WCI 5303210471 Contact Us For Availability
19
CONTROL PNL SUPPORT WCI 3131811 Contact Us For Availability
20
WCI 3203968 WCI 3203968 Contact Us For Availability
20
WCI 3205905 WCI 3205905 Contact Us For Availability
20A
TOP BURNER IGNITER-48`` WCI 3203971 Contact Us For Availability
21
TOP BURNER LEFT REAR WCI 3017146 Contact Us For Availability
21A
WCI 3205894 WCI 3205894 Contact Us For Availability
22
WCI 3017144 WCI 3017144 Contact Us For Availability
23
WCI 3017145 WCI 3017145 Contact Us For Availability
23
BASE RAIL-RT WCI 5303210255 Contact Us For Availability
23A
BASE RAIL-LT WCI 5303210256 Contact Us For Availability
24
LEVEL-BOLT (4) WCI 318175510 No Longer Available
24
TOP BURNER RIGHT FRONT WCI 5303131080 Contact Us For Availability
25
SHUTOFF VALVE WCI 5303131099 Contact Us For Availability
25
BRKT ANTI-TIP WCI 3934059 Contact Us For Availability
26
WCI 08068050 WCI 08068050 Contact Us For Availability
27
BOTTOM INSULATION RETAINER WCI 3131820 Contact Us For Availability
28
LINER OVEN BTTM WCI 12055 Contact Us For Availability
29
WCI 5308068046 WCI 5308068046 Contact Us For Availability
30
BAFFLE BTTM OVEN WCI 3131823 Contact Us For Availability
31
PLATE OVEN BTTM WCI 3016975 Contact Us For Availability
32
OVEN RACK WCI 5303015714 Contact Us For Availability
33
BROILER-PAN WCI 5303016973 Contact Us For Availability
34
BROILER GRID WCI 5303017712 Contact Us For Availability
35
SHIELD CAP BULB WCI 3201170 Contact Us For Availability
36
WCI 08068039 WCI 08068039 Contact Us For Availability
37
SUPPORT CONTROL VALVE WCI 3131831 Contact Us For Availability
38
WCI 3131833 WCI 3131833 Contact Us For Availability
39
Support,oven rear WCI 3051096 Contact Us For Availability
40
WCI 08068038 WCI 08068038 Contact Us For Availability
41
WCI 5308008071 WCI 5308008071 Contact Us For Availability
43
WCI 5303131839 WCI 5303131839 Contact Us For Availability
44
INSULATION TOP-BACK BTTM WCI 3131840 Contact Us For Availability
45
BURNER BOX BTTM WCI 3016971 Contact Us For Availability
46
WCI 08068030 WCI 08068030 Contact Us For Availability
47
WCI 5303131843 WCI 5303131843 Contact Us For Availability
48
WCI 5303131846 WCI 5303131846 Contact Us For Availability
49
INSULATOR (2) WCI 3017411 Contact Us For Availability
50
WCI 5308068040 WCI 5308068040 Contact Us For Availability
51
KNOB DOOR LOCK WCI 3131851 Contact Us For Availability
52
WCI 5308068025 WCI 5308068025 Contact Us For Availability
53
WCI 3131853 WCI 3131853 Contact Us For Availability
54
WCI 5308014088 WCI 5308014088 Contact Us For Availability
× ![]()
