Model Electrolux 32-2757-00-05 RANGE – Common Parts & Diagrams

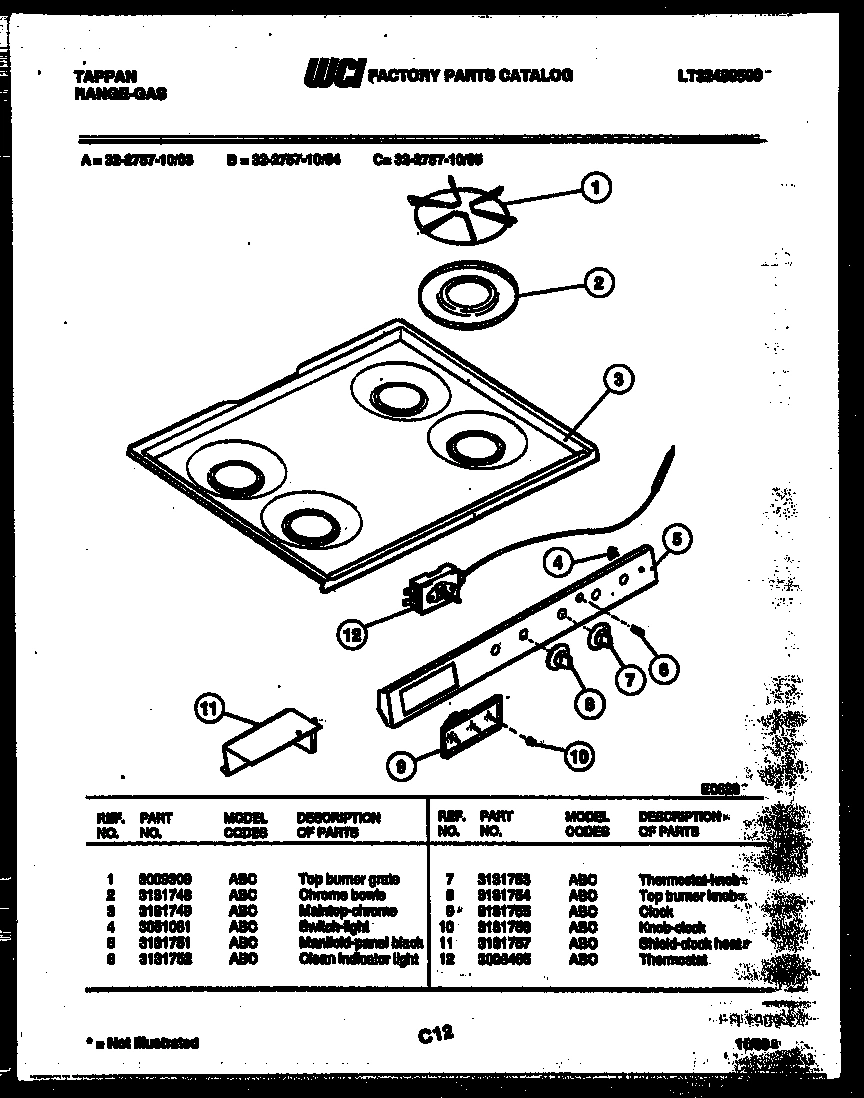

02 - COOKTOP PARTS

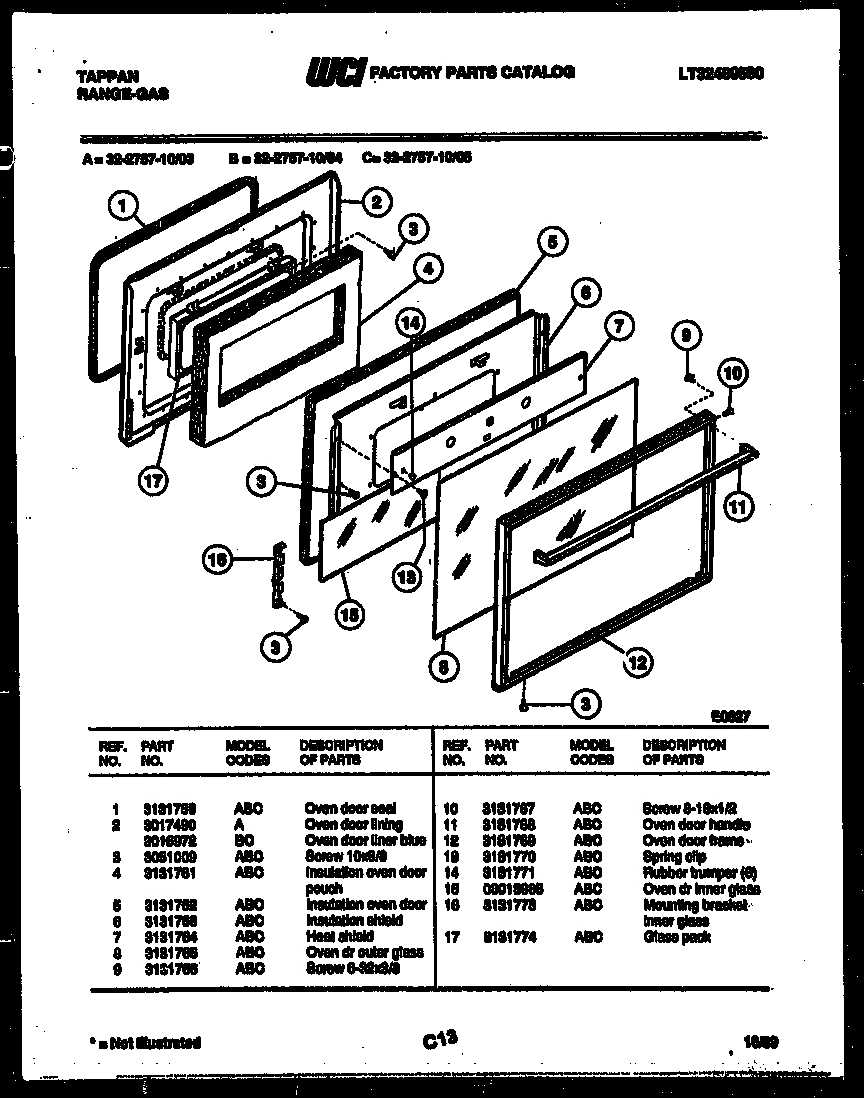

03 - DOOR PARTS

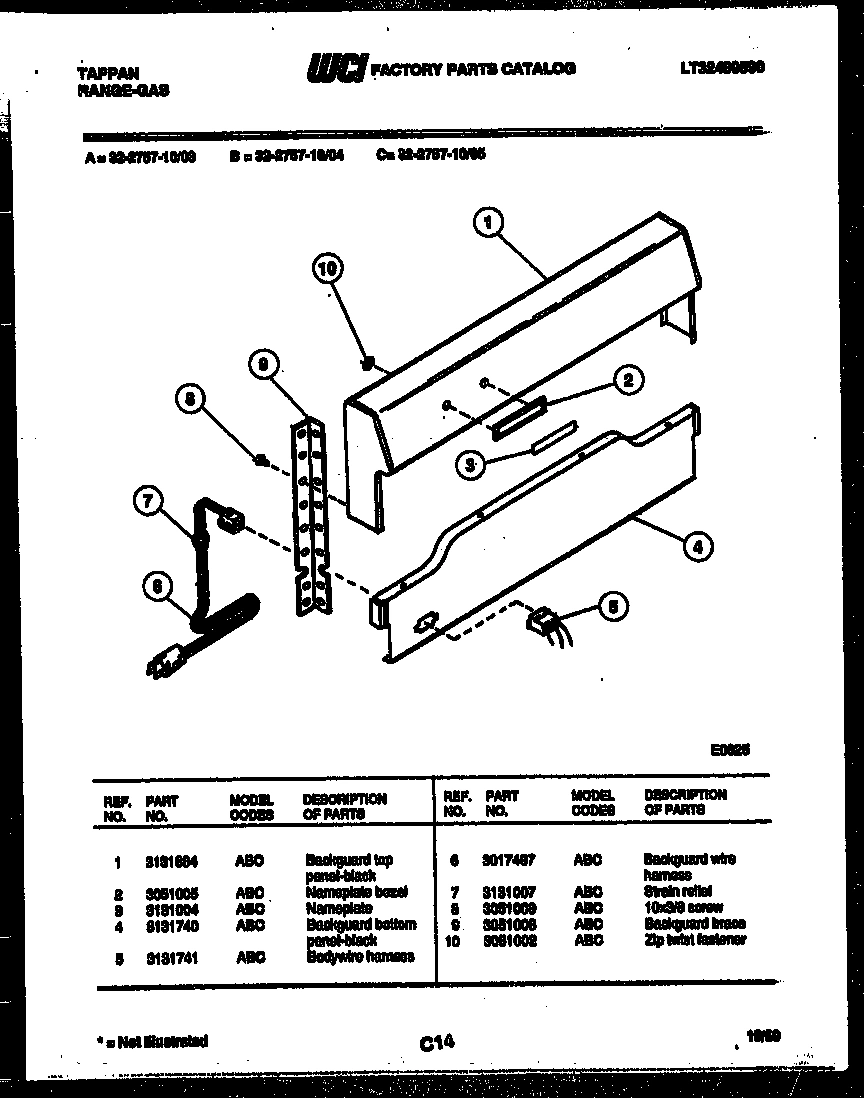

04 - BACKGUARD

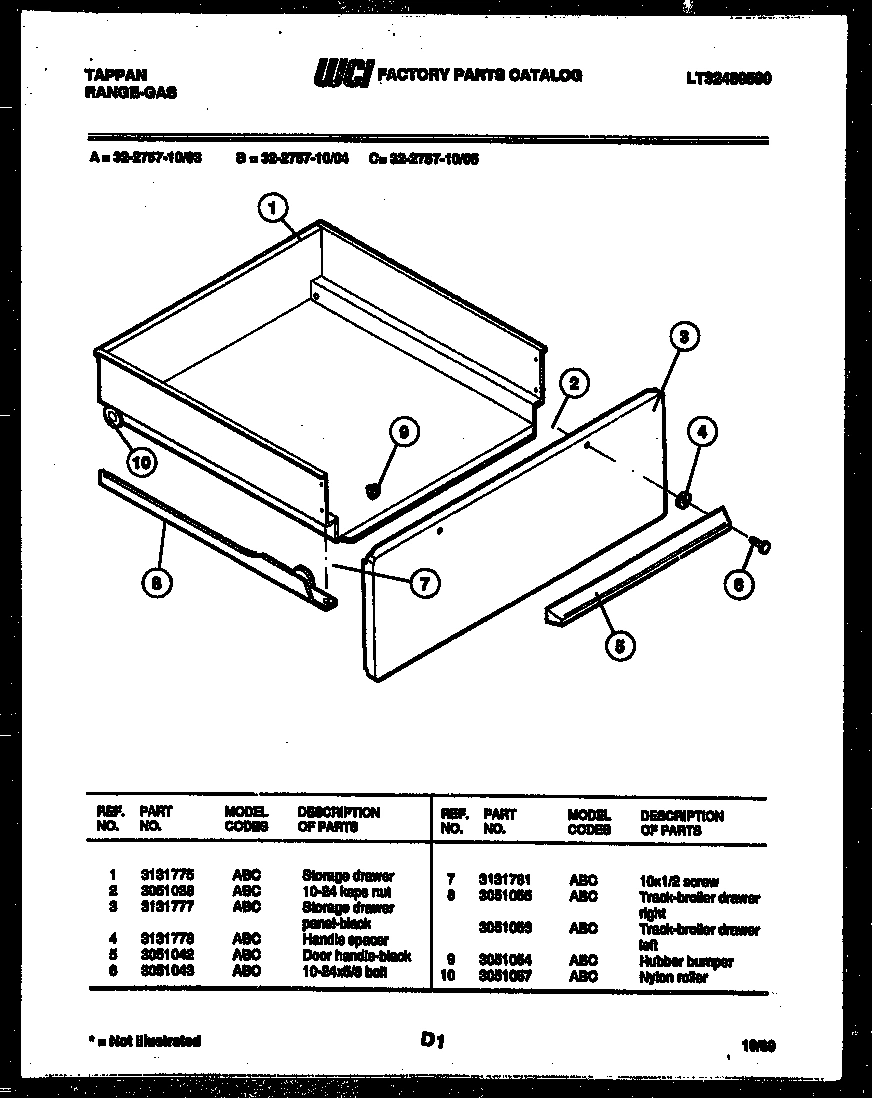

05 - DRAWER PARTS

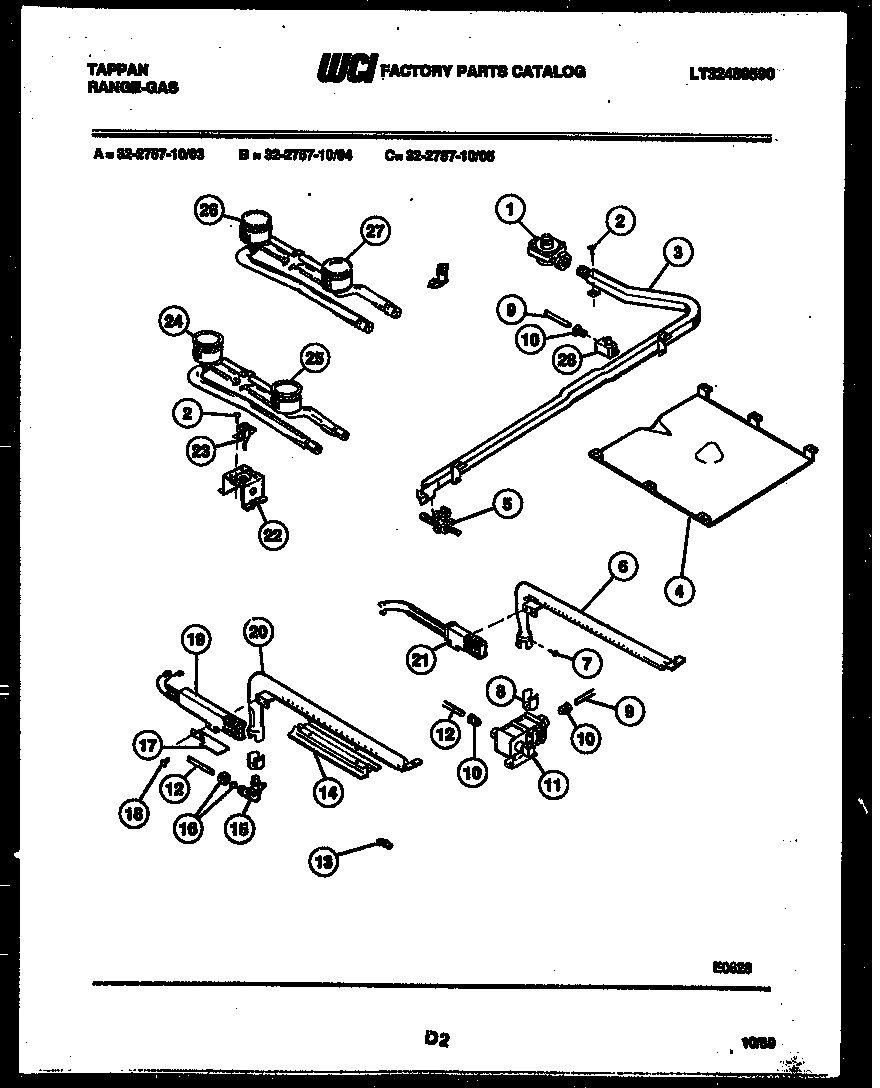

06 - BURNER, MANIFOLD AND GAS CONTROL

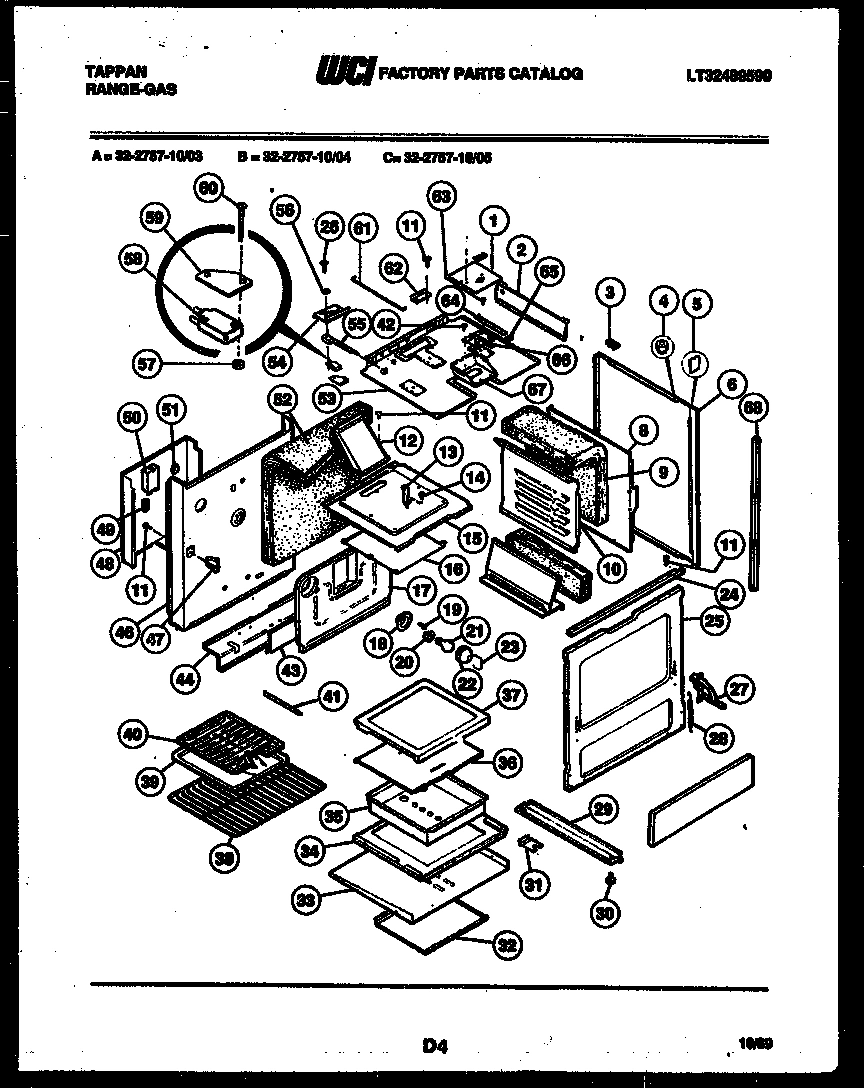

07 - BODY PARTS
Common parts from model Electrolux 32-2757-00-05 RANGE
1
TOP BURNER GRATE WCI 3009309 Contact Us For Availability
1
WCI 3131884 WCI 3131884 Contact Us For Availability
1
WCI 3131775 WCI 3131775 Contact Us For Availability
1
WCI 3131786 WCI 3131786 Contact Us For Availability
2
WCI 3131748 WCI 3131748 Contact Us For Availability
2
OVEN DOOR LINER BLUE WCI 3016972 Contact Us For Availability
2
NAMEPLATE BEZEL WCI 3051005 Contact Us For Availability
2
HEAT SHIELD RIGHT WCI 3131053 Contact Us For Availability
2A
HEAT-SHIELD-LEFT WCI 3131054 Contact Us For Availability
3
WCI 3131749 WCI 3131749 Contact Us For Availability
3
WCI 3131004 WCI 3131004 Contact Us For Availability
3
WCI 3131777 WCI 3131777 Contact Us For Availability
3
WCI 3131855 WCI 3131855 Contact Us For Availability
3
WCI 3051060 WCI 3051060 Contact Us For Availability
4
SWITCH-LIGHT WCI 3051031 Contact Us For Availability
4
INSULATION OVEN DOOR POUCH WCI 3131761 Contact Us For Availability
4
WCI 3131740 WCI 3131740 Contact Us For Availability
4
HANDLE SPACER WCI 3131778 Contact Us For Availability
4
BAFFLE BROILER WCI 08011509 Contact Us For Availability
4
GROMMRT (2) WCI 3051063 Contact Us For Availability
5
WCI 3131751 WCI 3131751 Contact Us For Availability
5
INSULATION, OVEN DOOR WCI 3131762 Contact Us For Availability
5
WCI 3131741 WCI 3131741 Contact Us For Availability
5
WCI 3051042 WCI 3051042 Contact Us For Availability
5
WCI 3200709 WCI 3200709 Contact Us For Availability
5
BODYSIDE CORNER CLIP WCI 3131791 Contact Us For Availability
6
WCI 3131752 WCI 3131752 Contact Us For Availability
6
INSULATION SHIELD WCI 3131763 Contact Us For Availability
6
WCI 3017487 WCI 3017487 Contact Us For Availability
6
WCI 5303131860 WCI 5303131860 Contact Us For Availability
6
WCI 3131792 WCI 3131792 Contact Us For Availability
7
WCI 3131753 WCI 3131753 Contact Us For Availability
7
HEAT SHIELD WCI 3131764 Contact Us For Availability
7
WCI 3131007 WCI 3131007 Contact Us For Availability
7
WCI 3131781 WCI 3131781 Contact Us For Availability
7
AIR SHUTTER SCREW WCI 3131065 Contact Us For Availability
8
WCI 3131754 WCI 3131754 Contact Us For Availability
8
OVEN DR OUTER GLASS WCI 3131765 Contact Us For Availability
8
TRACK-BROILER DRAWER RIGHT WCI 3051055 Contact Us For Availability
8
WCI 3131862 WCI 3131862 Contact Us For Availability
8
BODYSIDE HEAT SHIELD WCI 3131794 Contact Us For Availability
8A
TRACK-BROILER DRAWER LEFT WCI 3051056 Contact Us For Availability
9
WCI 3131755 WCI 3131755 Contact Us For Availability
9
WCI 3131766 WCI 3131766 Contact Us For Availability
9
BACKGUARD BRACE WCI 3051008 Contact Us For Availability
9
RUBBER BUMPER WCI 3051054 Contact Us For Availability
9
OVEN FEED TUBE WCI 3131863 Contact Us For Availability
9
INSUL OVEN WRAPPER WCI 3131795 Contact Us For Availability
10
WCI 3131756 WCI 3131756 Contact Us For Availability
10
ZIP TWIST FASTENER WCI 3051002 Contact Us For Availability
10
NYLON ROLLER WCI 3051057 Contact Us For Availability
10
WCI 3131864 WCI 3131864 Contact Us For Availability
10
OVEN LINER SIDE RT WCI 3016533 Contact Us For Availability
10A
OVEN LINER SIDE LT WCI 3016534 Contact Us For Availability
11
WCI 3131757 WCI 3131757 Contact Us For Availability
11
WCI 3131768 WCI 3131768 Contact Us For Availability
11
WCI 3131865 WCI 3131865 Contact Us For Availability
12
WCI 3009465 WCI 3009465 Contact Us For Availability
12
OVEN DOOR FRAME WCI 3131769 Contact Us For Availability
12
BROIL BURNER FEED TUBE WCI 3131866 Contact Us For Availability
12
WCI 3016877 WCI 3016877 Contact Us For Availability
13
SPRING CLIP WCI 3131770 Contact Us For Availability
13
BURNER BOX BOTTOM BRACKET WCI 3131800 Contact Us For Availability
14
RUBBER BUMPER (6) WCI 3131771 Contact Us For Availability
14
WCI 3131867 WCI 3131867 Contact Us For Availability
14
WCI 3131801 WCI 3131801 Contact Us For Availability
15
OVEN DR INNER GLASS WCI 08013865 Contact Us For Availability
15
WCI 3131869 WCI 3131869 Contact Us For Availability
15
OVEN TOP LINIG WCI 3131802 Contact Us For Availability
16
WCI 3131773 WCI 3131773 Contact Us For Availability
16
COMPRESSION NUT AND SLEEVE WCI 3131072 Contact Us For Availability
16
WCI 3131803 WCI 3131803 Contact Us For Availability
17
WCI 3131774 WCI 3131774 Contact Us For Availability
17
IGNITER SHIELD WCI 3131871 Contact Us For Availability
17A
WCI 3200915 WCI 3200915 Contact Us For Availability
18
WCI 3051085 WCI 3051085 Contact Us For Availability
20
WCI 3205893 WCI 3205893 Contact Us For Availability
22
TOP BURNER SUPPORT WCI 3203964 Contact Us For Availability
23
TOP BURNER IGNITER WCI 3203971 Contact Us For Availability
23
WCI 3131810 WCI 3131810 Contact Us For Availability
24
TOP BURNER LEFT REAR WCI 3017146 Contact Us For Availability
24
CONTROL PANEL SUPPORT WCI 3131811 Contact Us For Availability
25
WCI 3017144 WCI 3017144 Contact Us For Availability
25
FRONT FRAME BLUE WCI 3205905 Contact Us For Availability
26
WCI 3017145 WCI 3017145 Contact Us For Availability
27
TOP BURNER RIGHT FRONT WCI 3131080 Contact Us For Availability
27
OVEN DOOR HINGE (R) WCI 3051078 Contact Us For Availability
28
SHUT OFF VALVE WCI 3131099 Contact Us For Availability
29
BASE-RAIL WCI 3051081 Contact Us For Availability
30
LEVEL-BOLT (4) WCI 3051080 Contact Us For Availability
31
INSTALLTION BRACKET WCI 3131041 Contact Us For Availability
32
STORAGE DRWR SHIELD WCI 3131819 Contact Us For Availability
33
BOTTOM INSULATION RETAINER WCI 3131820 Contact Us For Availability
34A
OVEN BOT LINER BLUE WCI 12055 Contact Us For Availability
35
OVEN BURNER PAN WCI 3131822 Contact Us For Availability
36
WCI 3131823 WCI 3131823 Contact Us For Availability
37
OVEN BOT PLATE BLUE WCI 3016975 Contact Us For Availability
38
WCI 3131825 WCI 3131825 Contact Us For Availability
39
BROILER PAN BLUE WCI 3016973 Contact Us For Availability
41
WCI 3016976 WCI 3016976 Contact Us For Availability
41A
10 X 1/2 SCREW FOR KEY NUMBER 149 (NON-ILLUST WCI 3131798 Contact Us For Availability
42
10 X 3/8 SCREW WCI 3051009 Contact Us For Availability
43
VALVE WIRE COVER WCI 3131830 Contact Us For Availability
44
CONTROL VALVE SUPPORT WCI 3131831 Contact Us For Availability
46
MAIN BACK WCI 3131833 Contact Us For Availability
47
OVEN REAR SUPPORT WCI 3051096 Contact Us For Availability
48
MAIN BACK WIRE COVER WCI 3131835 Contact Us For Availability
49
WCI 3131836 WCI 3131836 Contact Us For Availability
49A
SCREW FOR KEY NUMBER 49 (NON-ILLUSTRATED) WCI 3131837 Contact Us For Availability
51
THERMOSTAT BAKE-BROIL SELECTOR WCI 3131839 Contact Us For Availability
52
INSULATION TOP-BACK-BOTTOM WCI 3131840 Contact Us For Availability
53
WCI 3016971 WCI 3016971 Contact Us For Availability
54
LOCK SWITCH ACTUATOR WCI 3131842 Contact Us For Availability
55
LOCK SWITCH BRACKET WCI 3131843 Contact Us For Availability
56
WCI 3131844 WCI 3131844 Contact Us For Availability
57
WCI 3131845 WCI 3131845 Contact Us For Availability
58
SWITCH (2) WCI 3131846 Contact Us For Availability
59
WCI 3131847 WCI 3131847 Contact Us For Availability
60
WCI 3131848 WCI 3131848 Contact Us For Availability
63
10-24 X 1/4 SCREW WCI 3131849 Contact Us For Availability
64
DOOR LOCK HANDLE WCI 3131850 Contact Us For Availability
65
WCI 3131851 WCI 3131851 Contact Us For Availability
66
WCI 3131852 WCI 3131852 Contact Us For Availability
67
DOOR LOCK SUPPORT WCI 3131853 Contact Us For Availability
68
WCI 08014088 WCI 08014088 Contact Us For Availability
× ![]()
