Model Electrolux 32-2539-00-02 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

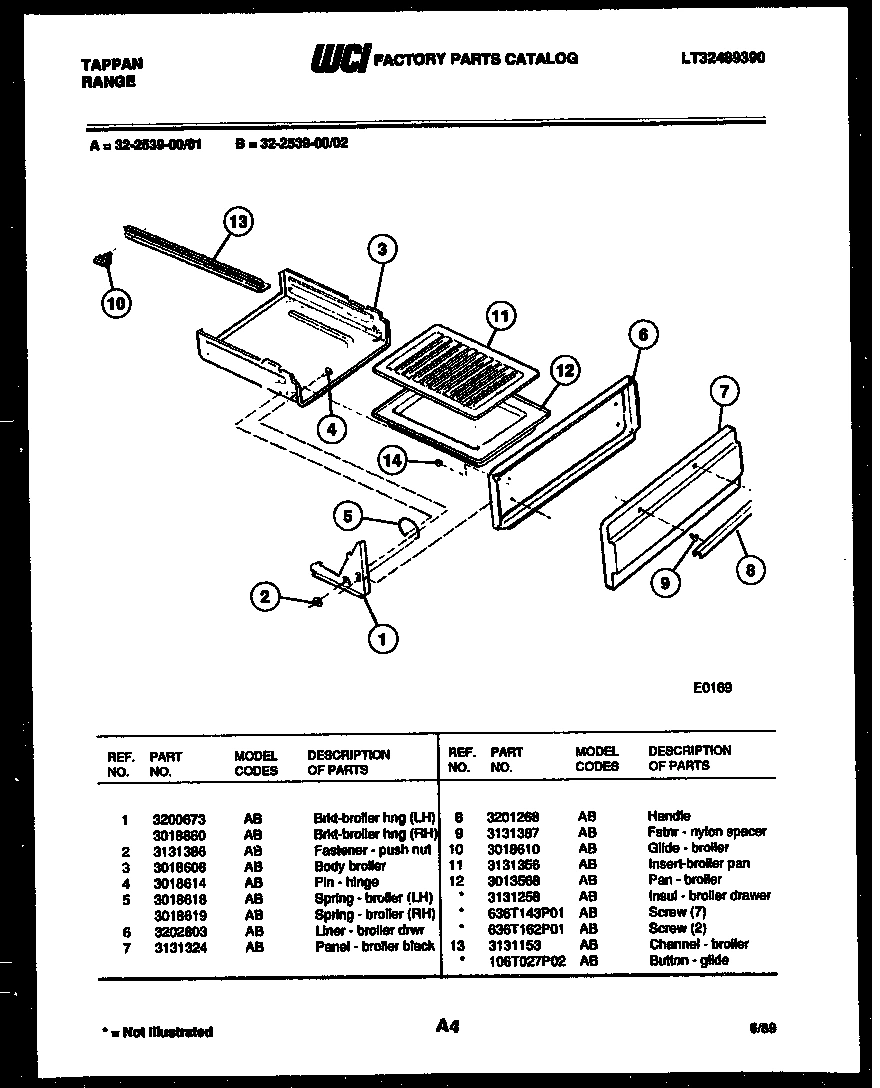

04 - BROILER DRAWER PARTS

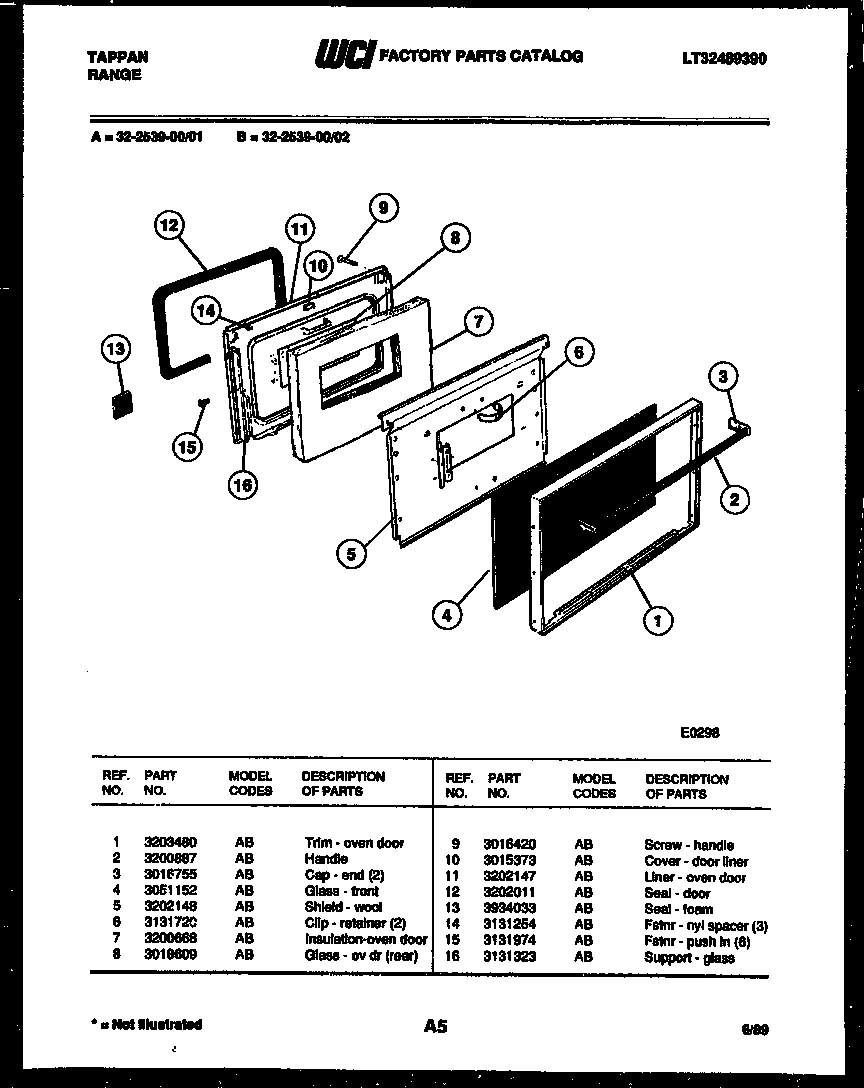

05 - DOOR PARTS

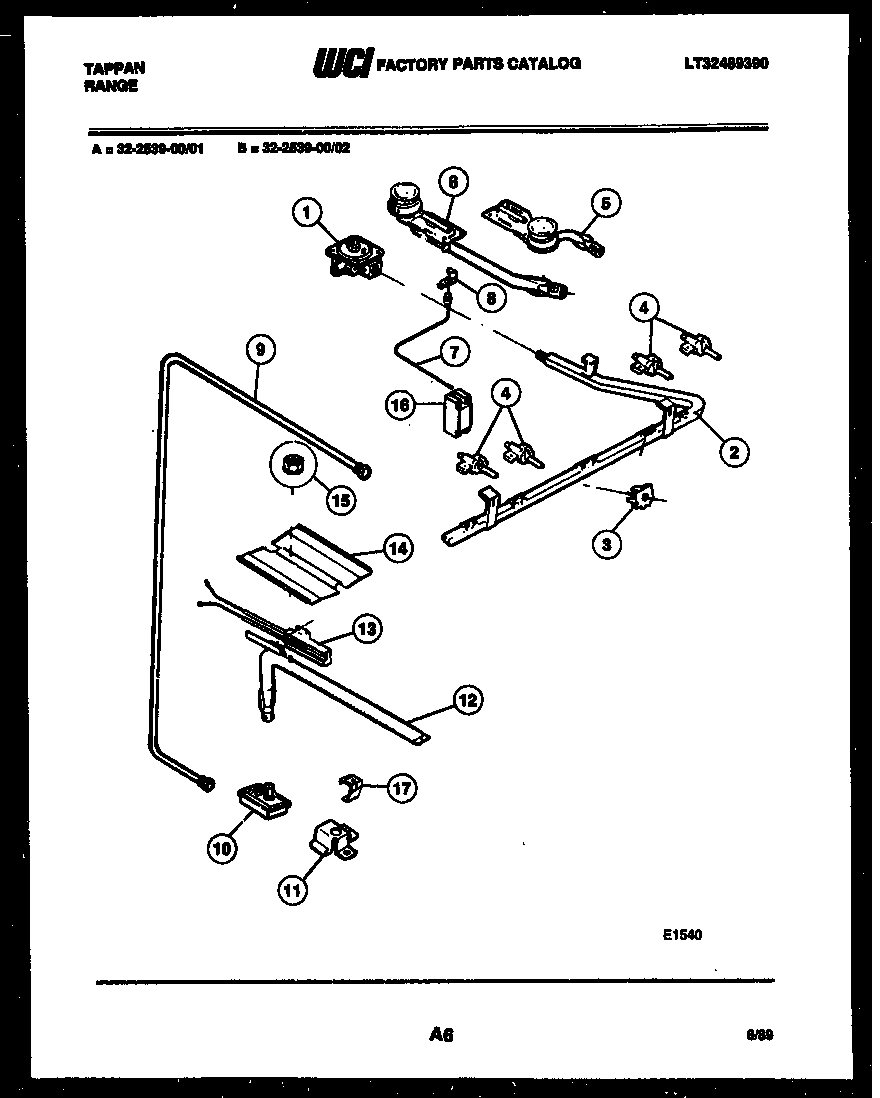

06 - BURNER, MANIFOLD AND GAS CONTROL

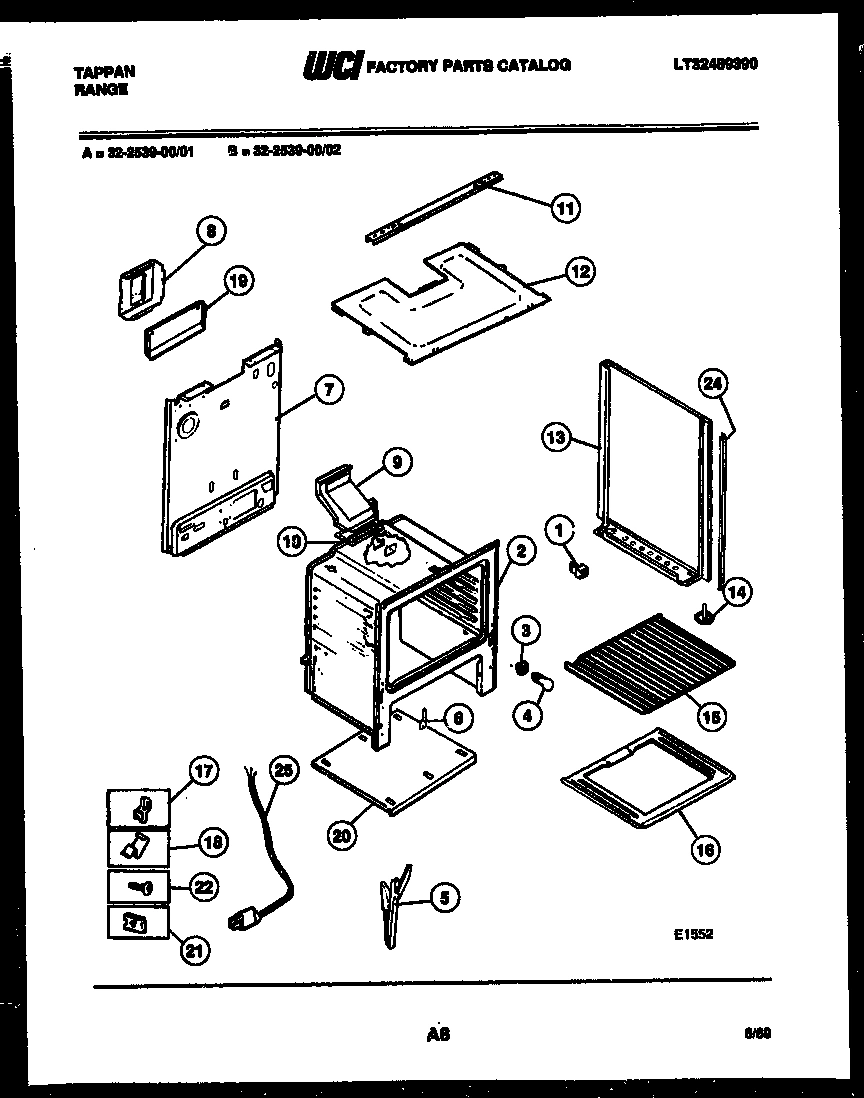

07 - BODY PARTS
Common parts from model Electrolux 32-2539-00-02 RANGE
*24662
WCI 106T027P02 WCI 106T027P02 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
1
WCI 3203480 WCI 3203480 Contact Us For Availability
1
CONTROL - REGUL WCI 3203448 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 3200887 WCI 3200887 Contact Us For Availability
2
WCI 3205030 WCI 3205030 Contact Us For Availability
3
CAP END (LH B/G) WCI 3202801 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
SWITCH - IGNITER WCI 5303017931 Contact Us For Availability
4
CAP END (RH B/G) WCI 3202802 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
WCI 3051152 WCI 3051152 Contact Us For Availability
4
VALVE - TOP 3 POS (4) WCI 3204882 Contact Us For Availability
4A
SCREW-VALVE MTG (8) (NON-ILLUSTRATED) WCI 3204499 Contact Us For Availability
5
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
5
WCI 3202148 WCI 3202148 Contact Us For Availability
5
CHANNEL - DOOR HNG WCI 3131569 Contact Us For Availability
5A
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
6
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3202803 Contact Us For Availability
6
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
6A
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
7
PANEL-BROILER (BLACK) WCI 3131324 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 3200668 Contact Us For Availability
7
WCI 3200276 WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
WCI 3011588 WCI 3011588 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
GLASS-OV DR (REAR) WCI 3018609 Contact Us For Availability
8
REAR WALL WCI 3131660 Contact Us For Availability
9
BRKT-MAIN TOP HNG RH WCI 3011559 Contact Us For Availability
9
FSTNR - NYLON SPACER WCI 3131387 Contact Us For Availability
9
WCI 3016420 WCI 3016420 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
10
WCI 3131190 WCI 3131190 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
WCI 3015373 WCI 3015373 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
11
WCI 3202147 WCI 3202147 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
CHANNEL - BRNR SUPT WCI 3203441 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
WCI 3204877 WCI 3204877 Contact Us For Availability
12
WCI 3013568 WCI 3013568 Contact Us For Availability
12
WCI 3204962 WCI 3204962 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12B
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
WCI 3203457 WCI 3203457 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
WCI 3934033 WCI 3934033 Contact Us For Availability
13
PNL-B/S (ALMD RH) WCI 3200790 Contact Us For Availability
13A
PNL-B/S (ALMD LH) WCI 3200793 Contact Us For Availability
14
MAIN TOP (ALMD) WCI 529T091F21-23 Contact Us For Availability
14
FSTNR - NYL SPACER (3) WCI 3131254 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
SCREW-LEVELING (4) WCI 3203397 Contact Us For Availability
15
FSTNR, PUSH IN (6) WCI 3131974 Contact Us For Availability
16
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
16
WCI 3011519 WCI 3011519 Contact Us For Availability
16A
INSULATION (WRAPPER) (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
16B
WCI 3203541 WCI 3203541 Contact Us For Availability
17
BRKT - OVEN BRNR SUPT WCI 3018603 Contact Us For Availability
17A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 3012327 Contact Us For Availability
19
WCI 3131191 WCI 3131191 Contact Us For Availability
20
BASE - BROILER WCI 3131180 Contact Us For Availability
21A
COVER-FRONT MAIN (NON-ILLUSTRATED) WCI 3015372 Contact Us For Availability
22A
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
22B
COVER-PLATE (NON-ILLUSTRATED) WCI 3018607 Contact Us For Availability
22C
ANTI, TIP BRACKET (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
22D
COVER, REAR WALL (NON-ILLUSTRATED) WCI 3131192 Contact Us For Availability
22E
HOUSING - OVEN LIGHT (NON-ILLUSTRATED) WCI 3051511 Contact Us For Availability
24
TRIM-VERT B/S (2) WCI 3051326 Contact Us For Availability
× ![]()
