Model Electrolux 32-2538-23-04 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

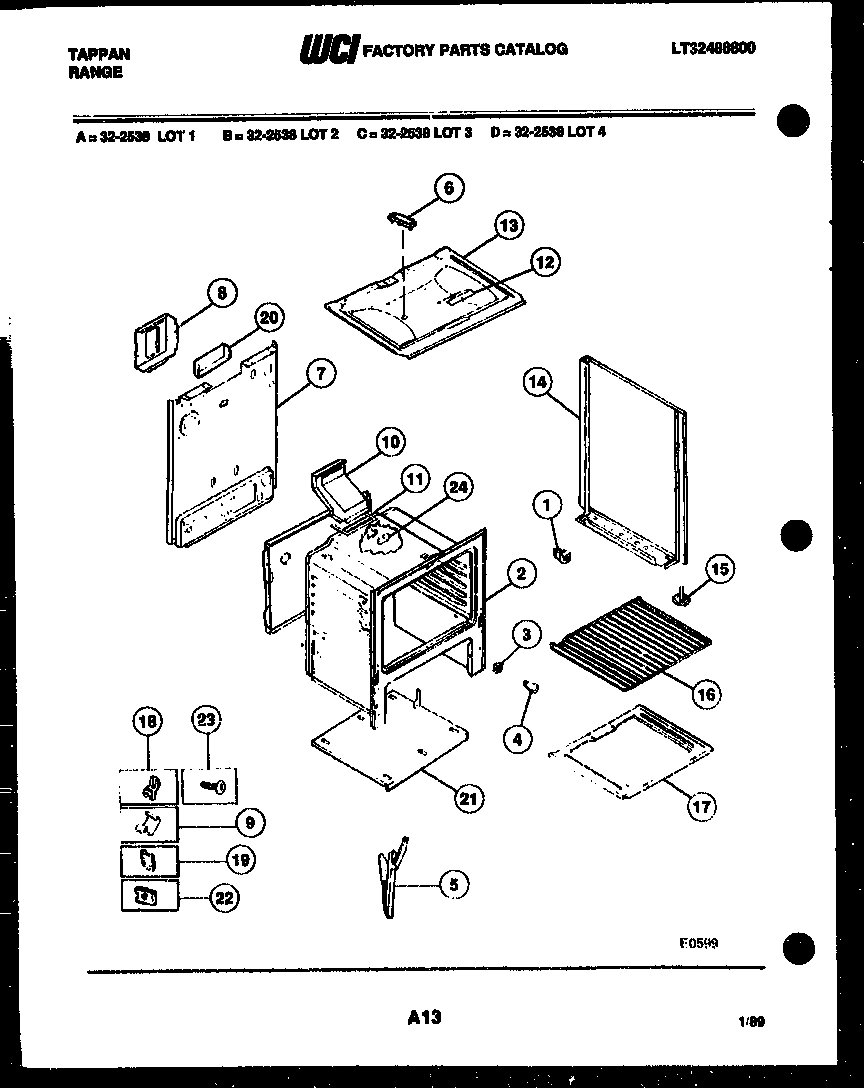

04 - BODY PARTS

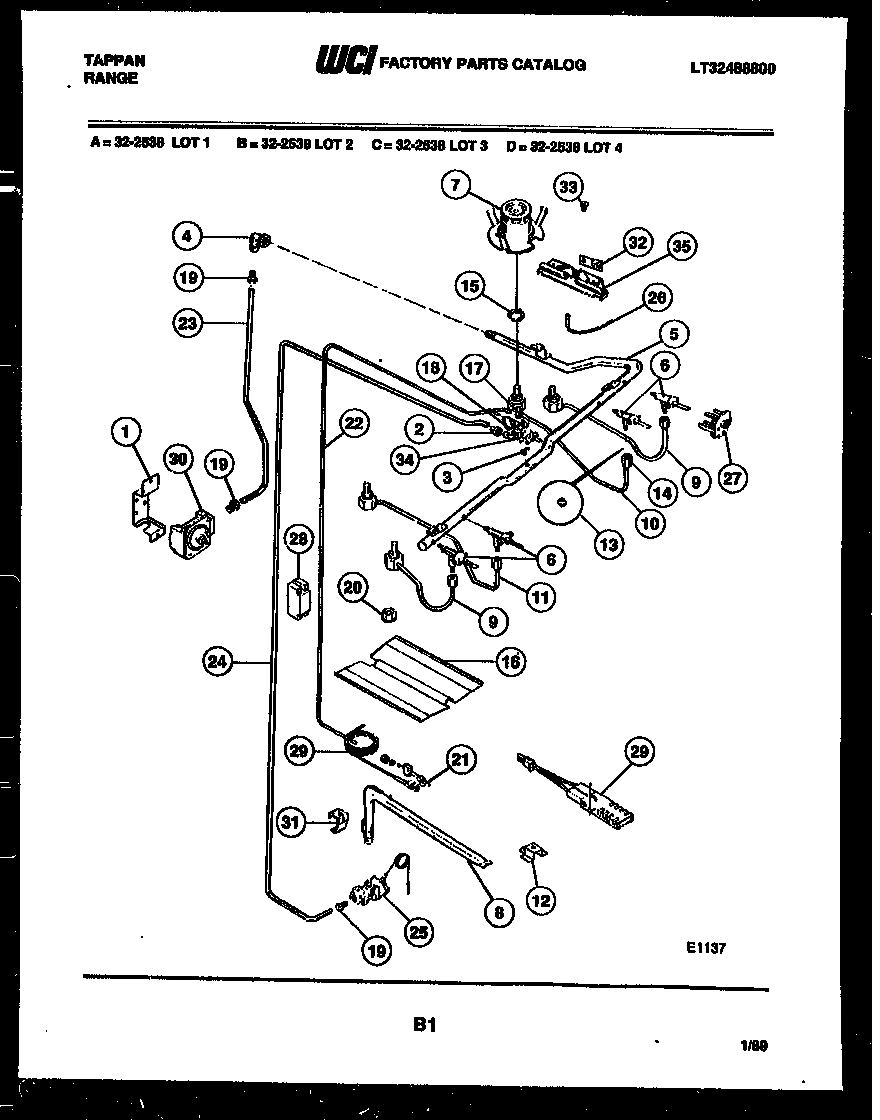

05 - BURNER, MANIFOLD AND GAS CONTROL

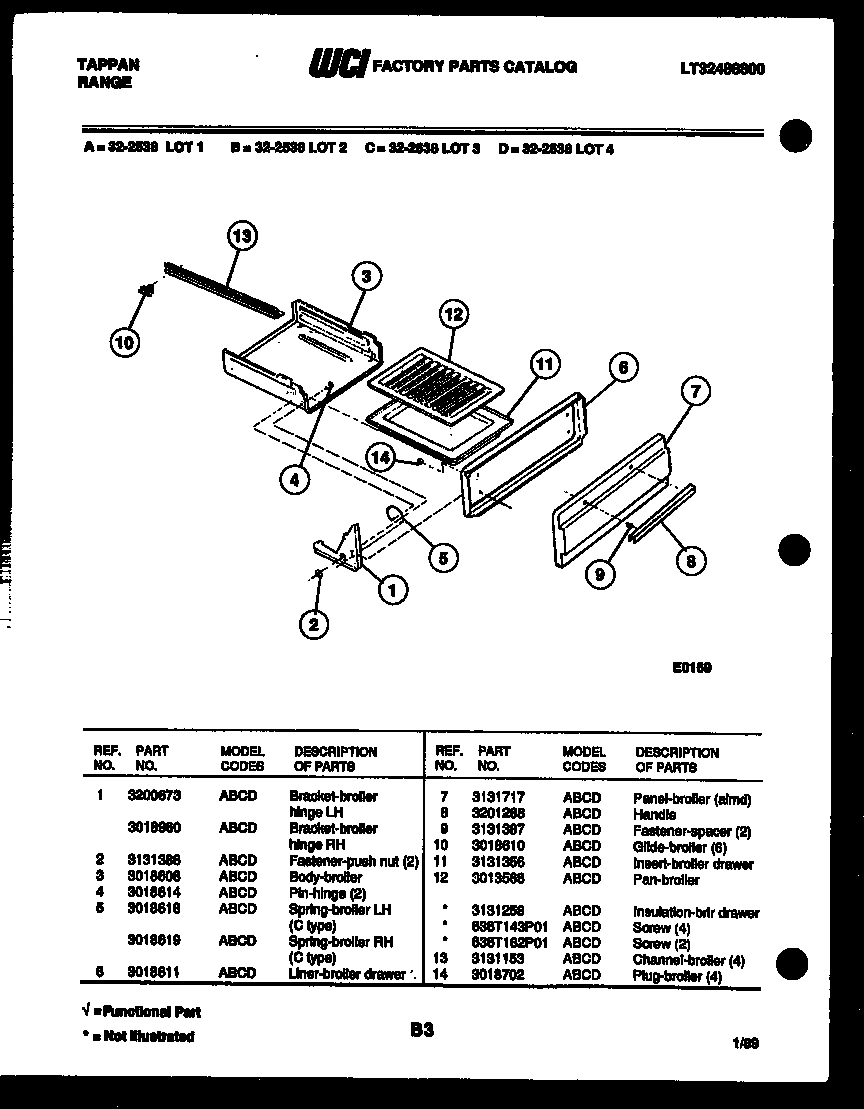

06 - BROILER DRAWER PARTS

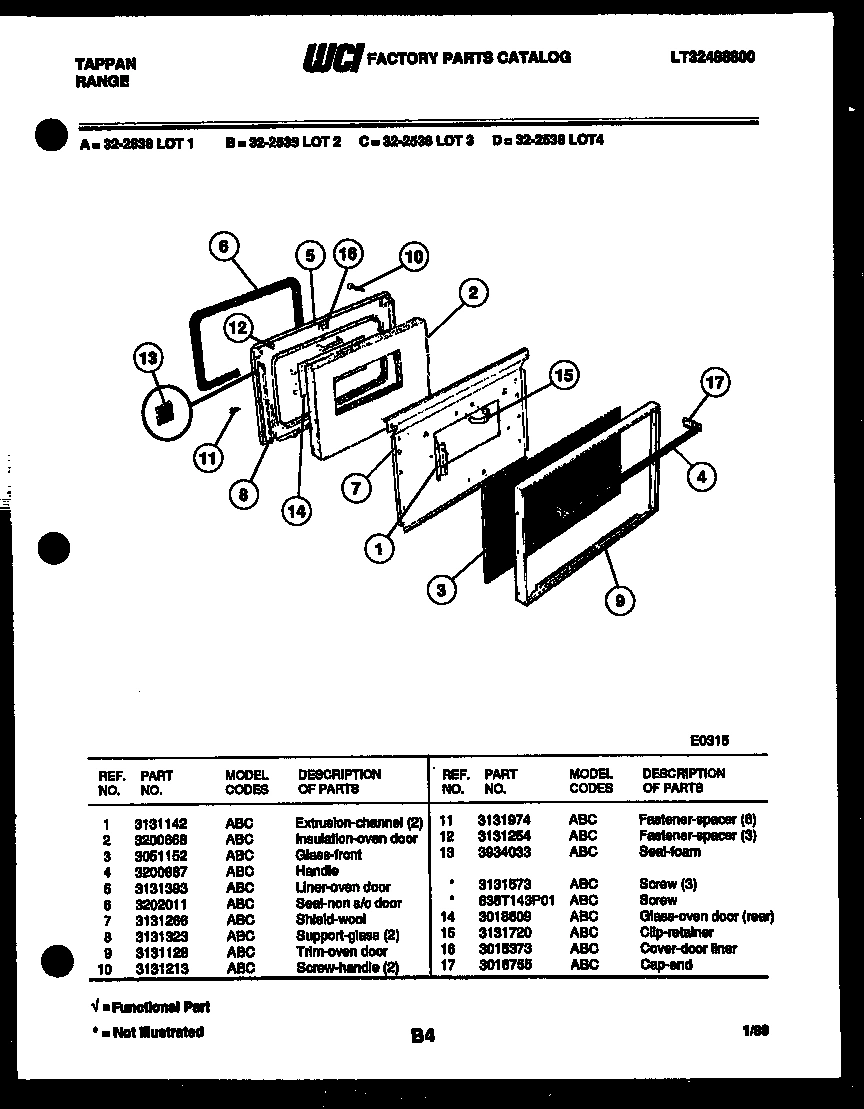

07 - DOOR PARTS
Common parts from model Electrolux 32-2538-23-04 RANGE
*21259
WIRE-RETAINER WCI 612T124P01 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
PANEL, MANIFOLD WCI 3131914 Contact Us For Availability
1
WCI 3200673 WCI 3200673 Contact Us For Availability
1
WCI 3131142 WCI 3131142 Contact Us For Availability
1A
WCI 3018960 WCI 3018960 Contact Us For Availability
2
WCI 3051314 WCI 3051314 Contact Us For Availability
2
WCI 3201107 WCI 3201107 Contact Us For Availability
2
WCI 3131386 WCI 3131386 Contact Us For Availability
2
INSULATION-OVEN DOOR WCI 3200668 Contact Us For Availability
3
WCI 3202013 WCI 3202013 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
WCI 3051152 WCI 3051152 Contact Us For Availability
4
WCI 3201082 WCI 3201082 Contact Us For Availability
4
WCI 3012204 WCI 3012204 Contact Us For Availability
4
PIN, HINGE (2) WCI 3018614 Contact Us For Availability
4
WCI 3200887 WCI 3200887 Contact Us For Availability
5
PANEL B/G (ALMOND) WCI 3051198 Contact Us For Availability
5
WCI 3131655 WCI 3131655 Contact Us For Availability
5
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
5
WCI 3201946 WCI 3201946 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 3131393 WCI 3131393 Contact Us For Availability
5A
WCI 3018619 WCI 3018619 Contact Us For Availability
6
WCI 3131336 WCI 3131336 Contact Us For Availability
6
WCI 3015371 WCI 3015371 Contact Us For Availability
6
VALVE 3 POS. WCI 3017846 Contact Us For Availability
6
LINER-BROILER DRAWER WCI 3018611 Contact Us For Availability
7
KNOB-CLOCK WCI 3131472 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
7
BURNER TOP (4) WCI 3011567 Contact Us For Availability
7
PANEL-BROILER ALMD WCI 3131717 Contact Us For Availability
7
WCI 3131266 WCI 3131266 Contact Us For Availability
8
WCI 3131439 WCI 3131439 Contact Us For Availability
8
ROD, MAIN TOP SUPPORT WCI 3013818 Contact Us For Availability
8
SHIELD RR WALL WCI 3131660 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 3131323 WCI 3131323 Contact Us For Availability
9
BRACKET, MAIN TOP HINGE LH WCI 3011558 Contact Us For Availability
9
CLIP-WIRE WCI 3011813 Contact Us For Availability
9
BUNER-TUBE LF, RF WCI 3131970 Contact Us For Availability
9
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 3131128 WCI 3131128 Contact Us For Availability
10
BRACKET, MAIN TOP HINGE RH WCI 3011559 Contact Us For Availability
10
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
10
WCI 3018610 WCI 3018610 Contact Us For Availability
10
WCI 3131213 WCI 3131213 Contact Us For Availability
11
WCI 3131338 WCI 3131338 Contact Us For Availability
11
INSERT-BROILER DRAWER WCI 3131356 Contact Us For Availability
11
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
12
PANEL-MAIN TOP (ALMD) WCI 3934025 Contact Us For Availability
12
WCI 3131438 WCI 3131438 Contact Us For Availability
12
WCI 3013568 WCI 3013568 Contact Us For Availability
12
FASTENER-SPACER (3) WCI 3131254 Contact Us For Availability
12A
INSULATION-BRLR DRAWER (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12B
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
WCI 3131190 WCI 3131190 Contact Us For Availability
13
WCI 3131185 WCI 3131185 Contact Us For Availability
13
FERRULE WCI 247T074P01 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
SCREW (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
13
WCI 3934033 WCI 3934033 Contact Us For Availability
14
PANEL-B/S (ALMD) RH WCI 3200790 Contact Us For Availability
14
NUT-COMPRESSION WCI 3131148 Contact Us For Availability
14
WCI 3018702 WCI 3018702 Contact Us For Availability
14
GLASS-OVEN DOOR (REAR) WCI 3018609 Contact Us For Availability
14A
PANEL-B/S (ALMD) LH WCI 3200793 Contact Us For Availability
15
SCREW-LEVEL (4) WCI 08010569 Contact Us For Availability
15
NUT, SPECIAL WCI 3013279 Contact Us For Availability
15
WCI 3131720 WCI 3131720 Contact Us For Availability
16
WCI 3131327 WCI 3131327 Contact Us For Availability
16
WCI 3015373 WCI 3015373 Contact Us For Availability
17
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
17
WCI 3131404 WCI 3131404 Contact Us For Availability
17A
WCI 3017142 WCI 3017142 Contact Us For Availability
17B
INSULATION-OVEN BACK (NON-ILLUSTRATED) WCI 3131246 Contact Us For Availability
18A
FASTENER-POWER CORD (NON-ILLUSTRATED) WCI 3012327 Contact Us For Availability
19
WCI 3131261 WCI 3131261 Contact Us For Availability
20
WCI 3131191 WCI 3131191 Contact Us For Availability
20A
COVER-REAR WALL (NON-ILLUSTRATED) WCI 3131172 Contact Us For Availability
21
WCI 3131180 WCI 3131180 Contact Us For Availability
21A
WCI 3018615 WCI 3018615 Contact Us For Availability
21B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
22A
COVER-FRONT MAIN (NON-ILLUSTRATED) WCI 3015372 Contact Us For Availability
23
TUBE-ALUMINUM 3/8 WCI 3014477 Contact Us For Availability
23A
COVER-PLATE (NON-ILLUSTRATED) WCI 3131101 Contact Us For Availability
24
COVER - IGNITER WCI 3018607 Contact Us For Availability
24
TUBE-ALUMINUM 3/8 WCI 3131448 Contact Us For Availability
26
IGNITER-ELECTRIC WCI 3131105 Contact Us For Availability
31
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
32
RETAINER, IGNITER (4) WCI 612T121F01 Contact Us For Availability
33
WCI 3051420 WCI 3051420 Contact Us For Availability
34
SWITCH, OVEN IGNITER WCI 695T220P01 Contact Us For Availability
35
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
× ![]()
