Model Electrolux 32-2207-66-01 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

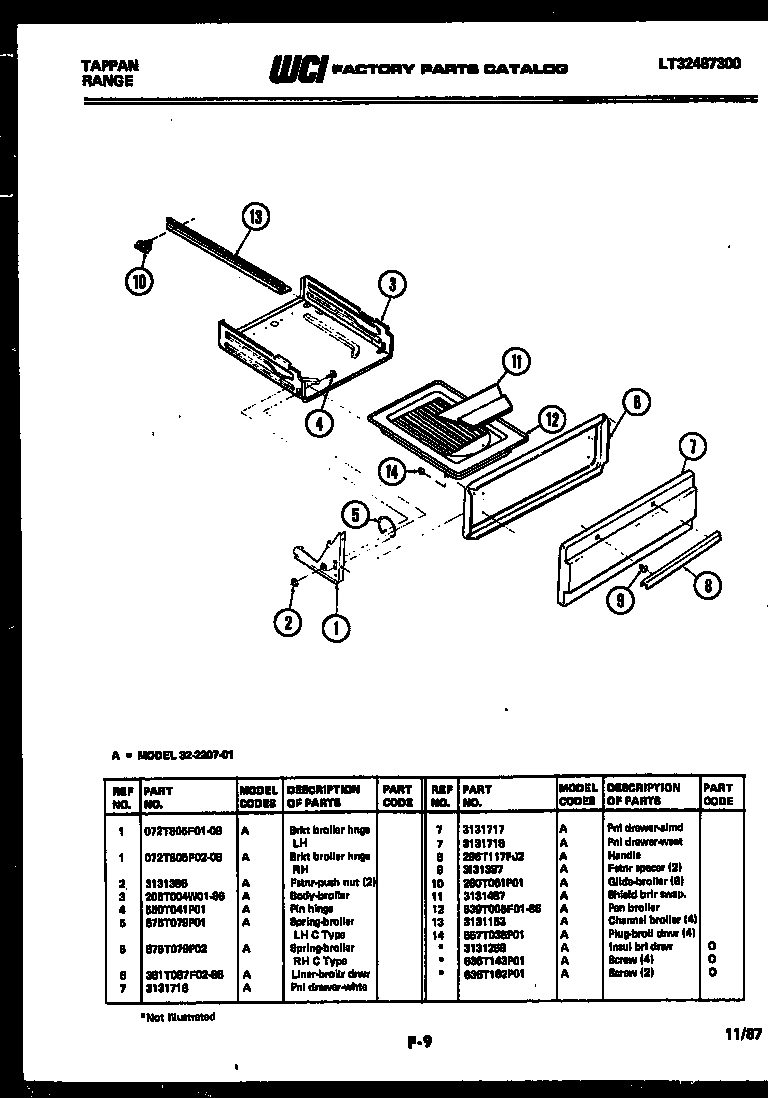

04 - BROILER DRAWER PARTS

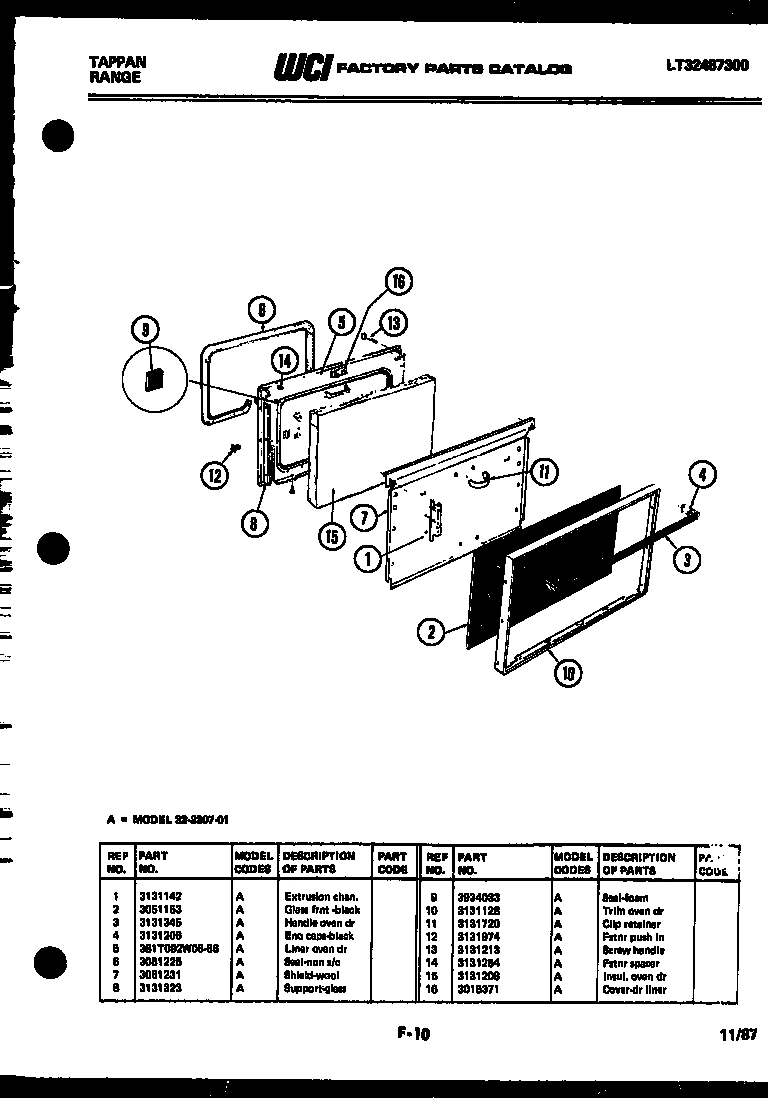

05 - DOOR PARTS

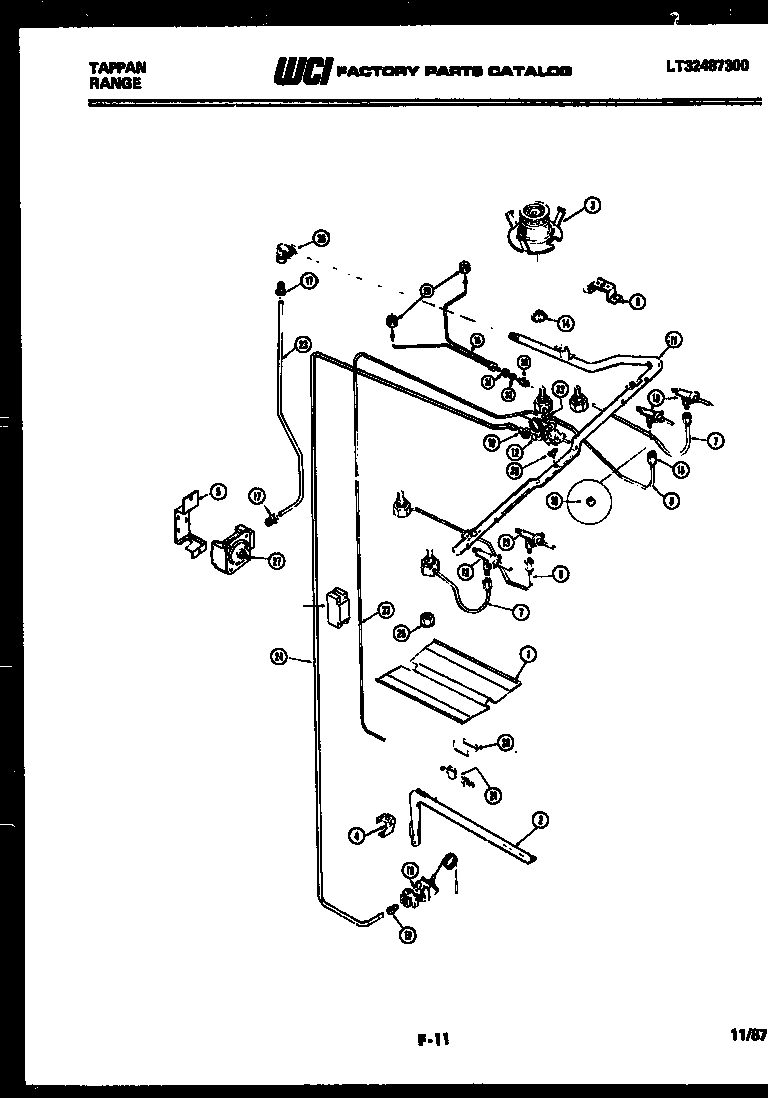

06 - BURNER, MANIFOLD AND GAS CONTROL

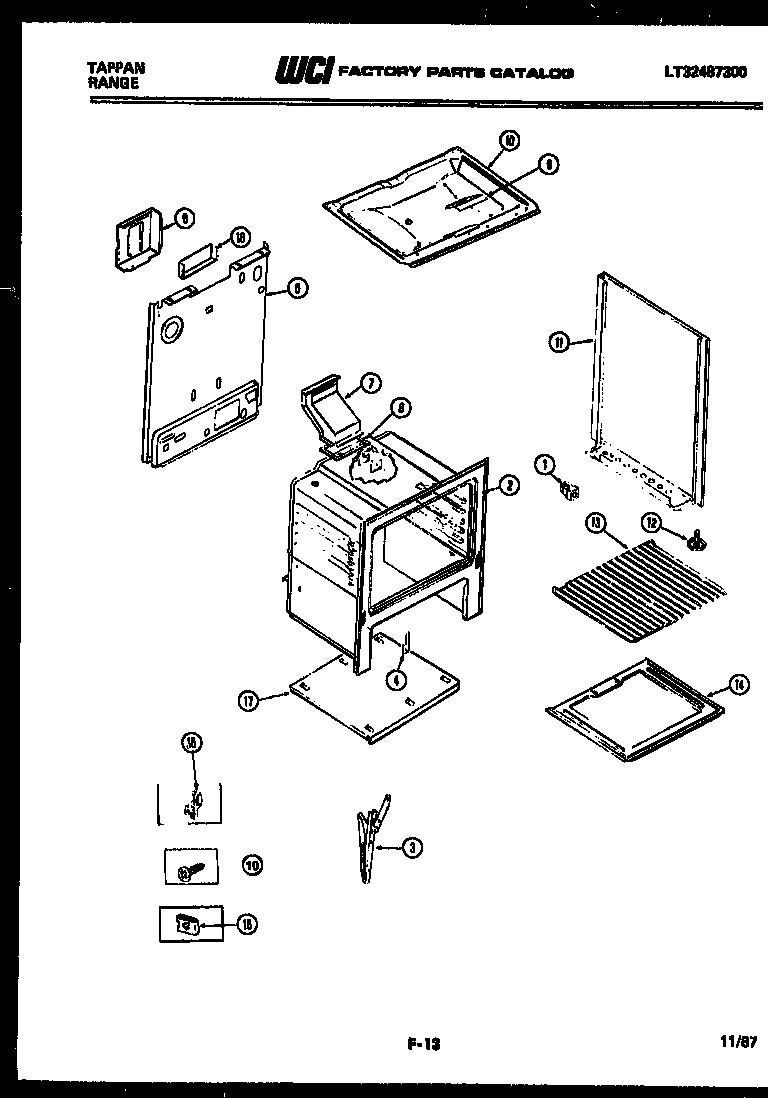

07 - BODY PARTS
Common parts from model Electrolux 32-2207-66-01 RANGE
*86831
INSUL BRL DRWR WCI 3131258 Contact Us For Availability
*86832
SCREW (2) WCI 636T162P01 Contact Us For Availability
*86893
WCI 241T017P255 WCI 241T017P255 Contact Us For Availability
*86894
WCI 3015372 WCI 3015372 Contact Us For Availability
1
MAIN TOP-WEAT WCI 3934029 Contact Us For Availability
1
WCI 072T805F01-08 WCI 072T805F01-08 Contact Us For Availability
1
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
1
EXTRUSION CHAN. WCI 3131142 Contact Us For Availability
1
WCI 3131327 WCI 3131327 Contact Us For Availability
1
SPACER B/S WCI 665T188P02 Contact Us For Availability
2
BRKT-HINGE LH WCI 3131286 Contact Us For Availability
2
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
2
GLASS FRNT, BLACK WCI 3051153 Contact Us For Availability
2
WCI 079T036P03 WCI 079T036P03 Contact Us For Availability
3
CAP-END (RH) WCI 3051137 Contact Us For Availability
3
BRKT-HINGE RH WCI 3131287 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
3
HANDLE OVEN DR WCI 3131345 Contact Us For Availability
3
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
3
CHANNEL DR HNG (2) WCI 3131569 Contact Us For Availability
4
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
4
WCI 3131644 WCI 3131644 Contact Us For Availability
4
PIN, HINGE WCI 550T041P01 Contact Us For Availability
4
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
5
ROD-MAIN TOP SUPT. WCI 618T038P05 Contact Us For Availability
5
SPRING, BROILER, LH (C TYPE) WCI 675T079P01 Contact Us For Availability
5
SPRING, BROILER, RH (C TYPE) WCI 675T079P02 Contact Us For Availability
5
WCI 381T092W05-86 WCI 381T092W05-86 Contact Us For Availability
5
WCI 072T850F01 WCI 072T850F01 Contact Us For Availability
5
WCI 3131567 WCI 3131567 Contact Us For Availability
6
KNOB-TOP VLVE (4) WCI 3131910 Contact Us For Availability
6
LINER (BROILR DRWR) WCI 381T087F02-86 Contact Us For Availability
6
WCI 072T851F02 WCI 072T851F02 Contact Us For Availability
6
SHIELD-REAR WELL WCI 655T421F02-18 Contact Us For Availability
7
WCI 3131703 WCI 3131703 Contact Us For Availability
7
PNL DRAWER-WEAT WCI 3131718 Contact Us For Availability
7
WCI 3051231 WCI 3051231 Contact Us For Availability
7
BURNER TUBE-RF & LF WCI 3131970 Contact Us For Availability
8
PANEL-MANIFOLD WCI 3015393 Contact Us For Availability
8
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
8
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
8
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
9
WCI 3131190 WCI 3131190 Contact Us For Availability
9
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 3934033 WCI 3934033 Contact Us For Availability
9
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
9
WCI 3131101 WCI 3131101 Contact Us For Availability
10
GLIDE, BROILER (6) WCI 280T061P01 Contact Us For Availability
10
TRIM OVEN DR WCI 3131128 Contact Us For Availability
10
WCI 241T074P01 WCI 241T074P01 Contact Us For Availability
10
WCI 3131185 WCI 3131185 Contact Us For Availability
11
PNL. B/S (RH WEAT) WCI 3131477 Contact Us For Availability
11
SHIELD BRLR SWAP. WCI 3131487 Contact Us For Availability
11
WCI 3131720 WCI 3131720 Contact Us For Availability
11
WCI 439T055P02 WCI 439T055P02 Contact Us For Availability
11
PNL. B/S (LH WEAT) WCI 3131478 Contact Us For Availability
12
PAN BROILER WCI 539T005F01-86 Contact Us For Availability
12
FSTNR PUSH IN WCI 3131974 Contact Us For Availability
12
WCI 722T058P02 WCI 722T058P02 Contact Us For Availability
12
SCREW - LEVELING (4) WCI 636M004P01 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
SCREW-HANDLE WCI 3131213 Contact Us For Availability
13
VALVE TOP-2 POS. (4) WCI 774T135P01 Contact Us For Availability
14
PLUG-BROIL DRWR (4) WCI 557T035P01 Contact Us For Availability
14
FSTNR SPACER WCI 3131254 Contact Us For Availability
14
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
14
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
14A
WCI 3131201 WCI 3131201 Contact Us For Availability
14B
INSUL BACK (NON-ILLUSTRATED) WCI 3131246 Contact Us For Availability
15
INSUL. OVEN DR WCI 3131208 Contact Us For Availability
15
NUT-COMPRSSN. (4) WCI 3131148 Contact Us For Availability
16
COVER-DR LINER WCI 3015371 Contact Us For Availability
16
TUBE TOP PLT DUL WCI 750T185P01 Contact Us For Availability
16
WCI 3131191 WCI 3131191 Contact Us For Availability
17
WCI 3131261 WCI 3131261 Contact Us For Availability
17
WCI 3131180 WCI 3131180 Contact Us For Availability
18
WCI 3131405 WCI 3131405 Contact Us For Availability
18A
COVER, REAR WALL (NON-ILLUSTRATED) WCI 3131192 Contact Us For Availability
19
WCI 3131403 WCI 3131403 Contact Us For Availability
20
FILTER WCI 244T039P01 Contact Us For Availability
21
WCI 549T037P01 WCI 549T037P01 Contact Us For Availability
22
WCI 750T056P21 WCI 750T056P21 Contact Us For Availability
23
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
24
WCI 750T085H13 WCI 750T085H13 Contact Us For Availability
26
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
27
WCI 166T013P01 WCI 166T013P01 Contact Us For Availability
28
WCI 003T039P01 WCI 003T039P01 Contact Us For Availability
29
CAP-TOP PLT (2) WCI 124T010P01 Contact Us For Availability
30
SHLD-STNDING PLT WCI 3131204 Contact Us For Availability
31
NUT COMPRSN 3/16 WCI 479T080P01 Contact Us For Availability
32
FERRULE 3/16 (NON-ILLUSTRATED) WCI 247T073P01 Contact Us For Availability
32A
WASHER (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
33
WCI 3131404 WCI 3131404 Contact Us For Availability
× ![]()
