Model Electrolux 32-1117-00-01 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

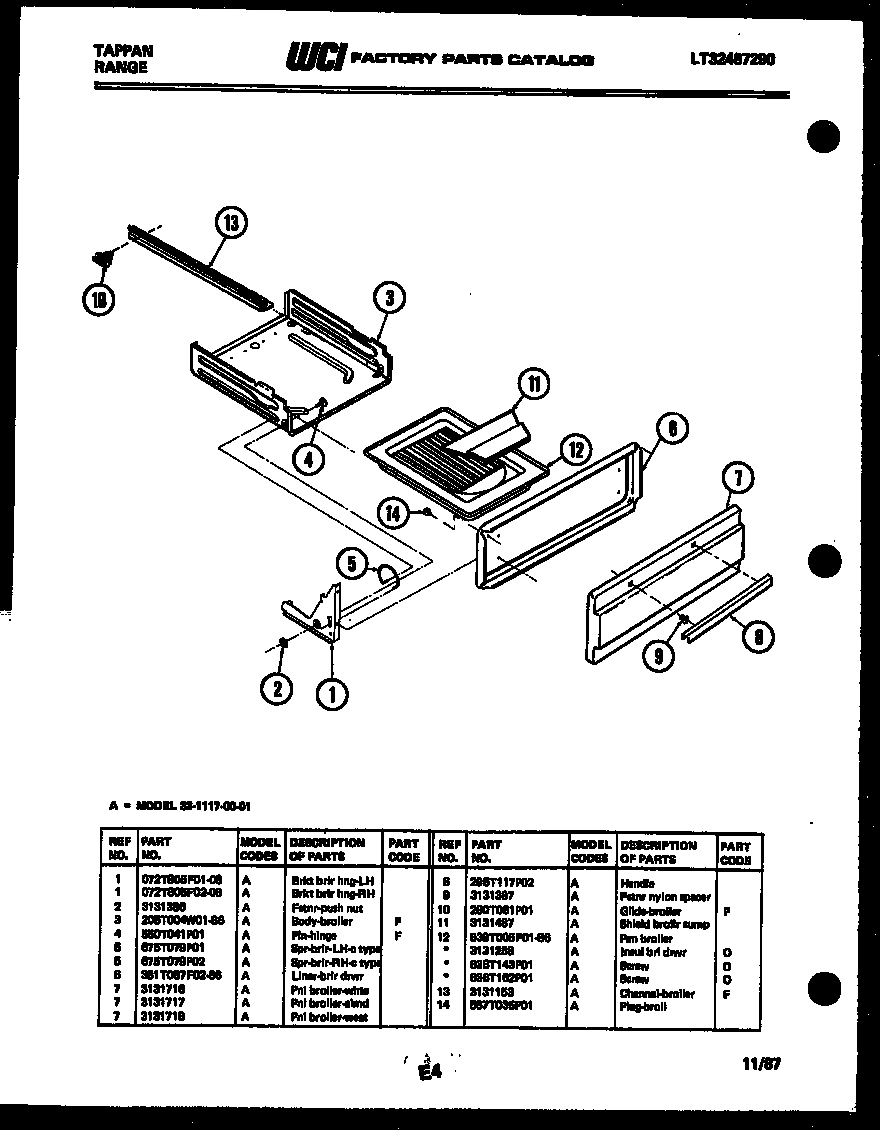

04 - BROILER DRAWER PARTS

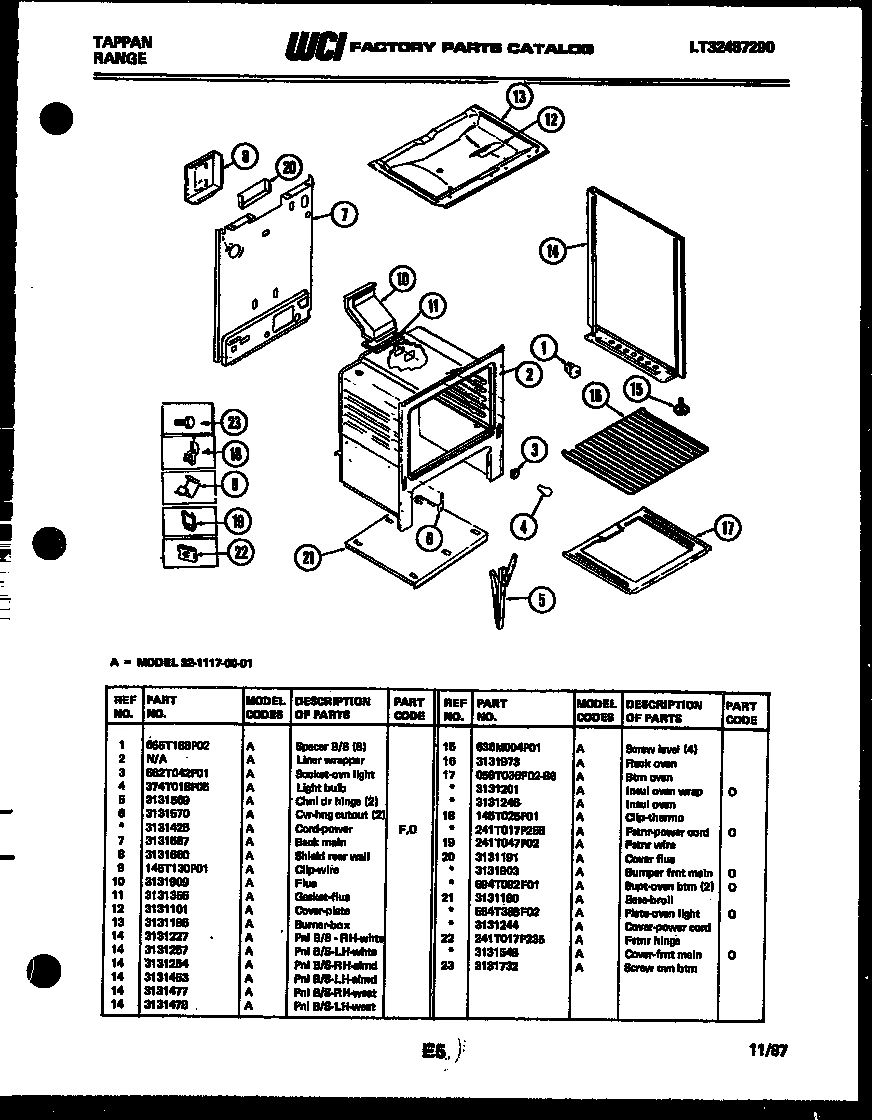

05 - BODY PARTS

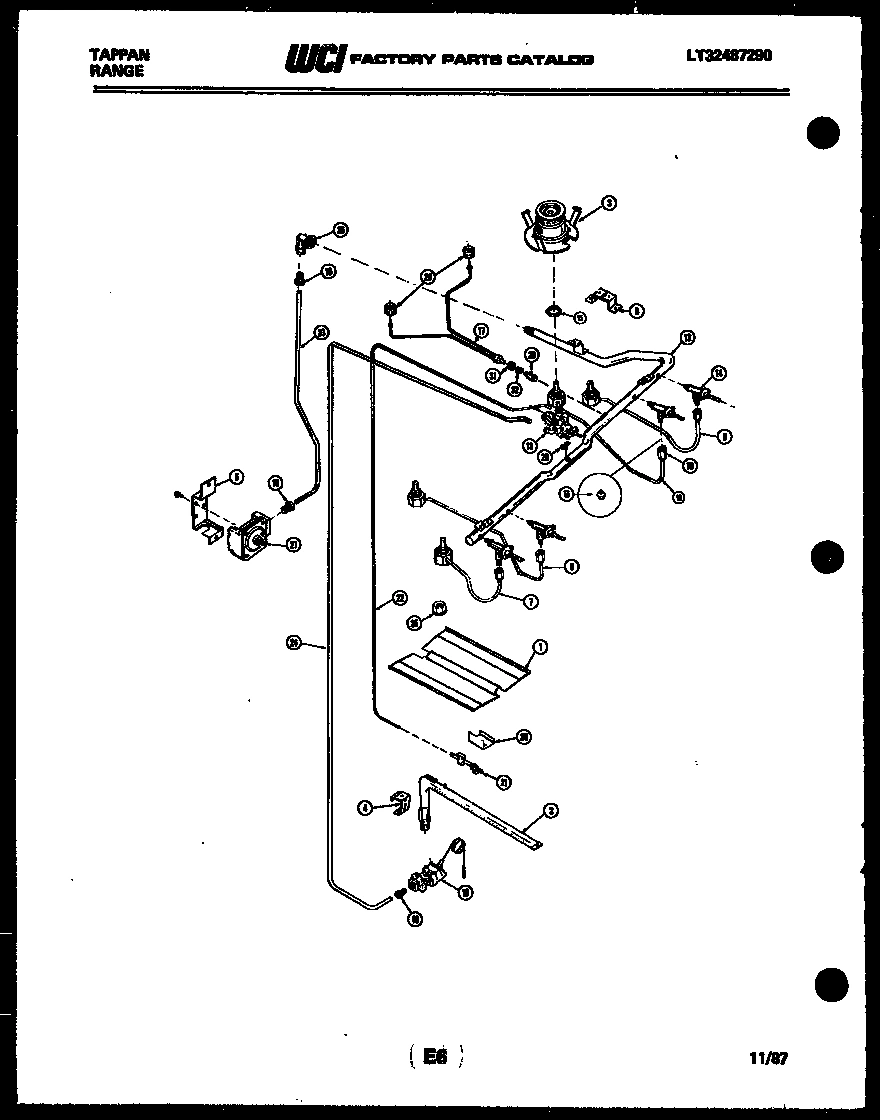

06 - BURNER, MANIFOLD AND GAS CONTROL

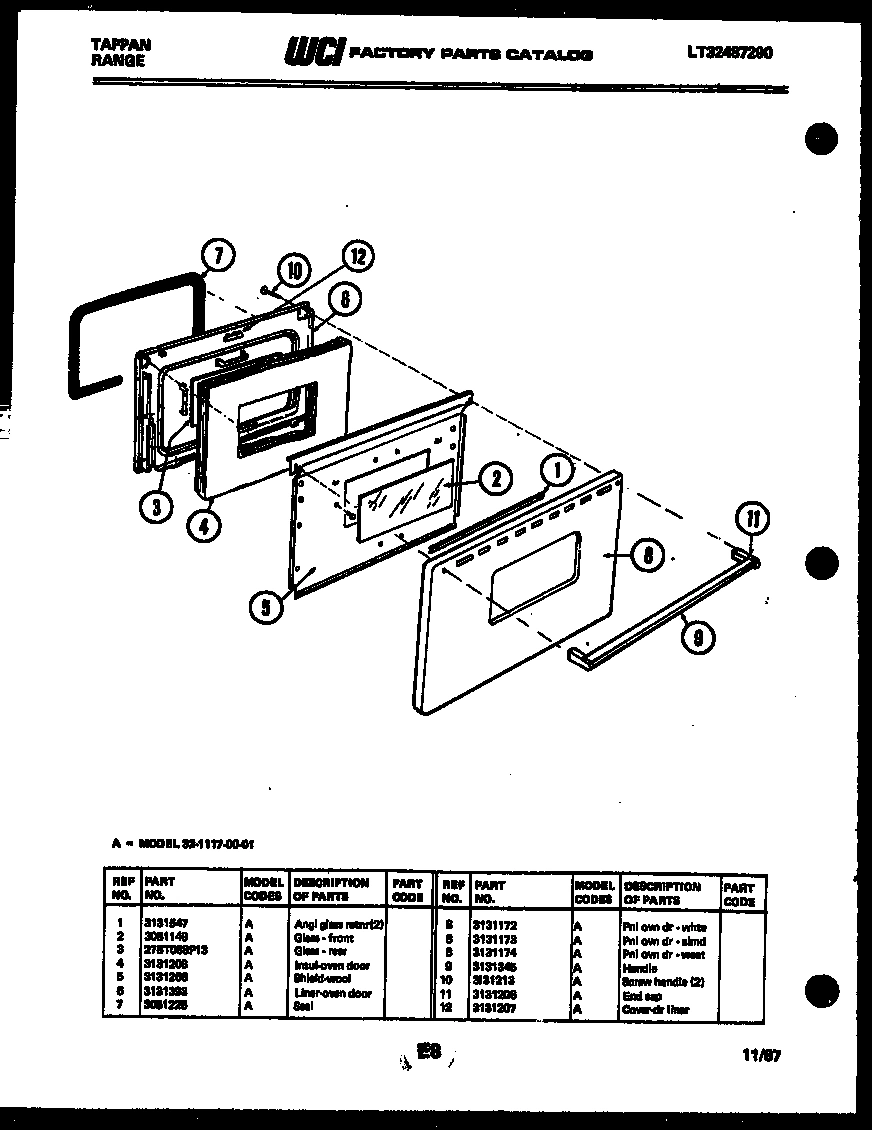

07 - DOOR PARTS
Common parts from model Electrolux 32-1117-00-01 RANGE
*93768
WASHER (REPAIR) WCI 3131589 Contact Us For Availability
*93769
NUT-COMPRESSION WCI 479T080P01 Contact Us For Availability
*93770
WASHER-BLACK WCI 3131737 Contact Us For Availability
1
PANEL WCI 3131914 Contact Us For Availability
1
WCI 072T805F01-08 WCI 072T805F01-08 Contact Us For Availability
1
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
1
WCI 665T188P02 WCI 665T188P02 Contact Us For Availability
1
WCI 3131327 WCI 3131327 Contact Us For Availability
1
ANGL GLASS RETNR (2) WCI 3131547 Contact Us For Availability
2
SWITCH OVEN LITE WCI 3051314 Contact Us For Availability
2
FSTNR - PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 3131571 WCI 3131571 Contact Us For Availability
2
WCI 3051149 WCI 3051149 Contact Us For Availability
3
CAP-B/G END RH - CHESTNUT WCI 3051137 Contact Us For Availability
3
KNOB TOP VALVE WCI 3131910 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
3
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
3
WCI 276T088P13 WCI 276T088P13 Contact Us For Availability
4
WCI 3131644 WCI 3131644 Contact Us For Availability
4
WCI 3131703 WCI 3131703 Contact Us For Availability
4
PIN, HINGE WCI 550T041P01 Contact Us For Availability
4
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
4
WCI 3131208 WCI 3131208 Contact Us For Availability
5
PNL BACKGRD-WHTE WCI 3051199 Contact Us For Availability
5
WCI 3131655 WCI 3131655 Contact Us For Availability
5
SPR-BRLR-LH-C TYPE WCI 675T079P01 Contact Us For Availability
5
SPR-BRLR-RH-C TYPE WCI 675T079P02 Contact Us For Availability
5
CHNL-DR HINGE (2) WCI 3131569 Contact Us For Availability
5
WCI 072T850F01 WCI 072T850F01 Contact Us For Availability
5
WCI 3131266 WCI 3131266 Contact Us For Availability
6
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
WCI 3051114 WCI 3051114 Contact Us For Availability
6
WCI 381T087F02-86 WCI 381T087F02-86 Contact Us For Availability
6
WCI 072T851F02 WCI 072T851F02 Contact Us For Availability
6
WCI 3131393 WCI 3131393 Contact Us For Availability
7
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
7
PNL BROILER-WHTE WCI 3131716 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
7
WCI 3131337 WCI 3131337 Contact Us For Availability
8
ROD-MAIN TOP SUPT. WCI 618T038P05 Contact Us For Availability
8
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
8
BURNER TUBE RF WCI 3131970 Contact Us For Availability
8
PNL OVN DR - WHTE WCI 3131172 Contact Us For Availability
9
BRKT MAIN TOP HNG WCI 3131286 Contact Us For Availability
9
FSTNR - NYLON SPACER WCI 3131387 Contact Us For Availability
9
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
9
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
9
HANDLE WCI 3131345 Contact Us For Availability
10
BRKT MAIN TOP HNG WCI 3131287 Contact Us For Availability
10
GLIDE - BROILER WCI 280T061P01 Contact Us For Availability
10
WCI 3131338 WCI 3131338 Contact Us For Availability
10
WCI 3131213 WCI 3131213 Contact Us For Availability
11
SHIELD BROILR SUMP WCI 3131487 Contact Us For Availability
11
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
12
PNL MAIN TOP-WHTE WCI 3934001 Contact Us For Availability
12
PAN BROILER WCI 539T005F01-86 Contact Us For Availability
12
WCI 3131101 WCI 3131101 Contact Us For Availability
12
WCI 3015390 WCI 3015390 Contact Us For Availability
12
WCI 3131207 WCI 3131207 Contact Us For Availability
12A
INSUL, BRL, DRWR (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12C
SCREW (NON-ILLUSTRATED) WCI 636T162P01 Contact Us For Availability
13
WCI 3131190 WCI 3131190 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
WCI 3131185 WCI 3131185 Contact Us For Availability
13
WCI 722T058P02 WCI 722T058P02 Contact Us For Availability
14
PLUG-BROIL WCI 557T035P01 Contact Us For Availability
14
PNL B/S-RH-WHTE WCI 3131227 Contact Us For Availability
14
VALVE TIP (2 POS.) WCI 774T135P01 Contact Us For Availability
14A
PNL B/S-LH-WHTE WCI 3131257 Contact Us For Availability
15
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
15
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
16
NUT-COMPRSSN. (4) WCI 3131148 Contact Us For Availability
17
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
17
WCI 750T185P01 WCI 750T185P01 Contact Us For Availability
17A
WCI 3131201 WCI 3131201 Contact Us For Availability
17B
INSUL OVEN (NON-ILLUSTRATED) WCI 3131246 Contact Us For Availability
18
WCI 3131403 WCI 3131403 Contact Us For Availability
18A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
19
WCI 3131405 WCI 3131405 Contact Us For Availability
20
WCI 3131191 WCI 3131191 Contact Us For Availability
20
FILTER WCI 244T039P01 Contact Us For Availability
21
WCI 3131180 WCI 3131180 Contact Us For Availability
21
WCI 549T037P01 WCI 549T037P01 Contact Us For Availability
21A
WCI 554T388F02 WCI 554T388F02 Contact Us For Availability
21B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
22
WCI 750T056P21 WCI 750T056P21 Contact Us For Availability
22A
COVER FRNT MAIN (NON-ILLUSTRATED) WCI 3131548 Contact Us For Availability
23
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
24
WCI 750T085H13 WCI 750T085H13 Contact Us For Availability
26
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
27
WCI 166T013P01 WCI 166T013P01 Contact Us For Availability
28
WCI 003T039P01 WCI 003T039P01 Contact Us For Availability
29
CAP-TOP PILOT, (2) WCI 124T010P01 Contact Us For Availability
30
WCI 3131204 WCI 3131204 Contact Us For Availability
× ![]()
