Model Electrolux 32-1042-23-07 RANGE – Common Parts & Diagrams

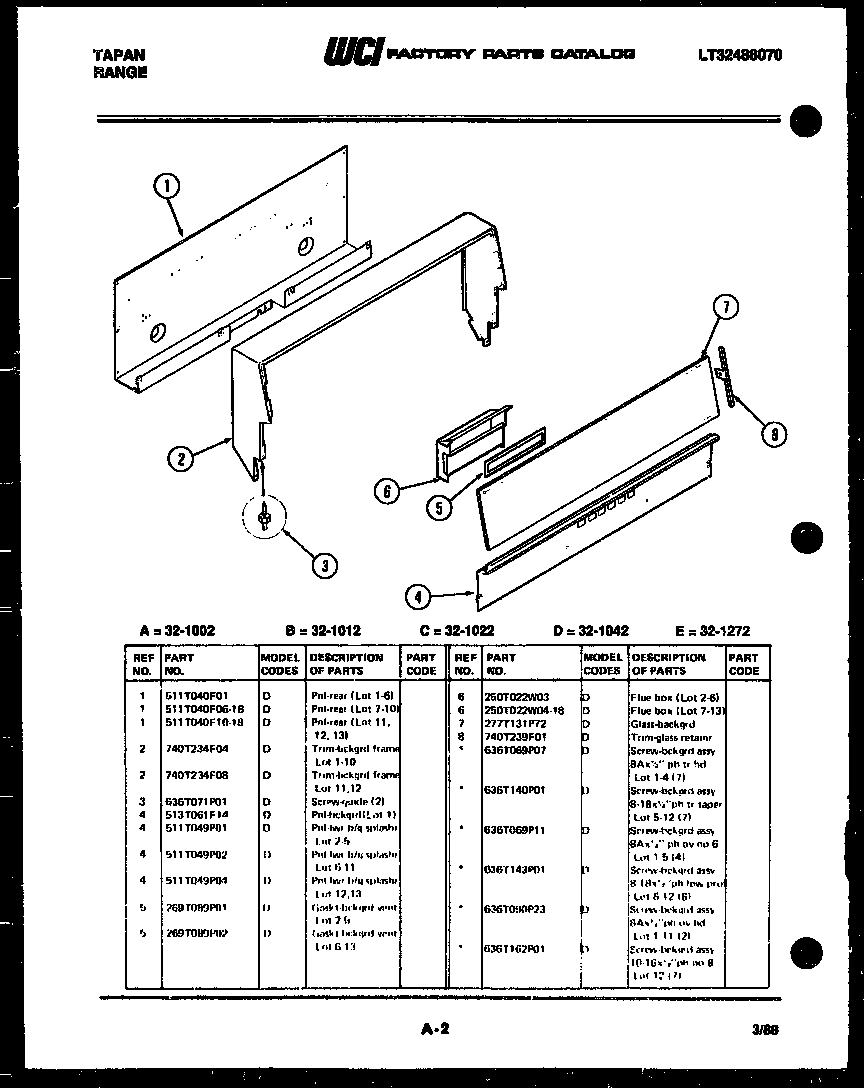

02 - BACKGUARD

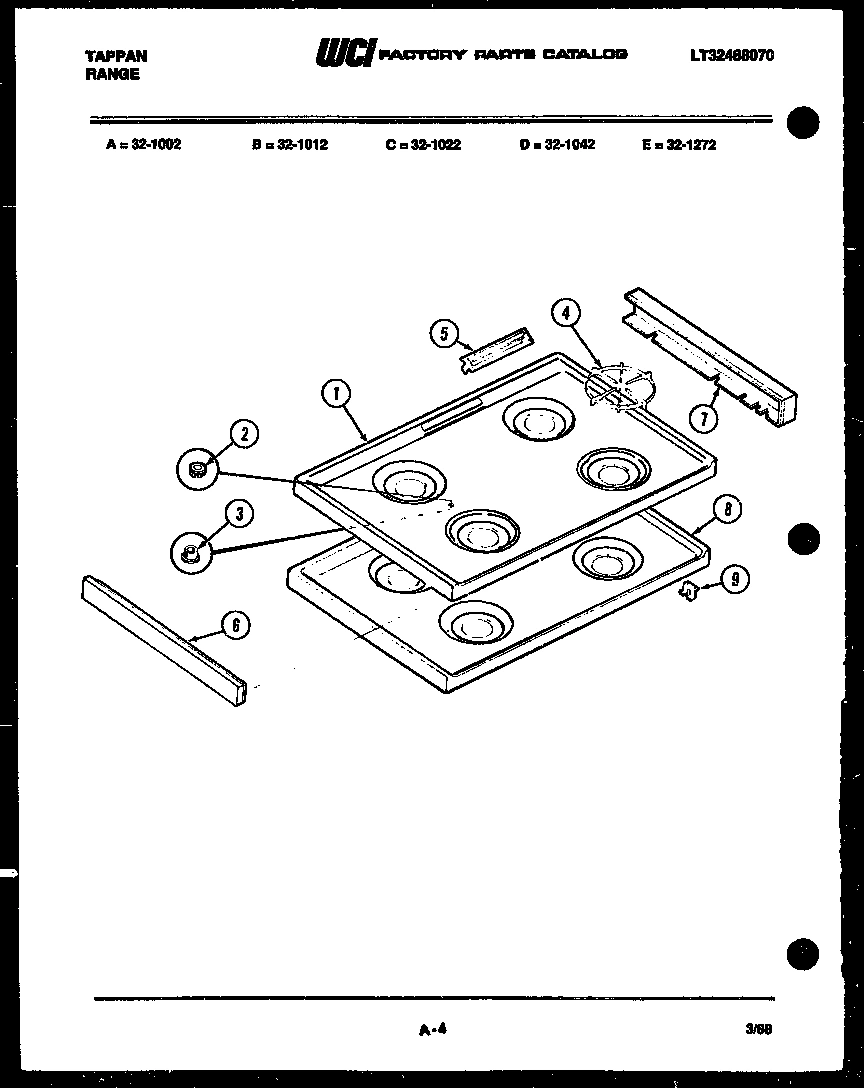

04 - COOKTOP PARTS

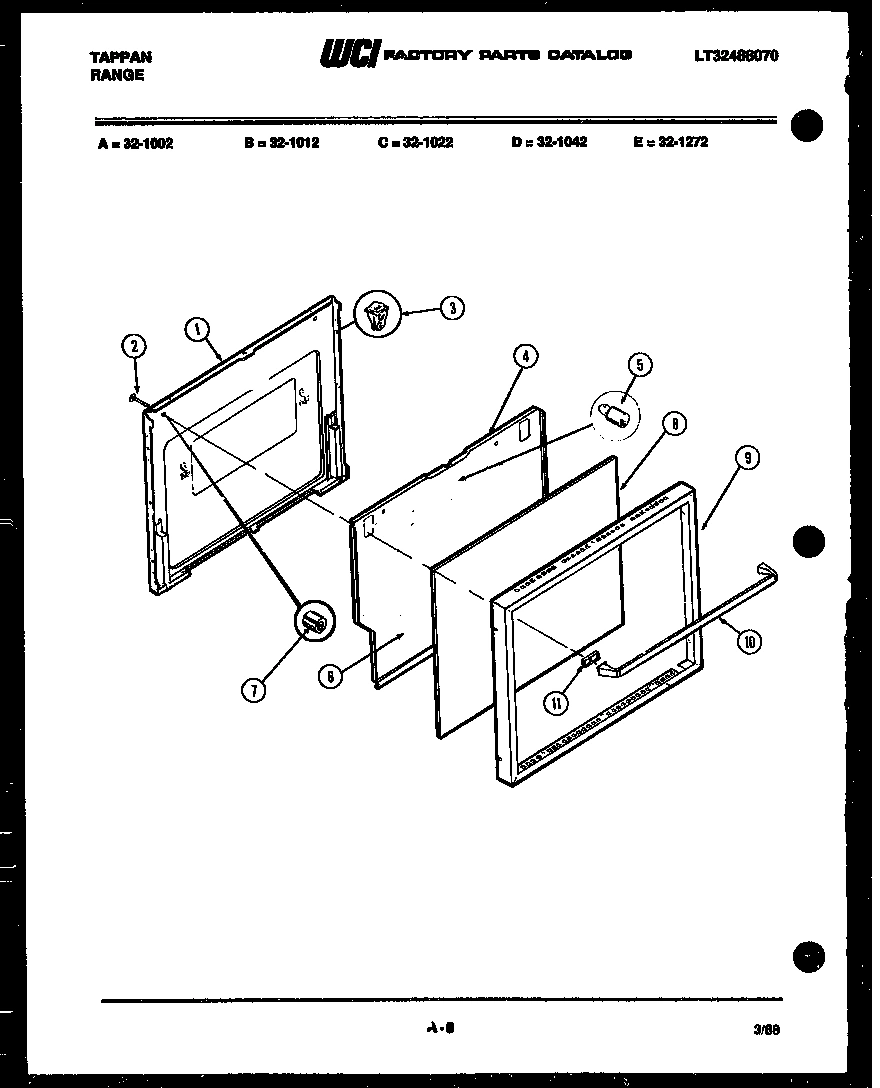

06 - DOOR PARTS

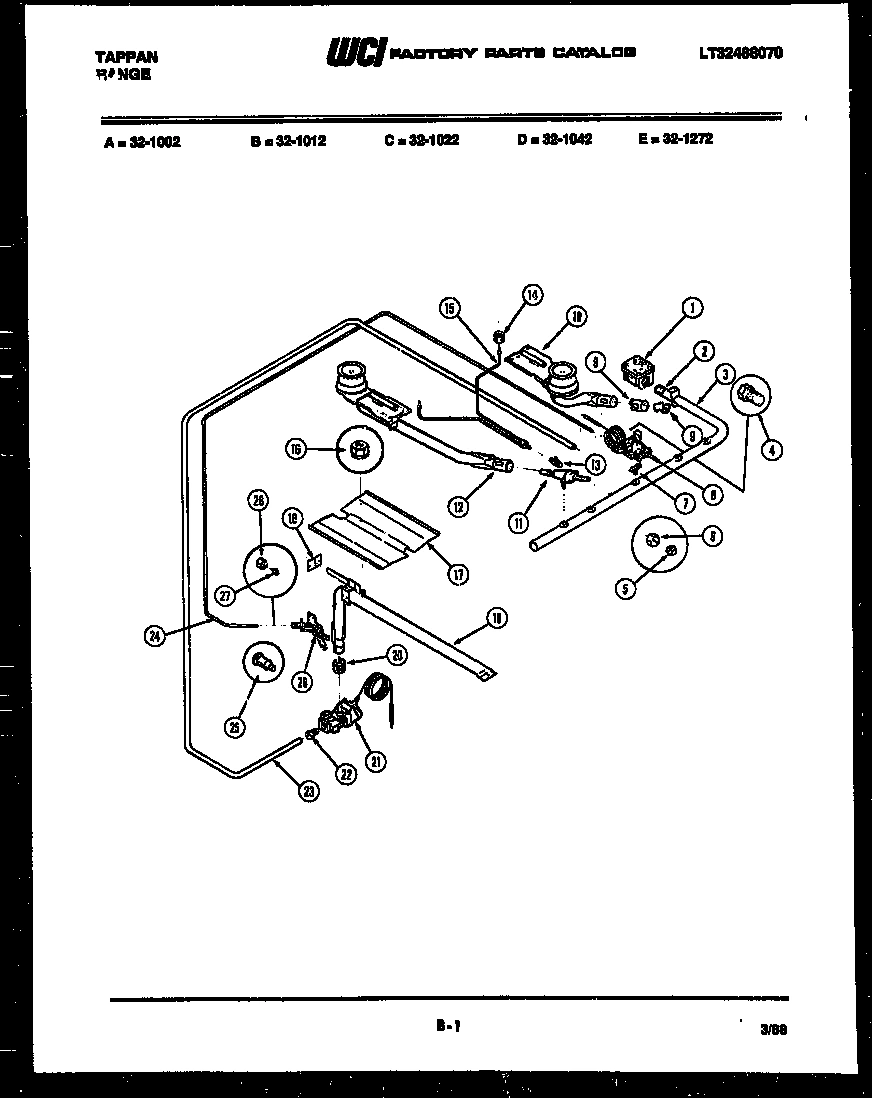

09 - BURNER, MANIFOLD AND GAS CONTROL

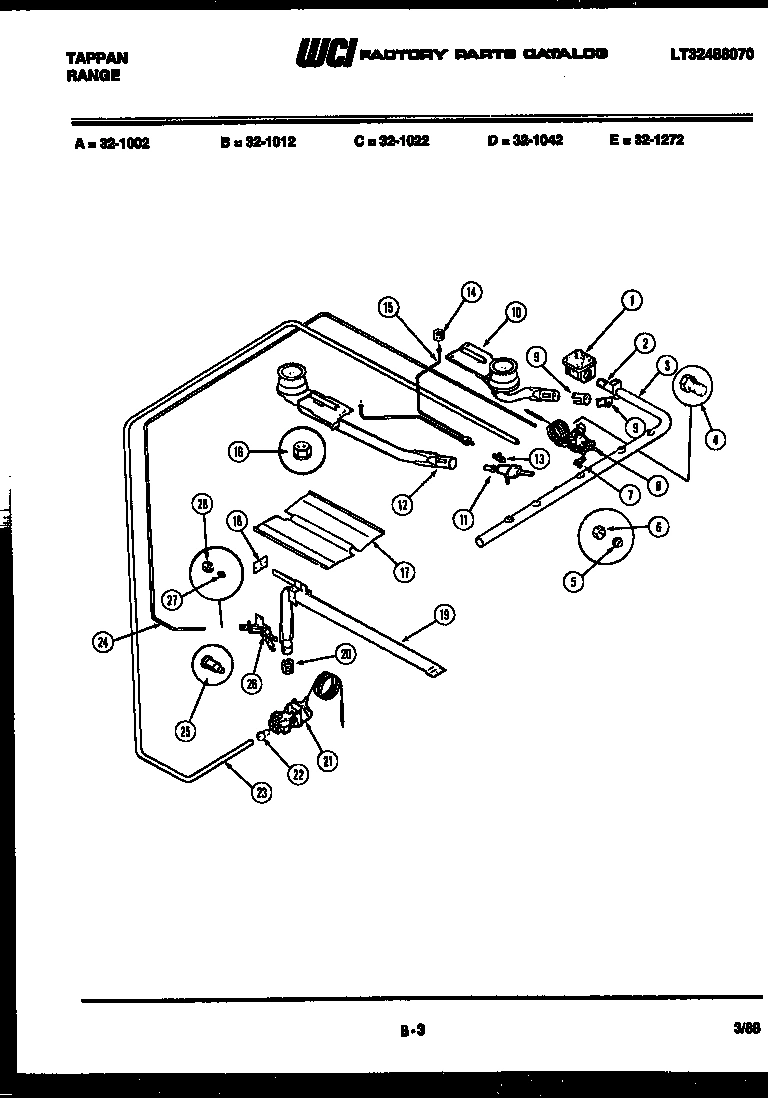

10 - BURNER, MANIFOLD AND GAS CONTROL
13 - BROILER DRAWER PARTS
14 - BROILER DRAWER PARTS
15 - BODY PARTS
16 - BODY PARTS

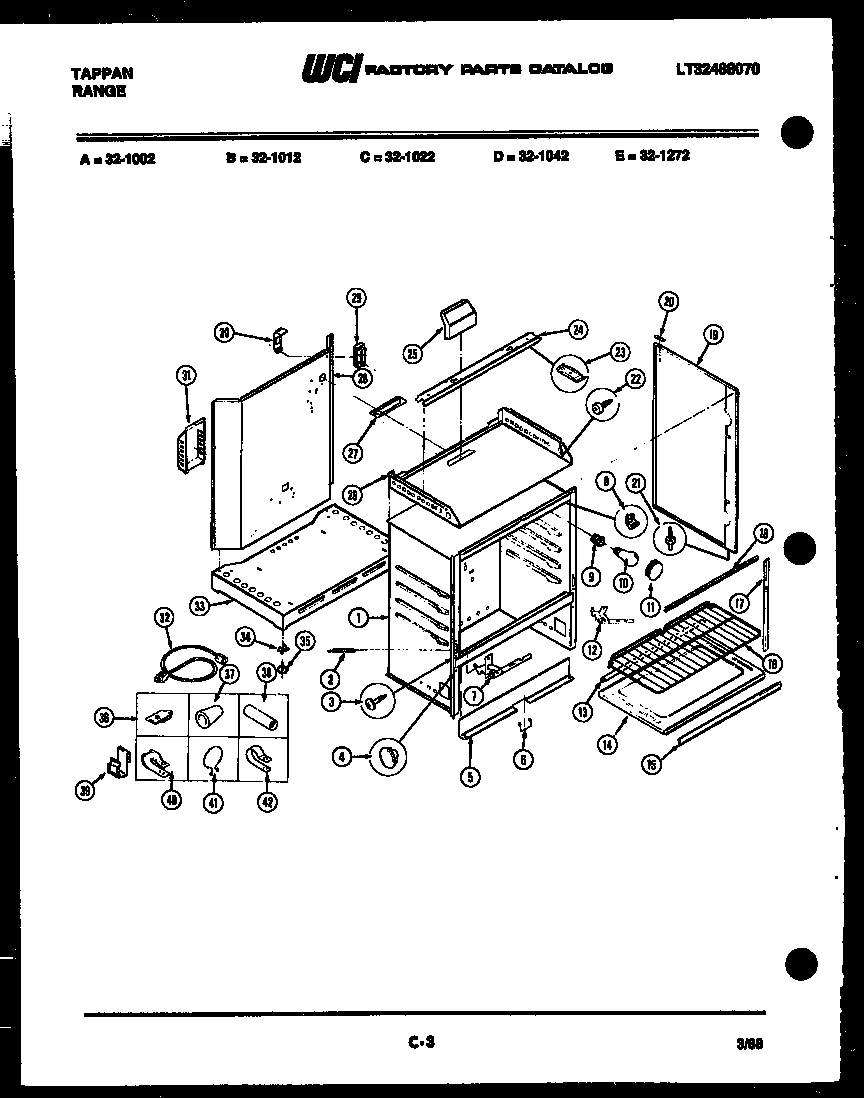

17 - BODY PARTS
18 - CONTROL PANEL
Common parts from model Electrolux 32-1042-23-07 RANGE
*29317
SCREW-BCKGRD ASSY 8A X 1/2`` PH OV HD LOT 1-1 WCI 636T090P23 Contact Us For Availability
*29350
INSULATION-WOOL 2 X 16 1/4 X 28`` WCI 328T049P29 Contact Us For Availability
*29356
SCRW-DR ASSY 8A X 3/8`` PH TR HD (2) WCI 636T090P47 Contact Us For Availability
*29445
SCREW-BROILR ASSY 8-18 X 1/2`` PH TR HD (4) L WCI 636T140P01 Contact Us For Availability
*29447
SCREW-BROILR ASSY 8-18 X 1/2`` PH WR HD SPC ( WCI 636T139P01 Contact Us For Availability
*29511
INSUL-WOOL 2 1/2 X 19 X 62`` TP/SIDES WCI 328T015P102 Contact Us For Availability
*29512
WCI 328T015P103 WCI 328T015P103 Contact Us For Availability
*29513
WCI 328T015P99 WCI 328T015P99 Contact Us For Availability
*29514
WCI 740T365P01 WCI 740T365P01 Contact Us For Availability
*29515
WCI 740T365P02 WCI 740T365P02 Contact Us For Availability
*29515
TRIM-BDY PNL-VERT. IF EQUIPPED (2) WCI 740T431F01 Contact Us For Availability
*29517
WCI 508T020P02 WCI 508T020P02 Contact Us For Availability
*29519
WCI 508T026P02 WCI 508T026P02 Contact Us For Availability
*29523
WCI 508T019P01 WCI 508T019P01 Contact Us For Availability
*29524
WCI 508R004P01 WCI 508R004P01 Contact Us For Availability
*29526
WCI 508R005P01 WCI 508R005P01 Contact Us For Availability
1
WCI 511T040F06-18 WCI 511T040F06-18 Contact Us For Availability
1
WCI 529T091F05-23 WCI 529T091F05-23 Contact Us For Availability
1
LINER-OVN DR-BLUE GRAY (LOT 6, 7, 10, 11) WCI 381T086W01-87 Contact Us For Availability
1
CONTRL-PRESS REGUL LOT 6-10 WCI 166T008P10 Contact Us For Availability
1
DRAWR-BROILR-BLUE GRAY (LOT 6-11) WCI 205T004W01-87 Contact Us For Availability
1
WCI 521T103P09 WCI 521T103P09 Contact Us For Availability
2
WCI 740T234F04 WCI 740T234F04 Contact Us For Availability
2
PLUG BTN-PILOT VENT (2) WCI 557T021P08 Contact Us For Availability
2
SCRW-HNDL MTG 10-24 X 2 3/4`` FL WSH HD (LOT WCI 636T138P05 Contact Us For Availability
2
WCI 008T276F04 WCI 008T276F04 Contact Us For Availability
2
SPRING-BROILR LH C-TYPE WCI 675T079P01 Contact Us For Availability
2
SPRING-BROILR RH C-TYPE WCI 675T079P02 Contact Us For Availability
2
SPRING-OVN DR CAM (2) WCI 675T041P01 Contact Us For Availability
3
CAP-PILOT VENT (2) WCI 124T014P01 Contact Us For Availability
3
FASTNR-NYLN SPACR 3/32`` LOT 6-12, 13, 14 (5) WCI 241T017P240 Contact Us For Availability
3
WCI 439T046P04 WCI 439T046P04 Contact Us For Availability
3
WCI 072T659F01 WCI 072T659F01 Contact Us For Availability
3
WCI 072T659F02 WCI 072T659F02 Contact Us For Availability
3
SCREW-SHOULDER WCI 636T066P06 Contact Us For Availability
4
PNL-LWR B/G SPLASHR LOT 6-11 WCI 511T049P02 Contact Us For Availability
4
WCI 3131941 WCI 3131941 Contact Us For Availability
4
LOXIT NUT-THERMO PILOT TUBE 3/16`` LOT 2-12 WCI 247T069P02 Contact Us For Availability
4
FASTNR-PUSH NUT .250 DIA STUD (2) WCI 241T017P148 Contact Us For Availability
4
BUTTN-GLIDE-FRNT FRAME (2) LOT 1-9 WCI 106T027P02 Contact Us For Availability
5
GASKT-BCKGRD VENT LOT 6-13 WCI 269T089P02 Contact Us For Availability
5
WCI 3132190 WCI 3132190 Contact Us For Availability
5
FASTNR-NYLN SPACR .562 WCI 241T017P221 Contact Us For Availability
5
FITTING-THERMO/GAS SUPLY TUBE 3/8`` LOT 2-12, WCI 247T084P01 Contact Us For Availability
5
WCI T7-205-2 WCI T7-205-2 Contact Us For Availability
5
SHIELD-WOOL-LWR FRONT WCI 655T308F02 Contact Us For Availability
6
FLUE BOX (LOT 7-13) WCI 250T022W04-18 Contact Us For Availability
6
WCI 740T430W01 WCI 740T430W01 Contact Us For Availability
6
FASTNR-NYLN SPACR .687 (3) WCI 241T017P220 Contact Us For Availability
6
FITTING-COMPRSSN THERMO GAS SUPLY TUBE 3/8`` WCI 247T069P04 Contact Us For Availability
6
WASHR-HNDL SPACR (2) WCI 789T053P12 Contact Us For Availability
6
RETAINER-OVN BURNR WCI 612T094P01 Contact Us For Availability
7
WCI 277T131P72 WCI 277T131P72 Contact Us For Availability
7
WCI 740T430W02 WCI 740T430W02 Contact Us For Availability
7
SPACR-OVN DR TUBUL LOT 6-14 (2) WCI 665T131P02 Contact Us For Availability
7
WCI 003T039P01 WCI 003T039P01 Contact Us For Availability
7
HANDL-BROILR DOOR WCI 296T081P02 Contact Us For Availability
7
CAM-OVEN DOOR LOT 6-14 WCI 117T013S13 Contact Us For Availability
8
TRIM-GLASS RETAINR WCI 740T239F01 Contact Us For Availability
8
WCI 276T098P03 WCI 276T098P03 Contact Us For Availability
8
THERMOSTAT-OVEN WCI 722T058P01 Contact Us For Availability
8
WCI 517T003W41-23 WCI 517T003W41-23 Contact Us For Availability
8A
SCREW-THERMO MTG 10-24 X 9/32`` HEX HD (2) (N WCI 636T133P01 Contact Us For Availability
8A
INSULATION (NON-ILLUSTRATED) WCI 328T015P15 Contact Us For Availability
9
CLIP-TP RETAINR (2) LOT 2-12 WCI 145T069F01 Contact Us For Availability
9
TRIM-OVN DR LOT 6-12 WCI 740T483H01 Contact Us For Availability
9
LINER-BROILR DOOR BLUE GRAY LOT 6-11 WCI 381T077F04-87 Contact Us For Availability
9A
MIXER-AIR-TP BURNER LOT 1-8 (4) WCI 451T004R01 Contact Us For Availability
9B
WCI 636T096P02 WCI 636T096P02 Contact Us For Availability
10
HANDL-OVN DOOR WCI 296T026P05 Contact Us For Availability
10
BURNR-TP-FRNT LOT 1-8 (2) WCI 080T013P01 Contact Us For Availability
10
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
11
SPACER-OVN DOOR HANDLE (2) WCI 665T140P02 Contact Us For Availability
11
VALVE-TP BURNER (4) WCI 774T118P01 Contact Us For Availability
11
PAN-BROILR-BLUE GRAY LOT 6-11 WCI 539T005F01-87 Contact Us For Availability
11
WCI 557T021P12 WCI 557T021P12 Contact Us For Availability
12
BURNR-TP-REAR LOT 1-8 (2) WCI 080T013P02 Contact Us For Availability
12
CAM-OVN DR RH LOT 6-14 WCI 117T013S14 Contact Us For Availability
12A
KIT-DOOR ADJUST. (NON-ILLUSTRATED) WCI 355T588S01 Contact Us For Availability
13
WCI 244T039P01 WCI 244T039P01 Contact Us For Availability
14
WCI 124T010P01 WCI 124T010P01 Contact Us For Availability
14
CHANL-GLIDE LWR LOT 1-11 WCI 136T281F02 Contact Us For Availability
14
WCI 058T035F01-87 WCI 058T035F01-87 Contact Us For Availability
14A
SCREW-OVN BTM (2) 8-18 X 1`` BPT. KNRLD HD WCI 636T134P01 Contact Us For Availability
15
TUBE-DUAL HARNESS TOP PILOT WCI 750T185P01 Contact Us For Availability
15
CHANL-GLIDE UPPER LOT 1-11 WCI 136T282F02 Contact Us For Availability
15
SEAL-DR BTM & TOP WCI 647T068P02 Contact Us For Availability
15
KNOB-VALVE-TP BURN (4) WCI 358T141P21 Contact Us For Availability
16
BUTTON-GUIDE (3) WCI 106T028P01 Contact Us For Availability
16
RACK-OVEN (2) LOT 1-7 WCI 591T073P01 Contact Us For Availability
16
KNOB-THERMO WCI 358T141P03 Contact Us For Availability
17
BAFFLE-OVN BURNER WCI 3131517 Contact Us For Availability
17
SEAL-DOOR SIDE (2) LOT 3-12 WCI 115T647P03 Contact Us For Availability
18
PLATE-BURNR MTG LOT 6-9, 14 WCI 554T327F02 Contact Us For Availability
19
WCI 079T025P01 WCI 079T025P01 Contact Us For Availability
19
PNL-BDYSDE ALMD (2) LOT 7-11 WCI 515T032F07-23 Contact Us For Availability
20
MIXER-AIR-OVN BURN WCI 451T005R01 Contact Us For Availability
20
GLIDE, MAIN TOP (2) WCI 280T028P02 Contact Us For Availability
21
SCRW-BDY PNL GUID (2) WCI 636T071P01 Contact Us For Availability
21
VALVE-OVN SAFETY WCI 774T065P02 Contact Us For Availability
21A
SCREW-SAFETY VALVE MTG 8A X 2`` PH TR HD (2) WCI 636T090P15 Contact Us For Availability
22
LOXIT FITTING-SAFETY VALVE 3/8`` (5/8-18 THD) WCI 70-205-5 Contact Us For Availability
22
WCI 636T083P01 WCI 636T083P01 Contact Us For Availability
23
TUBE-OVN GAS SUPLY 3/8 X 55`` WCI 750T085P25 Contact Us For Availability
24
TUBE-OVN PILOT SAFETY 3/16 X 48 1/2 LOT 1-7, WCI 750T056P19 Contact Us For Availability
24
CHANL-TP BURNR SUPT LOT 6-12, 13, 14 WCI 136T310F04-18 Contact Us For Availability
25
ORIFICE-PILOT .014 7 NAT. 11`` LP WCI 499T012R04 Contact Us For Availability
25
FLUE-BOX LOT 7-12, 13, 14 WCI 250T020W02-18 Contact Us For Availability
26
WCI 549T023P01 WCI 549T023P01 Contact Us For Availability
26
BURNR-BOX-BLUE GRAY LOT 7-11 WCI 095T029W14-87 Contact Us For Availability
26A
WCI 636T097P01 WCI 636T097P01 Contact Us For Availability
26B
WCI 355T219S01 WCI 355T219S01 Contact Us For Availability
27
FERRULE-TP BURNER & OVN PILOT/PILOT TUBE (2) WCI 247T073P01 Contact Us For Availability
27
WCI 3131536 WCI 3131536 Contact Us For Availability
28
COMPRSSN NUT-TOP BURNER & OVN PILOT PILOT TUB WCI 479T080P01 Contact Us For Availability
28
BACK-MAIN LOT 1-9, 14 WCI 3131938 Contact Us For Availability
29
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
29A
HEX NUT-TERM BLOCK DISC ASSY 6-32 (NON-ILLUST WCI 479T069P09 Contact Us For Availability
29B
WCI 636T095P13 WCI 636T095P13 Contact Us For Availability
29C
WCI 636T095P36 WCI 636T095P36 Contact Us For Availability
30
WCI 072T612F01 WCI 072T612F01 Contact Us For Availability
31
COVER-IGNITER CONN WCI 174T220F01 Contact Us For Availability
32
CORD-RANGE PWR SUPPLY LOT 7-12, 13 WCI 171T021P06 Contact Us For Availability
33
WCI 036T050W01-18 WCI 036T050W01-18 Contact Us For Availability
34
FASTNR-LEVELING LEG (2) WCI 241T017P10 Contact Us For Availability
35
SCREW-LEVELING (2) WCI 636M004P01 Contact Us For Availability
36
FASTNR-8A U-TYPE LOT 6-12 WCI 241T014P01 Contact Us For Availability
× ![]()
