Model Electrolux 32-1039-00-08 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

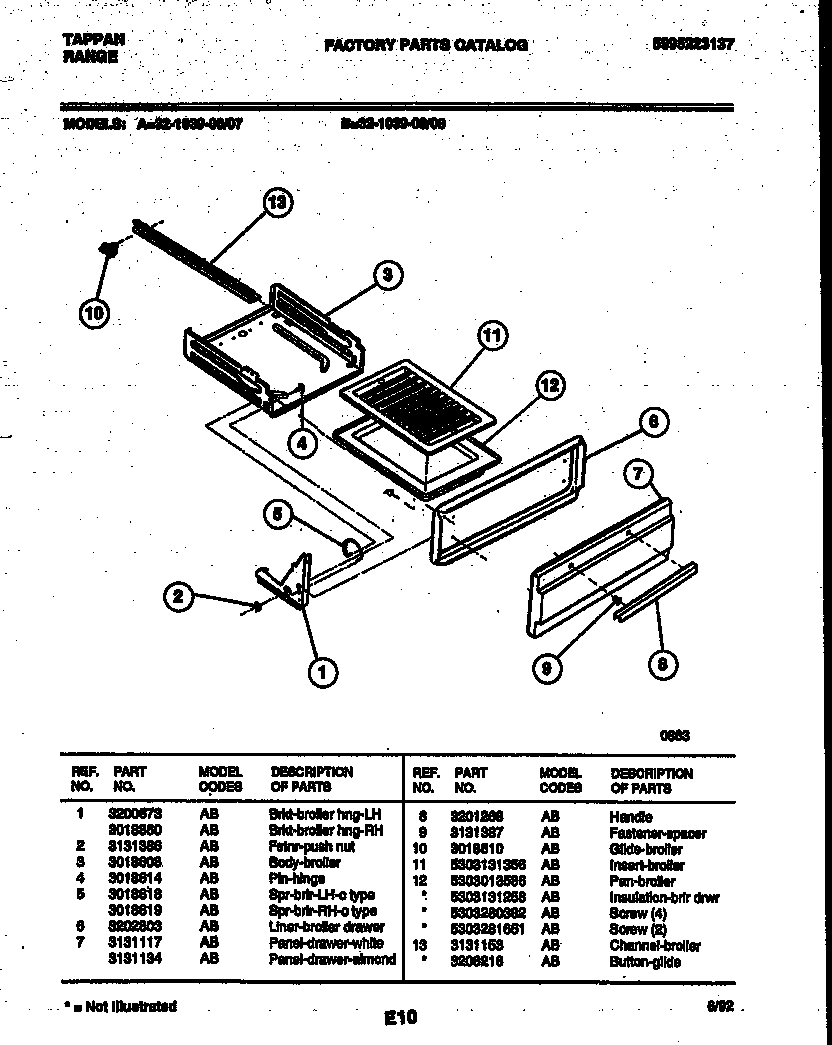

04 - BROILER DRAWER PARTS

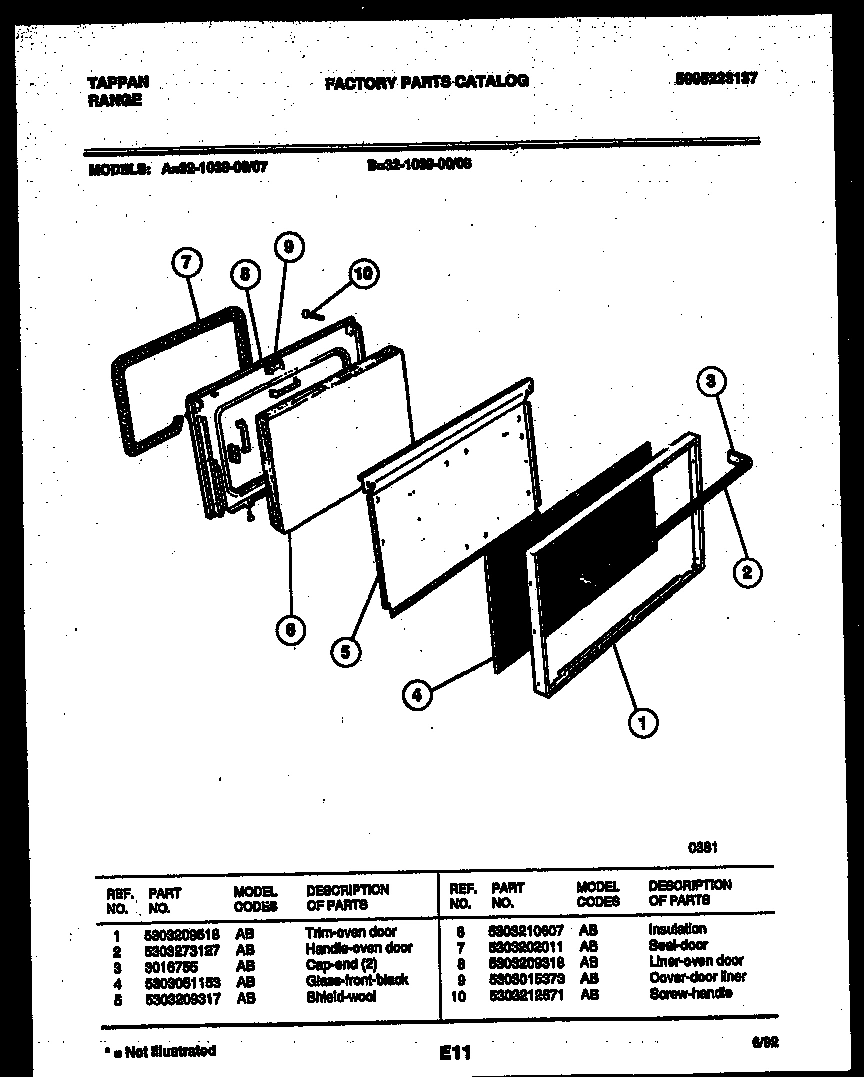

05 - DOOR PARTS

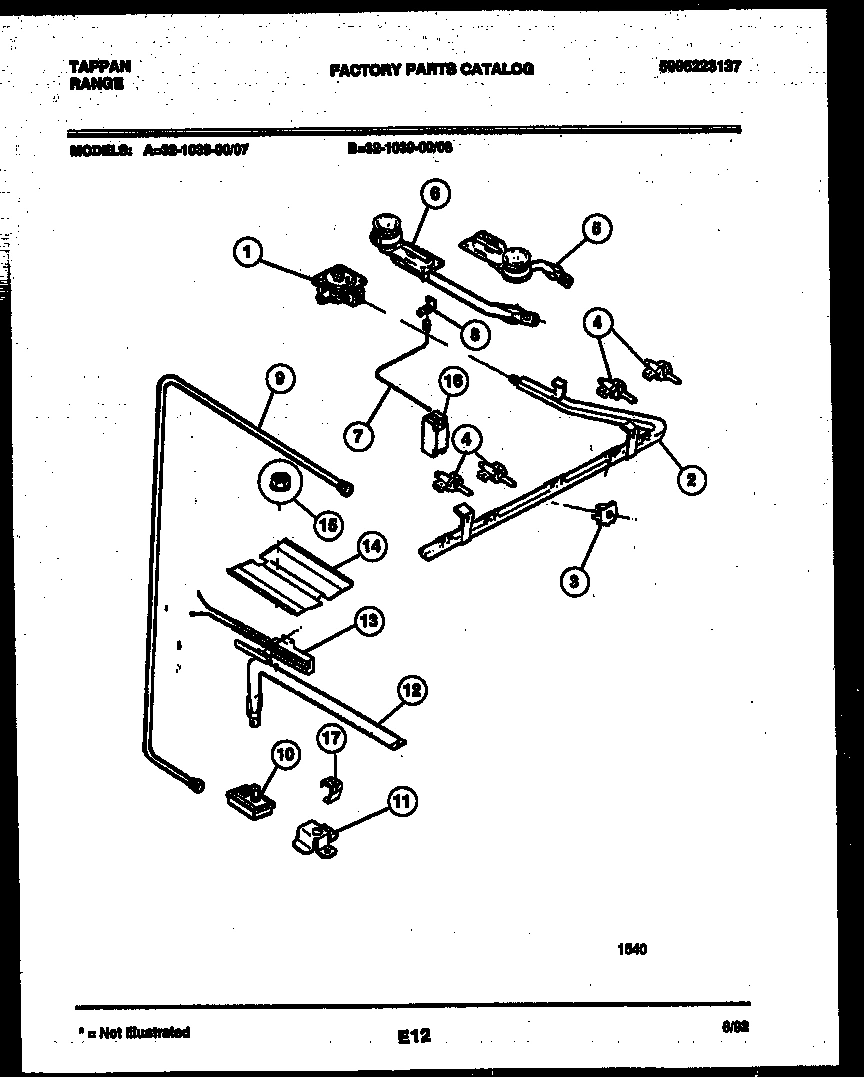

06 - BURNER PARTS

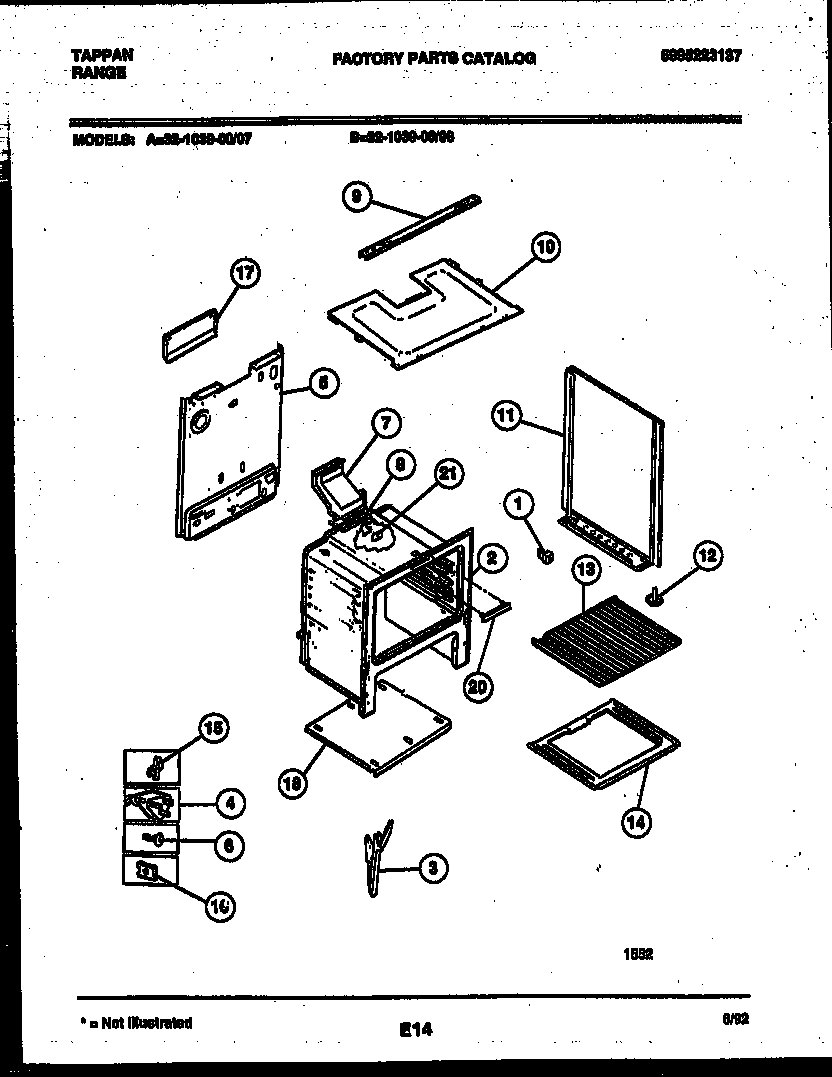

07 - BODY PARTS
Common parts from model Electrolux 32-1039-00-08 RANGE
*72681
WCI 3206216 WCI 3206216 Contact Us For Availability
*72688
WCI 08067961 WCI 08067961 Contact Us For Availability
*72688
DIAGRAM, WIRING (NOT FOR PURCHASE) WCI 19100180225 Contact Us For Availability
*72688
WCI 3131192 WCI 3131192 Contact Us For Availability
*72688
WCI 3131244 WCI 3131244 Contact Us For Availability
*72688
WCI 3131660 WCI 3131660 Contact Us For Availability
*72689
WCI 08010570 WCI 08010570 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
WCI 5303280293 WCI 5303280293 Contact Us For Availability
2
HANDLE-OVEN DOOR WCI 5303273127 Contact Us For Availability
2
WCI 5303272435 WCI 5303272435 Contact Us For Availability
3
WCI 316032001 WCI 316032001 Contact Us For Availability
3
CHANNEL-DOOR HINGE WCI 316007001 Contact Us For Availability
3
CAP END (LH B/G) WCI 3202801 Contact Us For Availability
4
CAP END (RH B/G) WCI 3202802 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
GLASS-FRONT-BLACK WCI 5303051153 Contact Us For Availability
4
VALVE-TOP 2 POS WCI 316031700 Contact Us For Availability
5
SPR - BRLR-LH-C TYPE WCI 3018618 Contact Us For Availability
5
SPR - BRLR-RH-C TYPE WCI 3018619 Contact Us For Availability
5
WCI 5303209317 WCI 5303209317 Contact Us For Availability
5
WCI 3203082 WCI 3203082 Contact Us For Availability
6
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
6
WCI 3202803 WCI 3202803 Contact Us For Availability
6
WCI 5303210607 WCI 5303210607 Contact Us For Availability
7
WCI 3131117 WCI 3131117 Contact Us For Availability
7
WCI 3200276 WCI 3200276 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
9
FASTENER, SPACER WCI 3131387 Contact Us For Availability
9
WCI 5303015373 WCI 5303015373 Contact Us For Availability
9
TUBE-ALUM WCI 3203458 Contact Us For Availability
9
WCI 3203441 WCI 3203441 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
SCREW HANDLE WCI 5303212671 Contact Us For Availability
10
WCI 3204962 WCI 3204962 Contact Us For Availability
11
INSERT-BROILER WCI 5303131356 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
PNL-B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
11
PNL-B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
SCREW, LEVELER (4) WCI 5303203397 Contact Us For Availability
12
WCI 5303013586 WCI 5303013586 Contact Us For Availability
12A
INSULATION-BRLR DRWR (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12C
SCREW (2) (NON-ILLUSTRATED) WCI 5303281651 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 5303212540 WCI 5303212540 Contact Us For Availability
14A
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
14B
WCI 3203541 WCI 3203541 Contact Us For Availability
17
BRKT, OVEN BURNER SUPT WCI 3018603 Contact Us For Availability
17
WCI 3131191 WCI 3131191 Contact Us For Availability
18
WCI 5303270160 WCI 5303270160 Contact Us For Availability
20
WCI 5303015372 WCI 5303015372 Contact Us For Availability
20A
ANTI TIP, BRACKETS (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
20B
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
21
WCI 3018607 WCI 3018607 Contact Us For Availability
× ![]()
