Model Electrolux 32-1038-23-01 RANGE – Common Parts & Diagrams
02 - BURNER, MANIFOLD AND GAS CONTROL
03 - BODY PARTS

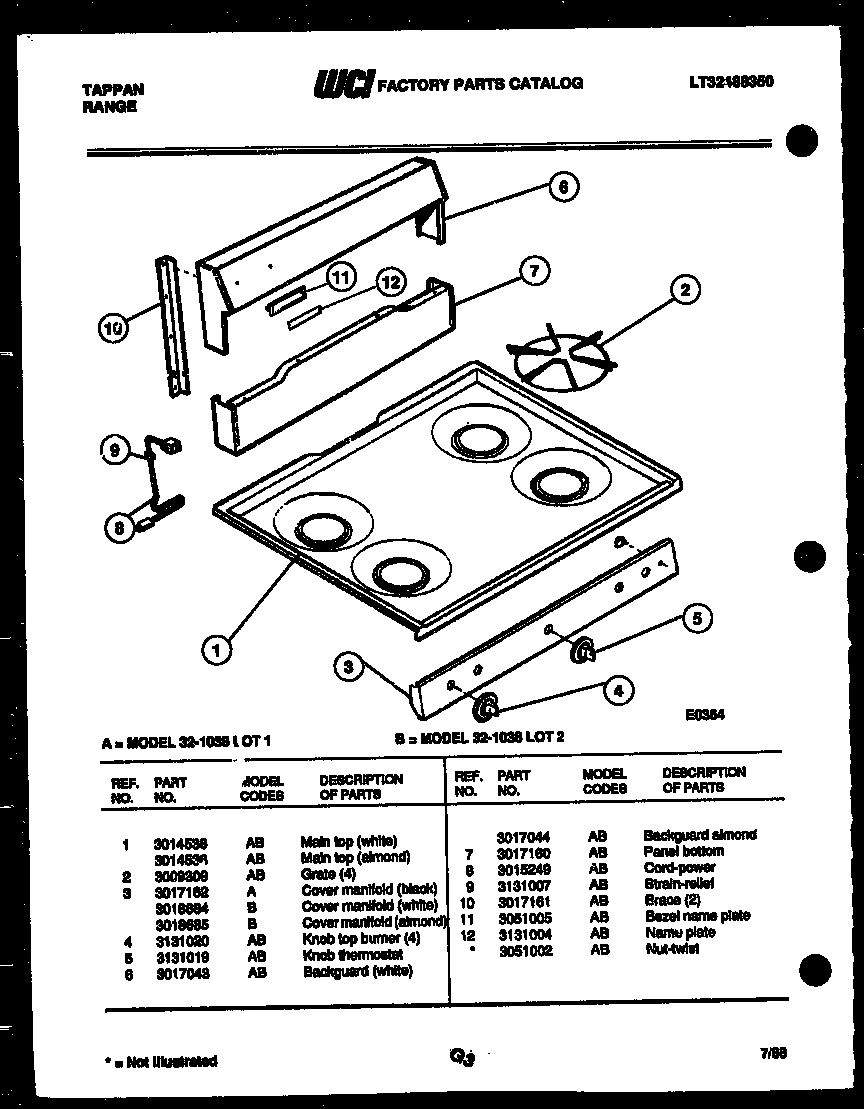

04 - BACKGUARD AND COOKTOP PARTS

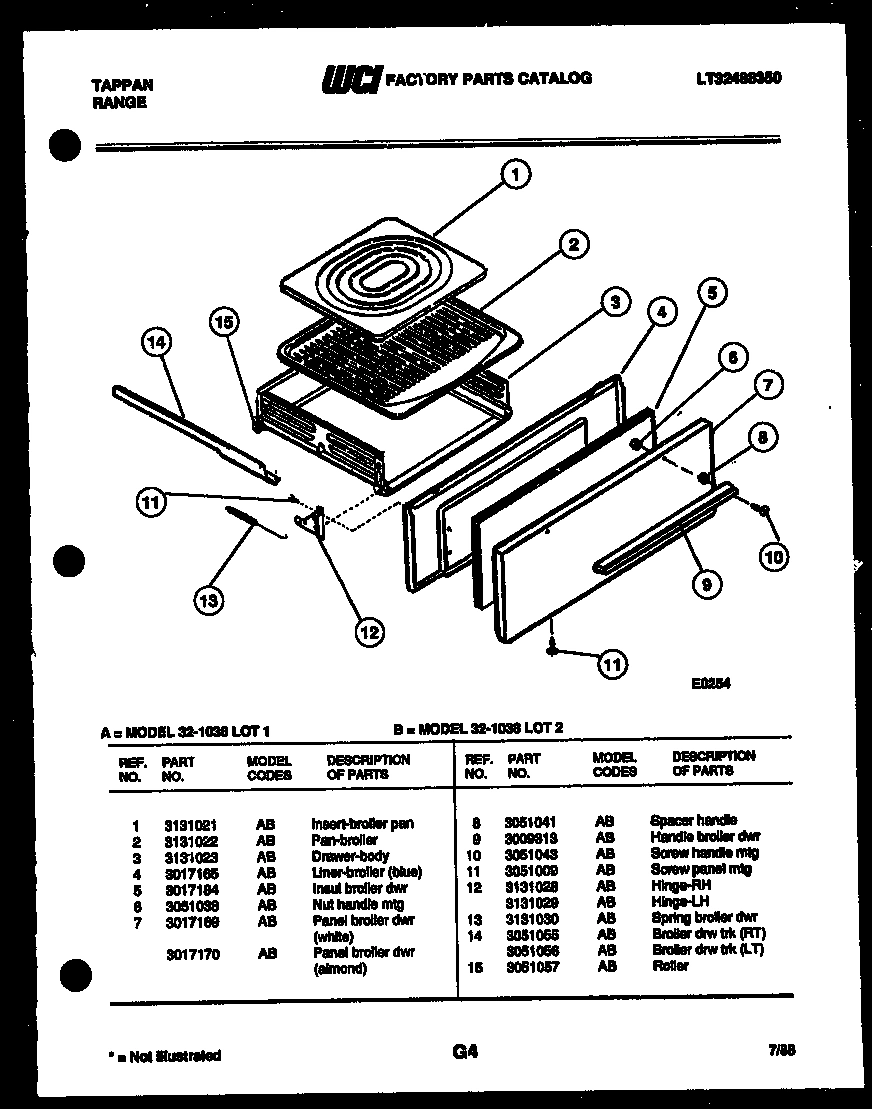

05 - BROILER DRAWER PARTS

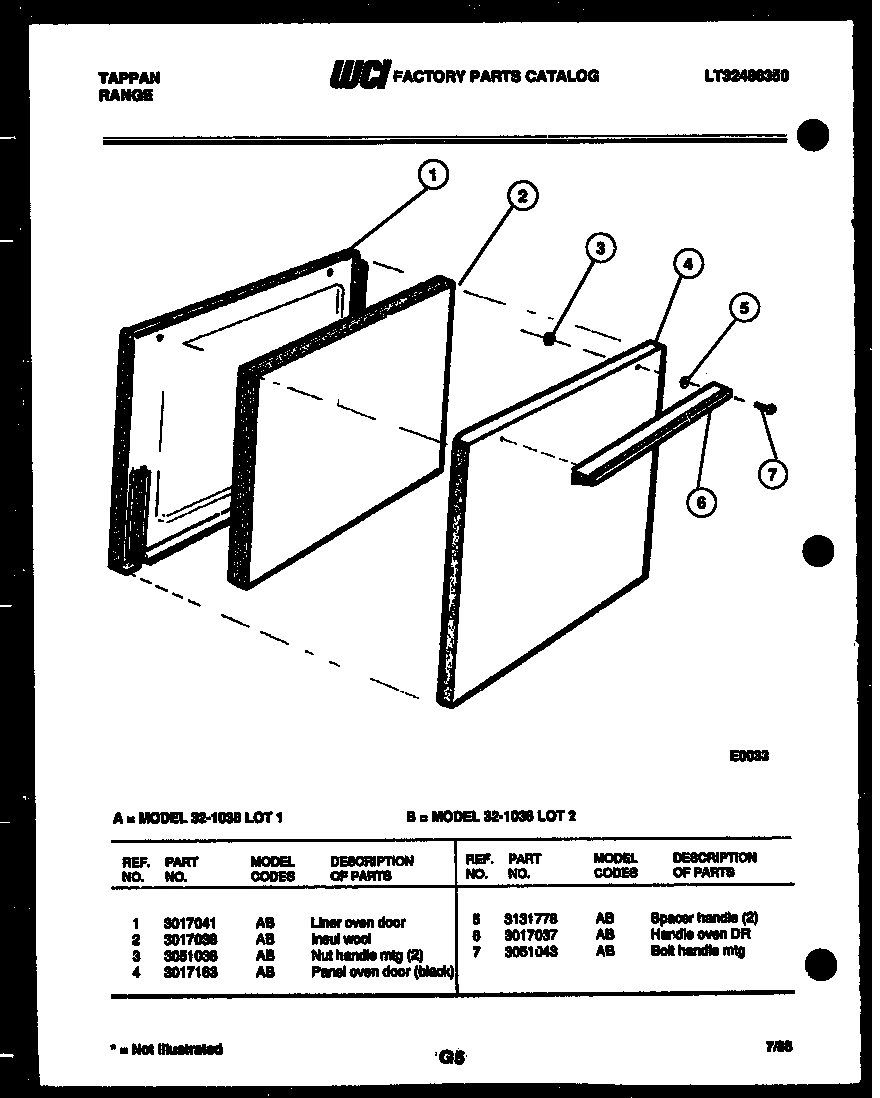

06 - DOOR PARTS
Common parts from model Electrolux 32-1038-23-01 RANGE
*16067
NUT-TWIST WCI 3051002 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
1
WCI 3014538 WCI 3014538 Contact Us For Availability
1
WCI 3131021 WCI 3131021 Contact Us For Availability
1
LINER-OVEN DOOR WCI 3017041 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
2
GRATE (4) WCI 3009309 Contact Us For Availability
2
INSUL WOOL WCI 3017038 Contact Us For Availability
3
WCI 3131099 WCI 3131099 Contact Us For Availability
3
SIDE BODY ALMOND (2) WCI 3051062 Contact Us For Availability
3
COVER MANIFOLD (BLACK) WCI 3017162 Contact Us For Availability
3
WCI 3131023 WCI 3131023 Contact Us For Availability
4
WCI 3131083 WCI 3131083 Contact Us For Availability
4
WCI 3017174 WCI 3017174 Contact Us For Availability
4
KNOB TOP BURNER (4) WCI 3131020 Contact Us For Availability
4
LINER-BROILER, BLUE WCI 3017165 Contact Us For Availability
4
WCI 3017163 WCI 3017163 Contact Us For Availability
5
WCI 3131856 WCI 3131856 Contact Us For Availability
5
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
5
WCI 3131019 WCI 3131019 Contact Us For Availability
5
INSUL BROILER DWR WCI 3017184 Contact Us For Availability
5
SPACER-HANDLE (2) WCI 3131778 Contact Us For Availability
6
WCI 3131091 WCI 3131091 Contact Us For Availability
6
WCI 3017048 WCI 3017048 Contact Us For Availability
6
BACKGUARD ALMOND WCI 3017044 Contact Us For Availability
6
HANDLE OVEN DR WCI 3017037 Contact Us For Availability
7
WCI 3131094 WCI 3131094 Contact Us For Availability
7
SEAL-OVEN DOOR WCI 3009427 Contact Us For Availability
7
WCI 3017160 WCI 3017160 Contact Us For Availability
7
PANEL BROILER DWR (ALMOND) WCI 3017170 Contact Us For Availability
8
WCI 3131057 WCI 3131057 Contact Us For Availability
8
CORD - POWER WCI 3015249 Contact Us For Availability
8
SPACER-HANDLE WCI 3051041 Contact Us For Availability
8A
HINGE ASSY (RT) WCI 3051078 Contact Us For Availability
9
WCI 3131096 WCI 3131096 Contact Us For Availability
9
SPRING OVEN DOOR (2) WCI 3009435 Contact Us For Availability
9
WCI 3131007 WCI 3131007 Contact Us For Availability
9
HANDLE BROILER DWR WCI 3009313 Contact Us For Availability
10
CLIP CAP TUBE (2) WCI 3051665 Contact Us For Availability
10
WCI 3015714 WCI 3015714 Contact Us For Availability
10
BRACE (2) WCI 3017161 Contact Us For Availability
11
LINER-OVEN BOTTOM WCI 3017168 Contact Us For Availability
11
WCI 3051005 WCI 3051005 Contact Us For Availability
11
SCREW PANEL MTG WCI 3051009 Contact Us For Availability
12
WCI 3131085 WCI 3131085 Contact Us For Availability
12
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
12
WCI 3131004 WCI 3131004 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12A
HINGE - LH WCI 3131029 Contact Us For Availability
13
WCI 3131080 WCI 3131080 Contact Us For Availability
13
LEG LEVELER (4) WCI 3051080 Contact Us For Availability
13
SPRING BROILER (DWR) WCI 3131030 Contact Us For Availability
14
WCI 3131079 WCI 3131079 Contact Us For Availability
14
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
14
BROILER DRW TRK (RT) WCI 3051055 Contact Us For Availability
14A
BROILER DRW TRK (LT) WCI 3051056 Contact Us For Availability
15
IGNITER TOP BURNER (4) WCI 3015196 Contact Us For Availability
15
LINER (LT) WCI 3131033 Contact Us For Availability
15
ROLLER WCI 3051057 Contact Us For Availability
15A
LINER (RH) WCI 3131032 Contact Us For Availability
15B
LINER (TOP) WCI 3017166 Contact Us For Availability
15C
LINER (BACK) WCI 3017167 Contact Us For Availability
16
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
16
INSUL (WRAP) WCI 3017171 Contact Us For Availability
16A
INSUL (BACK) WCI 3017172 Contact Us For Availability
17
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
17
SUPPORT-OVEN REAR (2) WCI 3051096 Contact Us For Availability
18
WCI 3131084 WCI 3131084 Contact Us For Availability
18
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
19
WCI 3131086 WCI 3131086 Contact Us For Availability
19
WCI 08008357 WCI 08008357 Contact Us For Availability
20
TERMINAL BLOCK WCI 3131087 Contact Us For Availability
21
WCI 3131088 WCI 3131088 Contact Us For Availability
21
MAIN BACK WCI 3013340 Contact Us For Availability
22
WCI 3131051 WCI 3131051 Contact Us For Availability
22
VENT BOX WCI 3017173 Contact Us For Availability
23
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
23
SHIELD BURNER BOX (RT) WCI 3131053 Contact Us For Availability
23A
SHIELD BURNER BOX (LT) WCI 3131054 Contact Us For Availability
23B
CLIP B/S (2) (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
24
VALVE-SAFETY WCI 3131089 Contact Us For Availability
24
BASE-RAIL WCI 3051081 Contact Us For Availability
× ![]()
