Model Electrolux 32-1027-00-02 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

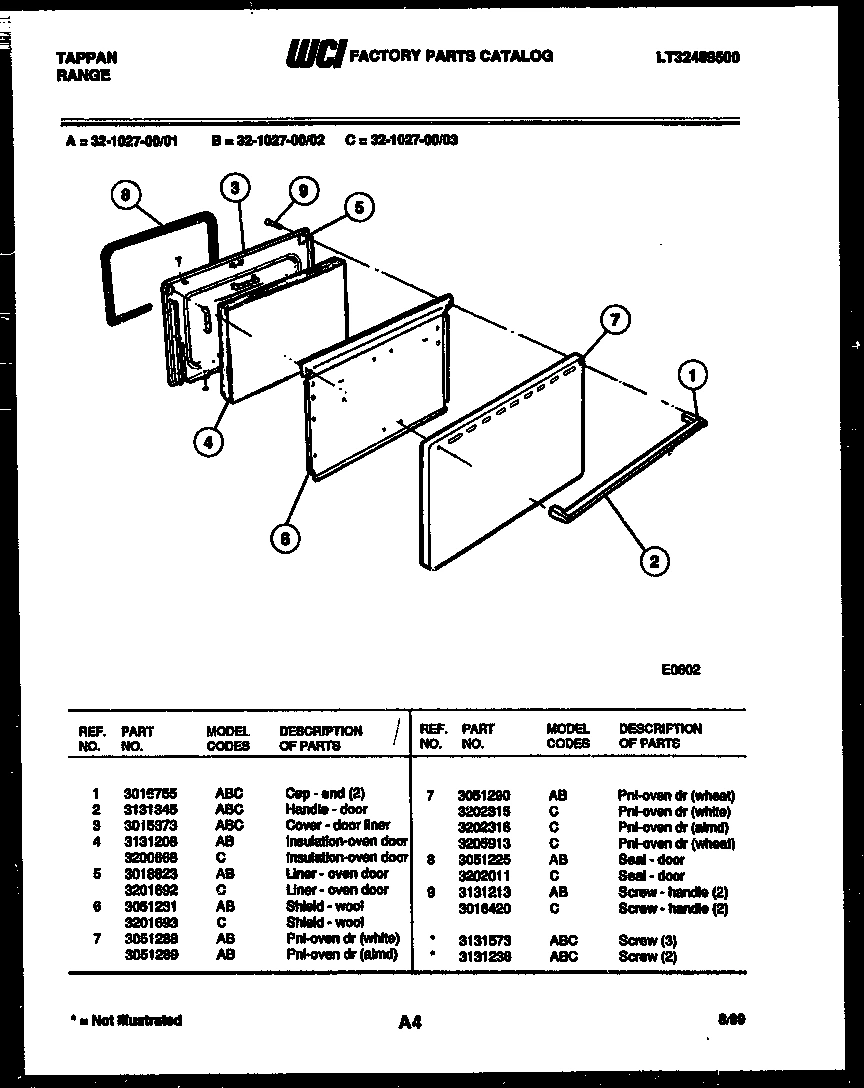

04 - DOOR PARTS

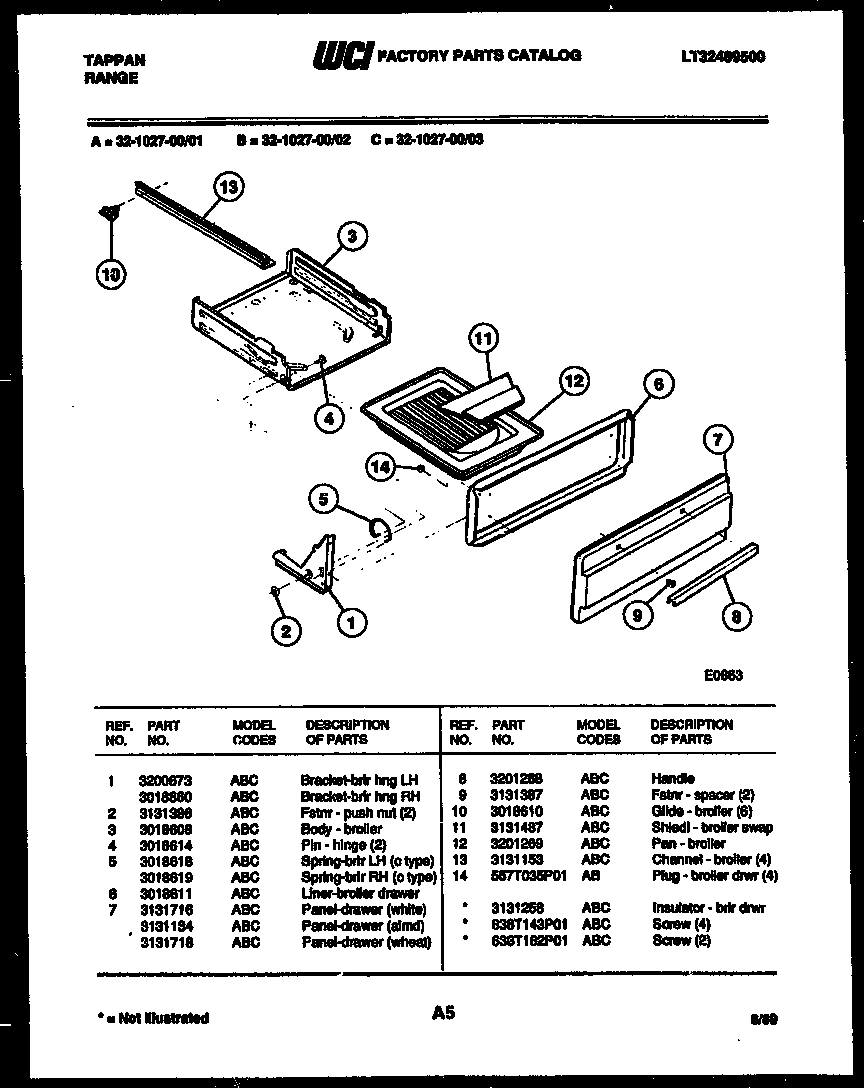

05 - BROILER DRAWER PARTS
06 - BURNER, MANIFOLD AND GAS CONTROL

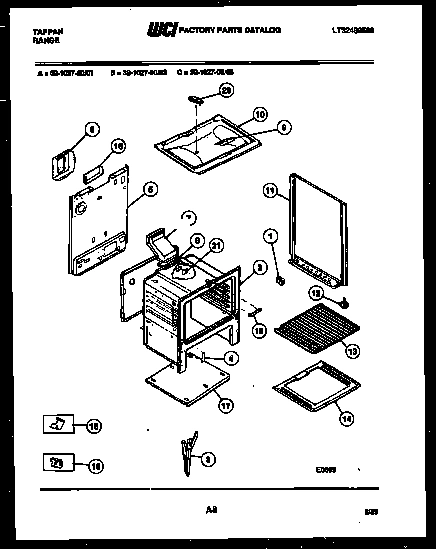

07 - BODY PARTS
Common parts from model Electrolux 32-1027-00-02 RANGE
*15357
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*15360
SCREW (2) WCI 3131236 Contact Us For Availability
*15360
SCREW (3) WCI 3131573 Contact Us For Availability
*15362
INSULATOR - BRLR DRWR WCI 3131258 Contact Us For Availability
*15363
SCREW (2) WCI 636T162P01 Contact Us For Availability
*15373
WCI 3012327 WCI 3012327 Contact Us For Availability
*15373
WCI 3131244 WCI 3131244 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 3930435 WCI 3930435 Contact Us For Availability
1
BRACKET-BRLR HNG LH WCI 3200673 Contact Us For Availability
1
WCI 072T850F01 WCI 072T850F01 Contact Us For Availability
1A
BRACKET-BRLR HNG RH WCI 3018860 Contact Us For Availability
2
WCI 3011558 WCI 3011558 Contact Us For Availability
2
HANDLE-DOOR WCI 3131345 Contact Us For Availability
2
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
2
WCI 22T073P01 WCI 22T073P01 Contact Us For Availability
3
WCI 3011559 WCI 3011559 Contact Us For Availability
3
WCI 3015373 WCI 3015373 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
WCI 003T039P01 WCI 003T039P01 Contact Us For Availability
3
WCI 3131569 WCI 3131569 Contact Us For Availability
4
WCI 3131570 WCI 3131570 Contact Us For Availability
4
INSULATION, OVEN DOOR WCI 3131208 Contact Us For Availability
4
PIN, HINGE (2) WCI 3018614 Contact Us For Availability
4
WCI 3012204 WCI 3012204 Contact Us For Availability
5
PANEL - B/G (WHITE) WCI 3051199 Contact Us For Availability
5
ROD - MAINTOP SUPT. WCI 3013818 Contact Us For Availability
5
LINER-OVEN DOOR WCI 3018823 Contact Us For Availability
5
SPRING-BRLR LH (C TYPE) WCI 3018618 Contact Us For Availability
5
WCI 439T055P07 WCI 439T055P07 Contact Us For Availability
5
WCI 3131567 WCI 3131567 Contact Us For Availability
5A
SPRING-BRLR RH (C TYPE) WCI 3018619 Contact Us For Availability
6
WCI 3201817 WCI 3201817 Contact Us For Availability
6
WCI 3051231 WCI 3051231 Contact Us For Availability
6
LINER-BROILER DRAWER WCI 3018611 Contact Us For Availability
6
VALVE - 2 POS (4) WCI 774T135P01 Contact Us For Availability
6
WCI 3131660 WCI 3131660 Contact Us For Availability
7
WCI 3201082 WCI 3201082 Contact Us For Availability
7
PNL-OVEN DR (WHITE) WCI 3051288 Contact Us For Availability
7
PANEL-DRAWER (WHITE) WCI 3131716 Contact Us For Availability
7
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
8
WCI 3131937 WCI 3131937 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 079T036P03 WCI 079T036P03 Contact Us For Availability
9
WCI 3131190 WCI 3131190 Contact Us For Availability
9
WCI 3131213 WCI 3131213 Contact Us For Availability
9
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
9
BURNER-TUBE (LF RF) WCI 3131970 Contact Us For Availability
9
WCI 3131101 WCI 3131101 Contact Us For Availability
10
WCI 3018610 No Longer Available
10
WCI 3011569 WCI 3011569 Contact Us For Availability
10
WCI 3131185 WCI 3131185 Contact Us For Availability
11
SHIEDL - BROILER SWAP WCI 3131487 Contact Us For Availability
11
WCI 3011570 WCI 3011570 Contact Us For Availability
11
PANEL B/S-RH WHITE WCI 3131227 Contact Us For Availability
11A
PANEL B/S-LH WHITE WCI 3131257 Contact Us For Availability
12
WCI 3201269 WCI 3201269 Contact Us For Availability
12
FERRULE WCI 3012358 Contact Us For Availability
12
SCREW - LEVELING (4) WCI 636M004P01 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
NUT-COMPRESSION WCI 3131148 Contact Us For Availability
14
PLUG-BROILER DRWR (4) WCI 557T035P01 Contact Us For Availability
14
NUT, SPECIAL WCI 3013279 Contact Us For Availability
14
WCI 3011519 WCI 3011519 Contact Us For Availability
14A
WCI 3017142 WCI 3017142 Contact Us For Availability
14B
INSULATION BACK (NON-ILLUSTRATED) WCI 3131246 Contact Us For Availability
15
WCI 3131327 WCI 3131327 Contact Us For Availability
16
WCI 3131404 WCI 3131404 Contact Us For Availability
16
WCI 3131191 WCI 3131191 Contact Us For Availability
17
WCI 3131403 WCI 3131403 Contact Us For Availability
17
WCI 3131180 WCI 3131180 Contact Us For Availability
18
WCI 3131261 WCI 3131261 Contact Us For Availability
18A
COVER, REAR WALL (NON-ILLUSTRATED) WCI 3131192 Contact Us For Availability
19
WCI 3015372 WCI 3015372 Contact Us For Availability
20
PILOT, OVEN WCI 549T037P01 Contact Us For Availability
20
WCI 3015371 WCI 3015371 Contact Us For Availability
21
COVER - IGNITER WCI 3018607 Contact Us For Availability
21
WCI 750T056P21 WCI 750T056P21 Contact Us For Availability
22
TUBE - ALUM WCI 3014477 Contact Us For Availability
23
TUBE - ALUM WCI 750T085H13 Contact Us For Availability
24
WCI 3131405 WCI 3131405 Contact Us For Availability
25
IGNITER - TOP BURNER WCI 316T034P02 Contact Us For Availability
26
SWITCH-IGNITER (4) WCI 695T225P02 Contact Us For Availability
28
IGNITER - OVEN WCI 3131604 Contact Us For Availability
29
WCI 166T013P01 WCI 166T013P01 Contact Us For Availability
30
BRKT - OV. BURNER SUPT WCI 3018603 Contact Us For Availability
31
WCI 612T121F01 WCI 612T121F01 Contact Us For Availability
32
SWITCH, OVEN IGNITER WCI 695T220P01 Contact Us For Availability
33
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
33A
POP RIVET (NON-ILLUSTRATED) WCI 3051420 Contact Us For Availability
× ![]()
