Model Electrolux 32-1022-32-11 RANGE – Common Parts & Diagrams
03 - BACKGUARD
04 - COOKTOP PARTS

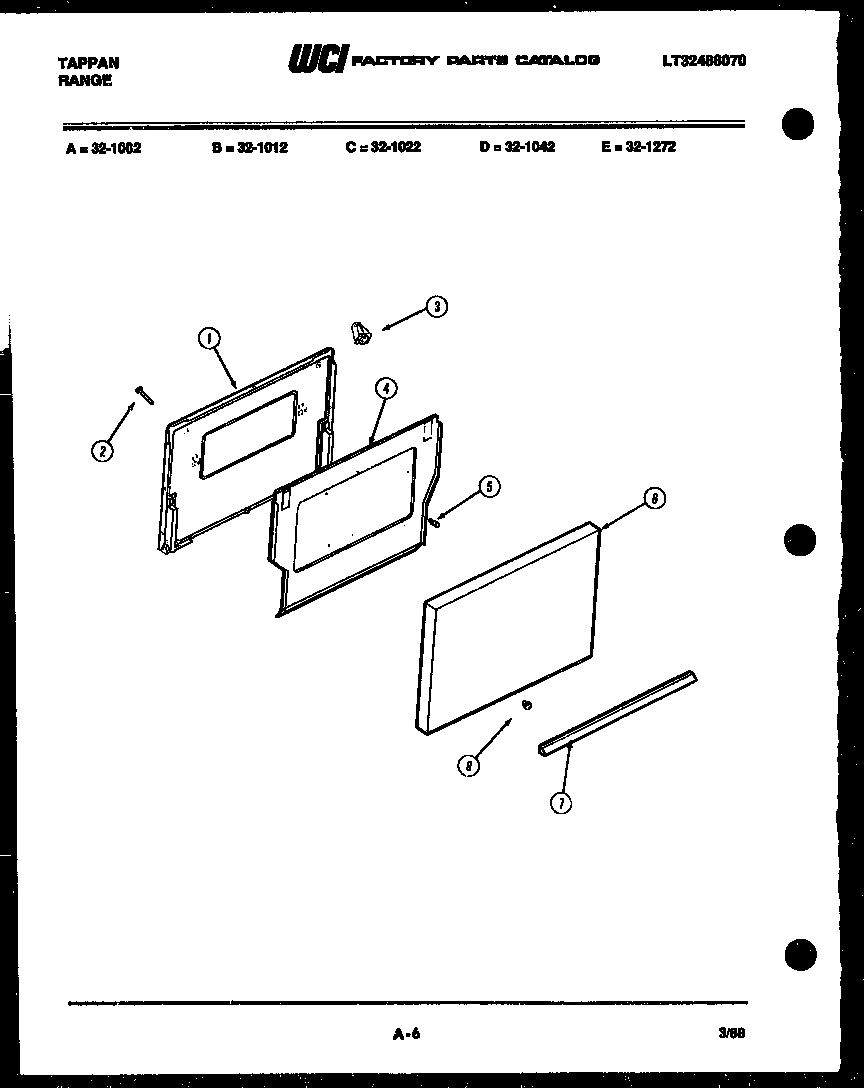

05 - DOOR PARTS

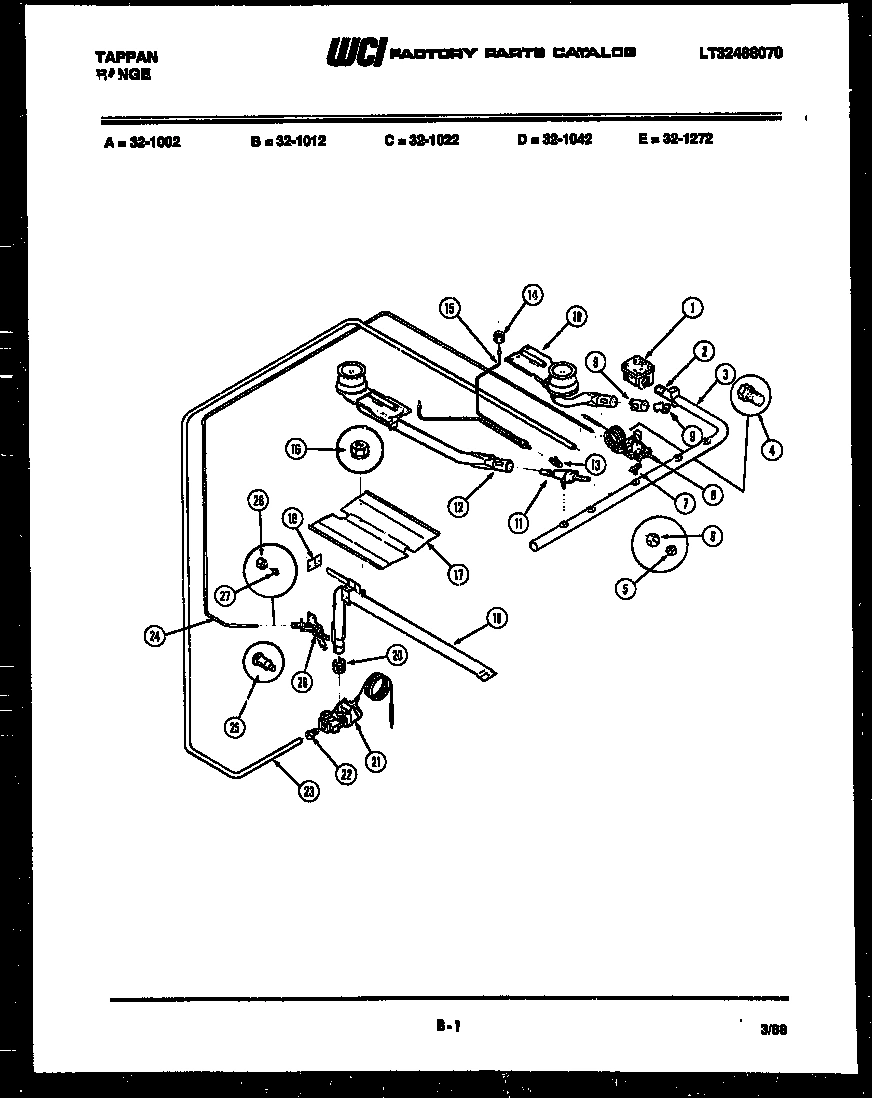

09 - BURNER, MANIFOLD AND GAS CONTROL

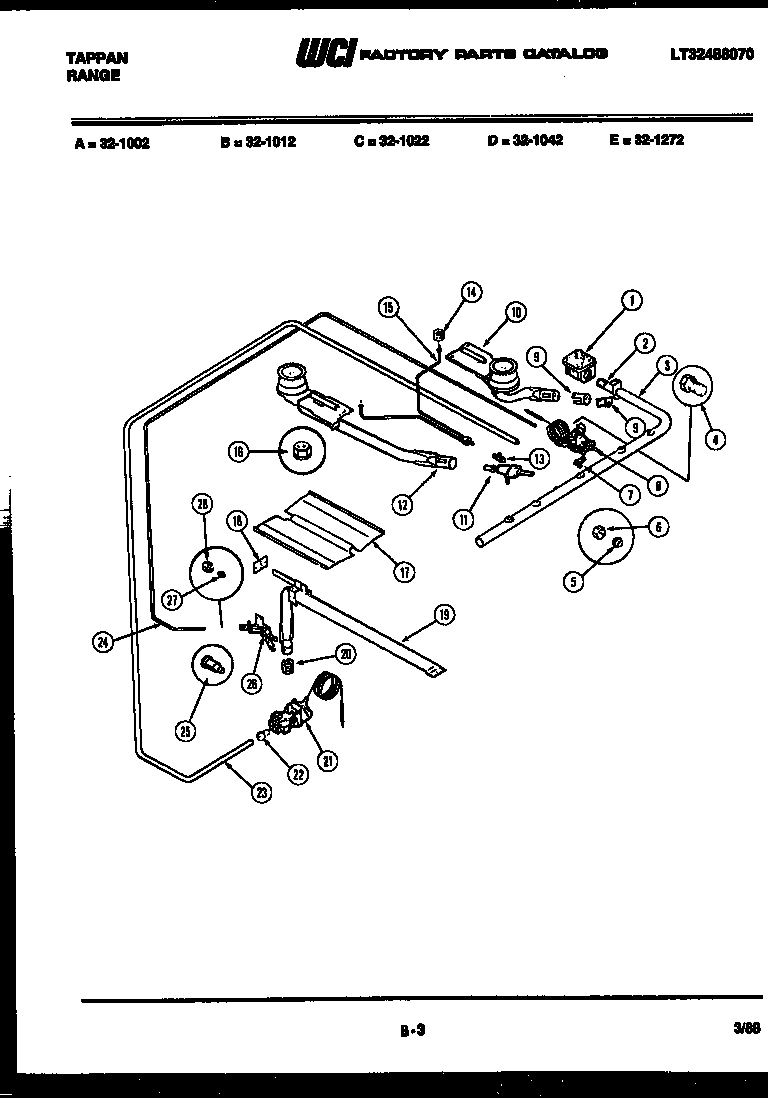

10 - BURNER, MANIFOLD AND GAS CONTROL
13 - BROILER DRAWER PARTS
14 - BROILER DRAWER PARTS

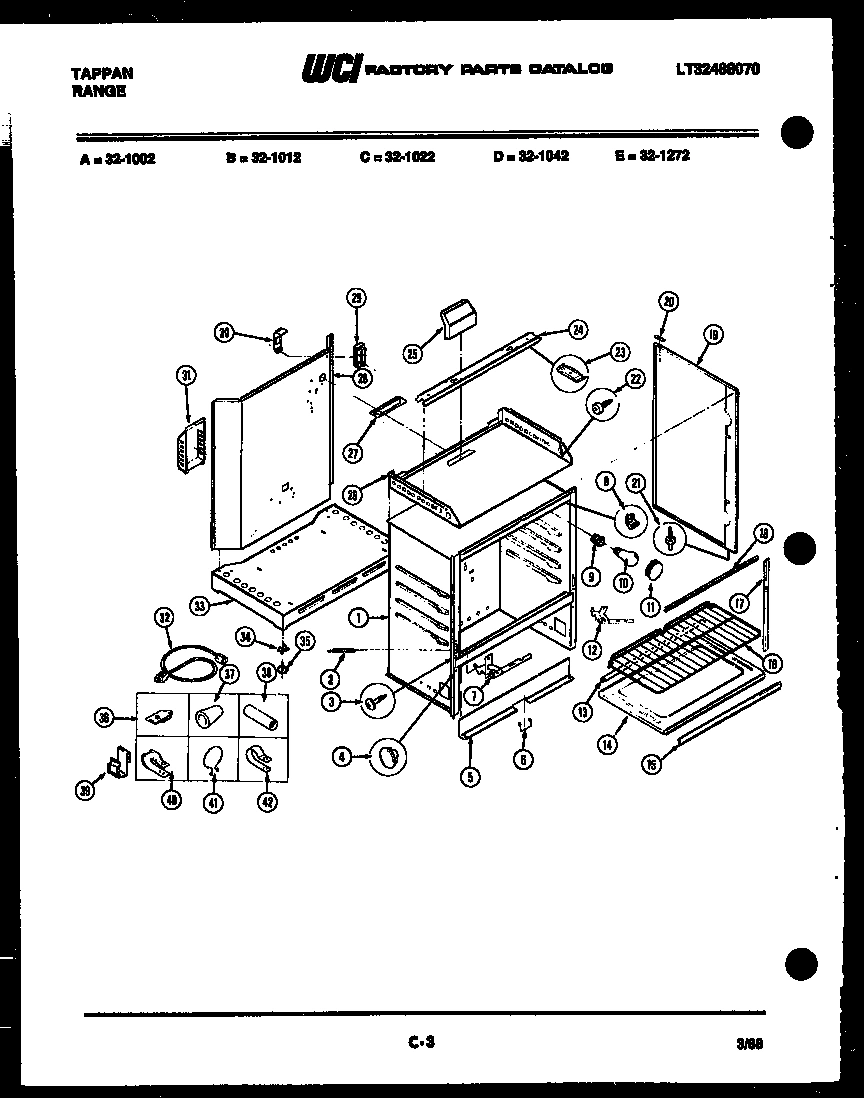

15 - BODY PARTS
16 - BODY PARTS
17 - BODY PARTS
18 - CONTROL PANEL
Common parts from model Electrolux 32-1022-32-11 RANGE
*25283
SCREW-BACKGRD ASSY 8-18 X 1/2`` PH TR TAPER ( WCI 636T140P01 Contact Us For Availability
*25294
ROD-MAIN TP SUPT LOT 10, 11 WCI 3016503 Contact Us For Availability
*25314
INSULATION-WOOL 2 X 16 1/4 X 28`` WCI 328T049P29 Contact Us For Availability
*25314
SCREW-DR ASSY 8A X 3/8`` PH TR HD (13) WCI 636T090P47 Contact Us For Availability
*25475
INSUL-WOOL 2 1/2 X 19 X 62`` TP/SIDES WCI 328T015P102 Contact Us For Availability
*25476
WCI 328T015P103 WCI 328T015P103 Contact Us For Availability
*25477
WCI 328T015P99 WCI 328T015P99 Contact Us For Availability
*25478
WCI 740T365P01 WCI 740T365P01 Contact Us For Availability
*25479
WCI 740T365P02 WCI 740T365P02 Contact Us For Availability
*25480
TRIM-BDY PNL-VERT. IF EQUIPPED (2) WCI 740T431F01 Contact Us For Availability
*25484
WCI 508T019P01 WCI 508T019P01 Contact Us For Availability
*25485
WCI 508R004P01 WCI 508R004P01 Contact Us For Availability
*25486
WCI 508R005P01 WCI 508R005P01 Contact Us For Availability
2
WCI 473T066P01 WCI 473T066P01 Contact Us For Availability
2
PLUG BTN-PILOT VENT (2) WCI 557T021P08 Contact Us For Availability
2
SPRING-BROILR LH C-TYPE WCI 675T079P01 Contact Us For Availability
2
SPRING-BROILR RH C-TYPE WCI 675T079P02 Contact Us For Availability
2
SPRING-OVN DR CAM (2) WCI 675T041P01 Contact Us For Availability
3
WCI 123T037F01-08 WCI 123T037F01-08 Contact Us For Availability
3
CAP-PILOT VENT (2) WCI 124T014P01 Contact Us For Availability
3
FASTNR-NYLN PUSH-IN SPACR 1/16`` (5) WCI 241T017P174 Contact Us For Availability
3
WCI 439T046P03 WCI 439T046P03 Contact Us For Availability
3
SCREW-SHOULDER WCI 636T066P06 Contact Us For Availability
4
GLASS-OVN DR-FRNT & INNER (2) WCI 276T088P01 Contact Us For Availability
4
FASTNR-PUSH NUT .250 DIA STUD (2) WCI 241T017P148 Contact Us For Availability
4
PLUG BUTTON (4) LOT 7-0, 10, 11 WCI 557T021P31 Contact Us For Availability
5
WCI 3132190 WCI 3132190 Contact Us For Availability
5
WCI 655T303F03 WCI 655T303F03 Contact Us For Availability
5
WCI T7-205-2 WCI T7-205-2 Contact Us For Availability
5
SHIELD-WOOL-LWR FRONT WCI 655T308F02 Contact Us For Availability
6
WCI 740T430W01 WCI 740T430W01 Contact Us For Availability
6
FASTNR-NYLN SPACR 3/4`` (3) WCI 241T017P180 Contact Us For Availability
6
WASHR-HNDL SPACR (2) WCI 789T053P12 Contact Us For Availability
6
RETAINER-OVN BURNR WCI 612T094P01 Contact Us For Availability
7
WCI 740T430W02 WCI 740T430W02 Contact Us For Availability
7
WCI 008T372F02 WCI 008T372F02 Contact Us For Availability
7
WCI 003T039P01 WCI 003T039P01 Contact Us For Availability
7
HANDL-BROILR DOOR WCI 296T081P02 Contact Us For Availability
7
CAM-OVEN DOOR LOT 5-11 WCI 117T013S13 Contact Us For Availability
7
WCI 521T103P06 WCI 521T103P06 Contact Us For Availability
8
THERMO-OVN (LOT 10, 11) WCI 3131886 Contact Us For Availability
8
THERMOSTAT-OVEN WCI 722T058P01 Contact Us For Availability
8
SW-OVN LITE WCI 695T164P02 Contact Us For Availability
8A
SCREW-THERMO MTG 10-24 X 9/32`` HEX HD (2) (N WCI 636T133P01 Contact Us For Availability
8A
INSULATION (NON-ILLUSTRATED) WCI 328T015P15 Contact Us For Availability
9
WCI 145T069F01 WCI 145T069F01 Contact Us For Availability
9
BRKT MAIN TP HNG LH LOT 10, 11 WCI 3131286 Contact Us For Availability
9
BRKT MAIN TP HNG RH LOT 10, 11 WCI 3131287 Contact Us For Availability
9
WASHR-SPRING LT SW LOT 6-11 WCI 789T053P44 Contact Us For Availability
9B
WCI 636T096P02 WCI 636T096P02 Contact Us For Availability
10
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
10
WCI 045T064P03 WCI 045T064P03 Contact Us For Availability
11
WCI 296T026P05 WCI 296T026P05 Contact Us For Availability
11
VALVE-TP BURNER (4) WCI 774T118P01 Contact Us For Availability
11
WCI 148T162P04 WCI 148T162P04 Contact Us For Availability
12
SPACER-OVN DR HNDL (2) WCI 665T140P01 Contact Us For Availability
12
SHIELD-BROILR SUMP CHROME WCI 3131487 Contact Us For Availability
12
CAM-OVN DR RH LOT 5-11 WCI 117T013S14 Contact Us For Availability
12
WCI 177T010P03 WCI 177T010P03 Contact Us For Availability
12A
KIT-DOOR ADJUST. (NON-ILLUSTRATED) WCI 355T588S01 Contact Us For Availability
13
WCI 244T039P01 WCI 244T039P01 Contact Us For Availability
13
BUTTON-GLIDE .426 DIA. (4) WCI 106T027P02 Contact Us For Availability
13
WCI 008T479F01 WCI 008T479F01 Contact Us For Availability
13
WCI 045T023R02 WCI 045T023R02 Contact Us For Availability
14
WCI 124T010P01 WCI 124T010P01 Contact Us For Availability
14
WCI 058T035F01-86 WCI 058T035F01-86 Contact Us For Availability
14
WCI 358T038P01 WCI 358T038P01 Contact Us For Availability
14A
SCREW-OVN BTM (2) 8-18 X 1`` BPT. KNRLD HD WCI 636T134P01 Contact Us For Availability
15
TUBE-DUAL HARNESS TOP PILOT WCI 750T185P01 Contact Us For Availability
15
SEAL-DR BTM & TOP WCI 647T068P02 Contact Us For Availability
15
KNOB-VALVE-TP BURN (4) WCI 358T141P21 Contact Us For Availability
16
BUTTON-GUIDE (3) WCI 106T028P01 Contact Us For Availability
16
RACK-OVEN (2) LOT 6-11 WCI 591T073P02 Contact Us For Availability
16
KNOB-THERMO WCI 358T141P03 Contact Us For Availability
17
BAFFLE-OVN BURNER WCI 3131517 Contact Us For Availability
17
SEAL-DOOR SIDE (2) LOT 2-11 WCI 115T647P03 Contact Us For Availability
17
WCI 647T081P01 WCI 647T081P01 Contact Us For Availability
18
PLATE-BURNR MTG LOT 5, 6, 11 WCI 554T327F02 Contact Us For Availability
19
WCI 079T025P01 WCI 079T025P01 Contact Us For Availability
19
BURNR-OVN LOT 7-11 WCI 079T025P16 Contact Us For Availability
20
MIXER-AIR-OVN BURN WCI 451T005R01 Contact Us For Availability
20
GLIDE, MAIN TOP (2) WCI 280T028P02 Contact Us For Availability
21
SCRW-BDY PNL GUID (2) WCI 636T071P01 Contact Us For Availability
21
VALVE-OVN SAFETY WCI 774T065P02 Contact Us For Availability
21A
SCREW-SAFETY VALVE MTG 8A X 2`` PH TR HD (2) WCI 636T090P15 Contact Us For Availability
22
LOXIT FITTING-SAFETY VALVE 3/8`` (5/8-18 THD) WCI 70-205-5 Contact Us For Availability
22
WCI 636T083P01 WCI 636T083P01 Contact Us For Availability
23
TUBE-OVN GAS SUPLY 3/8 X 55`` WCI 750T085P25 Contact Us For Availability
24
CHANL-TP BURNR SUPT LOT 5-11 WCI 136T310F04-18 Contact Us For Availability
25
ORIFICE-PILOT .014 7 NAT. 11`` LP WCI 499T012R04 Contact Us For Availability
25
WCI 3016514 WCI 3016514 Contact Us For Availability
26
WCI 549T023P01 WCI 549T023P01 Contact Us For Availability
26
WCI 095T029W16-86 WCI 095T029W16-86 Contact Us For Availability
26A
WCI 636T097P01 WCI 636T097P01 Contact Us For Availability
26B
WCI 355T219S01 WCI 355T219S01 Contact Us For Availability
27
FERRULE-TP BURNER & OVN PILOT/PILOT TUBE (2) WCI 247T073P01 Contact Us For Availability
27
WCI 3131536 WCI 3131536 Contact Us For Availability
28
COMPRSSN NUT-TOP BURNER & OVN PILOT PILOT TUB WCI 479T080P01 Contact Us For Availability
28
BACK-MAIN LOT 1-6, 10, 11 WCI 3131938 Contact Us For Availability
29
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
29A
HEX NUT-TERM BLOCK DISC ASSY 6-32 (NON-ILLUST WCI 479T069P09 Contact Us For Availability
29B
WCI 636T095P13 WCI 636T095P13 Contact Us For Availability
29C
WCI 636T095P36 WCI 636T095P36 Contact Us For Availability
30
WCI 072T612F01 WCI 072T612F01 Contact Us For Availability
32
CORD-RANGE PWR SUPPLY LOT 5-11 WCI 171T021P06 Contact Us For Availability
33
WCI 036T050W02-18 WCI 036T050W02-18 Contact Us For Availability
34
FASTNR-LEVELING LEG (2) WCI 241T017P10 Contact Us For Availability
35
SCREW-LEVELING (2) WCI 636M004P01 Contact Us For Availability
40
FASTNR-CABLE CLMP WCI 241T017P128 Contact Us For Availability
× ![]()
