Model Electrolux 32-1012-23-09 RANGE – Common Parts & Diagrams

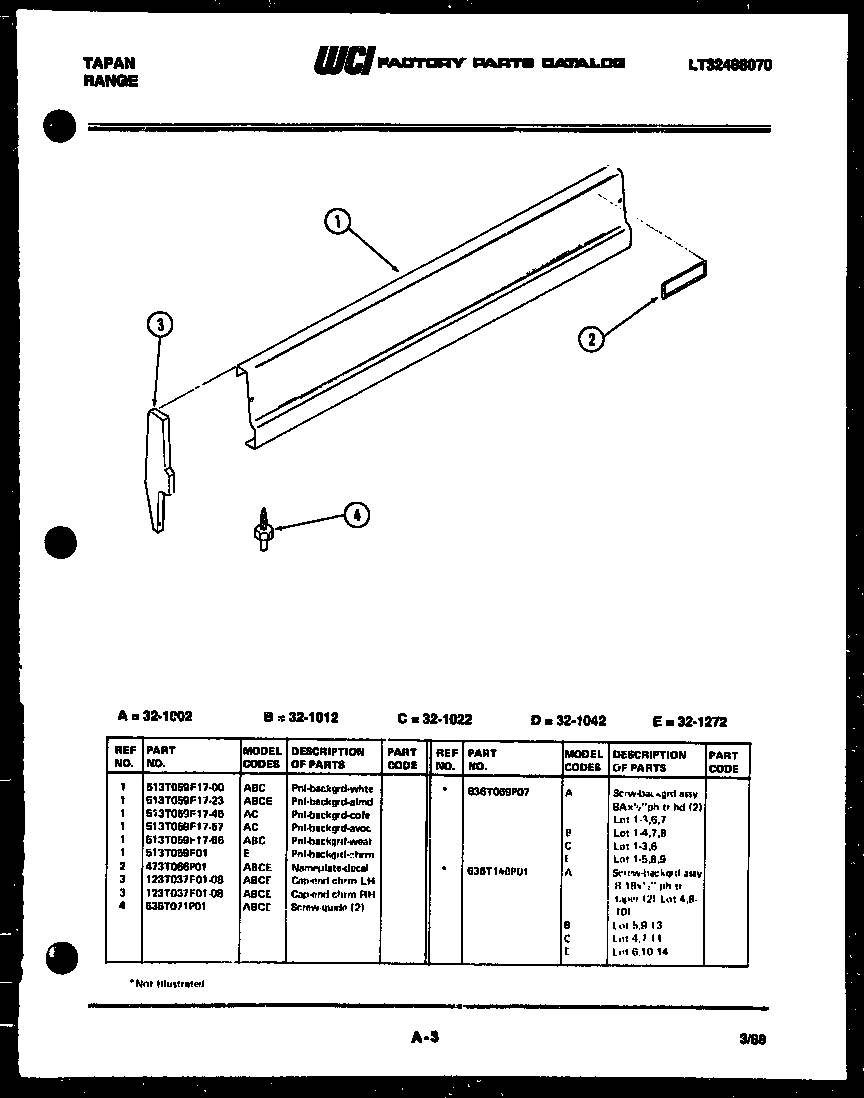

03 - BACKGUARD

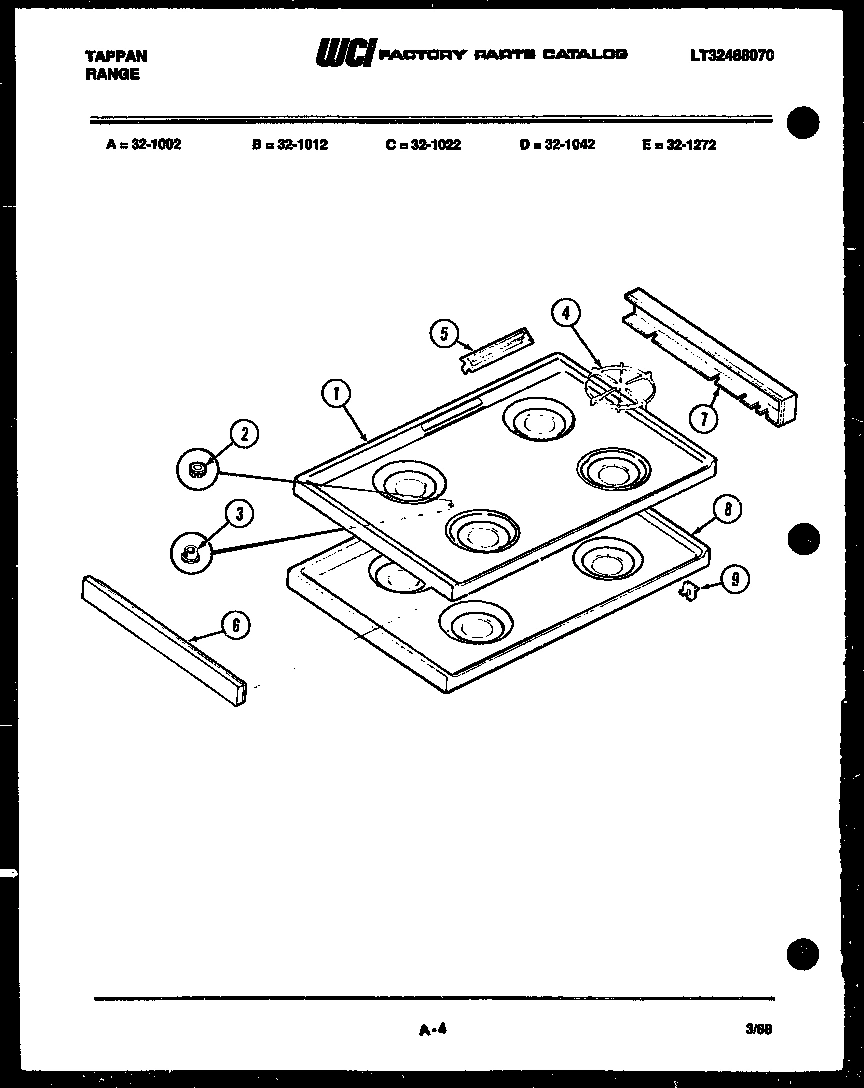

04 - COOKTOP PARTS

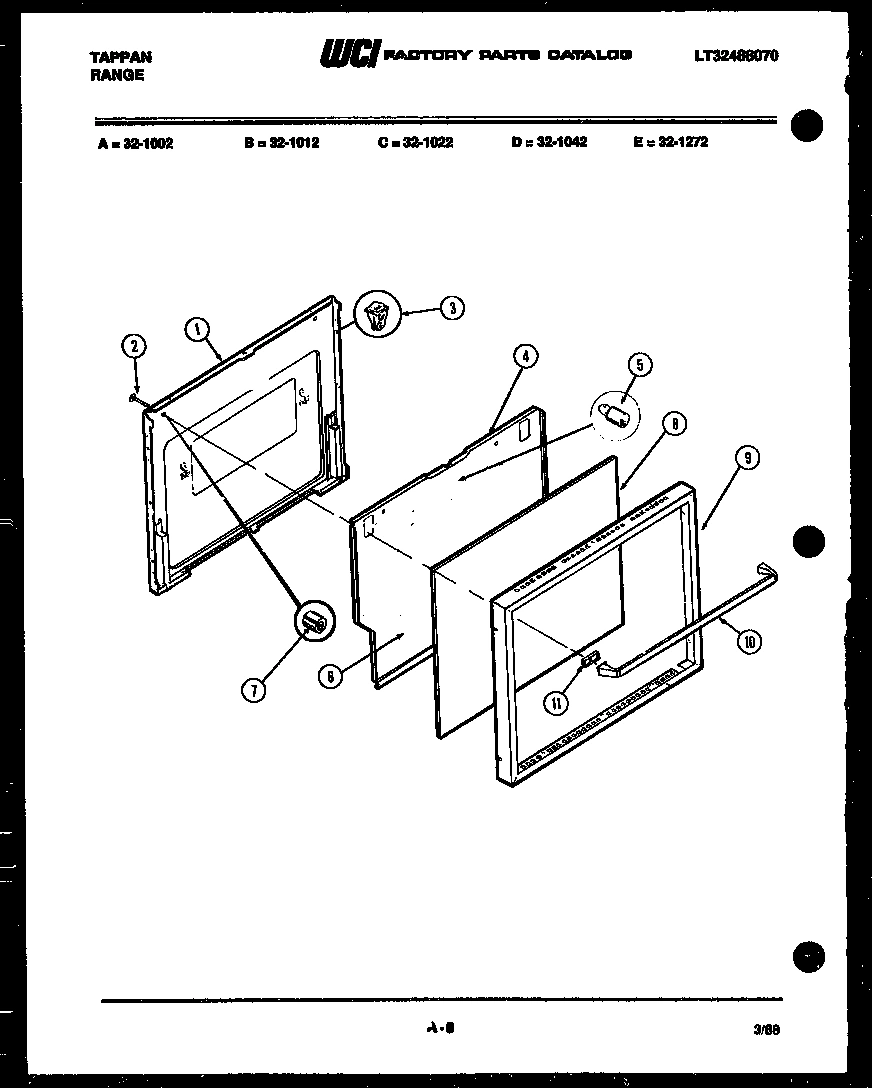

06 - DOOR PARTS

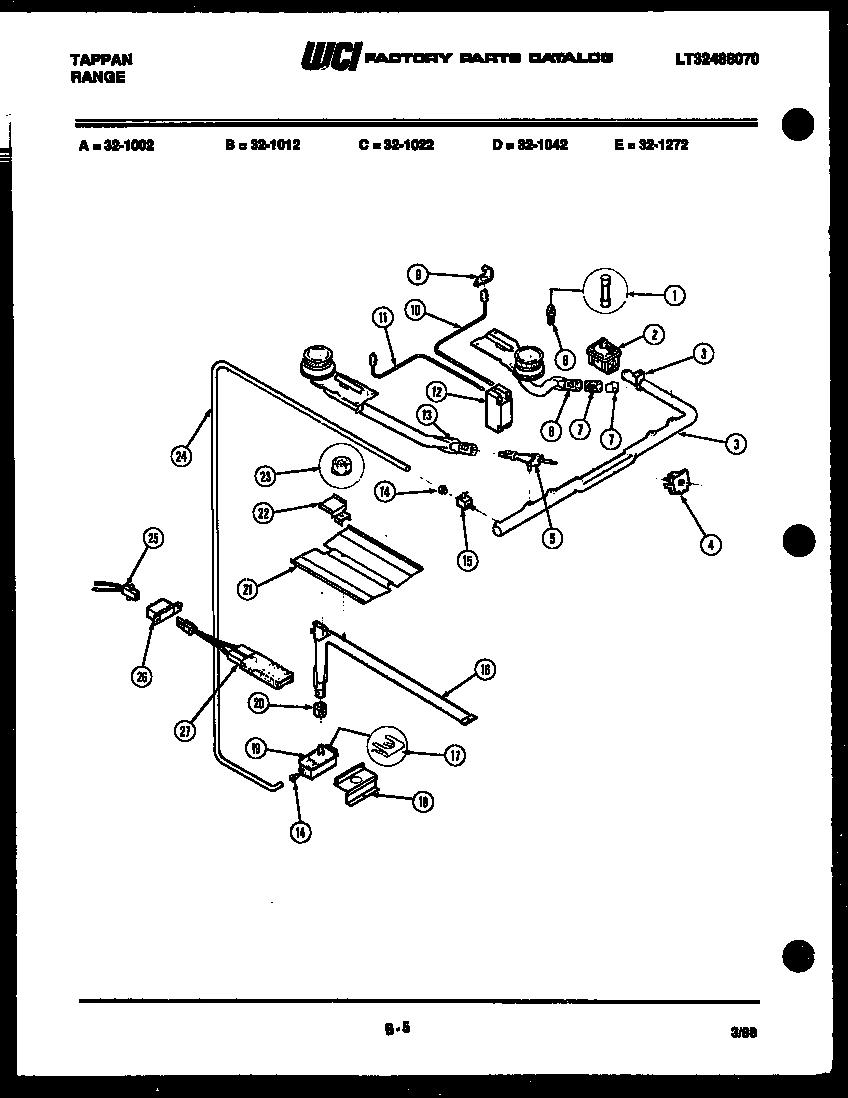

11 - BURNER, MANIFOLD AND GAS CONTROL

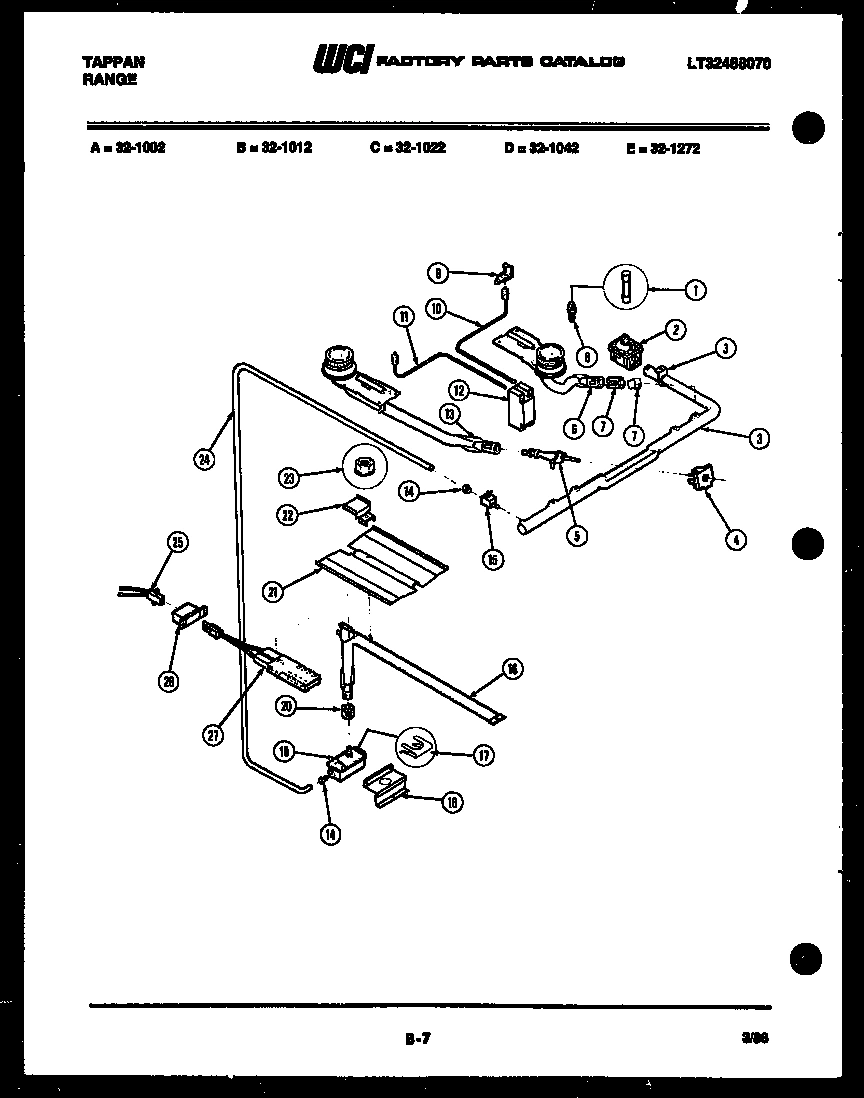

12 - BURNER, MANIFOLD AND GAS CONTROL
13 - BROILER DRAWER PARTS
14 - BROILER DRAWER PARTS
15 - BODY PARTS
16 - BODY PARTS

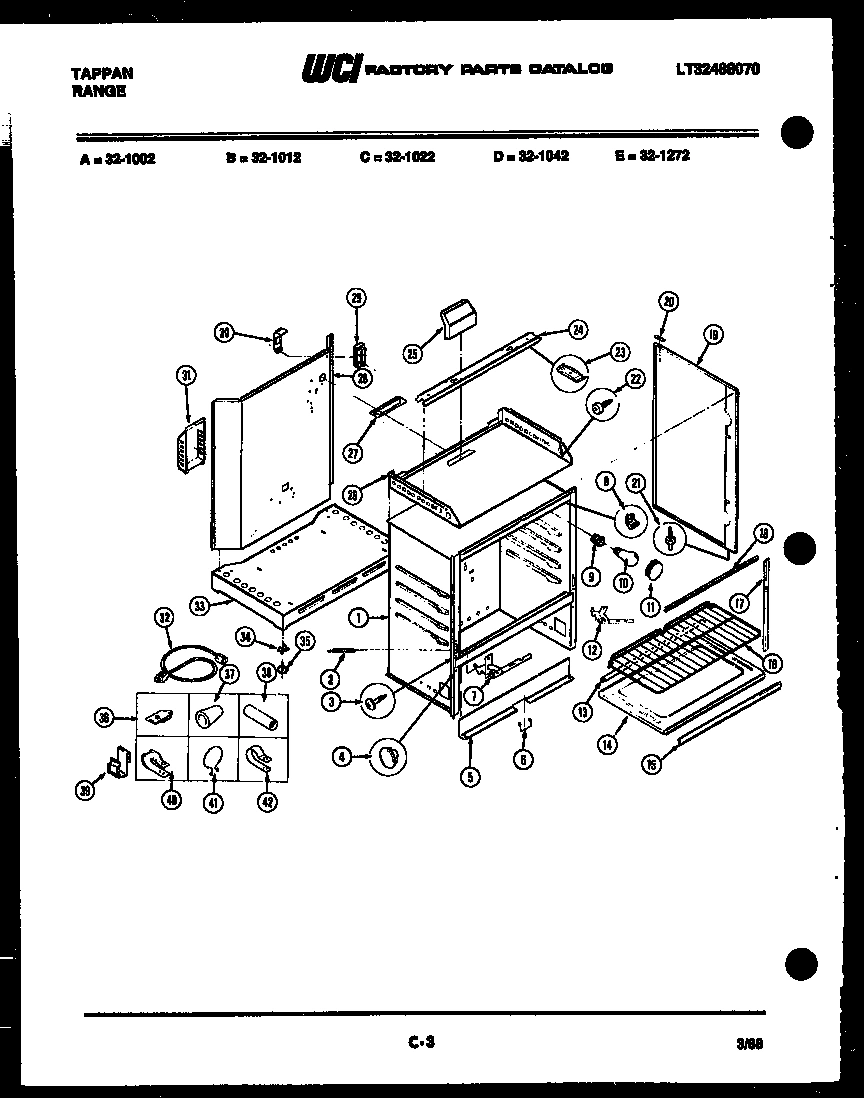

17 - BODY PARTS
18 - CONTROL PANEL
Common parts from model Electrolux 32-1012-23-09 RANGE
*15251
INSULATION-WOOL 2 X 16 1/4 X 28`` WCI 328T049P29 Contact Us For Availability
*15254
SCRW-DR ASSY 8A X 3/8`` PH TR HD (2) WCI 636T090P47 Contact Us For Availability
*15349
SCREW-BROILR ASSY 8-18 X 1/2`` PH TR HD (4) L WCI 636T140P01 Contact Us For Availability
*15351
SCREW-BROILR ASSY 8-18 X 1/2`` PH WR HD SPC ( WCI 636T139P01 Contact Us For Availability
*15422
INSUL-WOOL 2 1/2 X 19 X 62`` TP/SIDES WCI 328T015P102 Contact Us For Availability
*15424
WCI 328T015P103 WCI 328T015P103 Contact Us For Availability
*15425
WCI 328T015P99 WCI 328T015P99 Contact Us For Availability
*15425
WCI 740T365P01 WCI 740T365P01 Contact Us For Availability
*15426
WCI 740T365P02 WCI 740T365P02 Contact Us For Availability
*15427
WCI 740T236F07 WCI 740T236F07 Contact Us For Availability
*15431
WCI 508T020P02 WCI 508T020P02 Contact Us For Availability
*15432
WCI 508T026P02 WCI 508T026P02 Contact Us For Availability
*15433
WCI 508T019P01 WCI 508T019P01 Contact Us For Availability
*15434
WCI 508R004P01 WCI 508R004P01 Contact Us For Availability
*15434
WCI 508R005P01 WCI 508R005P01 Contact Us For Availability
1
WCI 513T059F17-23 WCI 513T059F17-23 Contact Us For Availability
1
LINER-OVN DR-BLUE GRAY (LOT 6, 9, 10) WCI 381T086W01-87 Contact Us For Availability
1
FUSE-5A 250V WCI 262T007P02 Contact Us For Availability
1
DRAWR-BROILR-BLUE GRAY (LOT 6-10) WCI 205T004W01-87 Contact Us For Availability
1
WCI 521T103P09 WCI 521T103P09 Contact Us For Availability
2
WCI 473T066P01 WCI 473T066P01 Contact Us For Availability
2
WCI 636T0138P05 WCI 636T0138P05 Contact Us For Availability
2
CONTRL-PRESS REGUL LOT 6-12 WCI 166T008P11 Contact Us For Availability
2
SPRING-BROILR LH C-TYPE WCI 675T079P01 Contact Us For Availability
2
SPRING-BROILR RH C-TYPE WCI 675T079P02 Contact Us For Availability
2
SPRING-OVN DR CAM (2) WCI 675T041P01 Contact Us For Availability
2
SHIELD-THERM MTG WCI 3131940 Contact Us For Availability
2A
WASHR-HNDL SCRW LOT 9-12 (2) (NON-ILLUSTRATED WCI 789T053P42 Contact Us For Availability
3
FASTNR-NYLN SPACR 3/32`` LOT 6-11 (5) WCI 241T017P240 Contact Us For Availability
3
WCI 439T046P13 WCI 439T046P13 Contact Us For Availability
3
WCI 072T659F03-08 WCI 072T659F03-08 Contact Us For Availability
3
WCI 072T659F04-08 WCI 072T659F04-08 Contact Us For Availability
3
SCREW-SHOULDER WCI 636T066P06 Contact Us For Availability
3
THERMOS-OVEN WCI 722T038P02 Contact Us For Availability
3A
WCI 008T276F04 WCI 008T276F04 Contact Us For Availability
4
WCI 3131941 WCI 3131941 Contact Us For Availability
4
WCI 695T143P01 WCI 695T143P01 Contact Us For Availability
4
FASTNR-PUSH NUT .250 DIA STUD (2) WCI 241T017P148 Contact Us For Availability
4
PLUG BUTTON (4) LOT 8-11 WCI 557T021P31 Contact Us For Availability
4
INSUL-OVN THERMO WCI 331T093P02 Contact Us For Availability
4C
HARNS-IGNITER SW LOT 5-12 (NON-ILLUSTRATED) WCI 299T405S318 Contact Us For Availability
5
WCI 3132190 WCI 3132190 Contact Us For Availability
5
FASTNR-NYLN SPACR .562 WCI 241T017P221 Contact Us For Availability
5
VALVE-BURNR TOP (4) WCI 774T118P01 Contact Us For Availability
5
SHIELD-WOOL-LWR FRONT WCI 655T308F02 Contact Us For Availability
6
WCI 740T430W01 WCI 740T430W01 Contact Us For Availability
6
FASTNR-NYLN SPACR .687 (3) WCI 241T017P220 Contact Us For Availability
6
WCI 080T015P01 WCI 080T015P01 Contact Us For Availability
6
WASHR-HNDL SPACR (2) WCI 789T053P12 Contact Us For Availability
6
RETAINER-OVN BURNR WCI 612T094P01 Contact Us For Availability
7
WCI 740T430W02 WCI 740T430W02 Contact Us For Availability
7
SPACR-OVN DR TUBUL. LOT 6-12 (2) WCI 665T131P02 Contact Us For Availability
7
MIXER-AIR TP BURNR (4) LOT 8-12 WCI 451R001P01 Contact Us For Availability
7
HANDL-BROILR DOOR WCI 296T081P02 Contact Us For Availability
7
CAM-OVEN DOOR LOT 6-13 WCI 117T013S13 Contact Us For Availability
8
WCI 529T091F11-23 WCI 529T091F11-23 Contact Us For Availability
8
WCI 276T098P03 WCI 276T098P03 Contact Us For Availability
8
RECEPT-FUSE LOT 6-11 WCI 597T034P03 Contact Us For Availability
8
WCI 517T003W41-23 WCI 517T003W41-23 Contact Us For Availability
8A
INSULATION (NON-ILLUSTRATED) WCI 328T015P15 Contact Us For Availability
8C
NUT-FUSE HEX LOT 6-12 (NON-ILLUSTRATED) WCI 479T085P03 Contact Us For Availability
8I
SEAL-O-RING LOT 7-12 (NON-ILLUSTRATED) WCI 647T087P01 Contact Us For Availability
9
WCI 145T069F01 WCI 145T069F01 Contact Us For Availability
9
TRIM-OVN DR LOT 6-11 WCI 740T483H01 Contact Us For Availability
9
LINER-BROILR DOOR BLUE GRAY LOT 6-10 WCI 381T077F04-87 Contact Us For Availability
9
SOCKET-OVN LIGHT WCI 662T012P02 Contact Us For Availability
9C
SCRW-RETAIN MTG 8-18 X 3/8 PH TR (2) LOT 6-12 WCI 636T140P02 Contact Us For Availability
10
HANDL-OVN DOOR WCI 296T026P05 Contact Us For Availability
10
WCI 036T049S10 WCI 036T049S10 Contact Us For Availability
10
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
11
SPACER-OVN DOOR HANDLE (2) WCI 665T140P02 Contact Us For Availability
11
WCI 036T049S11 WCI 036T049S11 Contact Us For Availability
11
PAN-BROILR-BLUE GRAY LOT 6-10 WCI 539T005F01-87 Contact Us For Availability
11
WCI 557T021P12 WCI 557T021P12 Contact Us For Availability
12
CAM-OVN DR RH LOT 6-13 WCI 117T013S14 Contact Us For Availability
12A
KIT-DOOR ADJUST. (NON-ILLUSTRATED) WCI 355T588S01 Contact Us For Availability
13
BURNR-TP RR (2) LOT 8, 9, 12 WCI 080T015P02 Contact Us For Availability
13
BUTTON-GLIDE .426 DIA. (4) WCI 106T027P02 Contact Us For Availability
14
LOXIT NUT-MANUAL & SAFE VLV 7/16`` (2) WCI 247T079P01 Contact Us For Availability
14
CHANL-GLIDE LWR LOT 1-10 WCI 136T281F02 Contact Us For Availability
14
WCI 058T035F01-87 WCI 058T035F01-87 Contact Us For Availability
14A
SCREW-OVN BTM (2) 8-18 X 1`` BPT. KNRLD HD WCI 636T134P01 Contact Us For Availability
15
WCI 774T121P01 WCI 774T121P01 Contact Us For Availability
15
CHANL-GLIDE UPPER LOT 1-10 WCI 136T282F02 Contact Us For Availability
15
SEAL-DR BTM & TOP WCI 647T068P02 Contact Us For Availability
15
KNOB-VALVE-TP BURN (4) WCI 358T141P21 Contact Us For Availability
16
BUTTON-GUIDE (3) WCI 106T028P01 Contact Us For Availability
16
RACK-OVEN (2) LOT 7-13 WCI 591T073P02 Contact Us For Availability
16
KNOB-THERMO WCI 358T141P19 Contact Us For Availability
17
FASTNR-SAFETY VALVE WCI 241T017P216 Contact Us For Availability
17
SEAL-DOOR SIDE (2) LOT 3-11 WCI 115T647P03 Contact Us For Availability
18
WCI 072T655F01 WCI 072T655F01 Contact Us For Availability
19
VALVE, SAFETY WCI 774T117P04 Contact Us For Availability
19
PNL-BDYSDE ALMD (2) LOT 7-10 WCI 515T032F07-23 Contact Us For Availability
20
WCI 451T005R01 WCI 451T005R01 Contact Us For Availability
20
GLIDE, MAIN TOP (2) WCI 280T028P02 Contact Us For Availability
21
SCRW-BDY PNL GUID (2) WCI 636T071P01 Contact Us For Availability
21
BAFFLE-OVN BURNR WCI 3131517 Contact Us For Availability
22
WCI 636T083P01 WCI 636T083P01 Contact Us For Availability
24
WCI 750T095P12 WCI 750T095P12 Contact Us For Availability
24
CHANL-TP BURNR SUPT LOT 6-13 WCI 136T310F03-18 Contact Us For Availability
25
WCI 3016514 WCI 3016514 Contact Us For Availability
26
BURNR-BOX-BLUE GRAY LOT 7-10 WCI 095T029W14-87 Contact Us For Availability
27
WCI 316T023P01 WCI 316T023P01 Contact Us For Availability
27
WCI 3131536 WCI 3131536 Contact Us For Availability
28
WCI 021T046F03-18 WCI 021T046F03-18 Contact Us For Availability
29
WCI 079T025P13 WCI 079T025P13 Contact Us For Availability
29
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
29A
HEX NUT-TERM BLOCK DISC ASSY 6-32 (NON-ILLUST WCI 479T069P09 Contact Us For Availability
29B
WCI 636T095P13 WCI 636T095P13 Contact Us For Availability
29C
WCI 636T095P36 WCI 636T095P36 Contact Us For Availability
30
TERMNL BLOCK-IGN CONN LOT 9-12 WCI 709T041P01 Contact Us For Availability
30
WCI 072T612F01 WCI 072T612F01 Contact Us For Availability
31
COVER-SAFETY VALVE LOT 9-12 WCI 174T300F01 Contact Us For Availability
31
COVER-IGNITER CONN WCI 174T220F01 Contact Us For Availability
32
WCI 171T021P06 WCI 171T021P06 Contact Us For Availability
33
WCI 036T050W02-18 WCI 036T050W02-18 Contact Us For Availability
34
FASTNR-LEVELING LEG (2) WCI 241T017P10 Contact Us For Availability
35
SCREW-LEVELING (2) WCI 636M004P01 Contact Us For Availability
36
FASTNR-8A U-TYPE LOT 6-10 WCI 241T014P01 Contact Us For Availability
38
SLEEVE-INSUL (2) WCI 660T032P01 Contact Us For Availability
40
FASTNR-CABLE CLMP WCI 241T017P128 Contact Us For Availability
41
FASTNR-PURSELOCK LOT 6-10, 12, 13 WCI 241T017P238 Contact Us For Availability
42
FASTNR-WIRE CLAMP WCI 241T017P203 Contact Us For Availability
× ![]()
