Model Electrolux 32-1012-23-06 RANGE – Common Parts & Diagrams

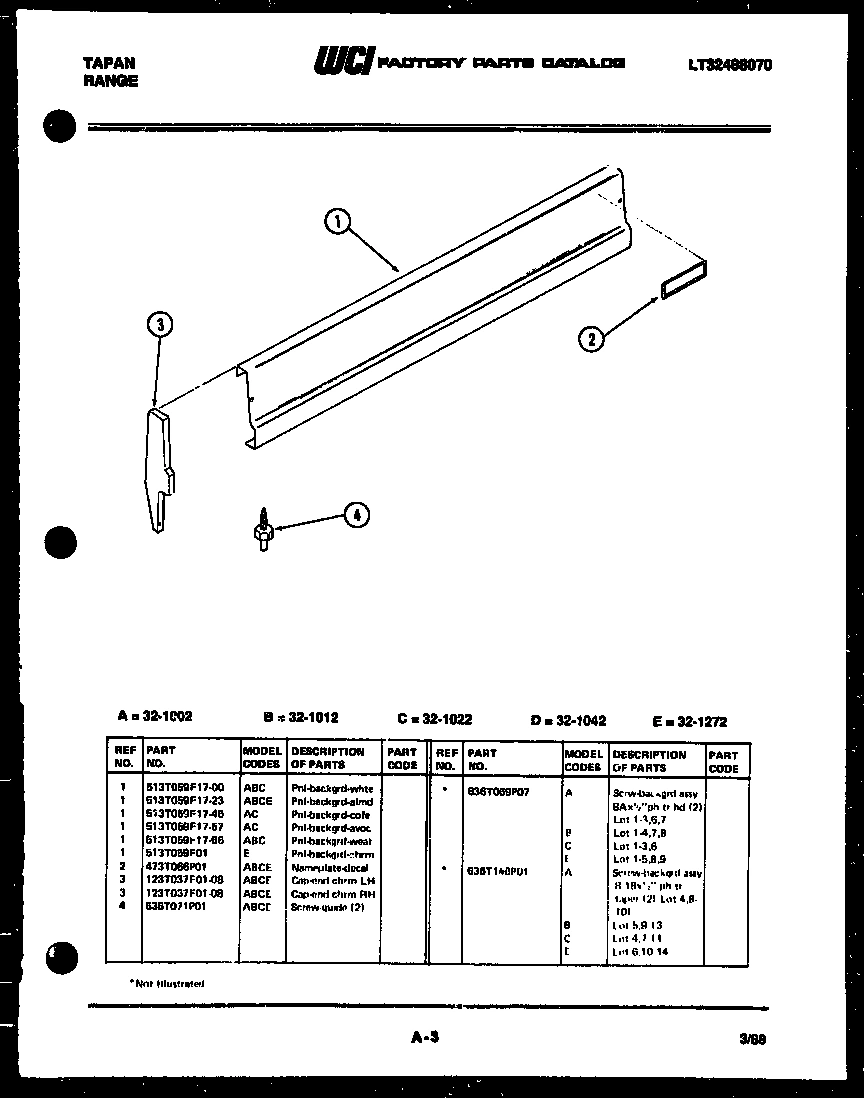

03 - BACKGUARD

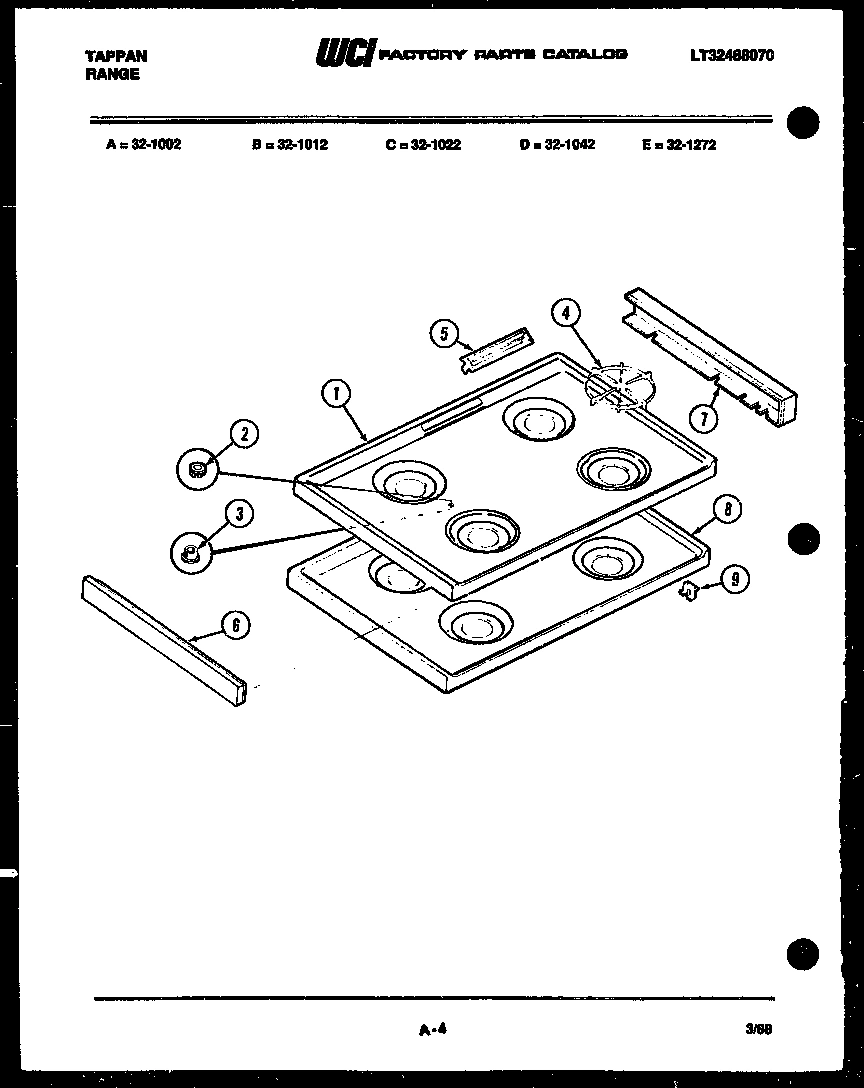

04 - COOKTOP PARTS
06 - DOOR PARTS
11 - BURNER, MANIFOLD AND GAS CONTROL
12 - BURNER, MANIFOLD AND GAS CONTROL
13 - BROILER DRAWER PARTS
14 - BROILER DRAWER PARTS
15 - BODY PARTS
16 - BODY PARTS
17 - BODY PARTS
18 - CONTROL PANEL
Common parts from model Electrolux 32-1012-23-06 RANGE
*15251
INSULATION-WOOL 2 X 16 1/4 X 28`` WCI 328T049P29 Contact Us For Availability
*15254
SCRW-DR ASSY 8A X 3/8`` PH TR HD (2) WCI 636T090P47 Contact Us For Availability
*15349
SCREW-BROILR ASSY 8-18 X 1/2`` PH TR HD (4) L WCI 636T140P01 Contact Us For Availability
*15351
SCREW-BROILR ASSY 8-18 X 1/2`` PH WR HD SPC ( WCI 636T139P01 Contact Us For Availability
*15422
INSUL-WOOL 2 1/2 X 19 X 62`` TP/SIDES WCI 328T015P102 Contact Us For Availability
*15424
WCI 328T015P103 WCI 328T015P103 Contact Us For Availability
*15425
WCI 328T015P99 WCI 328T015P99 Contact Us For Availability
*15425
WCI 740T365P01 WCI 740T365P01 Contact Us For Availability
*15426
WCI 740T365P02 WCI 740T365P02 Contact Us For Availability
*15427
WCI 740T236F07 WCI 740T236F07 Contact Us For Availability
*15431
WCI 508T020P02 WCI 508T020P02 Contact Us For Availability
*15432
WCI 508T026P02 WCI 508T026P02 Contact Us For Availability
*15433
WCI 508T019P01 WCI 508T019P01 Contact Us For Availability
*15434
WCI 508R004P01 WCI 508R004P01 Contact Us For Availability
*15434
WCI 508R005P01 WCI 508R005P01 Contact Us For Availability
1
LINER-OVN DR-BLUE GRAY (LOT 6, 9, 10) WCI 381T086W01-87 Contact Us For Availability
1
FUSE-5A 250V WCI 262T007P02 Contact Us For Availability
1
DRAWR-BROILR-BLUE GRAY (LOT 6-10) WCI 205T004W01-87 Contact Us For Availability
1
WCI 521T103P09 WCI 521T103P09 Contact Us For Availability
2
WCI 473T066P01 WCI 473T066P01 Contact Us For Availability
2
WCI 636T0138P05 WCI 636T0138P05 Contact Us For Availability
2
CONTRL-PRESS REGUL LOT 6-12 WCI 166T008P11 Contact Us For Availability
2
SPRING-BROILR LH C-TYPE WCI 675T079P01 Contact Us For Availability
2
SPRING-BROILR RH C-TYPE WCI 675T079P02 Contact Us For Availability
2
SPRING-OVN DR CAM (2) WCI 675T041P01 Contact Us For Availability
2
SHIELD-THERM MTG WCI 3131940 Contact Us For Availability
3
FASTNR-NYLN SPACR 3/32`` LOT 6-11 (5) WCI 241T017P240 Contact Us For Availability
3
WCI 439T046P13 WCI 439T046P13 Contact Us For Availability
3
WCI 072T659F01 WCI 072T659F01 Contact Us For Availability
3
WCI 072T659F02 WCI 072T659F02 Contact Us For Availability
3
SCREW-SHOULDER WCI 636T066P06 Contact Us For Availability
3
THERMOS-OVEN WCI 722T038P02 Contact Us For Availability
3A
WCI 008T276F04 WCI 008T276F04 Contact Us For Availability
4
WCI 3131941 WCI 3131941 Contact Us For Availability
4
WCI 695T143P01 WCI 695T143P01 Contact Us For Availability
4
FASTNR-PUSH NUT .250 DIA STUD (2) WCI 241T017P148 Contact Us For Availability
4
BUTTN-GLIDE-FRNT FRAME (2) LOT 1-8 WCI 106T027P02 Contact Us For Availability
4
INSUL-OVN THERMO WCI 331T093P02 Contact Us For Availability
4C
HARNS-IGNITER SW LOT 5-12 (NON-ILLUSTRATED) WCI 299T405S318 Contact Us For Availability
5
WCI 3132190 WCI 3132190 Contact Us For Availability
5
FASTNR-NYLN SPACR .562 WCI 241T017P221 Contact Us For Availability
5
VALVE-BURNR TOP (4) WCI 774T118P01 Contact Us For Availability
5
SHIELD-WOOL-LWR FRONT WCI 655T308F02 Contact Us For Availability
6
WCI 740T430W01 WCI 740T430W01 Contact Us For Availability
6
FASTNR-NYLN SPACR .687 (3) WCI 241T017P220 Contact Us For Availability
6
BURNR-TOP FRNT (2) LOT 1-7 WCI 080T013P01 Contact Us For Availability
6
WASHR-HNDL SPACR (2) WCI 789T053P12 Contact Us For Availability
6
RETAINER-OVN BURNR WCI 612T094P01 Contact Us For Availability
7
WCI 740T430W02 WCI 740T430W02 Contact Us For Availability
7
SPACR-OVN DR TUBUL. LOT 6-12 (2) WCI 665T131P02 Contact Us For Availability
7
HANDL-BROILR DOOR WCI 296T081P02 Contact Us For Availability
7
CAM-OVEN DOOR LOT 6-13 WCI 117T013S13 Contact Us For Availability
7A
MIXER-AIR TP BURNR (4) LOT 1-7 WCI 451T004R01 Contact Us For Availability
8
WCI 529T091F11-23 WCI 529T091F11-23 Contact Us For Availability
8
WCI 276T098P03 WCI 276T098P03 Contact Us For Availability
8
RECEPT-FUSE LOT 6-11 WCI 597T034P03 Contact Us For Availability
8
WCI 517T003W41-23 WCI 517T003W41-23 Contact Us For Availability
8A
INSULATION (NON-ILLUSTRATED) WCI 328T015P15 Contact Us For Availability
8C
NUT-FUSE HEX LOT 6-12 (NON-ILLUSTRATED) WCI 479T085P03 Contact Us For Availability
8G
WCI 789T059P03 WCI 789T059P03 Contact Us For Availability
9
WCI 145T069F01 WCI 145T069F01 Contact Us For Availability
9
TRIM-OVN DR LOT 6-11 WCI 740T483H01 Contact Us For Availability
9
LINER-BROILR DOOR BLUE GRAY LOT 6-10 WCI 381T077F04-87 Contact Us For Availability
9
SOCKET-OVN LIGHT WCI 662T012P02 Contact Us For Availability
9C
SCRW-RETAIN MTG 8-18 X 3/8 PH TR (2) LOT 6-12 WCI 636T140P02 Contact Us For Availability
10
HANDL-OVN DOOR WCI 296T026P05 Contact Us For Availability
10
WCI 036T049S10 WCI 036T049S10 Contact Us For Availability
10
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
11
SPACER-OVN DOOR HANDLE (2) WCI 665T140P02 Contact Us For Availability
11
WCI 036T049S11 WCI 036T049S11 Contact Us For Availability
11
PAN-BROILR-BLUE GRAY LOT 6-10 WCI 539T005F01-87 Contact Us For Availability
11
WCI 557T021P12 WCI 557T021P12 Contact Us For Availability
12
CAM-OVN DR RH LOT 6-13 WCI 117T013S14 Contact Us For Availability
12A
KIT-DOOR ADJUST. (NON-ILLUSTRATED) WCI 355T588S01 Contact Us For Availability
13
BURNR-TP RR (2) LOT 1-7 WCI 080T013P02 Contact Us For Availability
14
LOXIT NUT-MANUAL & SAFE VLV 7/16`` (2) WCI 247T079P01 Contact Us For Availability
14
CHANL-GLIDE LWR LOT 1-10 WCI 136T281F02 Contact Us For Availability
14
WCI 058T035F01-87 WCI 058T035F01-87 Contact Us For Availability
14A
SCREW-OVN BTM (2) 8-18 X 1`` BPT. KNRLD HD WCI 636T134P01 Contact Us For Availability
15
WCI 774T121P01 WCI 774T121P01 Contact Us For Availability
15
CHANL-GLIDE UPPER LOT 1-10 WCI 136T282F02 Contact Us For Availability
15
SEAL-DR BTM & TOP WCI 647T068P02 Contact Us For Availability
15
KNOB-VALVE-TP BURN (4) WCI 358T141P21 Contact Us For Availability
16
WCI 079T025P09 WCI 079T025P09 Contact Us For Availability
16
BUTTON-GUIDE (3) WCI 106T028P01 Contact Us For Availability
16
RACK-OVEN (2) LOT 1-6 WCI 591T073P01 Contact Us For Availability
16
KNOB-THERMO WCI 358T141P19 Contact Us For Availability
17
FASTNR-SAFETY VALVE WCI 241T017P216 Contact Us For Availability
17
SEAL-DOOR SIDE (2) LOT 3-11 WCI 115T647P03 Contact Us For Availability
18
WCI 072T655F01 WCI 072T655F01 Contact Us For Availability
19
VALVE, SAFETY WCI 774T117P04 Contact Us For Availability
19
PNL-BDYSDE ALMD (2) LOT 1-6 WCI 515T032F06-23 Contact Us For Availability
20
WCI 451T005R01 WCI 451T005R01 Contact Us For Availability
20
GLIDE, MAIN TOP (2) WCI 280T028P02 Contact Us For Availability
21
SCRW-BDY PNL GUID (2) WCI 636T071P01 Contact Us For Availability
21
BAFFLE-OVN BURNR WCI 3131517 Contact Us For Availability
22
SHIELD-OVN BTM LOT 1-8, 13 WCI 655T359F01 Contact Us For Availability
22
WCI 636T083P01 WCI 636T083P01 Contact Us For Availability
24
WCI 750T095P12 WCI 750T095P12 Contact Us For Availability
24
CHANL-TP BURNR SUPT LOT 6-13 WCI 136T310F03-18 Contact Us For Availability
25
HARNS-IGN TERMNL FEMALE LOT 1-8 WCI 299T405S28 Contact Us For Availability
25
WCI 3016514 WCI 3016514 Contact Us For Availability
26
TUBE-IGN LOT 1-8, 13 WCI 750T207F01 Contact Us For Availability
26
BURNR BOX-BLUE GRAY LOT 6 WCI 095T029W11-87 Contact Us For Availability
27
IGNITER-OVN BURNR LOT 3-8, 13 WCI 316T023P05 No Longer Available
27
WCI 3131536 WCI 3131536 Contact Us For Availability
28
BACK-MAIN LOT 1-8, 12 WCI 3131938 Contact Us For Availability
29
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
29A
HEX NUT-TERM BLOCK DISC ASSY 6-32 (NON-ILLUST WCI 479T069P09 Contact Us For Availability
29B
WCI 636T095P13 WCI 636T095P13 Contact Us For Availability
29C
WCI 636T095P36 WCI 636T095P36 Contact Us For Availability
30
WCI 072T612F01 WCI 072T612F01 Contact Us For Availability
31
COVER-IGNITER CONN WCI 174T220F01 Contact Us For Availability
32
WCI 171T021P06 WCI 171T021P06 Contact Us For Availability
33
WCI 036T050W01-18 WCI 036T050W01-18 Contact Us For Availability
34
FASTNR-LEVELING LEG (2) WCI 241T017P10 Contact Us For Availability
35
SCREW-LEVELING (2) WCI 636M004P01 Contact Us For Availability
36
FASTNR-8A U-TYPE LOT 6-10 WCI 241T014P01 Contact Us For Availability
38
SLEEVE-INSUL (2) WCI 660T032P01 Contact Us For Availability
40
FASTNR-CABLE CLMP WCI 241T017P128 Contact Us For Availability
41
FASTNR-PURSELOCK LOT 6-10, 12, 13 WCI 241T017P238 Contact Us For Availability
42
FASTNR-WIRE CLAMP WCI 241T017P203 Contact Us For Availability
× ![]()
