Model Electrolux 32-1007-23-03 RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

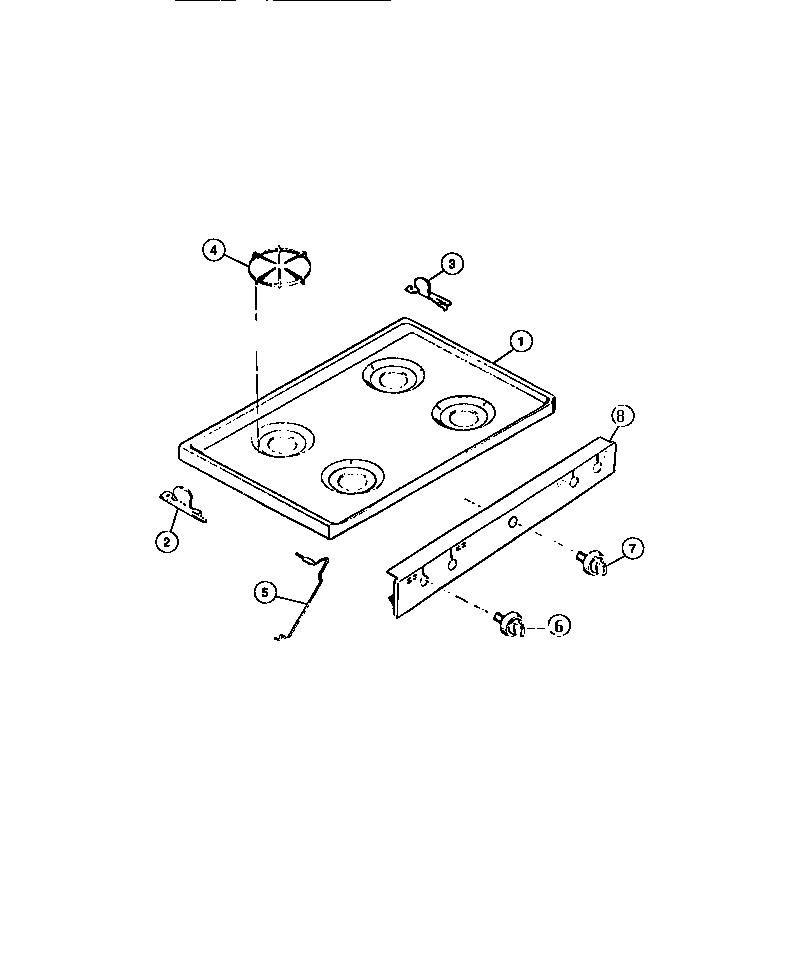

03 - COOKTOP PARTS

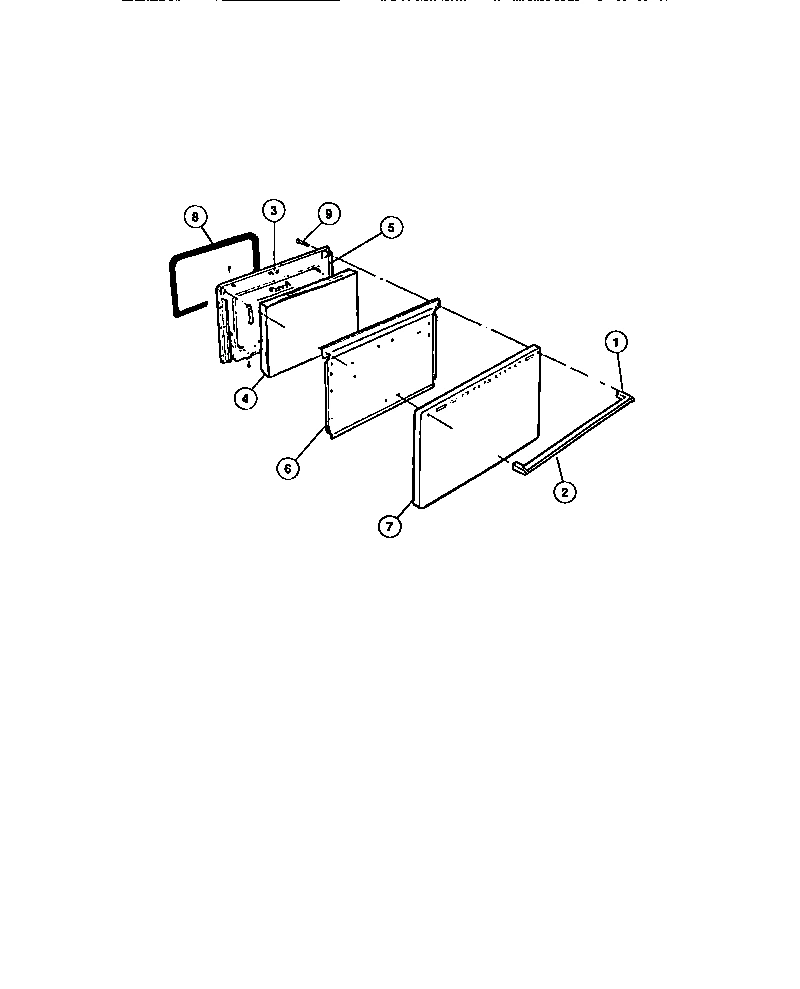

04 - DOOR PARTS

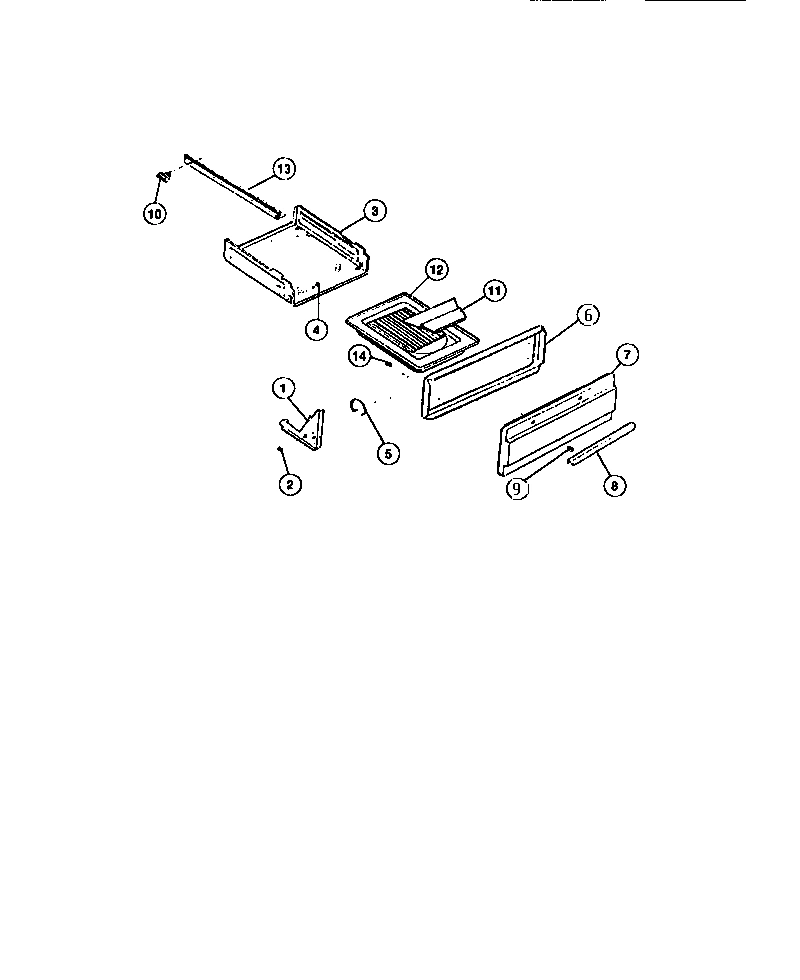

05 - BROILER DRAWER PARTS

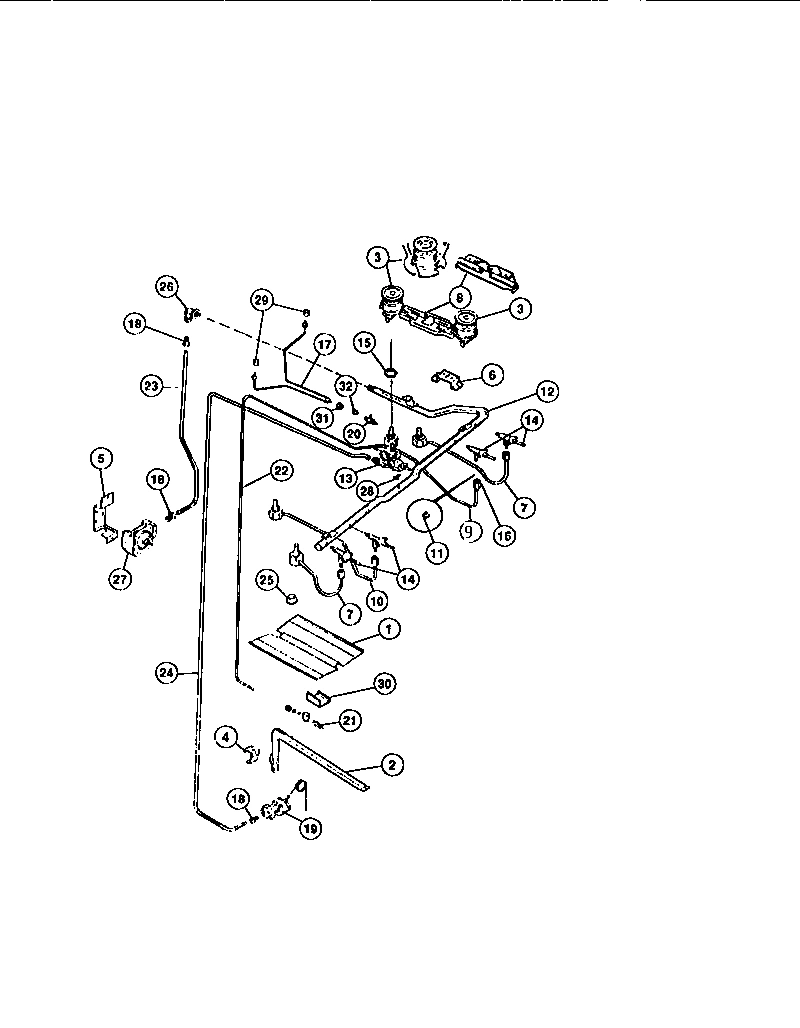

06 - BURNER, MANIFOLD AND GAS CONTROL

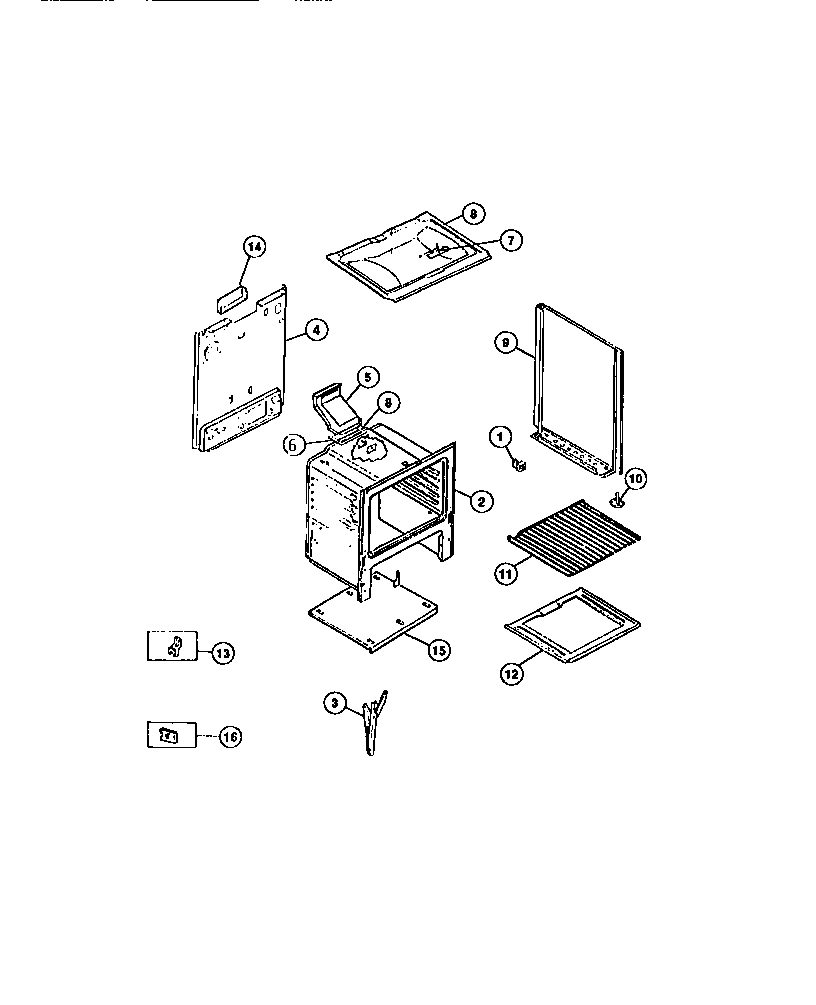

07 - BODY PARTS
Common parts from model Electrolux 32-1007-23-03 RANGE
*68548
WCI 3131190 WCI 3131190 Contact Us For Availability
*68569
SCREW WCI 3131236 Contact Us For Availability
*68569
SCREW WCI 3131573 Contact Us For Availability
*68591
WCI 3131258 WCI 3131258 Contact Us For Availability
*68592
SCREW (2) WCI 636T162P01 Contact Us For Availability
*68623
WASHER WCI 3131737 Contact Us For Availability
*68638
INSULATION-OVEN WRAP WCI 3017142 Contact Us For Availability
*68641
INSULATION-BACK WCI 3131246 Contact Us For Availability
*68644
WCI 3015372 WCI 3015372 Contact Us For Availability
1
SPACEER-BODYSIDE WCI 3014099 Contact Us For Availability
1
WCI 3934002 WCI 3934002 Contact Us For Availability
1
WCI 529T091F23-23 WCI 529T091F23-23 Contact Us For Availability
1
WCI 3018860 WCI 3018860 Contact Us For Availability
1
WCI 3200673 WCI 3200673 Contact Us For Availability
1
WCI 3131327 WCI 3131327 Contact Us For Availability
2
WCI 3011558 WCI 3011558 Contact Us For Availability
2
HANDLE, DOOR WCI 3200887 Contact Us For Availability
2
WCI 3131386 WCI 3131386 Contact Us For Availability
2
WCI 3131571 WCI 3131571 Contact Us For Availability
3
CAP-END (RH) WCI 3051137 Contact Us For Availability
3
WCI 3011559 WCI 3011559 Contact Us For Availability
3
WCI 3015373 WCI 3015373 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
WCI 3131147 WCI 3131147 Contact Us For Availability
3
CHANNEL-DOOR HINGE WCI 3131569 Contact Us For Availability
4
WCI 3131644 WCI 3131644 Contact Us For Availability
4
INSULATION-OVEN DOOR WCI 3200668 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
BRACKET-BURNER MTG WCI 3018603 Contact Us For Availability
4
WCI 3131567 WCI 3131567 Contact Us For Availability
5
WCI 3051198 WCI 3051198 Contact Us For Availability
5
ROD, MAIN TOP SUPPORT WCI 3013818 Contact Us For Availability
5
WCI 3201692 WCI 3201692 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 3018619 WCI 3018619 Contact Us For Availability
5
BRACKET REGULATOR WCI 3131183 Contact Us For Availability
6
KNOB-TOP VALVE (4) WCI 3131910 Contact Us For Availability
6
WCI 3201693 WCI 3201693 Contact Us For Availability
6
LINER-BROILER DRAWER WCI 3018611 Contact Us For Availability
6
BRACKET-BURNER MTG WCI 3201270 Contact Us For Availability
7
KNOB-THERMOSTAT WCI 3131703 Contact Us For Availability
7
WCI 3051289 WCI 3051289 Contact Us For Availability
7
WCI 3202316 WCI 3202316 Contact Us For Availability
7
WCI 3131117 WCI 3131117 Contact Us For Availability
7
WCI 3131134 WCI 3131134 Contact Us For Availability
7
WCI 3131970 WCI 3131970 Contact Us For Availability
7
WCI 3131101 WCI 3131101 Contact Us For Availability
8
WCI 3131937 WCI 3131937 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 3131185 WCI 3131185 Contact Us For Availability
9
SCREW-HANDLE WCI 3131213 Contact Us For Availability
9
FRONT-SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 3011569 WCI 3011569 Contact Us For Availability
9
PANEL B/S LH-ALMD WCI 3131453 Contact Us For Availability
9
PANEL B/S RH-ALMD WCI 3131454 Contact Us For Availability
9
PANEL B/S RH-ALMD WCI 3200790 Contact Us For Availability
9
PANEL B/S LH-ALMD WCI 3200793 Contact Us For Availability
10
WCI 3018610 No Longer Available
10
WCI 3011570 WCI 3011570 Contact Us For Availability
10
SCREW-LEVELING WCI 08010569 Contact Us For Availability
11
SHIELD-BROILER SWAP WCI 3131487 Contact Us For Availability
11
WCI 3012358 WCI 3012358 Contact Us For Availability
12
WCI 3201269 WCI 3201269 Contact Us For Availability
12
WCI 3201271 WCI 3201271 Contact Us For Availability
12
WCI 3011519 WCI 3011519 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 3201272 WCI 3201272 Contact Us For Availability
14
PLUG-BROIL DRAWER (4) WCI 3018702 Contact Us For Availability
14
WCI 3017542 WCI 3017542 Contact Us For Availability
14
WCI 3131191 WCI 3131191 Contact Us For Availability
15
NUT, SPECIAL WCI 3013279 Contact Us For Availability
15
WCI 3131180 WCI 3131180 Contact Us For Availability
16
NUT-COMPRESSION WCI 3131148 Contact Us For Availability
17
WCI 3201273 WCI 3201273 Contact Us For Availability
18
WCI 3131261 WCI 3131261 Contact Us For Availability
19
WCI 3131405 WCI 3131405 Contact Us For Availability
20
WCI 3201274 WCI 3201274 Contact Us For Availability
21
PILOT WCI 3018613 Contact Us For Availability
22
WCI 3018623 WCI 3018623 Contact Us For Availability
23
WCI 3014477 WCI 3014477 Contact Us For Availability
24
TUBE-ALUMINUM WCI 3018624 Contact Us For Availability
26
WCI 3012204 WCI 3012204 Contact Us For Availability
27
CONTROL-REGULATOR WCI 3018606 Contact Us For Availability
28
ADAPTER-THERMOSTAT WCI 3018601 Contact Us For Availability
29
CAP-TOP PILOT WCI 3201275 Contact Us For Availability
30
WCI 3131204 WCI 3131204 Contact Us For Availability
31
WCI 3201276 WCI 3201276 Contact Us For Availability
32
FERRULE 3/16`` WCI 3201277 Contact Us For Availability
× ![]()
