Model Electrolux 32-1004-23-01 RANGE – Common Parts & Diagrams

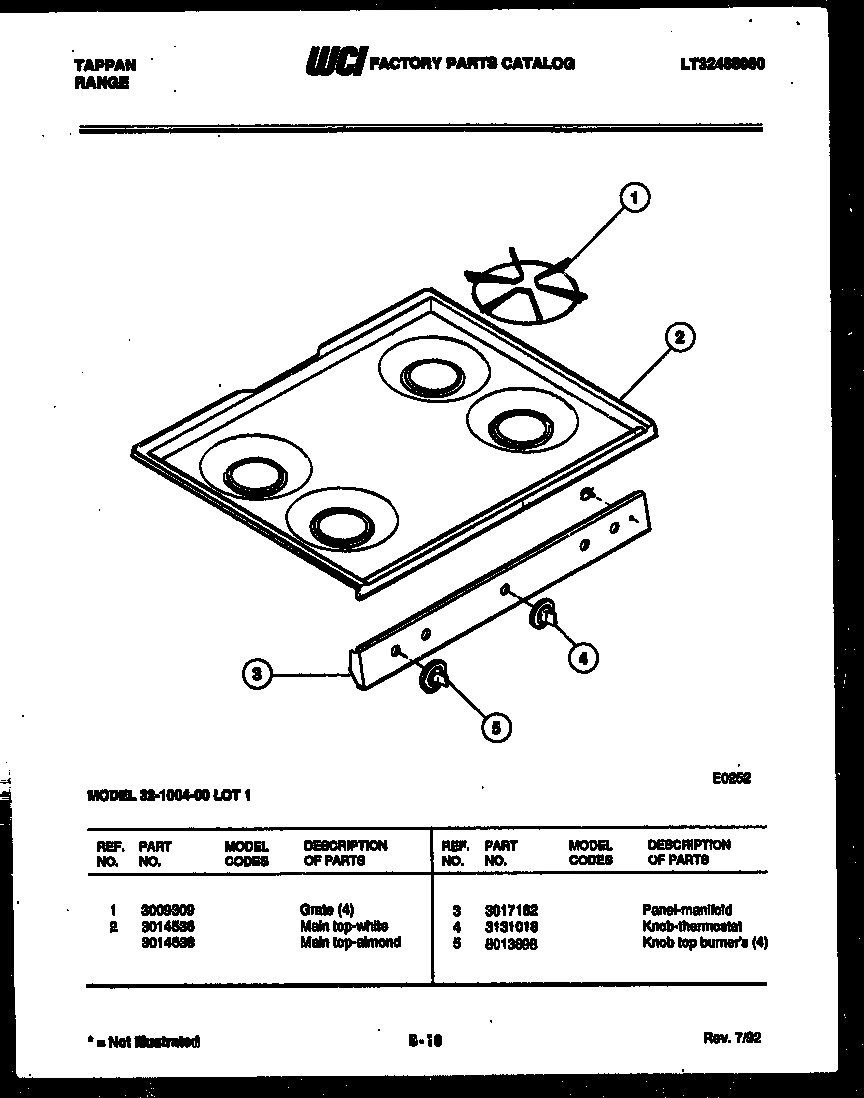

02 - COOKTOP PARTS

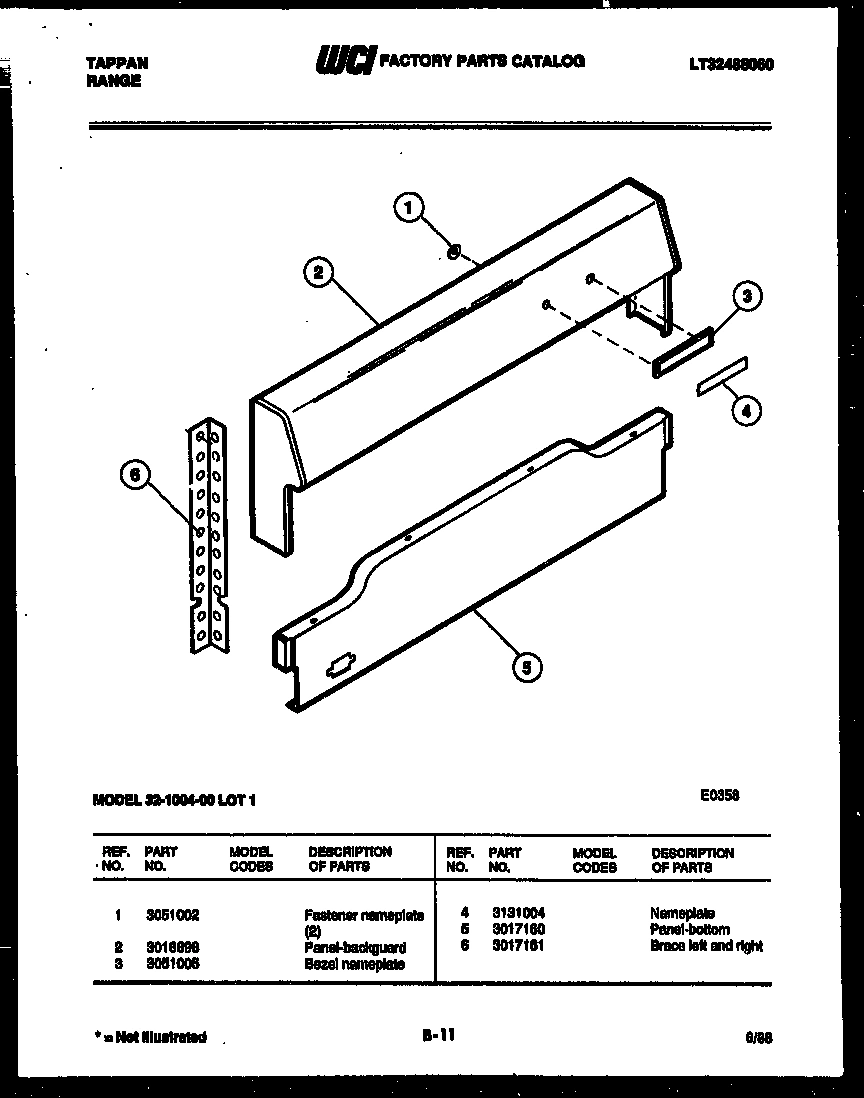

03 - BACKGUARD

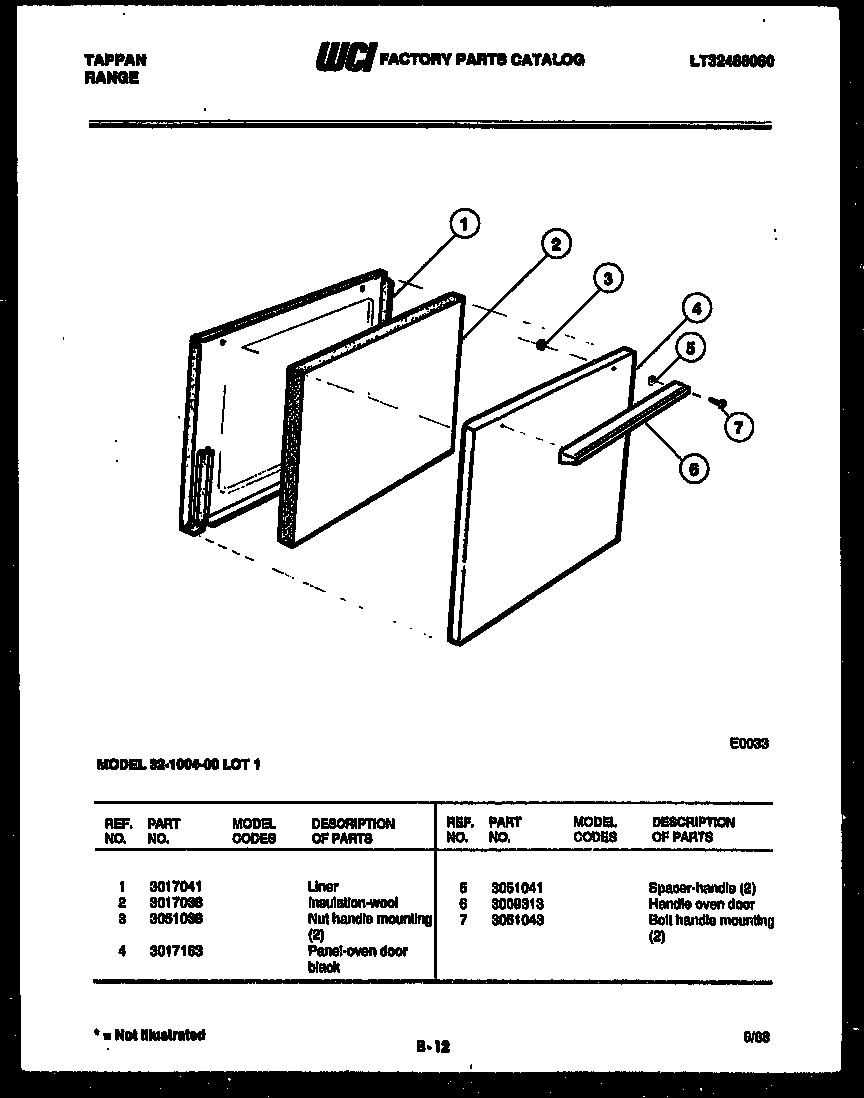

04 - DOOR PARTS

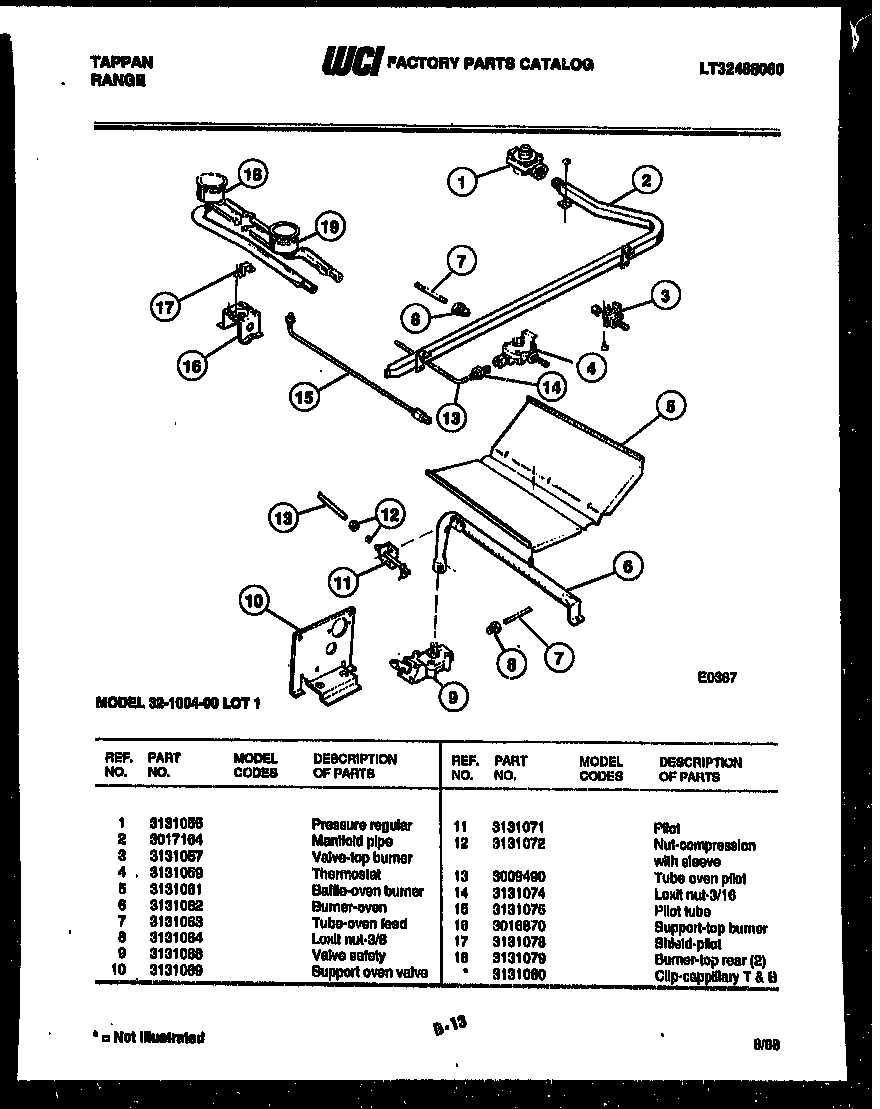

05 - BURNER, MANIFOLD AND GAS CONTROL

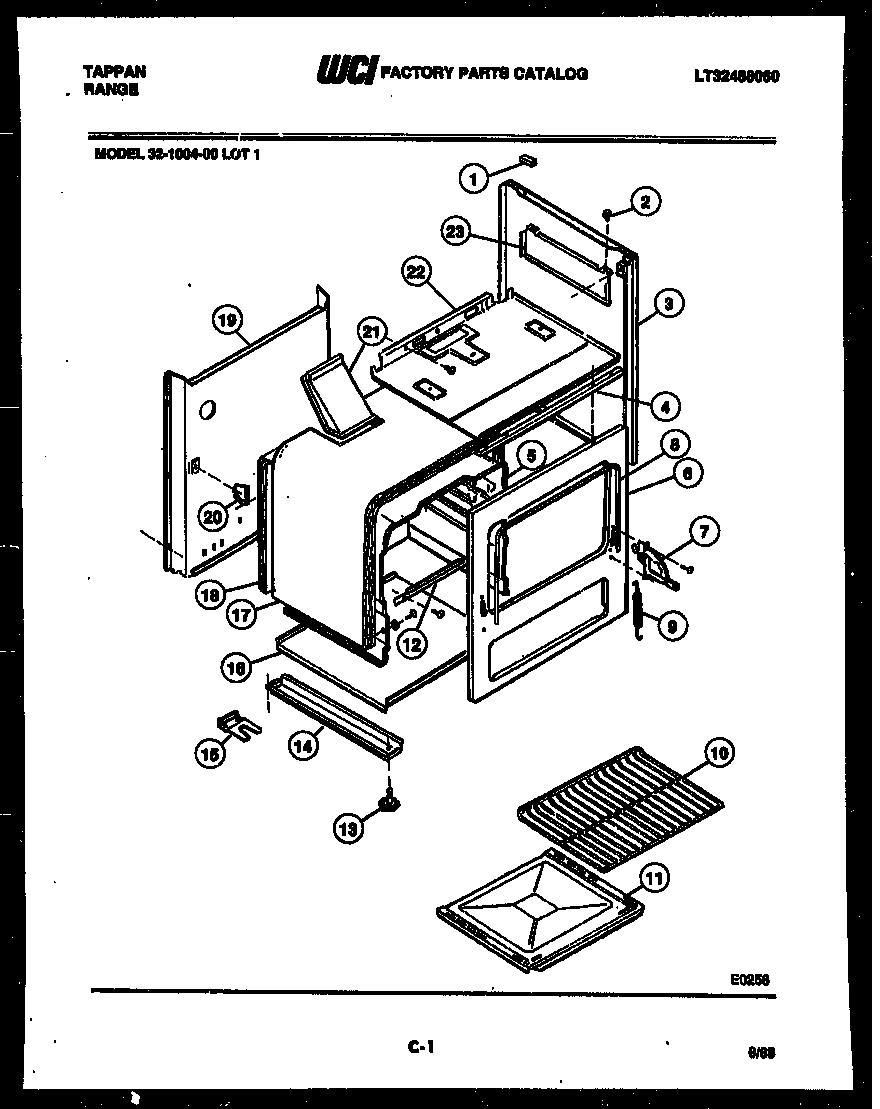

06 - BODY PARTS

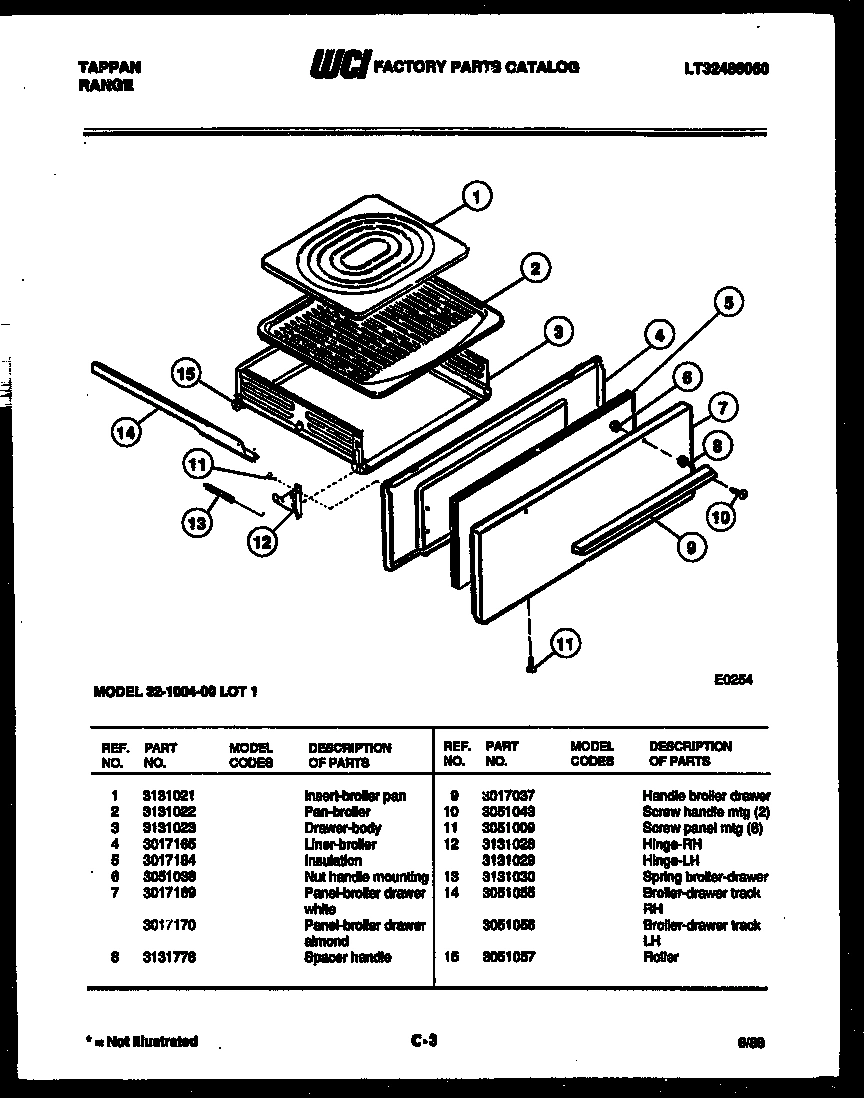

07 - BROILER DRAWER PARTS
Common parts from model Electrolux 32-1004-23-01 RANGE
*12377
CLIP-CAPILLARY T & B WCI 3131060 Contact Us For Availability
*12381
CLIP BACKSPLASH CORNER WCI 3131791 Contact Us For Availability
1
GRATE (4) WCI 3009309 Contact Us For Availability
1
FASTENER NAMEPLATE (2) WCI 3051002 Contact Us For Availability
1
WCI 3017041 WCI 3017041 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
1
WCI 3131021 WCI 3131021 Contact Us For Availability
2
WCI 3014538 WCI 3014538 Contact Us For Availability
2
WCI 3016898 WCI 3016898 Contact Us For Availability
2
INSULATION-WOOL WCI 3017038 Contact Us For Availability
2
WCI 3017164 WCI 3017164 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
WCI 3017162 WCI 3017162 Contact Us For Availability
3
WCI 3051005 WCI 3051005 Contact Us For Availability
3
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
3
WCI 3051062 WCI 3051062 Contact Us For Availability
3
WCI 3131023 WCI 3131023 Contact Us For Availability
4
WCI 3131004 WCI 3131004 Contact Us For Availability
4
WCI 3017163 WCI 3017163 Contact Us For Availability
4
WCI 3131059 WCI 3131059 Contact Us For Availability
4
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
4
WCI 3017165 WCI 3017165 Contact Us For Availability
5
WCI 3131018 WCI 3131018 Contact Us For Availability
5
WCI 3017160 WCI 3017160 Contact Us For Availability
5
SPACER HANDLE (2) WCI 3051041 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
WCI 3131032 WCI 3131032 Contact Us For Availability
5
WCI 3017184 WCI 3017184 Contact Us For Availability
5A
WCI 3131033 WCI 3131033 Contact Us For Availability
5B
WCI 3017166 WCI 3017166 Contact Us For Availability
5C
WCI 3017167 WCI 3017167 Contact Us For Availability
6
WCI 3017161 WCI 3017161 Contact Us For Availability
6
HANDLE OVEN DOOR WCI 3009313 Contact Us For Availability
6
WCI 3131062 WCI 3131062 Contact Us For Availability
6
WCI 3017048 WCI 3017048 Contact Us For Availability
7
TUBE-OVEN FEED WCI 3131063 Contact Us For Availability
7
PANEL-BROILER DRAWER ALMOND WCI 3017170 Contact Us For Availability
7A
WCI 3051078 WCI 3051078 Contact Us For Availability
8
LOXIT NUT-3/8 WCI 3131064 Contact Us For Availability
8
SEAL-OVEN DOOR WCI 3009427 Contact Us For Availability
8
SPACER HANDLE WCI 3131778 Contact Us For Availability
9
WCI 3131068 WCI 3131068 Contact Us For Availability
9
SPRING-HINGE LH AND RH (2) WCI 3009435 Contact Us For Availability
9
HANDLE BROILER DRAWER WCI 3017037 Contact Us For Availability
10
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
10
RACK-OVEN WCI 3015714 Contact Us For Availability
11
WCI 3131071 WCI 3131071 Contact Us For Availability
11
WCI 3017168 WCI 3017168 Contact Us For Availability
11
SCREW PANEL MTG (8) WCI 3051009 Contact Us For Availability
12
NUT-COMPRESSION WITH SLEEVE WCI 3131072 Contact Us For Availability
12
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12A
HINGE - LH WCI 3131029 Contact Us For Availability
13
TUBE OVEN PILOT WCI 3009490 Contact Us For Availability
13
LEVELING LEG WCI 3051080 Contact Us For Availability
13
SPRING BROILER-DRAWER WCI 3131030 Contact Us For Availability
14
LOXIT NUT-3/16 WCI 3131074 Contact Us For Availability
14
WCI 3051081 WCI 3051081 Contact Us For Availability
14
BROILER-DRAWER TRACK RH WCI 3051055 Contact Us For Availability
14A
BROILER-DRAWER TRACK LH WCI 3051056 Contact Us For Availability
15
PILOT TUBE WCI 3131075 Contact Us For Availability
15
WCI 3131041 WCI 3131041 Contact Us For Availability
15
ROLLER WCI 3051057 Contact Us For Availability
16
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
16
MAIN BOTTOM WCI 3011645 Contact Us For Availability
17
SHIELD-PILOT WCI 3131078 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
18
BURNER-TOP REAR (2) WCI 3131079 Contact Us For Availability
18
WCI 3017172 WCI 3017172 Contact Us For Availability
19
WCI 3013340 WCI 3013340 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
BURNER-BOX WCI 3017174 Contact Us For Availability
23
SHIELD-HEAT BURNER BOX RH WCI 3131053 Contact Us For Availability
23A
SHIELD-HEAT BURNER BOX LH WCI 3131054 Contact Us For Availability
× ![]()
