Model Electrolux 32-1002-23-09 RANGE – Common Parts & Diagrams

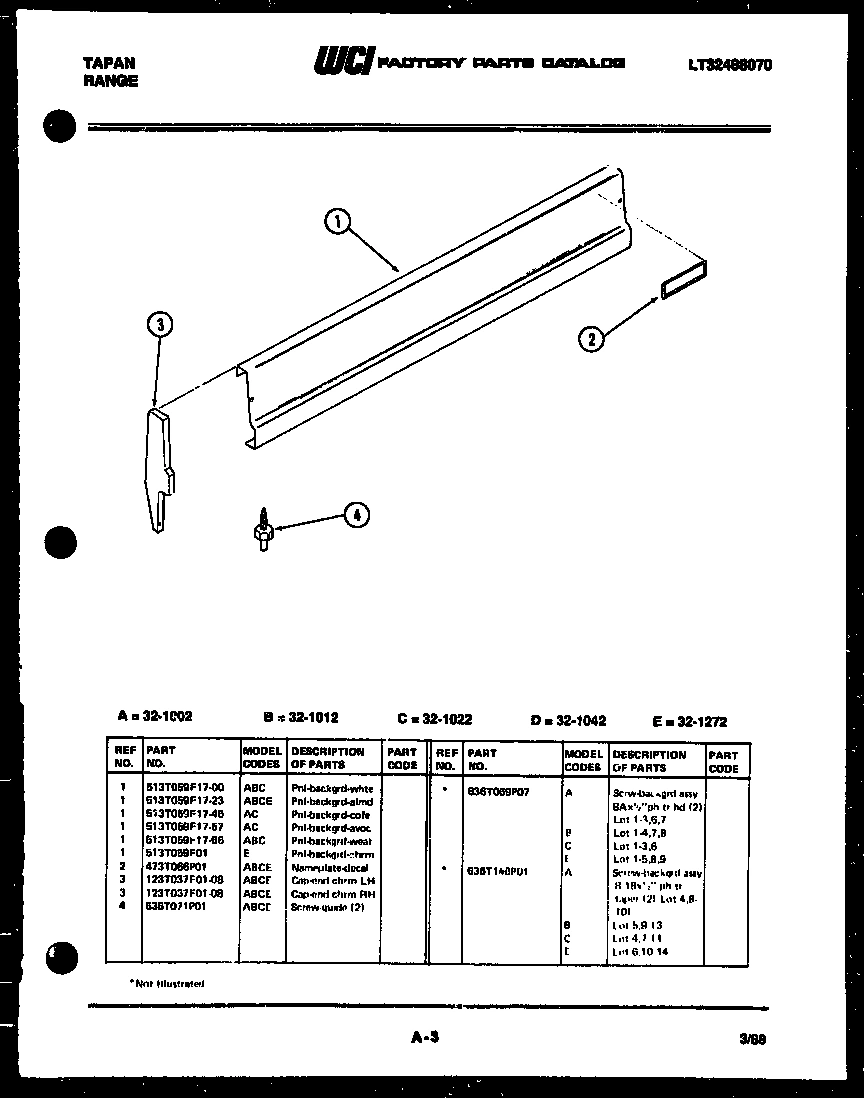

03 - BACKGUARD

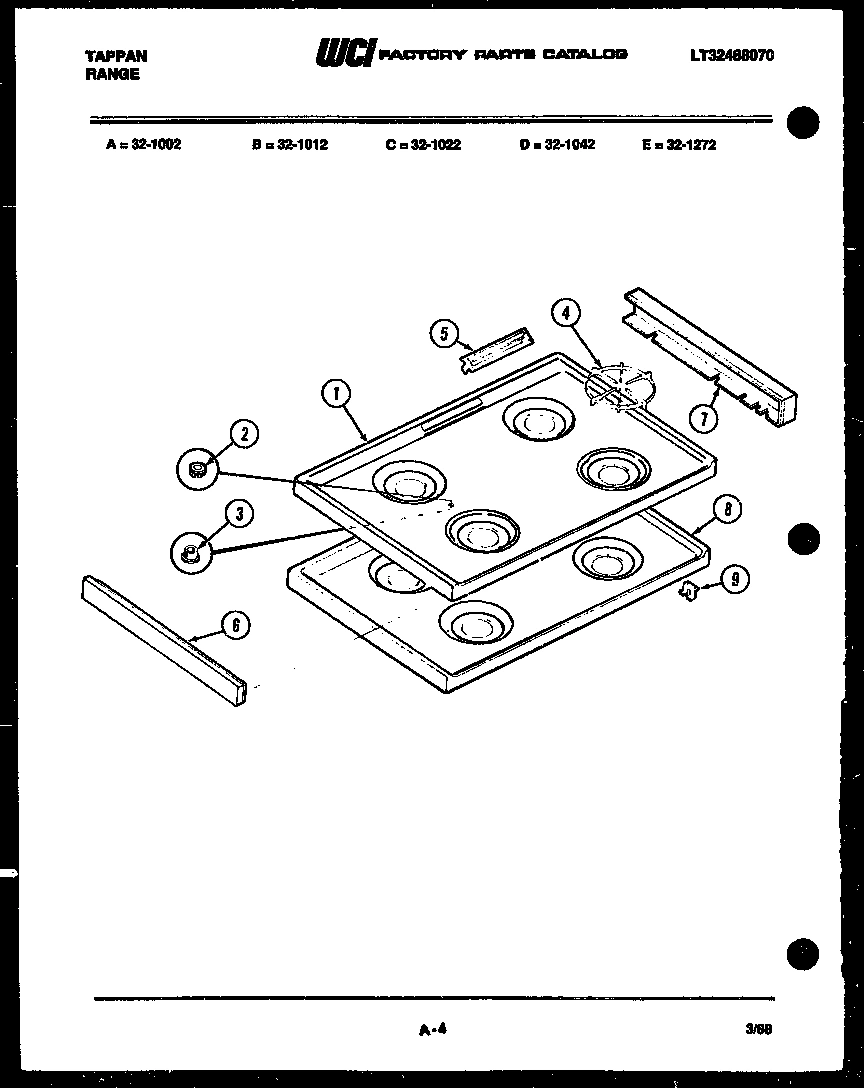

04 - COOKTOP PARTS

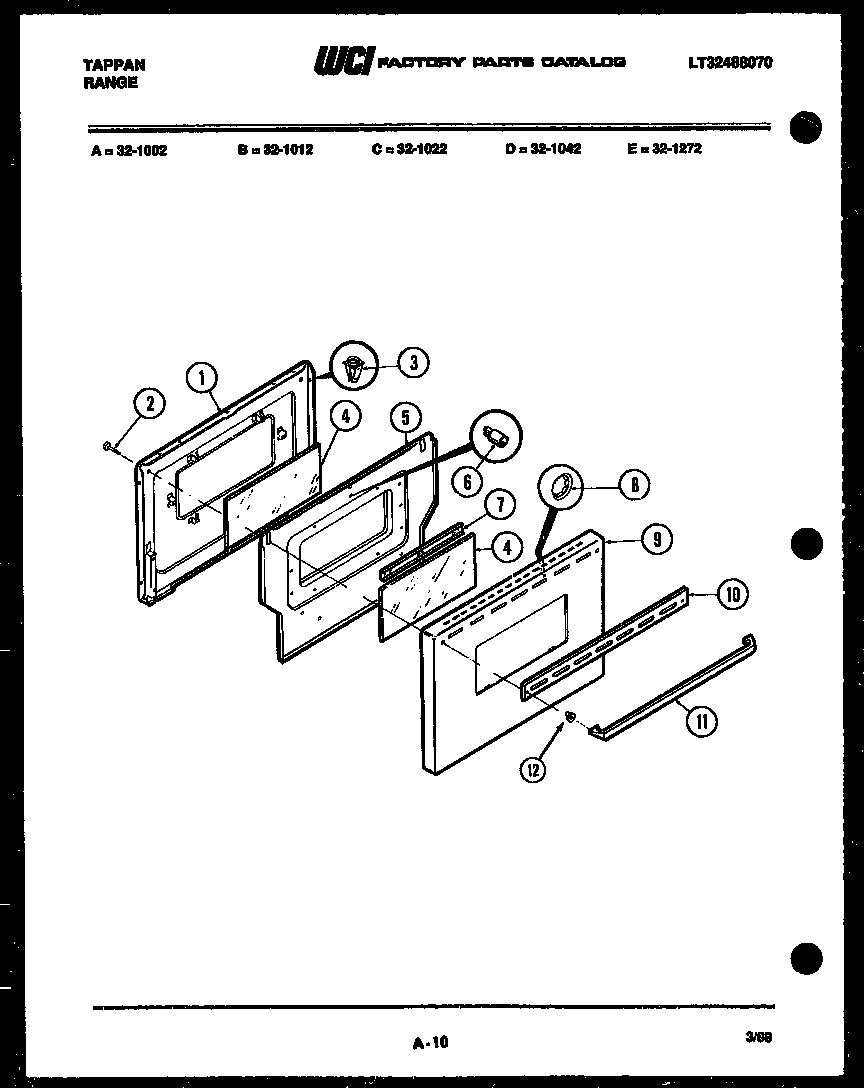

07 - DOOR PARTS

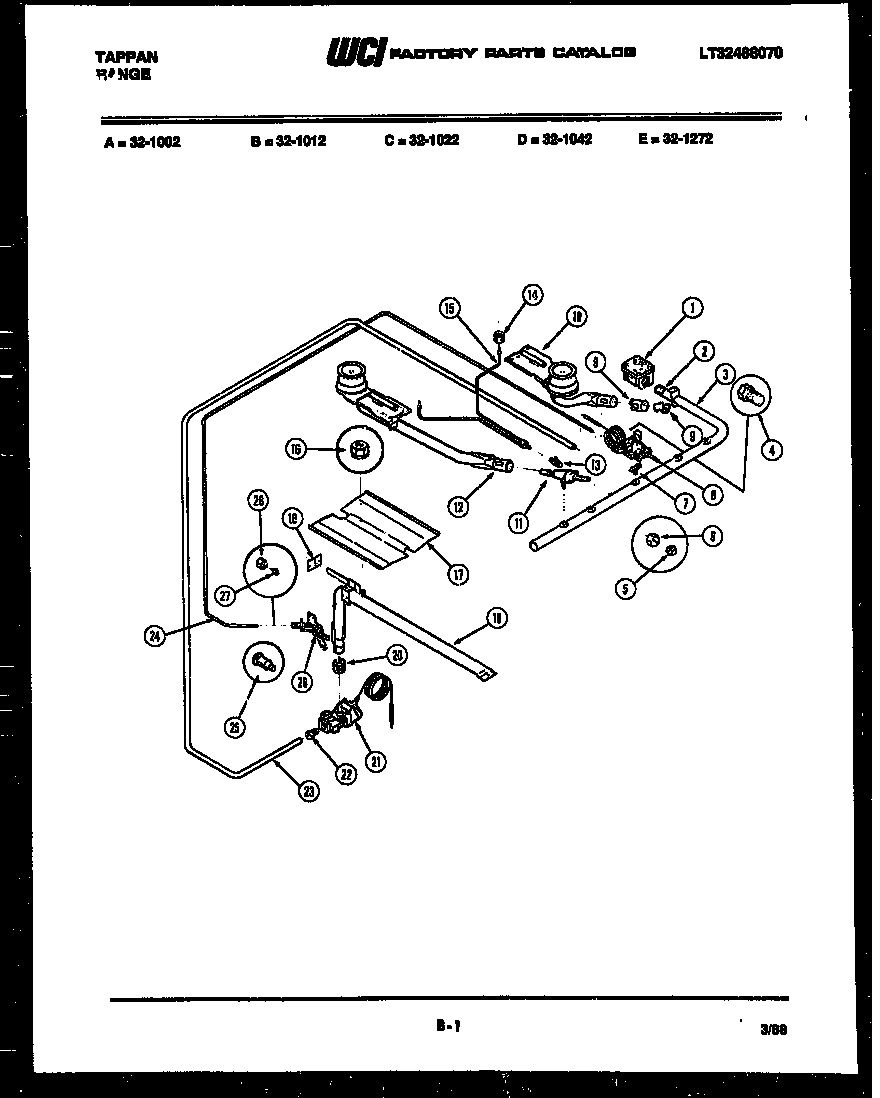

09 - BURNER, MANIFOLD AND GAS CONTROL

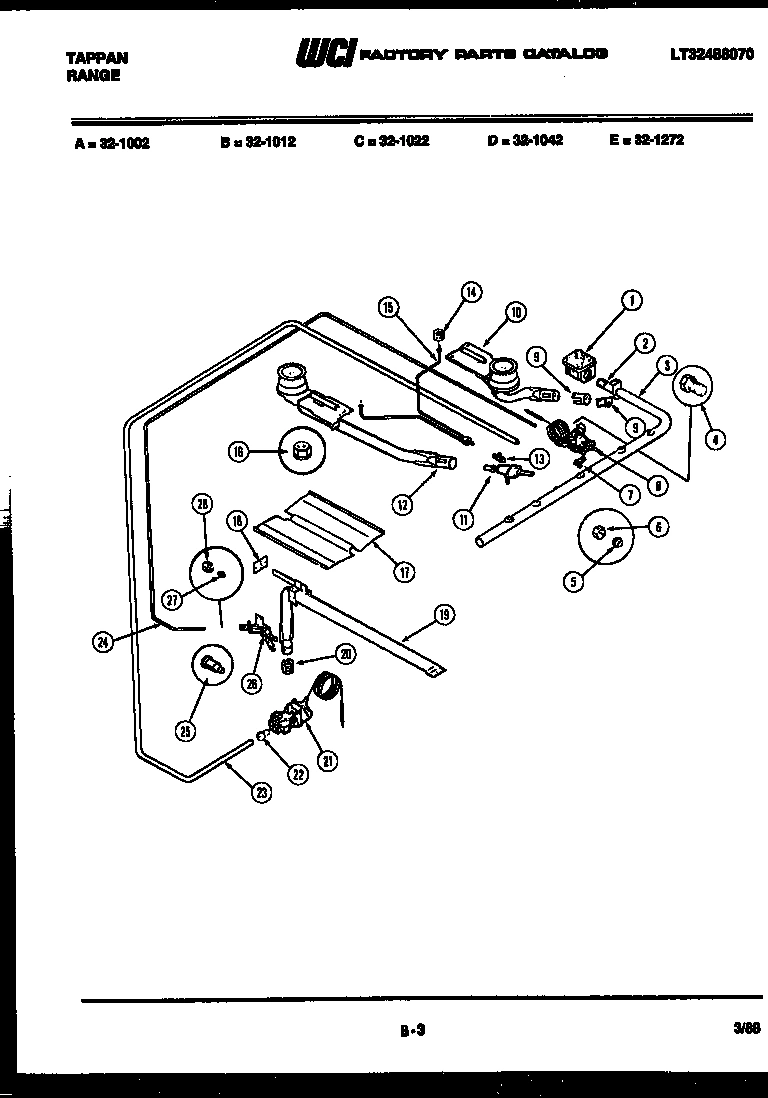

10 - BURNER, MANIFOLD AND GAS CONTROL
13 - BROILER DRAWER PARTS
14 - BROILER DRAWER PARTS
15 - BODY PARTS
16 - BODY PARTS

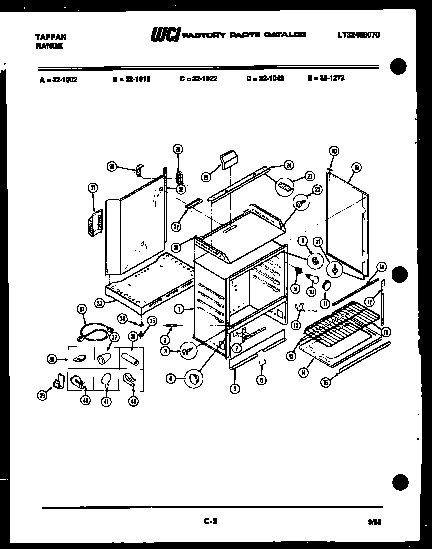

17 - BODY PARTS
18 - CONTROL PANEL
Common parts from model Electrolux 32-1002-23-09 RANGE
*92263
INSUL-WOOL 2 X 16 1/4 X 28`` WCI 328T049P29 Contact Us For Availability
*92274
SCREW-DOOR ASSY 8A X 3/8`` PH TR HD (5) WCI 636T090P47 Contact Us For Availability
*93201
SCREW-BROILR ASSY 8-18 X 1/2`` PH TR HD (4) L WCI 636T140P01 Contact Us For Availability
*93250
SCREW-BROILR ASSY 8-18 X 1/2`` PH WR HD SPC ( WCI 636T139P01 Contact Us For Availability
*93842
INSUL-WOOL 2 1/2 X 19 X 62`` TP/SIDES WCI 328T015P102 Contact Us For Availability
*93854
WCI 328T015P103 WCI 328T015P103 Contact Us For Availability
*93867
WCI 328T015P99 WCI 328T015P99 Contact Us For Availability
*93876
WCI 740T365P01 WCI 740T365P01 Contact Us For Availability
*93893
WCI 740T365P02 WCI 740T365P02 Contact Us For Availability
*93902
TRIM-BDY PNL-VERT. IF EQUIPPED (2) WCI 740T431F01 Contact Us For Availability
*93936
WCI 508T020P02 WCI 508T020P02 Contact Us For Availability
*93944
WCI 508T026P02 WCI 508T026P02 Contact Us For Availability
*93953
WCI 508T019P01 WCI 508T019P01 Contact Us For Availability
*93961
WCI 508R004P01 WCI 508R004P01 Contact Us For Availability
*93970
WCI 508R005P01 WCI 508R005P01 Contact Us For Availability
1
WCI 513T059F17-23 WCI 513T059F17-23 Contact Us For Availability
1
WCI 529T091F06-23 WCI 529T091F06-23 Contact Us For Availability
1
WCI 381T086W01-87 WCI 381T086W01-87 Contact Us For Availability
1
CONTRL-PRESS REGUL LOT 9, 11 WCI 166T008P11 Contact Us For Availability
1
DRAWR-BROILR-BLUE GRAY (LOT 5-9) WCI 205T004W01-87 Contact Us For Availability
1
WCI 521T103P09 WCI 521T103P09 Contact Us For Availability
2
WCI 473T066P01 WCI 473T066P01 Contact Us For Availability
2
PLUG BTN-PILOT VENT (2) WCI 557T021P08 Contact Us For Availability
2
SCREW-HNDL MTG 10-24 X 2 3/4 FL WSH HD (LOT 2 WCI 636T138P05 Contact Us For Availability
2
WCI 008T276F04 WCI 008T276F04 Contact Us For Availability
2
SPRING-BROILR LH C-TYPE WCI 675T079P01 Contact Us For Availability
2
SPRING-BROILR RH C-TYPE WCI 675T079P02 Contact Us For Availability
2
SPRING-OVN DR CAM (2) WCI 675T041P01 Contact Us For Availability
2A
WASHR-HNDL SCRW (LOT 8-12) (2) WCI 789T053P42 Contact Us For Availability
3
CAP-PILOT VENT (2) WCI 124T014P01 Contact Us For Availability
3
FASTNR-NYLON PUSH-IN SPACR (5) WCI 241T017P174 Contact Us For Availability
3
WCI 439T046P04 WCI 439T046P04 Contact Us For Availability
3
WCI 072T659F03-08 WCI 072T659F03-08 Contact Us For Availability
3
WCI 072T659F04-08 WCI 072T659F04-08 Contact Us For Availability
3
SCREW-SHOULDER WCI 636T066P06 Contact Us For Availability
4
WCI 3131941 WCI 3131941 Contact Us For Availability
4
LOXIT NUT-THERMO PILOT TUBE 3/16`` LOT 2-11 WCI 247T069P02 Contact Us For Availability
4
FASTNR-PUSH NUT .250 DIA STUD (2) WCI 241T017P148 Contact Us For Availability
4
PLUG BUTTON (4) LOT 8-11 WCI 557T021P31 Contact Us For Availability
5
WCI 3132190 WCI 3132190 Contact Us For Availability
5
FASTNR-NYLN SPACER 3/4`` (3) WCI 241T017P180 Contact Us For Availability
5
FITTING-THERMO/GAS SUPLY TUBE 3/8`` LOT 2-11 WCI 247T084P01 Contact Us For Availability
5
WCI T7-205-2 WCI T7-205-2 Contact Us For Availability
5
SHIELD-WOOL-LWR FRONT WCI 655T308F02 Contact Us For Availability
6
WCI 740T430W01 WCI 740T430W01 Contact Us For Availability
6
WCI 533T051W08-23 WCI 533T051W08-23 Contact Us For Availability
6
FITTING-COMPRSSN THERMO GAS SUPLY TUBE 3/8`` WCI 247T069P04 Contact Us For Availability
6
WASHR-HNDL SPACR (2) WCI 789T053P12 Contact Us For Availability
6
RETAINER-OVN BURNR WCI 612T094P01 Contact Us For Availability
7
WCI 740T430W02 WCI 740T430W02 Contact Us For Availability
7
WCI 296T026P05 WCI 296T026P05 Contact Us For Availability
7
WCI 003T039P01 WCI 003T039P01 Contact Us For Availability
7
HANDL-BROILR DOOR WCI 296T081P02 Contact Us For Availability
7
CAM-OVEN DOOR LOT 5-11 WCI 117T013S13 Contact Us For Availability
8
SPACER-OVN DR HANDLE (2) WCI 665T140P02 Contact Us For Availability
8
THERMOSTAT-OVEN WCI 722T058P01 Contact Us For Availability
8
WCI 517T003W25-23 WCI 517T003W25-23 Contact Us For Availability
8
WCI 517T003W41-23 WCI 517T003W41-23 Contact Us For Availability
8A
SCREW-THERMO MTG 10-24 X 9/32`` HEX HD (2) (N WCI 636T133P01 Contact Us For Availability
8A
INSULATION (NON-ILLUSTRATED) WCI 328T015P15 Contact Us For Availability
9
WCI 145T069F01 WCI 145T069F01 Contact Us For Availability
9
MIXER-AIR-TP BURNER LOT 7-11 (4) WCI 451R001P01 Contact Us For Availability
9
WCI 381T077F04-87 WCI 381T077F04-87 Contact Us For Availability
9B
WCI 636T096P02 WCI 636T096P02 Contact Us For Availability
10
BURNR-TP-FRNT LOT 9, 10 (2) WCI 080T014P01 Contact Us For Availability
10
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
11
VALVE-TP BURNER (4) WCI 774T118P01 Contact Us For Availability
11
WCI 539T005F01-87 WCI 539T005F01-87 Contact Us For Availability
11
WCI 557T021P12 WCI 557T021P12 Contact Us For Availability
12
BURNR-TP-REAR LOT 9, 10 (2) WCI 080T014P02 Contact Us For Availability
12
CAM-OVN DR RH LOT 5-11 WCI 117T013S14 Contact Us For Availability
12A
KIT-DOOR ADJUST. (NON-ILLUSTRATED) WCI 355T588S01 Contact Us For Availability
13
WCI 244T039P01 WCI 244T039P01 Contact Us For Availability
13
BUTTON-GLIDE .426 DIA. (4) WCI 106T027P02 Contact Us For Availability
14
WCI 124T010P01 WCI 124T010P01 Contact Us For Availability
14
CHANL-GLIDE LWR LOT 1-9 WCI 136T281F02 Contact Us For Availability
14
WCI 058T035F01-87 WCI 058T035F01-87 Contact Us For Availability
14A
SCREW-OVN BTM (2) 8-18 X 1`` BPT. KNRLD HD WCI 636T134P01 Contact Us For Availability
15
TUBE-DUAL HARNESS TOP PILOT WCI 750T185P01 Contact Us For Availability
15
CHANL-GLIDE UPPER LOT 1-9 WCI 136T282F02 Contact Us For Availability
15
SEAL-DR BTM & TOP WCI 647T068P02 Contact Us For Availability
15
KNOB-VALVE-TP BURN (4) WCI 358T141P21 Contact Us For Availability
16
BUTTON-GUIDE (3) WCI 106T028P01 Contact Us For Availability
16
RACK-OVEN (2) LOT 6-11 WCI 591T073P02 Contact Us For Availability
16
KNOB-THERMO WCI 358T141P03 Contact Us For Availability
17
BAFFLE-OVN BURNER WCI 3131517 Contact Us For Availability
17
SEAL-DOOR SIDE (2) LOT 2-11 WCI 115T647P03 Contact Us For Availability
19
BURNR-OVN LOT 8-11 WCI 079T025P16 Contact Us For Availability
19
WCI 515T032F07-23 WCI 515T032F07-23 Contact Us For Availability
20
MIXER-AIR-OVN BURN WCI 451T005R01 Contact Us For Availability
20
GLIDE, MAIN TOP (2) WCI 280T028P02 Contact Us For Availability
21
SCRW-BDY PNL GUID (2) WCI 636T071P01 Contact Us For Availability
21
VALVE-OVN SAFETY WCI 774T065P02 Contact Us For Availability
21A
SCREW-SAFETY VALVE MTG 8A X 2`` PH TR HD (2) WCI 636T090P15 Contact Us For Availability
22
LOXIT FITTING-SAFETY VALVE 3/8`` (5/8-18 THD) WCI 70-205-5 Contact Us For Availability
22
WCI 636T083P01 WCI 636T083P01 Contact Us For Availability
23
TUBE-OVN GAS SUPLY 3/8 X 55`` WCI 750T085P25 Contact Us For Availability
24
TUBE-OVN PILOT SAFETY 3/16 X 48 1/2 LOT 1-5, WCI 750T056P19 Contact Us For Availability
24
CHANL-TP BURNR SUPT LOT 5-11 WCI 136T310F04-18 Contact Us For Availability
25
ORIFICE-PILOT .014 7 NAT. 11`` LP WCI 499T012R04 Contact Us For Availability
25
WCI 3016514 WCI 3016514 Contact Us For Availability
26
WCI 549T023P01 WCI 549T023P01 Contact Us For Availability
26
WCI 095T029W14-87 WCI 095T029W14-87 Contact Us For Availability
26A
WCI 636T097P01 WCI 636T097P01 Contact Us For Availability
26B
WCI 355T219S01 WCI 355T219S01 Contact Us For Availability
27
FERRULE-TP BURNER & OVN PILOT/PILOT TUBE (2) WCI 247T073P01 Contact Us For Availability
27
WCI 3131536 WCI 3131536 Contact Us For Availability
28
COMPRSSN NUT-TOP BURNER & OVN PILOT PILOT TUB WCI 479T080P01 Contact Us For Availability
28
WCI 021T046F03-18 WCI 021T046F03-18 Contact Us For Availability
33
WCI 036T050W02-18 WCI 036T050W02-18 Contact Us For Availability
34
FASTNR-LEVELING LEG (2) WCI 241T017P10 Contact Us For Availability
35
SCREW-LEVELING (2) WCI 636M004P01 Contact Us For Availability
36
FASTNR-8A U-TYPE LOT 5-10 WCI 241T014P01 Contact Us For Availability
× ![]()
