Model Electrolux 32-1002-23-07 RANGE – Common Parts & Diagrams
03 - BACKGUARD
04 - COOKTOP PARTS

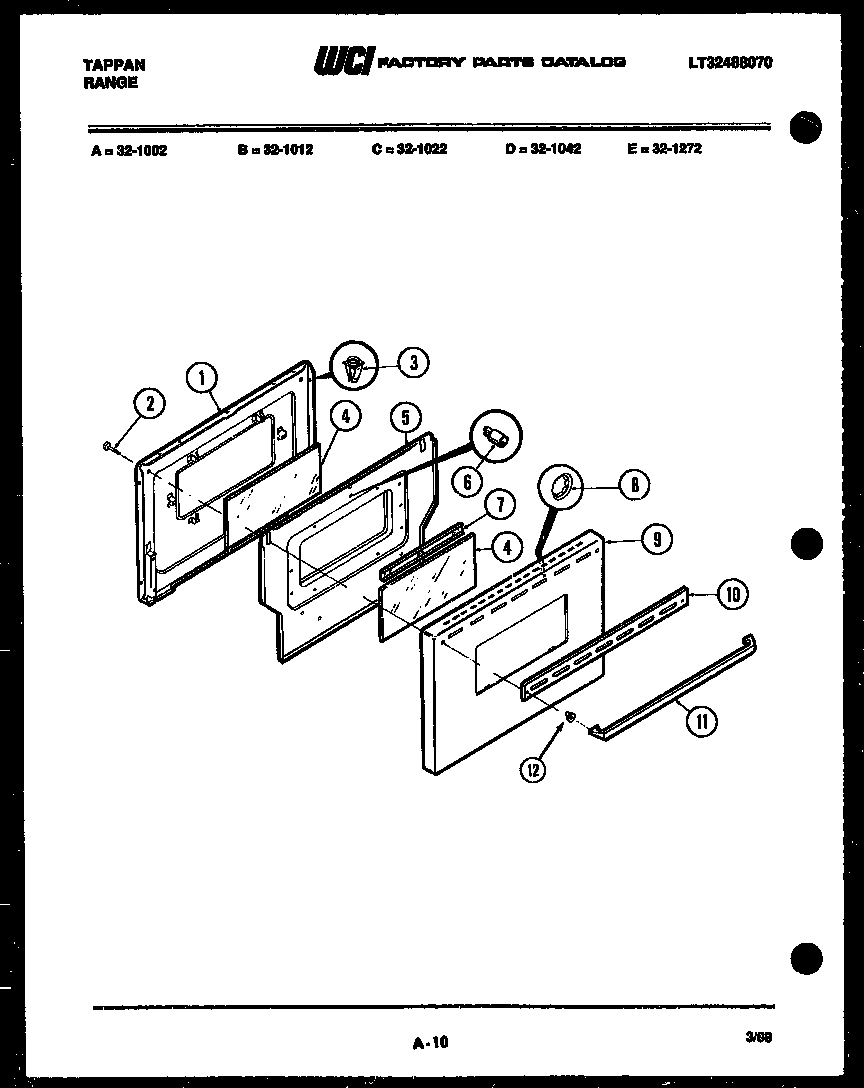

07 - DOOR PARTS

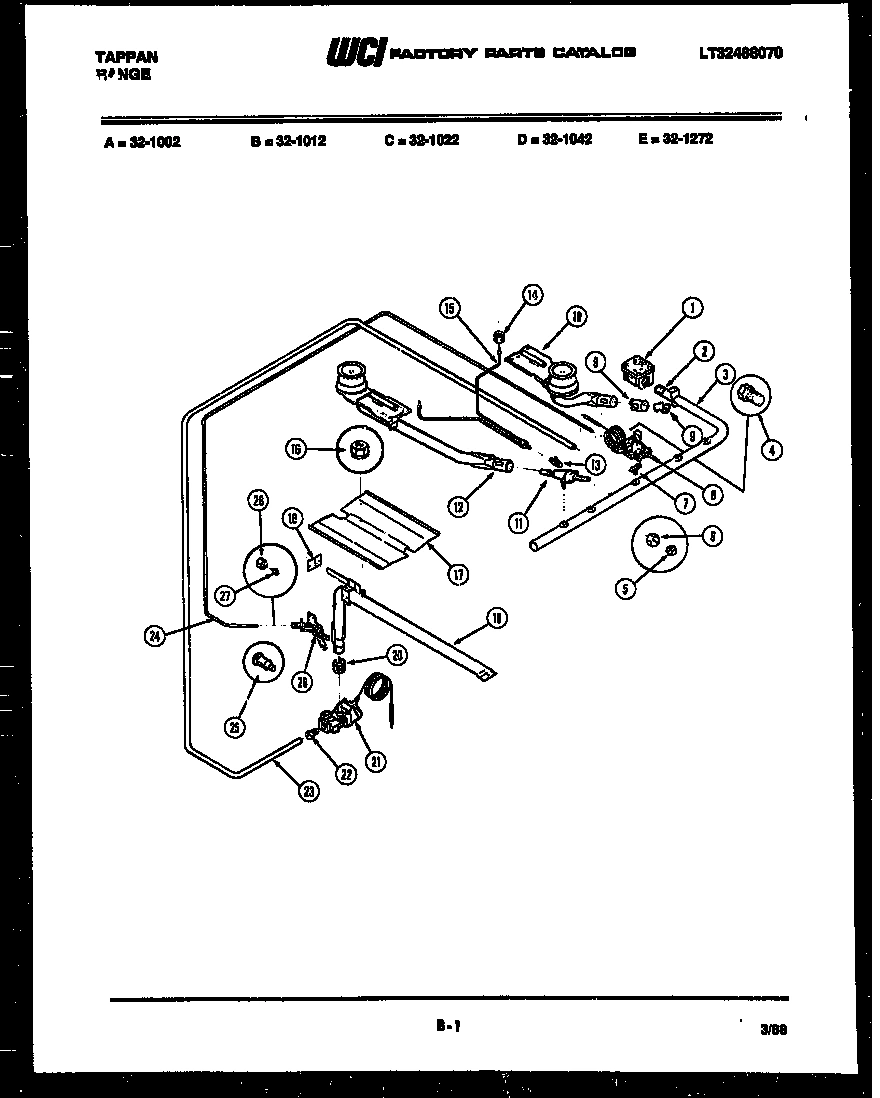

09 - BURNER, MANIFOLD AND GAS CONTROL

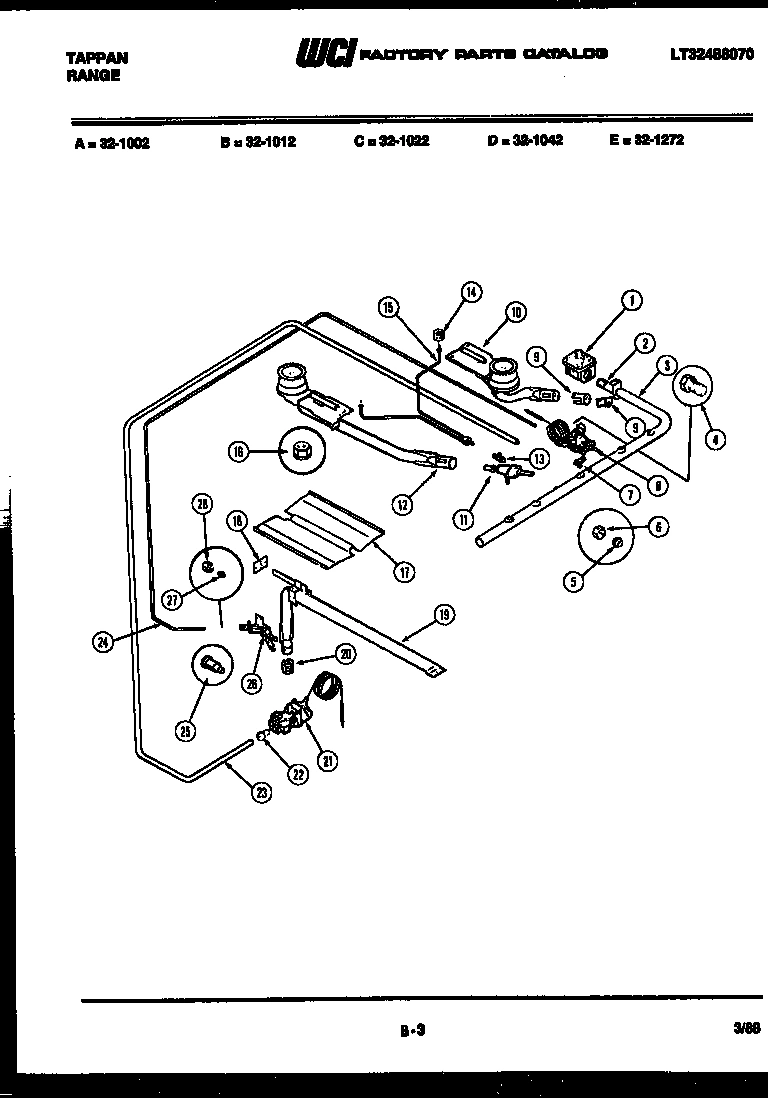

10 - BURNER, MANIFOLD AND GAS CONTROL
13 - BROILER DRAWER PARTS
14 - BROILER DRAWER PARTS
15 - BODY PARTS
16 - BODY PARTS

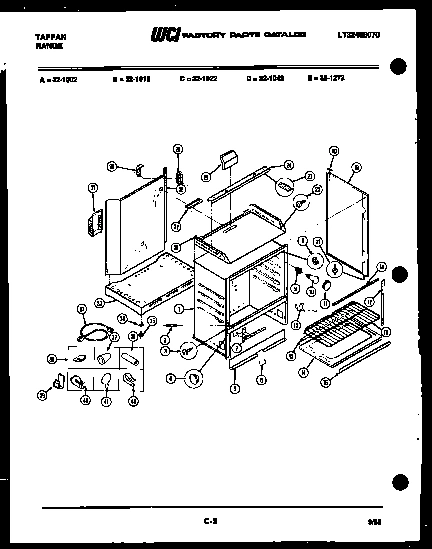

17 - BODY PARTS
18 - CONTROL PANEL
Common parts from model Electrolux 32-1002-23-07 RANGE
*92263
INSUL-WOOL 2 X 16 1/4 X 28`` WCI 328T049P29 Contact Us For Availability
*92274
SCREW-DOOR ASSY 8A X 3/8`` PH TR HD (5) WCI 636T090P47 Contact Us For Availability
*93184
SCREW-BROILR ASSY (4) 8A X 1/2`` PH TR HD LOT WCI 636T069P07 Contact Us For Availability
*93201
SCREW-BROILR ASSY 8-18 X 1/2`` PH TR HD (4) L WCI 636T140P01 Contact Us For Availability
*93250
SCREW-BROILR ASSY 8-18 X 1/2`` PH WR HD SPC ( WCI 636T139P01 Contact Us For Availability
*93842
INSUL-WOOL 2 1/2 X 19 X 62`` TP/SIDES WCI 328T015P102 Contact Us For Availability
*93854
WCI 328T015P103 WCI 328T015P103 Contact Us For Availability
*93867
WCI 328T015P99 WCI 328T015P99 Contact Us For Availability
*93876
WCI 740T365P01 WCI 740T365P01 Contact Us For Availability
*93893
WCI 740T365P02 WCI 740T365P02 Contact Us For Availability
*93902
TRIM-BDY PNL-VERT. IF EQUIPPED (2) WCI 740T431F01 Contact Us For Availability
*93936
WCI 508T020P02 WCI 508T020P02 Contact Us For Availability
*93944
WCI 508T026P02 WCI 508T026P02 Contact Us For Availability
*93953
WCI 508T019P01 WCI 508T019P01 Contact Us For Availability
*93961
WCI 508R004P01 WCI 508R004P01 Contact Us For Availability
*93970
WCI 508R005P01 WCI 508R005P01 Contact Us For Availability
1
WCI 513T059F17-23 WCI 513T059F17-23 Contact Us For Availability
1
WCI 529T091F06-23 WCI 529T091F06-23 Contact Us For Availability
1
WCI 381T086W05-87 WCI 381T086W05-87 Contact Us For Availability
1
WCI 166T008P10 WCI 166T008P10 Contact Us For Availability
1
DRAWR-BROILR-BLUE GRAY (LOT 5-9) WCI 205T004W01-87 Contact Us For Availability
1
WCI 521T103P09 WCI 521T103P09 Contact Us For Availability
2
WCI 473T066P01 WCI 473T066P01 Contact Us For Availability
2
PLUG BTN-PILOT VENT (2) WCI 557T021P08 Contact Us For Availability
2
SCREW-HNDL MTG 10-24 X 2 3/4 FL WSH HD (LOT 2 WCI 636T138P05 Contact Us For Availability
2
WCI 008T276F04 WCI 008T276F04 Contact Us For Availability
2
SPRING-BROILR LH C-TYPE WCI 675T079P01 Contact Us For Availability
2
SPRING-BROILR RH C-TYPE WCI 675T079P02 Contact Us For Availability
2
SPRING-OVN DR CAM (2) WCI 675T041P01 Contact Us For Availability
3
CAP-PILOT VENT (2) WCI 124T014P01 Contact Us For Availability
3
FASTNR-NYLON PUSH-IN SPACR (5) WCI 241T017P174 Contact Us For Availability
3
WCI 439T046P04 WCI 439T046P04 Contact Us For Availability
3
WCI 072T659F03-08 WCI 072T659F03-08 Contact Us For Availability
3
WCI 072T659F04-08 WCI 072T659F04-08 Contact Us For Availability
3
SCREW-SHOULDER WCI 636T066P06 Contact Us For Availability
4
WCI 3131941 WCI 3131941 Contact Us For Availability
4
LOXIT NUT-THERMO PILOT TUBE 3/16`` LOT 2-11 WCI 247T069P02 Contact Us For Availability
4
FASTNR-PUSH NUT .250 DIA STUD (2) WCI 241T017P148 Contact Us For Availability
4
BUTTN-GLIDE-FRNT FRAME (2) LOT 1-7 WCI 106T027P02 Contact Us For Availability
5
WCI 3132190 WCI 3132190 Contact Us For Availability
5
FASTNR-NYLN SPACER 3/4`` (3) WCI 241T017P180 Contact Us For Availability
5
FITTING-THERMO/GAS SUPLY TUBE 3/8`` LOT 2-11 WCI 247T084P01 Contact Us For Availability
5
WCI T7-205-2 WCI T7-205-2 Contact Us For Availability
5
SHIELD-WOOL-LWR FRONT WCI 655T308F02 Contact Us For Availability
6
WCI 740T430W01 WCI 740T430W01 Contact Us For Availability
6
WCI 533T051W01-23 WCI 533T051W01-23 Contact Us For Availability
6
FITTING-COMPRSSN THERMO GAS SUPLY TUBE 3/8`` WCI 247T069P04 Contact Us For Availability
6
WASHR-HNDL SPACR (2) WCI 789T053P12 Contact Us For Availability
6
RETAINER-OVN BURNR WCI 612T094P01 Contact Us For Availability
7
WCI 740T430W02 WCI 740T430W02 Contact Us For Availability
7
WCI 296T026P05 WCI 296T026P05 Contact Us For Availability
7
WCI 003T039P01 WCI 003T039P01 Contact Us For Availability
7
HANDL-BROILR DOOR WCI 296T081P02 Contact Us For Availability
7
CAM-OVEN DOOR LOT 5-11 WCI 117T013S13 Contact Us For Availability
8
SPACER-OVN DR HANDLE (2) WCI 665T140P02 Contact Us For Availability
8
THERMOSTAT-OVEN WCI 722T058P01 Contact Us For Availability
8
WCI 517T003W25-23 WCI 517T003W25-23 Contact Us For Availability
8
WCI 517T003W39-23 WCI 517T003W39-23 Contact Us For Availability
8
WCI 517T003W41-23 WCI 517T003W41-23 Contact Us For Availability
8A
SCREW-THERMO MTG 10-24 X 9/32`` HEX HD (2) (N WCI 636T133P01 Contact Us For Availability
8A
INSULATION (NON-ILLUSTRATED) WCI 328T015P15 Contact Us For Availability
9
WCI 145T069F01 WCI 145T069F01 Contact Us For Availability
9
MIXER-AIR-TP BURNER LOT 7-11 (4) WCI 451R001P01 Contact Us For Availability
9
WCI 381T077F04-87 WCI 381T077F04-87 Contact Us For Availability
9B
WCI 636T096P02 WCI 636T096P02 Contact Us For Availability
10
WCI 080T015P01 WCI 080T015P01 Contact Us For Availability
10
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
11
VALVE-TP BURNER (4) WCI 774T118P01 Contact Us For Availability
11
WCI 539T005F01-87 WCI 539T005F01-87 Contact Us For Availability
11
WCI 557T021P12 WCI 557T021P12 Contact Us For Availability
12
CAM-OVN DR RH LOT 5-11 WCI 117T013S14 Contact Us For Availability
12A
KIT-DOOR ADJUST. (NON-ILLUSTRATED) WCI 355T588S01 Contact Us For Availability
13
WCI 244T039P01 WCI 244T039P01 Contact Us For Availability
14
WCI 124T010P01 WCI 124T010P01 Contact Us For Availability
14
CHANL-GLIDE LWR LOT 1-9 WCI 136T281F02 Contact Us For Availability
14
WCI 058T035F01-87 WCI 058T035F01-87 Contact Us For Availability
14A
SCREW-OVN BTM (2) 8-18 X 1`` BPT. KNRLD HD WCI 636T134P01 Contact Us For Availability
15
TUBE-DUAL HARNESS TOP PILOT WCI 750T185P01 Contact Us For Availability
15
CHANL-GLIDE UPPER LOT 1-9 WCI 136T282F02 Contact Us For Availability
15
SEAL-DR BTM & TOP WCI 647T068P02 Contact Us For Availability
15
KNOB-VALVE-TP BURN (4) WCI 358T141P21 Contact Us For Availability
16
BUTTON-GUIDE (3) WCI 106T028P01 Contact Us For Availability
16
RACK-OVEN (2) LOT 6-11 WCI 591T073P02 Contact Us For Availability
16
KNOB-THERMO WCI 358T141P03 Contact Us For Availability
17
BAFFLE-OVN BURNER WCI 3131517 Contact Us For Availability
17
SEAL-DOOR SIDE (2) LOT 2-11 WCI 115T647P03 Contact Us For Availability
18
PLATE-BURNR MTG LOT 5-7, 12 WCI 554T327F02 Contact Us For Availability
19
WCI 515T032F07-23 WCI 515T032F07-23 Contact Us For Availability
20
MIXER-AIR-OVN BURN WCI 451T005R01 Contact Us For Availability
20
GLIDE, MAIN TOP (2) WCI 280T028P02 Contact Us For Availability
21
SCRW-BDY PNL GUID (2) WCI 636T071P01 Contact Us For Availability
21
VALVE-OVN SAFETY WCI 774T065P02 Contact Us For Availability
21A
SCREW-SAFETY VALVE MTG 8A X 2`` PH TR HD (2) WCI 636T090P15 Contact Us For Availability
22
LOXIT FITTING-SAFETY VALVE 3/8`` (5/8-18 THD) WCI 70-205-5 Contact Us For Availability
22
WCI 636T083P01 WCI 636T083P01 Contact Us For Availability
23
TUBE-OVN GAS SUPLY 3/8 X 55`` WCI 750T085P25 Contact Us For Availability
24
WCI 750T056P14 WCI 750T056P14 Contact Us For Availability
24
CHANL-TP BURNR SUPT LOT 5-11 WCI 136T310F04-18 Contact Us For Availability
25
ORIFICE-PILOT .014 7 NAT. 11`` LP WCI 499T012R04 Contact Us For Availability
25
WCI 3016514 WCI 3016514 Contact Us For Availability
26
WCI 549T023P01 WCI 549T023P01 Contact Us For Availability
26
WCI 095T029W14-87 WCI 095T029W14-87 Contact Us For Availability
26A
WCI 636T097P01 WCI 636T097P01 Contact Us For Availability
26B
WCI 355T219S01 WCI 355T219S01 Contact Us For Availability
27
FERRULE-TP BURNER & OVN PILOT/PILOT TUBE (2) WCI 247T073P01 Contact Us For Availability
27
WCI 3131536 WCI 3131536 Contact Us For Availability
28
COMPRSSN NUT-TOP BURNER & OVN PILOT PILOT TUB WCI 479T080P01 Contact Us For Availability
28
WCI 3131938 WCI 3131938 Contact Us For Availability
33
WCI 036T050W02-18 WCI 036T050W02-18 Contact Us For Availability
34
FASTNR-LEVELING LEG (2) WCI 241T017P10 Contact Us For Availability
35
SCREW-LEVELING (2) WCI 636M004P01 Contact Us For Availability
36
FASTNR-8A U-TYPE LOT 5-10 WCI 241T014P01 Contact Us For Availability
× ![]()
