Model Electrolux 32-0007-00-05 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

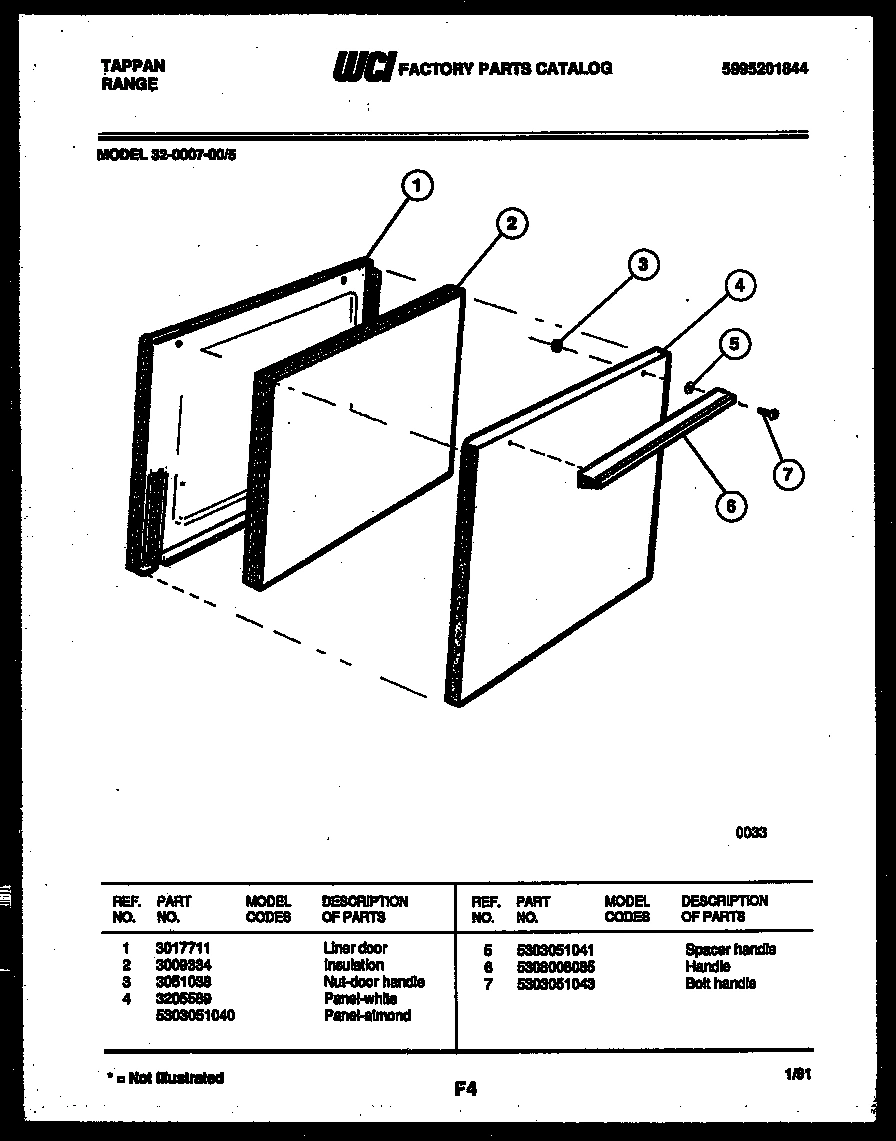

04 - DOOR PARTS

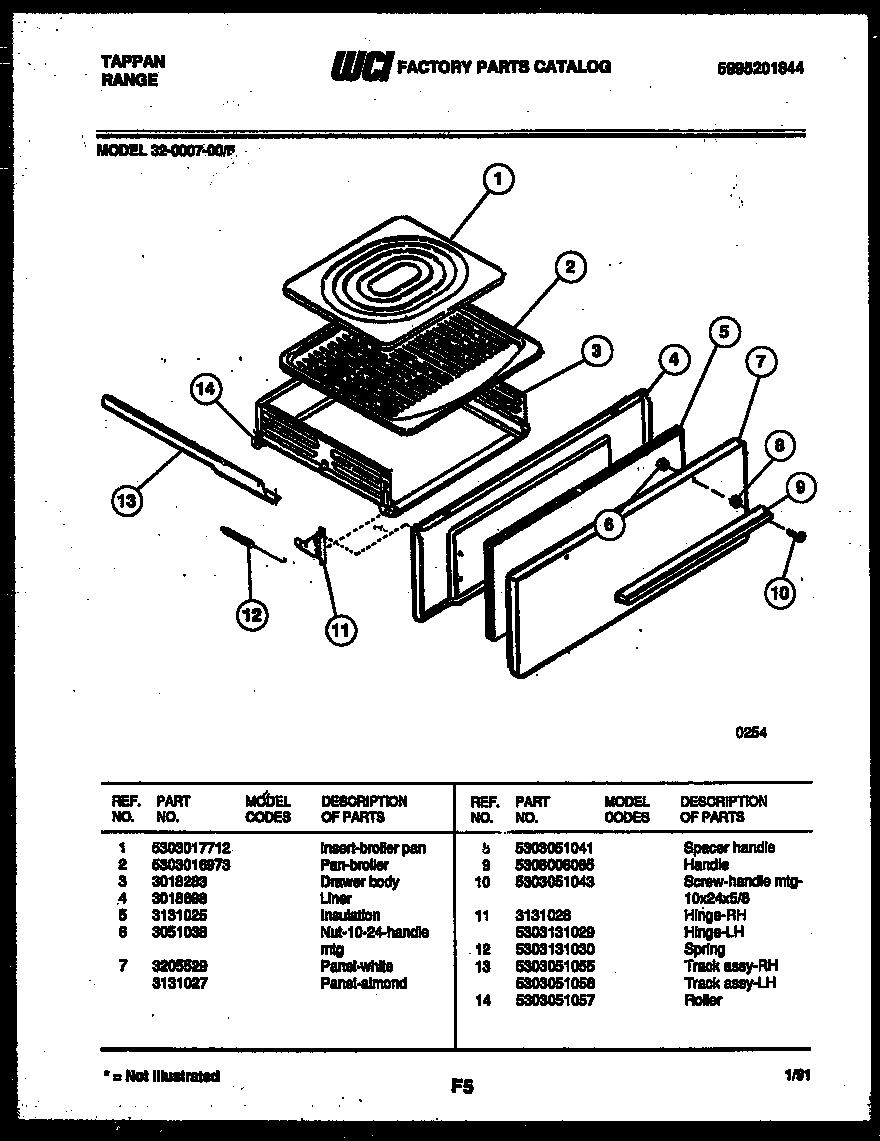

05 - BROILER DRAWER PARTS

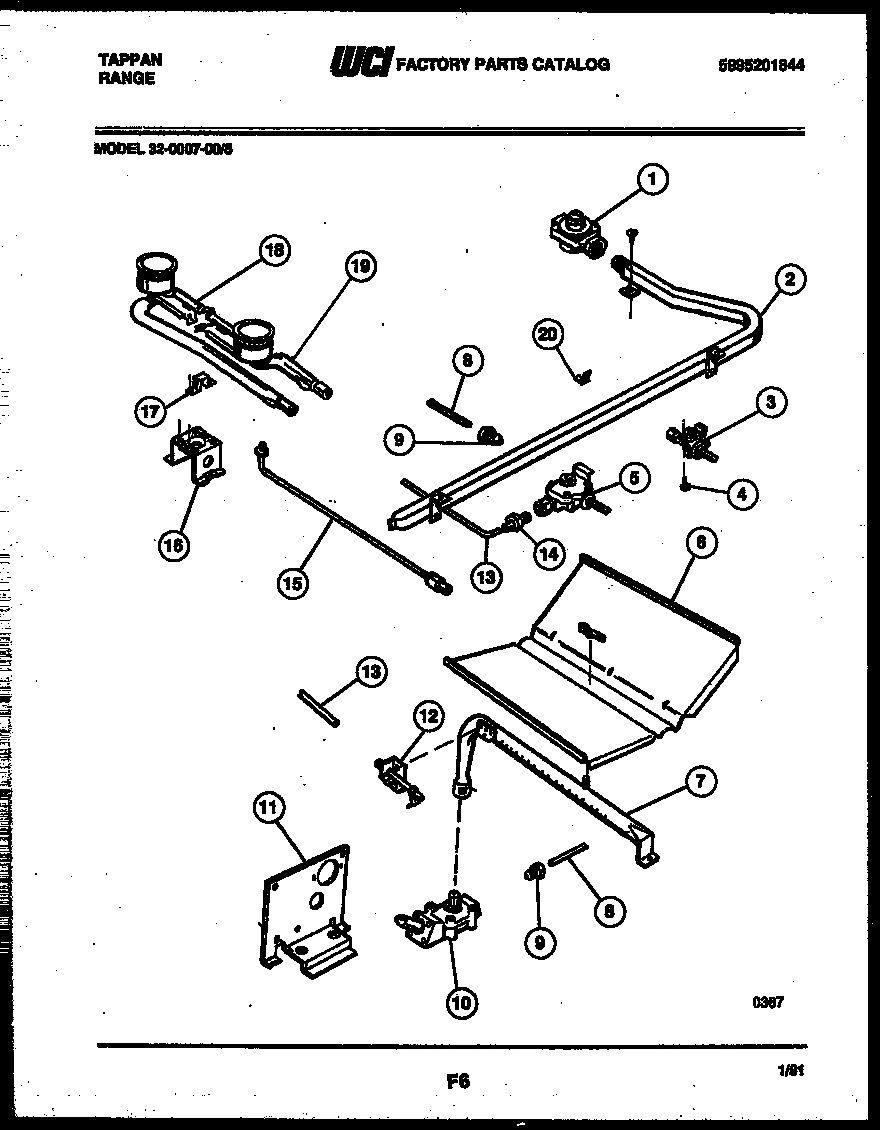

06 - BURNER, MANIFOLD AND GAS CONTROL

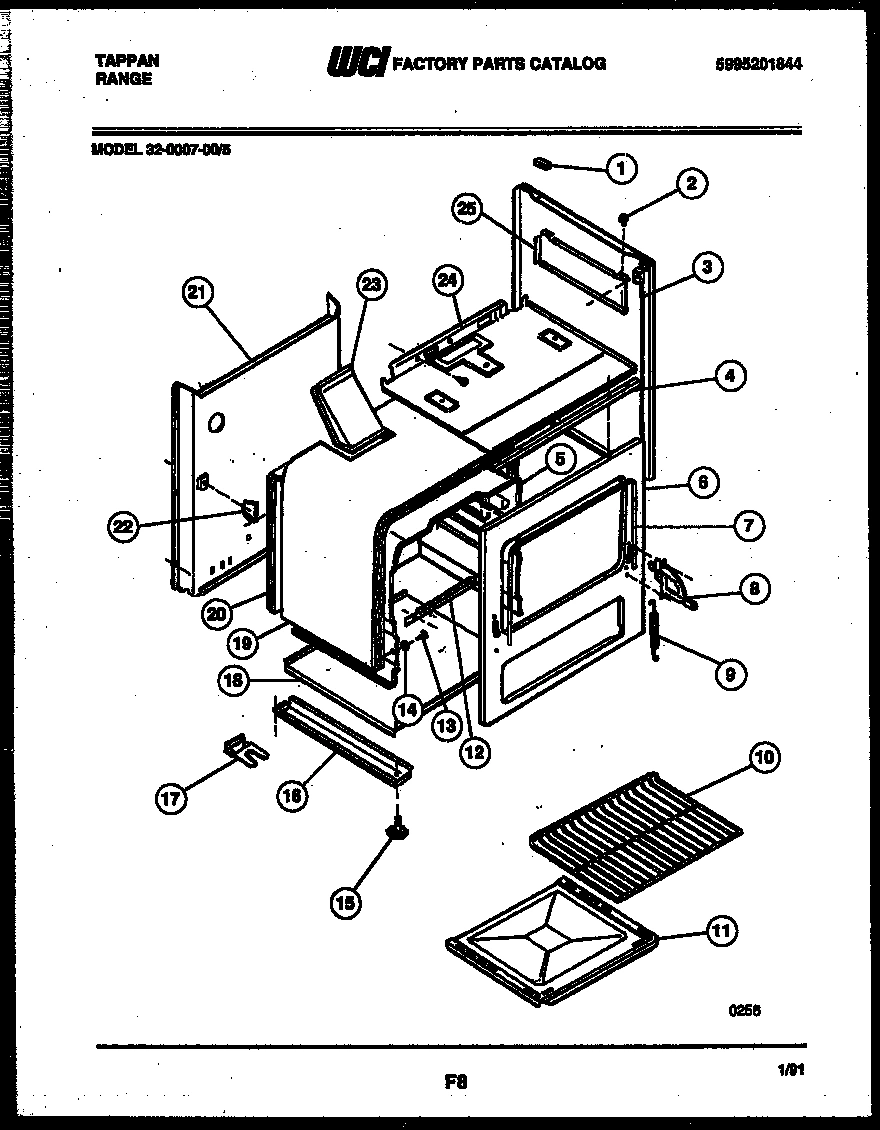

07 - BODY PARTS
Common parts from model Electrolux 32-0007-00-05 RANGE
*42381
WCI 08008009 WCI 08008009 Contact Us For Availability
*42381
WEIGHT-CEMENT (2) WCI 5303210891 Contact Us For Availability
*42381
RETAINER-COUNTER WEIGHT (2) WCI 5303210892 Contact Us For Availability
*42382
CLIP-B/S CORNER WCI 3131791 Contact Us For Availability
1
GRATE-TOP BURNER WCI 3131011 Contact Us For Availability
1
WCI 3017711 WCI 3017711 Contact Us For Availability
1
WCI 5303017712 WCI 5303017712 Contact Us For Availability
1
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
2
TOP-WHITE WCI 08014028 Contact Us For Availability
2
TOP-ALMOND WCI 5303131013 Contact Us For Availability
2
WCI 3009334 WCI 3009334 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
2
MANIFOLD WCI 3131056 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
WCI 3017628 WCI 3017628 Contact Us For Availability
3
WCI 3017629 WCI 3017629 Contact Us For Availability
3
WCI 5303131057 WCI 5303131057 Contact Us For Availability
3
PANEL BODYSIDE-LH/RH (WHITE) WCI 5303051061 Contact Us For Availability
3
PANEL BODYSIDE-LH/RH (ALMOND) WCI 5308014019 Contact Us For Availability
4
WCI 5303131018 WCI 5303131018 Contact Us For Availability
4
WCI 3205589 WCI 3205589 Contact Us For Availability
4
WCI 5303051040 WCI 5303051040 Contact Us For Availability
4
LINER WCI 3018698 Contact Us For Availability
4
BOLT VALVE MTG WCI 3204499 Contact Us For Availability
4
WCI 3051067 WCI 3051067 Contact Us For Availability
5
KNOB-TOP BURNER WCI 5308013898 Contact Us For Availability
5
WCI 3051009 WCI 3051009 Contact Us For Availability
5
WCI 3131025 WCI 3131025 Contact Us For Availability
5
WCI 5308013927 WCI 5308013927 Contact Us For Availability
5
OVEN LINER-SIDE RH WCI 3018284 Contact Us For Availability
5A
OVEN LINER-SIDE LH WCI 3018285 Contact Us For Availability
5B
OVEN LINER-TOP WCI 3018700 Contact Us For Availability
5C
OVEN LINER-BACK WCI 3018699 Contact Us For Availability
6
BRACE WCI 5308013296 Contact Us For Availability
6
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
6
WCI 3203621 WCI 3203621 Contact Us For Availability
7
WCI 3131027 WCI 3131027 Contact Us For Availability
7
WCI 3205529 WCI 3205529 Contact Us For Availability
7
WCI 5308013855 WCI 5308013855 Contact Us For Availability
7
WCI 5303051069 WCI 5303051069 Contact Us For Availability
8
SPACER HANDLE WCI 5303051041 Contact Us For Availability
8
TUBE OVEN SUPPLY WCI 5303131063 Contact Us For Availability
8A
CAM DOOR-RH WCI 5303204670 Contact Us For Availability
9
WCI 5308008085 WCI 5308008085 Contact Us For Availability
9
NUT-LOXIT (3/8) WCI 5303131064 Contact Us For Availability
9
SPRING CAM-LH/RH WCI 5303051079 Contact Us For Availability
10
WCI 5308013942 WCI 5308013942 Contact Us For Availability
10
RACK WCI 3016158 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11
SUPPORT SAFETY VALVE WCI 3131069 Contact Us For Availability
11
OVEN-BOTTOM WCI 3018697 Contact Us For Availability
11A
HINGE - LH WCI 5303131029 Contact Us For Availability
12
SPRING WCI 5303131030 Contact Us For Availability
12
WCI 3205598 WCI 3205598 Contact Us For Availability
12
WCI 3131038 WCI 3131038 Contact Us For Availability
13
TRACK ASSY-RH WCI 5303051055 Contact Us For Availability
13
TUBE-OVEN PILOT WCI 5303009490 Contact Us For Availability
13
WCI 08008037 WCI 08008037 Contact Us For Availability
13A
TRACK ASSY-LH WCI 5303051056 Contact Us For Availability
14
ROLLER WCI 5303051057 Contact Us For Availability
14
NUT-LOXIT WCI 3131074 Contact Us For Availability
14
WCI 3131040 WCI 3131040 Contact Us For Availability
15
LEVELING LEG WCI 318175510 No Longer Available
15
TUBE-PILOT WCI 5303131075 Contact Us For Availability
16
SUPPORT-TOP BURNER WCI 5303016870 Contact Us For Availability
16
RAIL-BASE RIGHT WCI 5303210255 Contact Us For Availability
16A
RAIL-BASE LEFT WCI 5303210256 Contact Us For Availability
17
SHIELD-PILOT WCI 3131078 Contact Us For Availability
17
ANTI-TIP BRKT WCI 3934059 Contact Us For Availability
18
Burner,top ,rear WCI 5303131079 No Longer Available
18
MAIN BOTTOM WCI 3131042 Contact Us For Availability
19
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
19
INSULATION WRAPPER WCI 3131043 Contact Us For Availability
20
WCI 5300009126 WCI 5300009126 Contact Us For Availability
20
WCI 3131044 WCI 3131044 Contact Us For Availability
21
WCI 5303212609 WCI 5303212609 Contact Us For Availability
22
Support,oven rear WCI 3051096 Contact Us For Availability
23
VENT BOX WCI 3017173 Contact Us For Availability
24
BURNER BOX WCI 3017573 Contact Us For Availability
25
SHIELD-BURNER BOX RH WCI 5303131053 Contact Us For Availability
25A
SHIELD-BURNER BOX LH WCI 5303131054 Contact Us For Availability
× ![]()
