Model Whirlpool 31MN-5KX GAS RANGE – Common Parts & Diagrams

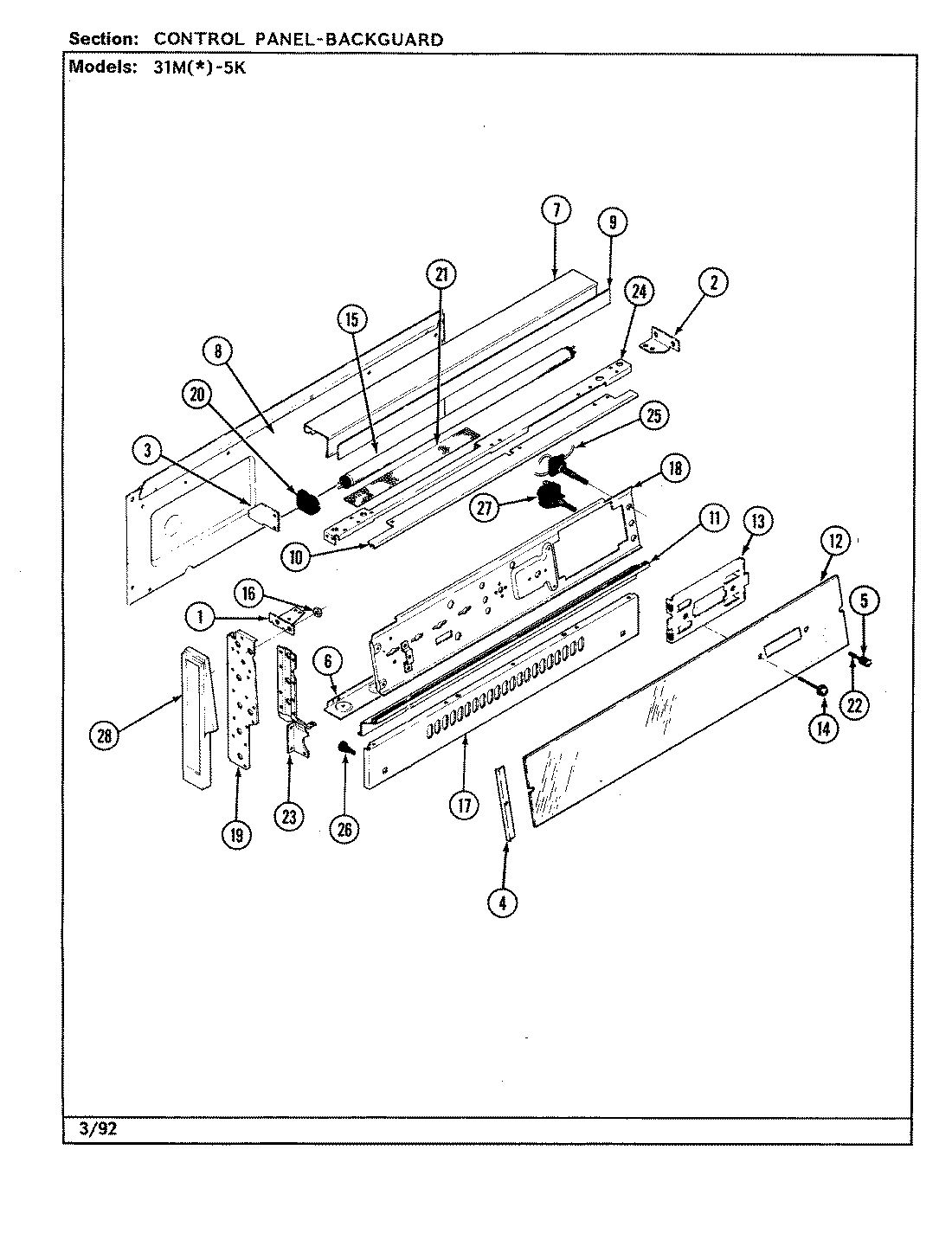

02 - CONTROL PANEL

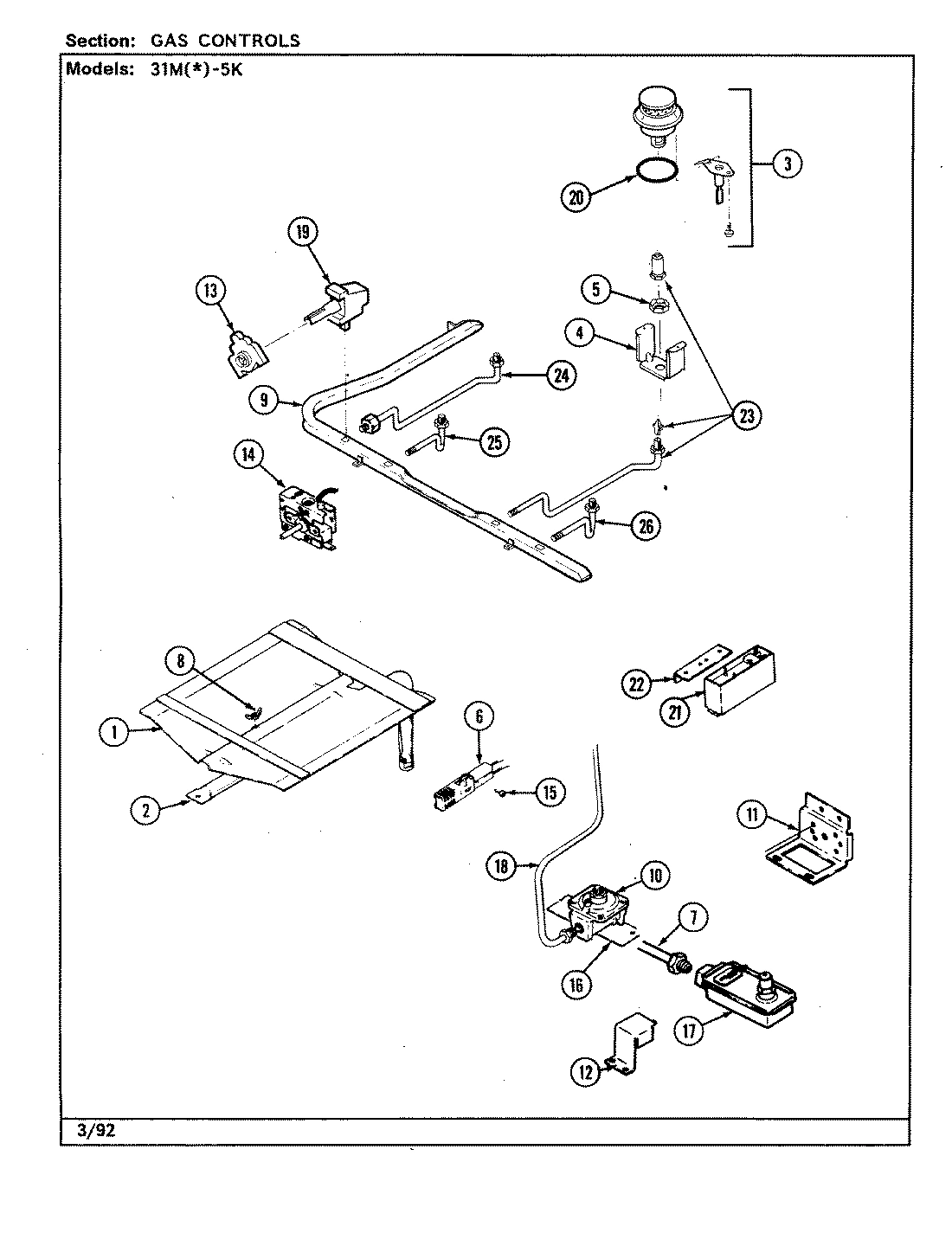

04 - GAS CONTROLS

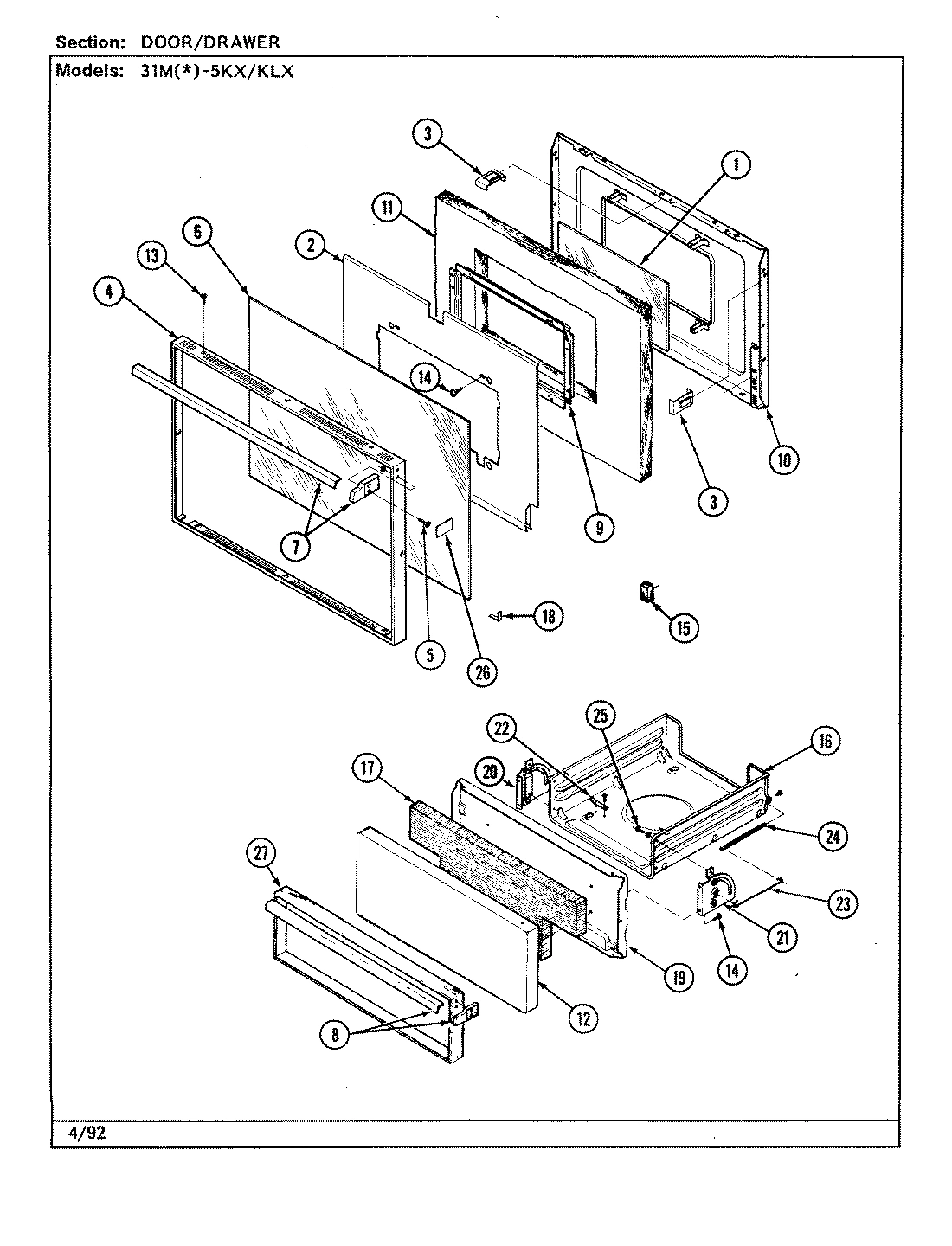

03 - DOOR/DRAWER (31Mx-5KX, 31Mx-5KLX)

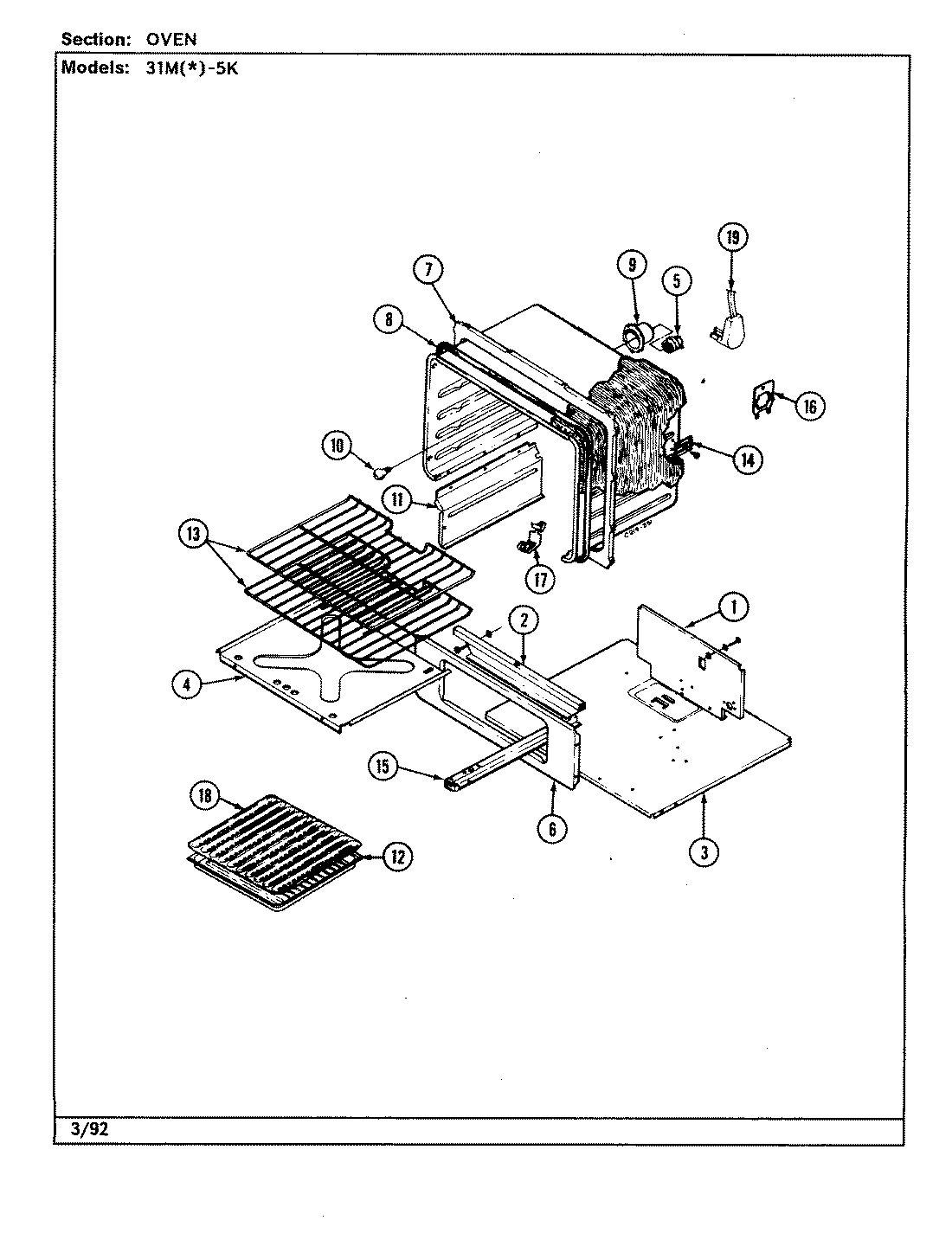

05 - OVEN

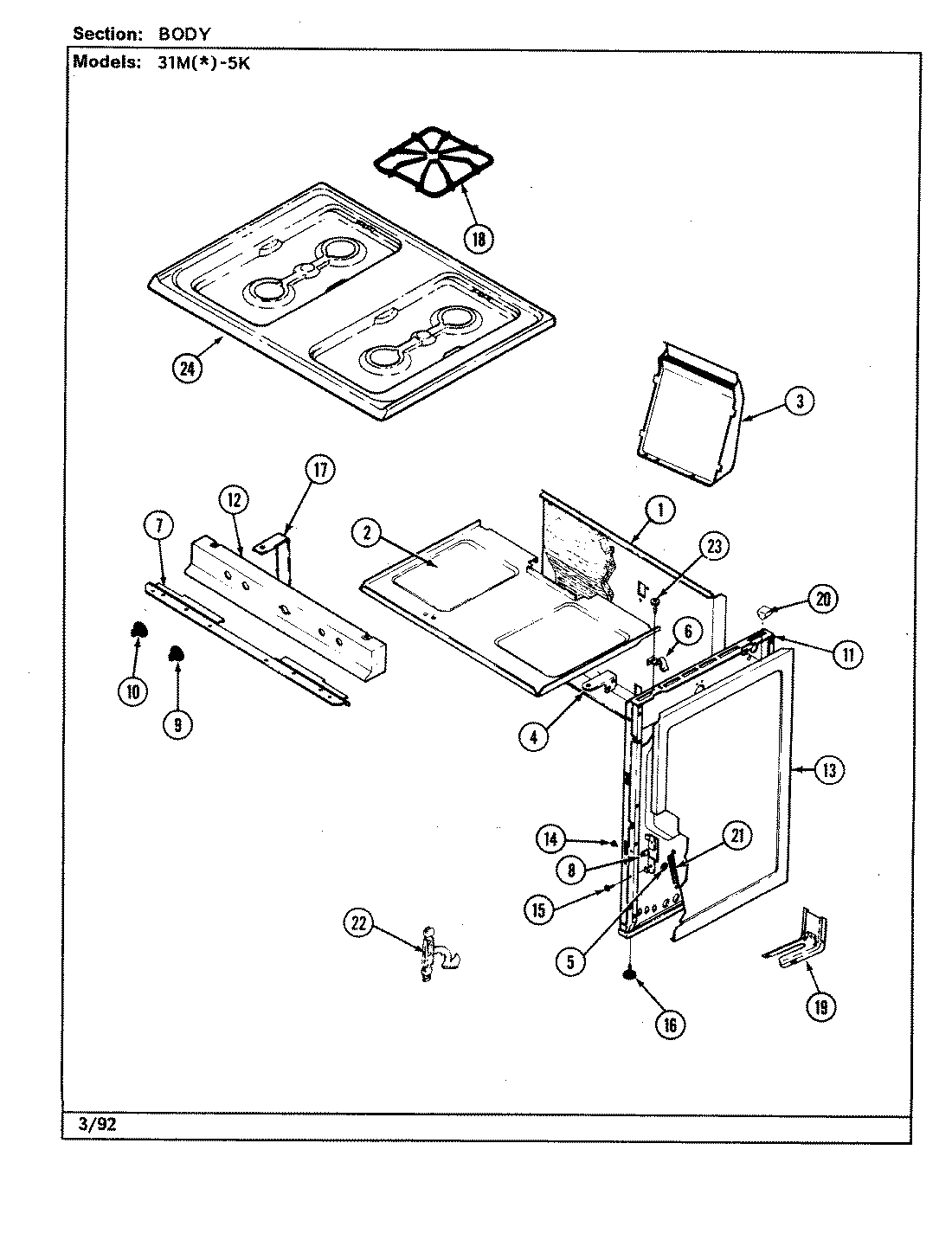

01 - BODY
Common parts from model Whirlpool 31MN-5KX GAS RANGE
1
BRACKET (LEFT) WPL 3801F00234 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
1
BACK, BROIL WPL 4002F12345 Contact Us For Availability
1
COVER, BKGD BROIL SECTION WPL 4005F27945 Contact Us For Availability
1
BACK, MAIN WPL 4002F16580 Contact Us For Availability
2
(RIGHT) WPL 3801F10934 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
2
BAFFLE, OVEN FRONT WPL 3601W12419 Contact Us For Availability
2
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
2
BOX, BURNER WPL 4011F19680 Contact Us For Availability
3
BRACKET, LAMP WPL 3801F00651 Contact Us For Availability
3
BURNER, SEALED WPL 3412D01509 Contact Us For Availability
3
BURNER, SEALED (BLACK) WPL 3412D01609 Contact Us For Availability
3
WIRE, IGNITER WPL 5111A36060 Contact Us For Availability
3
WIRE IGNITER WPL 5111A36160 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
3
IGNITER TOP BURNER WPL 7432P07260 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BOTTOM, BROILER WPL 4011F16180 Contact Us For Availability
3
BOX, FLUE WPL 4006W02680 Contact Us For Availability
4
TRIM, GLASS WPL 7720P06160 Contact Us For Availability
4
SUPPORT, ORIFICE FITTING WPL 3807F37845 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F01216 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F01221 Contact Us For Availability
4
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
4
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
5
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
5
PALNUT WPL 7103P11960 Contact Us For Availability
5
SCREW WPL 7101P30560 Contact Us For Availability
5
COVER WPL 4005F08880 Contact Us For Availability
5
RECEPTACLE, OVEN LIGHT WPL 7408P03460 Contact Us For Availability
5
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
6
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
6
COVER, WIRE WPL 4005F30451 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
6
FRAME, LOWER OVEN WPL 2201F07419 Contact Us For Availability
6
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
7
COVER, BKGD LAMP WPL 7724P01760 Contact Us For Availability
7
TUBE, REGULATOR WPL 7506P09860 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED WPL W10124350 Contact Us For Availability
7
FRONT, BURNER BOX WPL 4012F02180 Contact Us For Availability
7
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
8
COVER WPL 4005F38480 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
8
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
8
SEAL WPL 7212P00160 Contact Us For Availability
8
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
8
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
8
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
9
TRIM WPL 7728P05360 Contact Us For Availability
9
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
9
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
9
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
10
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P04860 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W15416 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W15419 Contact Us For Availability
10
BULB, OVEN WPL 7407P02660 Contact Us For Availability
10
KNOB, VALVE WPL 7733P06560 Contact Us For Availability
11
EXTRUSION WPL 7706P09760 Contact Us For Availability
11
SUPPORT WPL 3807F12034 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F02160 Contact Us For Availability
11
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
11
LINING, INNER SIDE WPL 4009W07880 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
11
GROMMET, NYLON WPL 8008P01260 Contact Us For Availability
12
GLASS, BACKGUARD WPL 7910P08460 Contact Us For Availability
12
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
12
PANEL BROILER DR WHT WPL 2403F01471 Contact Us For Availability
12
PAN, BROIL WPL 3401F00419 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
12
SCREW WPL 7118P00460 Contact Us For Availability
12
CONTROL PANEL WPL Y7712P14360 Contact Us For Availability
13
CLOCK WPL 7602P09760 Contact Us For Availability
13
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
13
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
13
RACK, OVEN WPL 7801P03060 Contact Us For Availability
14
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
14
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
14
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
14
PIN, HINGE WPL 7113P00260 Contact Us For Availability
15
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
15
SCREW WPL 7101P11260 Contact Us For Availability
15
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
15
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
15
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
15
SCREW WPL 7101P11560 Contact Us For Availability
16
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
16
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
16
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
16
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
16
SCREW WPL 7101P07660 Contact Us For Availability
16
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
16
BRACKET WPL 3801F02145 Contact Us For Availability
16
COVER, DISCONNECT WPL 4005F27745 Contact Us For Availability
16
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
17
PANEL BKGD LOWER WPL 2620W05309 Contact Us For Availability
17
VALVE, OVEN WPL 7501P10860 Contact Us For Availability
17
INSULATION WPL 7002P00260 Contact Us For Availability
17
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
17
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
18
PLATE, SWITCH MOUNTING WPL 3605F14480 Contact Us For Availability
18
TUBE, MANIFOLD FEED WPL 7506P10060 Contact Us For Availability
18
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
18
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
19
SCREW WPL 7101P05860 Contact Us For Availability
19
SCREW WPL 7101P07460 Contact Us For Availability
19
PLATE, CONTROL PANEL END (LFT) WPL 3605F00680 Contact Us For Availability
19
PLATE WPL 3605F00880 Contact Us For Availability
19
SCREW WPL 7101P29660 Contact Us For Availability
19
VALVE, TOP BURNER WPL 7502P22060 Contact Us For Availability
19
LINING, BROILER DRAWER WPL 2404F02119 Contact Us For Availability
19
HARNESS SUPPLY WPL 5120A00860 Contact Us For Availability
19
HARNESS, LOWER WPL 5185D25360 Contact Us For Availability
19
CORD, POWER WPL 7402P02460 Contact Us For Availability
19
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
19
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
19
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
20
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
20
RECEPTACLE, LAMP WPL 7408P00560 Contact Us For Availability
20
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
20
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
20
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
21
SHIELD, OV LAMP RECPT WPL 3604F07980 Contact Us For Availability
21
MODULE, SPARK WPL 7431P02160 Contact Us For Availability
21
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
21
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
22
SHAFT, BIT GENERATOR WPL 8312P01560 Contact Us For Availability
22
BRACKET, SPARK MODULE WPL 3801F27045 Contact Us For Availability
22
BRACKET, SPARK MODULE WPL 3801F30345 Contact Us For Availability
22
CATCH WPL 8002P00160 Contact Us For Availability
22
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
23
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
23
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
23
FITTING, ORIFICE (REAR 9,000) WPL 7507P06960 Contact Us For Availability
23
SCREW WPL 7101P06160 Contact Us For Availability
23
LINK, BROILER WPL 7807P00160 Contact Us For Availability
24
SUPPORT BKGD LAMP WPL 3807F39180 Contact Us For Availability
24
FITTING, ORIFICE (REAR 12,000) WPL 7507P09260 Contact Us For Availability
24
SPRING WPL 7803P01460 Contact Us For Availability
24
TRIM, MAIN TOP (LEFT) WPL 7746P02560 Contact Us For Availability
24
TRIM, MAIN TOP (RIGHT) WPL 7746P02660 Contact Us For Availability
25
SWITCH PUSH ASSY WPL 5700A28460 Contact Us For Availability
25
FITTING, ORIFICE (FRT 9,000) WPL 7507P07360 Contact Us For Availability
25
SCREW WPL 7101P11460 Contact Us For Availability
26
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
26
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
26
FITTING, ORIFICE (FRT 12,000) WPL 7507P07160 Contact Us For Availability
26
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
27
SWITCH, OVEN LAMP WPL 7403P10460 Contact Us For Availability
27
FRAME, BRL DR WPL 7706P18260 Contact Us For Availability
28
HARNESS, WIRE UPPER WPL 5180A09760 Contact Us For Availability
28
WASHER, NYLON WPL 7109P01060 Contact Us For Availability
28
TRIM, END CAP (LT) WPL 7726P02960 Contact Us For Availability
28
TRIM, BKGD END (RT) WPL 7726P03060 Contact Us For Availability
× ![]()
