Model Whirlpool 31JN-2KX GAS RANGE – Common Parts & Diagrams

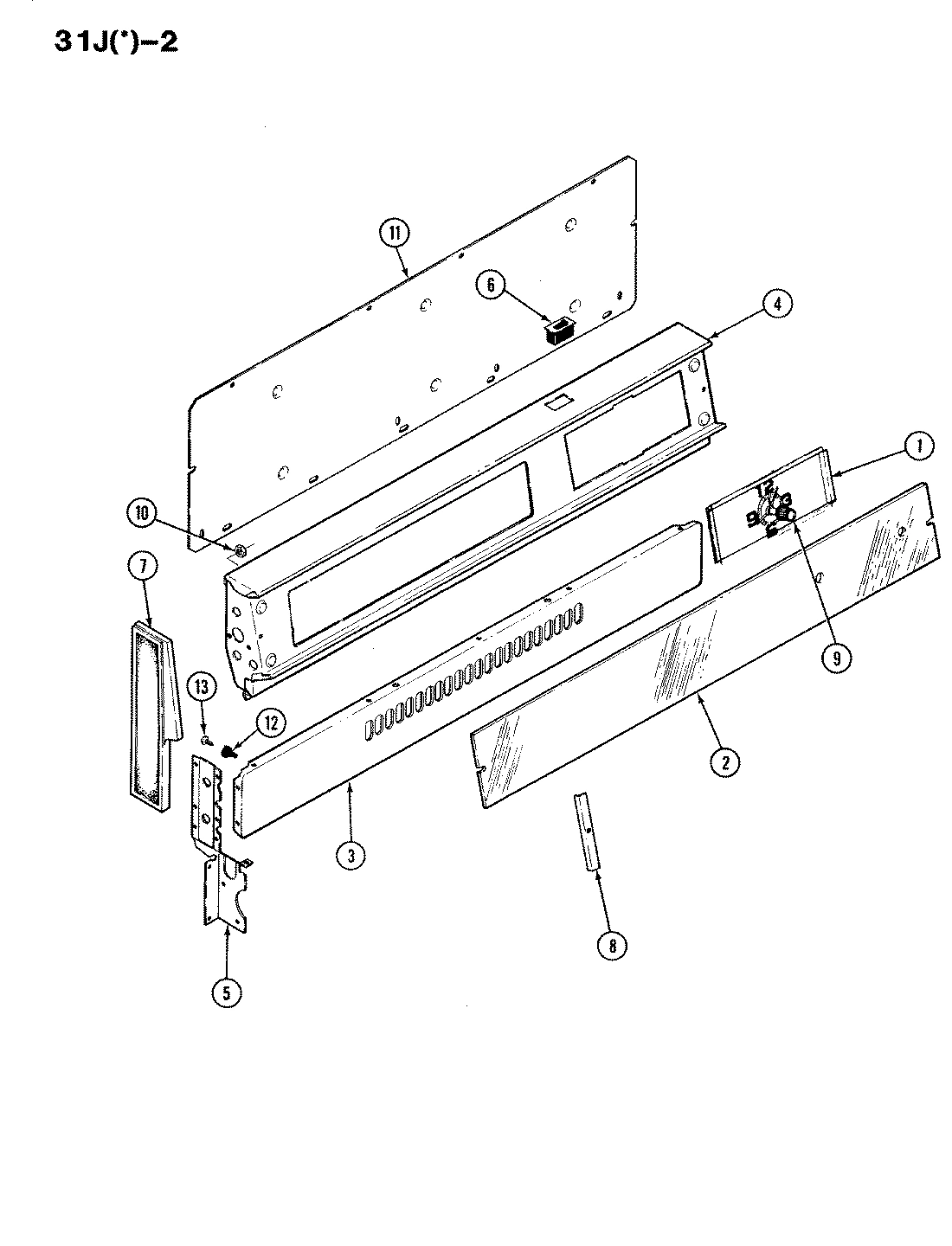

02 - CONTROL PANEL
04 - DOOR

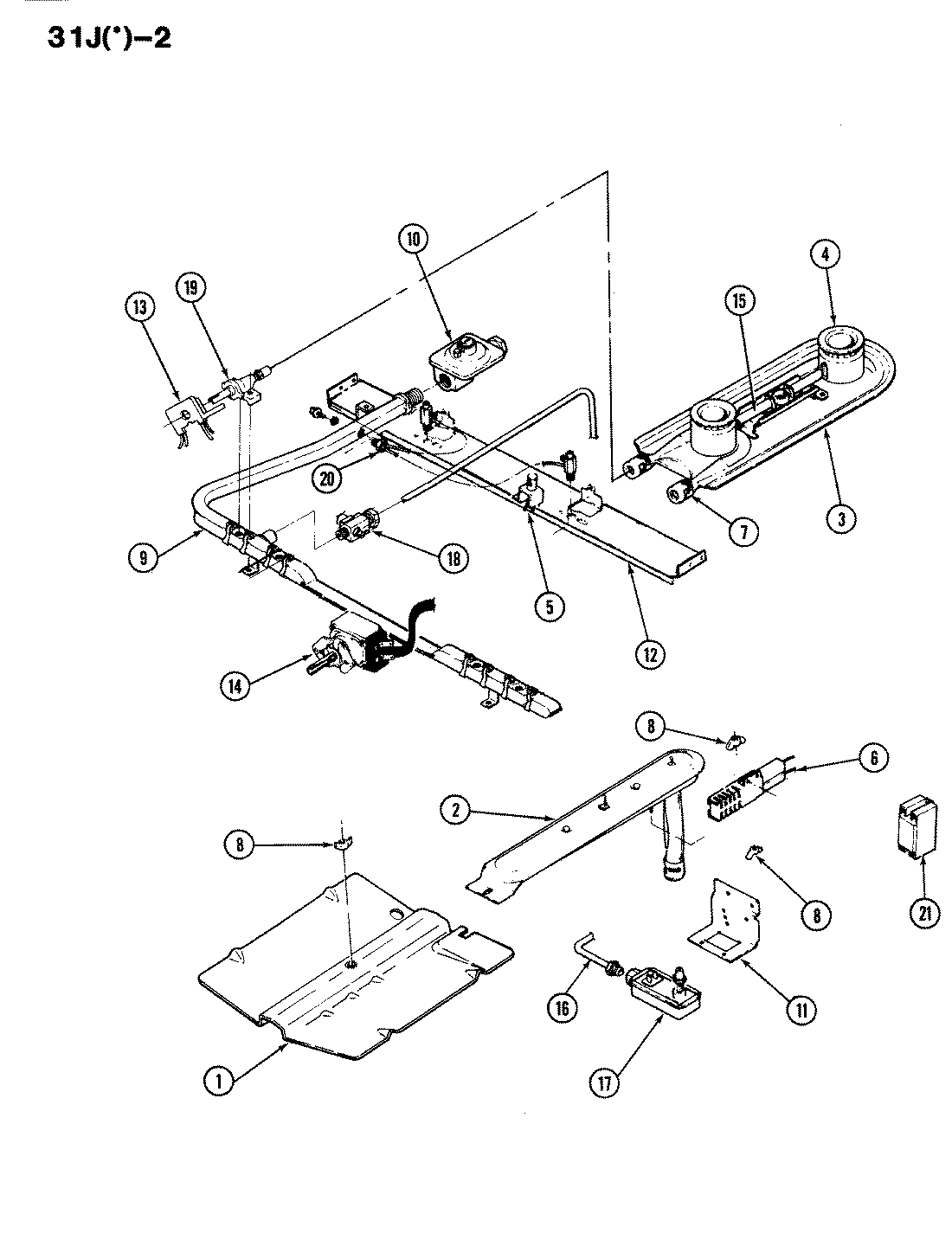

03 - CONTROL SYSTEM

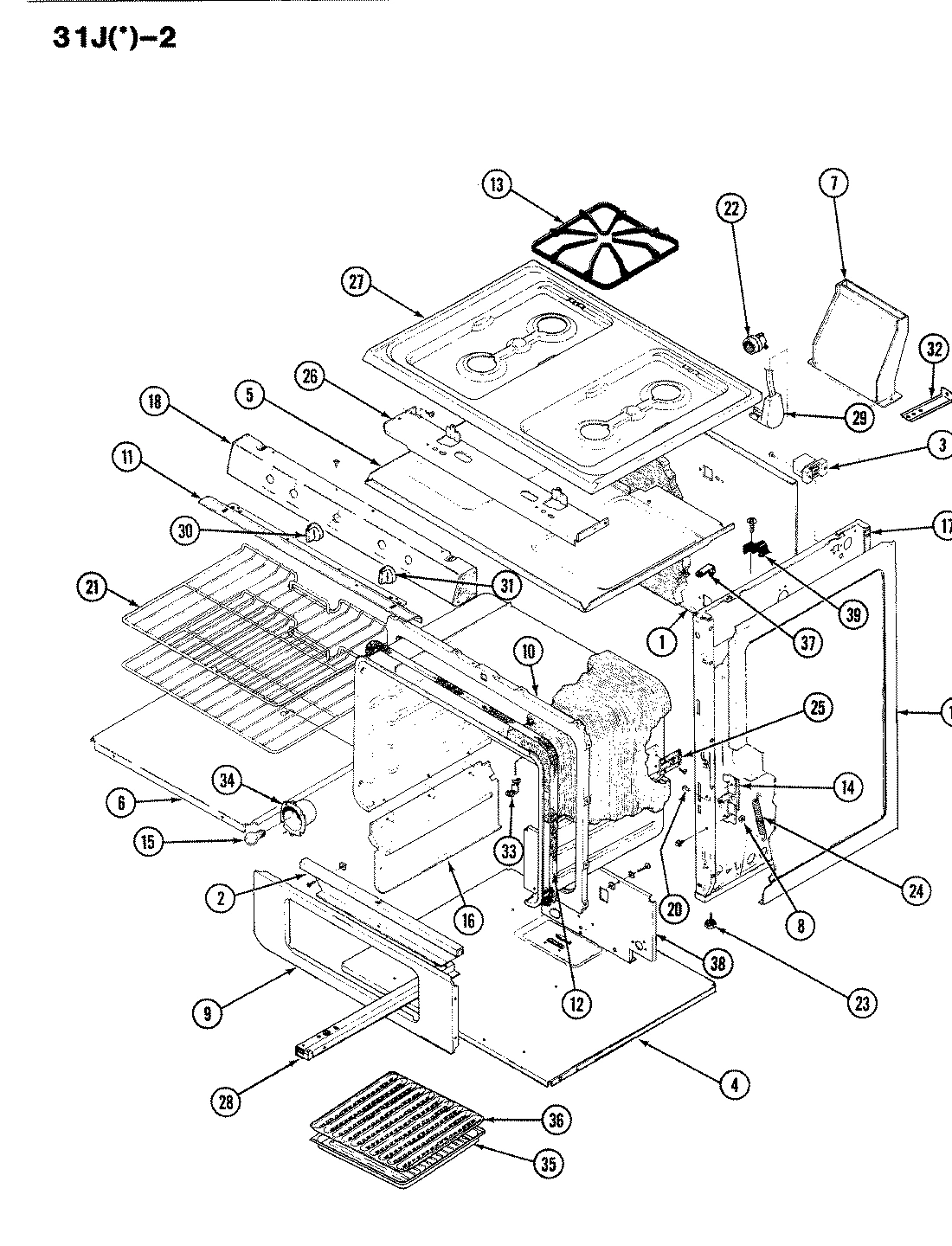

01 - BODY
Common parts from model Whirlpool 31JN-2KX GAS RANGE
1
CLOCK, INT. TIMER WPL 7602P09160 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
1
BACK, MAIN WPL 4002F09480 Contact Us For Availability
1
BACK, MAIN WPL 4002F16580 Contact Us For Availability
2
GLASS, BACKGUARD WPL 7910P10360 Contact Us For Availability
2
GLASS, BKGD WPL 7910P13660 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
BAFFLE, OVEN FRONT WPL 3601W12419 Contact Us For Availability
2
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
PANEL, BACKGUARD LOWER WPL 2620W01823 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
3
BURNER, TOP WPL 3412A00419 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
BRACKET WPL 3801F02145 Contact Us For Availability
3
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
PANEL, BACKGUARD WHITE WPL 2601W19981 Contact Us For Availability
4
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
BOTTOM, BROILER WPL 4011F16180 Contact Us For Availability
5
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
5
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
6
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F01223 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
7
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
7
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
7
MIXER, AIR WPL 3411F00434 Contact Us For Availability
7
BOX, FLUE WPL 4006W02680 Contact Us For Availability
8
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
8
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
9
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
9
PIPE, MANIFOLD WPL 7513P10160 Contact Us For Availability
9
PIPE, MANIFOLD WPL 7513P13360 Contact Us For Availability
9
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
10
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
10
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE FRAME, UPPER (N WPL W10124350 Contact Us For Availability
10
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
10
MIXER, AIR WPL 3411F00635 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
11
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
11
LINING, OVEN DOOR WPL 2402W15419 Contact Us For Availability
11
SUPPORT WPL 3807F12034 Contact Us For Availability
11
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
12
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
12
SEAL WPL 7212P00160 Contact Us For Availability
13
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
13
SWITCH, TOP BURNER WPL 7403P10760 Contact Us For Availability
13
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
13
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
13
SWITCH WPL 7403P25860 Contact Us For Availability
13
SWITCH WPL 7403P25960 Contact Us For Availability
13
SWITCH, TOP IGNITOR WPL 7403P28260 Contact Us For Availability
13
SWITCH, IGNITER WPL 7403P28560 Contact Us For Availability
13
GRATE WPL 2003W00100 Contact Us For Availability
13
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
14
SCREW WPL 7101P12360 Contact Us For Availability
14
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
14
THERMOSTAT WPL 7404P06360 Contact Us For Availability
14
THERMOSTAT WPL 7515P00860 Contact Us For Availability
14
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
14
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
15
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
15
BULB, OVEN WPL 7407P02660 Contact Us For Availability
16
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
16
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
17
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
17
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
17
VALVE, OVEN WPL 7501P10860 Contact Us For Availability
17
LINING, INNER SIDE WPL 4009W05980 Contact Us For Availability
17
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
18
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
18
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
18
PANEL, MANIFOLD (BLK) WPL 7712A05860 Contact Us For Availability
19
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
19
SPRING WPL 7803P00260 Contact Us For Availability
19
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
19
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
19
VALVE WPL 7502P22260 Contact Us For Availability
19
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
19
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
20
SCREW WPL 7101P07660 Contact Us For Availability
20
3/16 X 56 TUBING WPL 0931202 Contact Us For Availability
20
PIN, HINGE WPL 7113P00260 Contact Us For Availability
21
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
21
RACK, OVEN WPL 7801P03060 Contact Us For Availability
22
SCREW WPL 7101P05860 Contact Us For Availability
22
COVER, MODULE WPL 4005F16780 Contact Us For Availability
22
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
23
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
24
CATCH WPL 8002P00160 Contact Us For Availability
24
SPRING, OV DR WPL 7803P05560 Contact Us For Availability
25
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
25
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
25
SCREW WPL 7101P11460 Contact Us For Availability
25
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
26
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
26
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
26
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
26
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
26
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
27
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
27
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
27
TOP, MAIN WPL 2001F03581 Contact Us For Availability
28
LINING, BROILER WPL 2404F02123 Contact Us For Availability
28
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
28
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
29
LINK, BROILER WPL 7807P00160 Contact Us For Availability
29
CORD, POWER WPL 7402P01460 Contact Us For Availability
30
SPRING WPL 7803P01460 Contact Us For Availability
30
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
31
KNOB, VALVE (BLK) WPL 7733P02760 Contact Us For Availability
32
SCREW WPL 7101P06160 Contact Us For Availability
32
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
32
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
32
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
33
PANEL BROILER DR WHT WPL 2403F01471 Contact Us For Availability
33
FRAME, BRL DR WPL 7706P18260 Contact Us For Availability
33
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
34
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
35
PAN, BROIL WPL 3401F00423 Contact Us For Availability
35
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
36
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
36
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
37
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
37
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
38
BACK, BROILER WPL 4002F12445 Contact Us For Availability
39
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
× ![]()
