Model Whirlpool 31HN-92KW-EV GAS RANGE – Common Parts & Diagrams

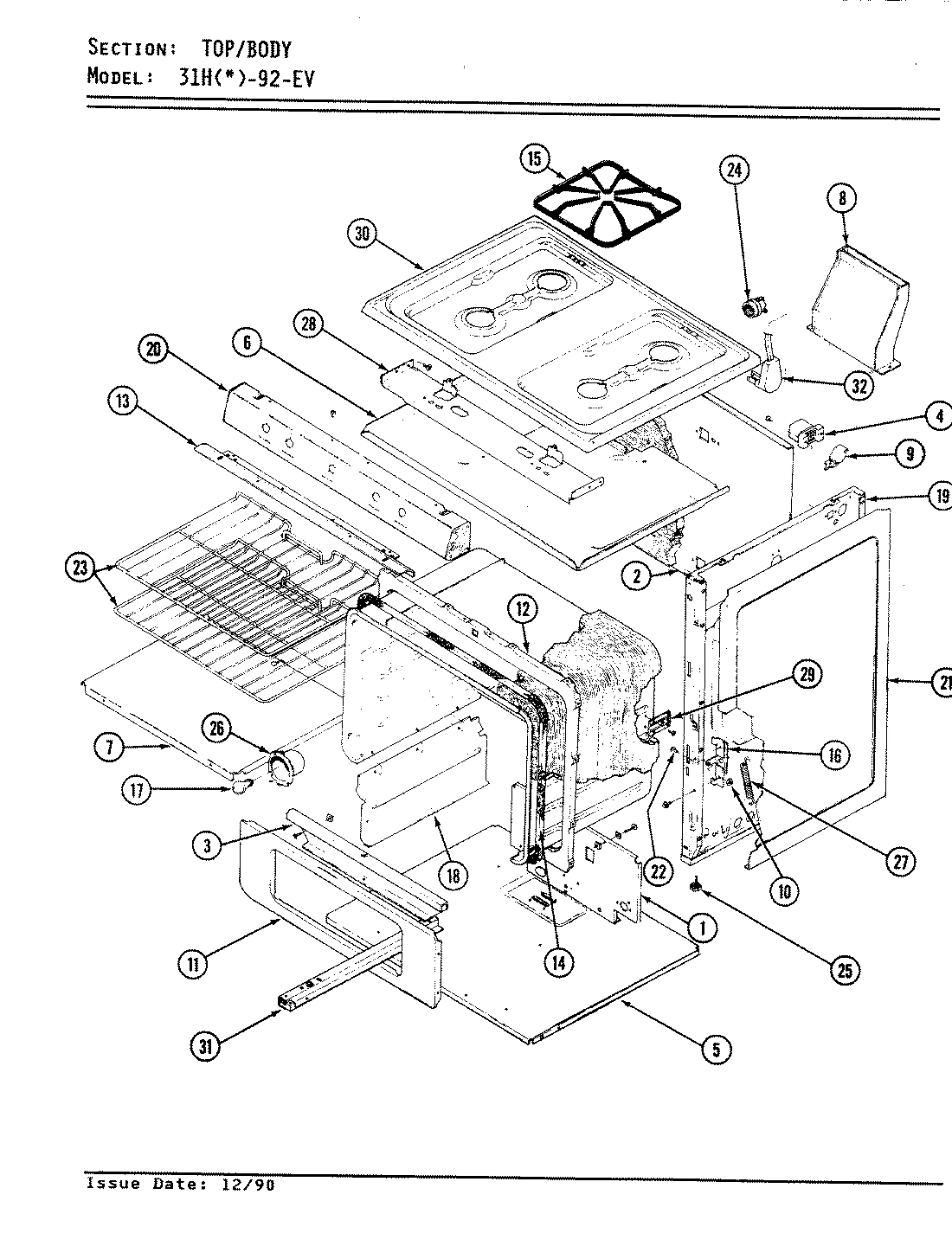

04 - TOP ASSEMBLY/BODY

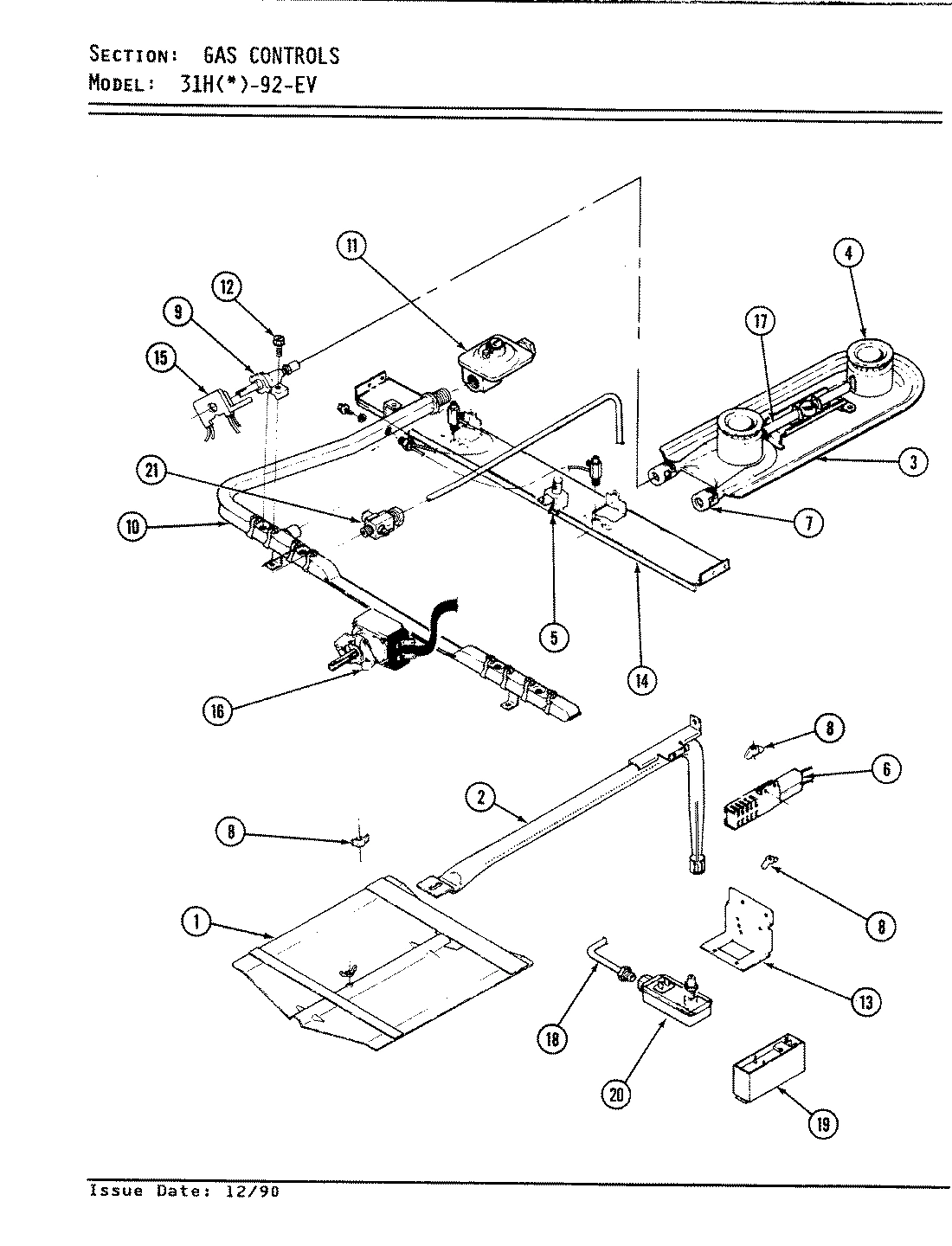

03 - GAS CONTROLS

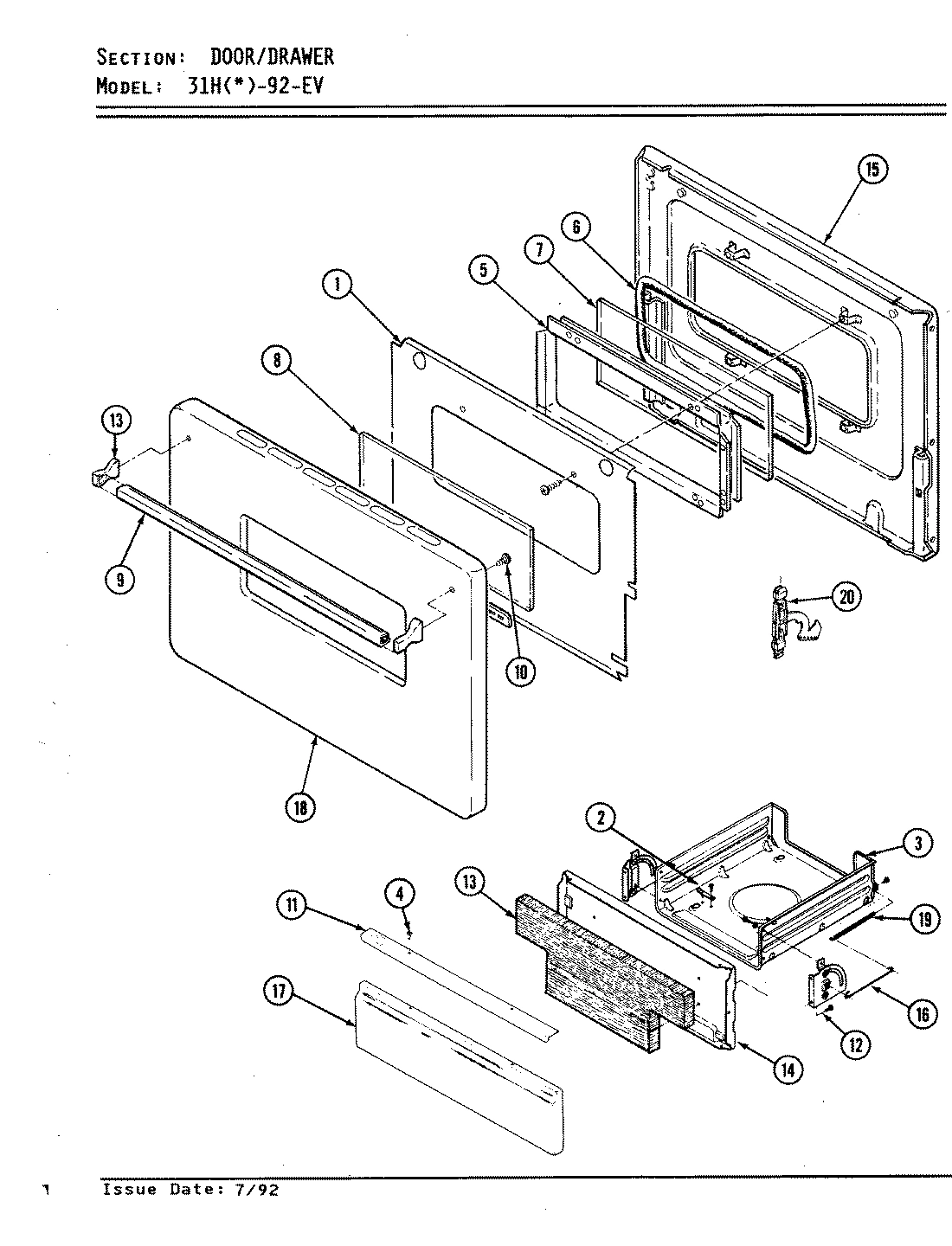

02 - DOOR/DRAWER

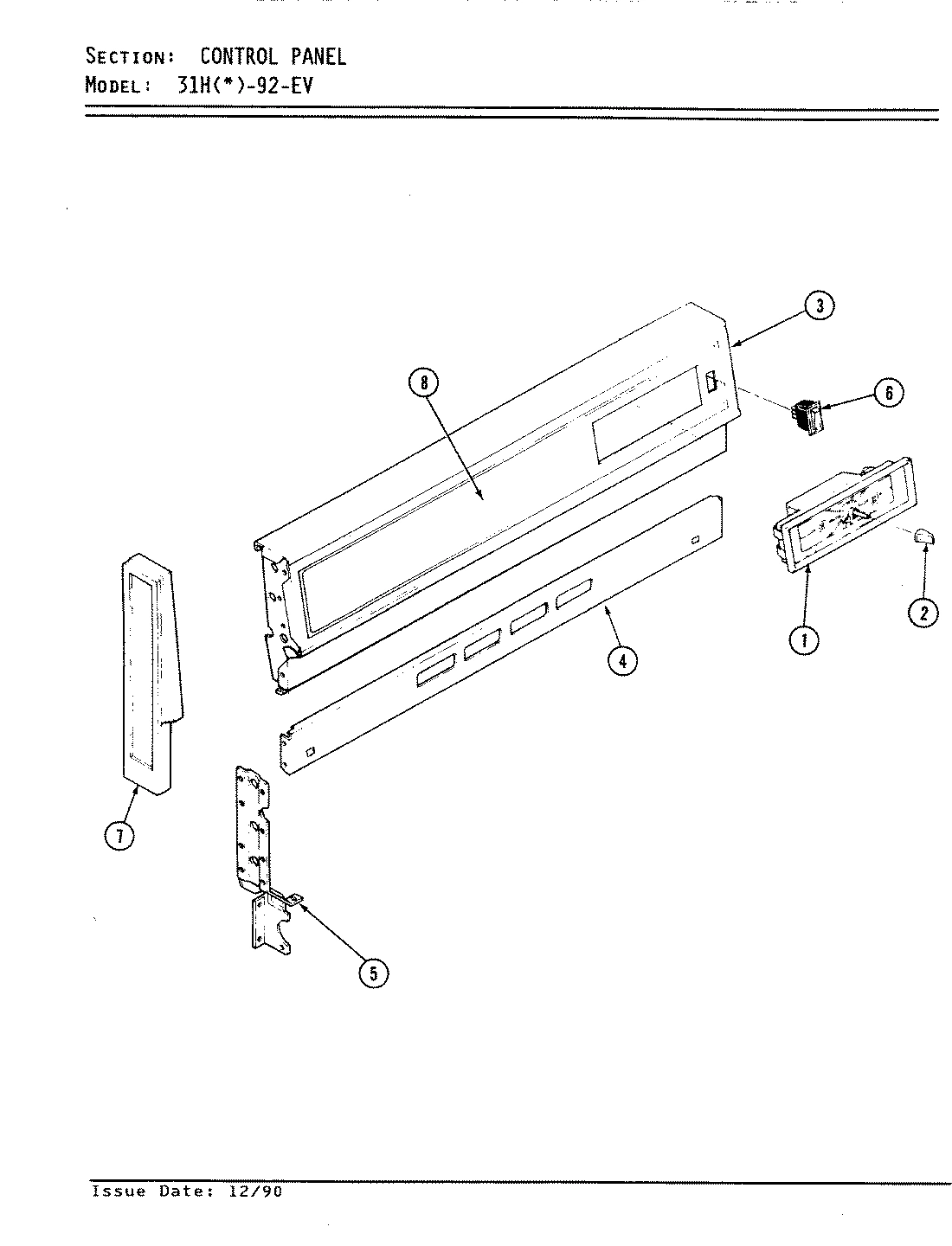

01 - CONTROL PANEL
Common parts from model Whirlpool 31HN-92KW-EV GAS RANGE
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
COVER, BKGD. WIRE WPL 4005F07180 Contact Us For Availability
1
CLOCK WPL 7602P10260 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10860 Contact Us For Availability
2
BACK, MAIN WPL 4002F14480 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
SCREW WPL 7101P07660 Contact Us For Availability
2
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
2
KNOB, CLOCK (WHT) WPL 7711P41960 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
BURNER, TOP WPL 3412A00419 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
3
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
3
BKGD ASSY, WHITE WPL 2601W28281 Contact Us For Availability
4
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
4
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
4
BLOCK WPL 7401P01860 Contact Us For Availability
4
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
4
COVER, WIRE WPL 4005F30451 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
4
PANEL, BACKGUARD (LOWER) WPL 2620W05319 Contact Us For Availability
4
PANEL, LOWER BKGD. (BLK) WPL 2620W05323 Contact Us For Availability
4
SCREW WPL 7101P05860 Contact Us For Availability
5
BOTTOM, BROILER WPL 4011F16180 Contact Us For Availability
5
SCREW WPL 7118P00460 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
5
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
6
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
6
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F01223 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
7
BOWL, DRIP (CHR) WPL 7725P02060 Contact Us For Availability
7
MIXER, AIR WPL 3411F00434 Contact Us For Availability
7
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
7
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
7
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
8
BRACKET WPL 3801F02145 Contact Us For Availability
8
BOX, FLUE WPL 4006W02680 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
GLASS, DOOR (OUTER) WPL 7902P32660 Contact Us For Availability
8
TRIM, BACKGUARD INSERT WPL 7703P24660 Contact Us For Availability
9
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
9
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
9
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
9
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
9
SCREW WPL 7101P06160 Contact Us For Availability
9
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
9
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
9
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
9
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
9
VALVE WPL 7502P22260 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
10
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
10
RACEWAY, WIRE WPL 3830F00680 Contact Us For Availability
10
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P10160 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P13360 Contact Us For Availability
10
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
11
FRONT, FRAME OVEN LOWER WPL 2201F03425 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
11
HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE FRAME, UPPER (N WPL W10124350 Contact Us For Availability
12
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
12
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
12
SCREW WPL 7101P29660 Contact Us For Availability
12
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
12
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
13
FRONT, BURNER BOX WPL 4012F02180 Contact Us For Availability
13
SUPPORT WPL 3807F12034 Contact Us For Availability
13
INSULATION WPL 7002P00260 Contact Us For Availability
13
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
14
SEAL WPL 7212P00160 Contact Us For Availability
14
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
14
LINING, BROILER DRAWER WPL 2404F02119 Contact Us For Availability
14
LINING, BROILER WPL 2404F02123 Contact Us For Availability
15
GRATE WPL 2003W00100 Contact Us For Availability
15
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
15
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
15
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
15
SWITCH, TOP BURNER WPL 7403P10760 Contact Us For Availability
15
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
15
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
15
SWITCH WPL 7403P25960 Contact Us For Availability
15
SWITCH, IGNITER WPL 7403P28560 Contact Us For Availability
15
LINING, OVEN DOOR WPL 2402W15419 Contact Us For Availability
15
LINING, DOOR WPL 2402W15423 Contact Us For Availability
16
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
16
KNOB, THERMOSTAT WPL 7731P04460 Contact Us For Availability
16
KNOB, VALVE (WHT) WPL 7733P04660 Contact Us For Availability
16
SHIELD, THEMOSTAT WPL 3604F03051 Contact Us For Availability
16
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
16
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
16
LINK, BROILER WPL 7807P00160 Contact Us For Availability
17
BULB, OVEN WPL 7407P02660 Contact Us For Availability
17
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
17
PANEL, DRAWER (WHT) WPL 2416F02571 Contact Us For Availability
18
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
18
TUBING, 3/8`` X 54.5`` WPL 3414F04944 Contact Us For Availability
18
PANEL, DOOR (WHT) WPL 2401F04271 Contact Us For Availability
18
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
19
PAN, BROIL WPL 3401F00423 Contact Us For Availability
19
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
19
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
19
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
19
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
19
SCREW WPL 7101P00360 Contact Us For Availability
19
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
19
SPRING WPL 7803P01460 Contact Us For Availability
20
PANEL, MANIFOLD (WHITE) WPL 7712P11360 Contact Us For Availability
20
SCREW WPL 7101P11260 Contact Us For Availability
20
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
20
VALVE, OVEN WPL 7501P10860 Contact Us For Availability
20
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
20
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
21
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
21
SLEEVE WPL 7214P00360 Contact Us For Availability
21
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
22
PIN, HINGE WPL 7113P00260 Contact Us For Availability
23
RACK, OVEN WPL 7801P03060 Contact Us For Availability
24
RETAINER WPL 3804F01050 Contact Us For Availability
24
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
25
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
26
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
26
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
29
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
30
TOP, MAIN WPL 2001F03581 Contact Us For Availability
31
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
31
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
32
CORD, POWER WPL 7402P01460 Contact Us For Availability
33
BLOCK, DISCONNECT WPL 7401P01360 Contact Us For Availability
× ![]()
