Model Whirlpool 31HB-3KX GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

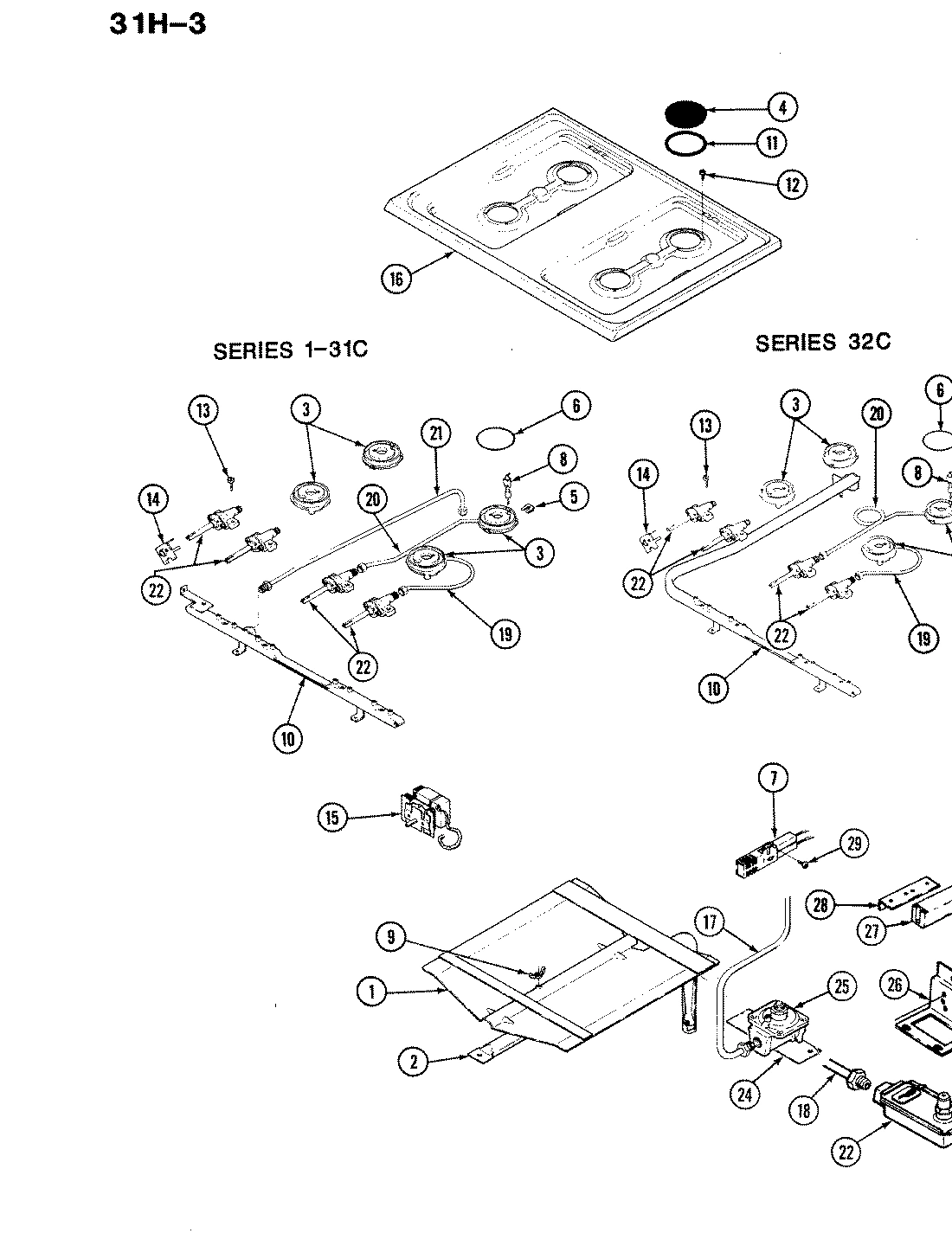

03 - CONTROL SYSTEM

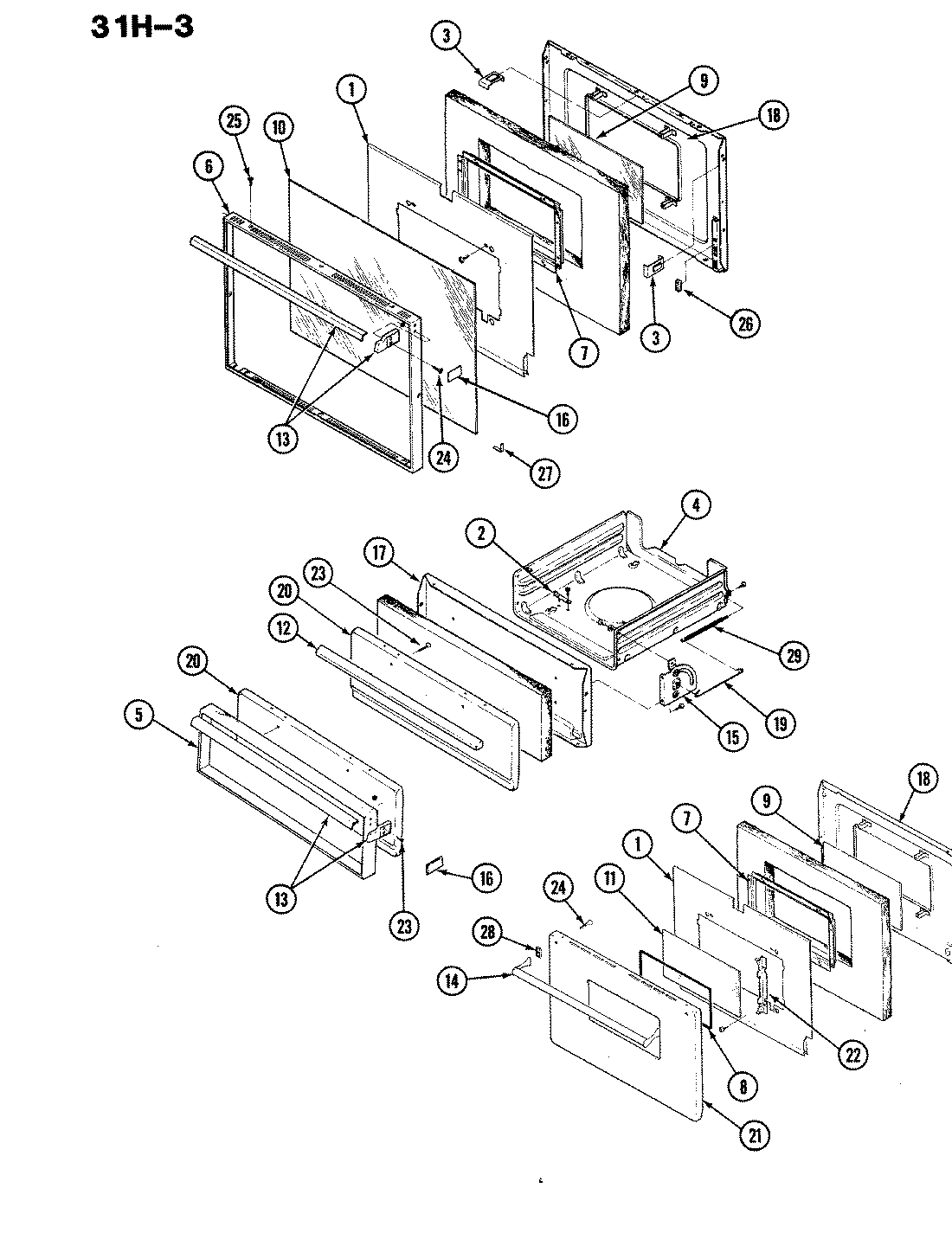

04 - DOOR
Common parts from model Whirlpool 31HB-3KX GAS RANGE
1
BACK, BROILER SECTION WPL 4002F09745 Contact Us For Availability
1
BACK, BROIL WPL 4002F12345 Contact Us For Availability
1
SCREW WPL 7101P06160 Contact Us For Availability
1
CLOCK WPL 7602P08860 Contact Us For Availability
1
CLOCK WPL 7602P09760 Contact Us For Availability
1
SHAFT, BIT GENERATOR WPL 8312P01560 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
3
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
3
BURNER, TOP WPL 7505P18760 Contact Us For Availability
3
BURNER, TOP COMPLETE KIT WPL W10127325 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
4
BAFFLE, OVEN TOP WPL 3601F05945 Contact Us For Availability
4
BOTTOM, BROILER WPL 4011F14980 Contact Us For Availability
4
BLOCK, UPPER DISCONT WPL 7401P01060 Contact Us For Availability
4
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
4
GLASS, BACKGUARD WPL 7910P04160 Contact Us For Availability
4
CAP, BURNER WPL 7504P00560 Contact Us For Availability
4
CAP, SURFACE BURNER, BLACK WPL 7504P00760 Contact Us For Availability
4
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
5
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
5
COVER, WIRE WPL 4005F30451 Contact Us For Availability
5
CLIP WPL 7112P07260 Contact Us For Availability
5
FITTING, STRAIGHT WPL 7507P05360 Contact Us For Availability
5
FRAME, BRL DR WPL 7706P18260 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F01224 Contact Us For Availability
6
KNOB, CLOCK WPL 7711P42260 Contact Us For Availability
6
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
6
GRATE WPL 7518P00460 Contact Us For Availability
6
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
7
BOX, FLUE WPL 4006W02680 Contact Us For Availability
7
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
7
SCREW WPL 7101P05760 Contact Us For Availability
7
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
7
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
7
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
8
BRACKET WPL 3801F02145 Contact Us For Availability
8
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
8
PANEL, BKGD COFFEE WPL 2601W19988 Contact Us For Availability
8
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
8
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
9
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
9
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
9
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
9
BRACKET, SPARK MODULE WPL 3801F18045 Contact Us For Availability
9
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
9
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
9
SUPPORT WPL 3807F01080 Contact Us For Availability
9
SUPPORT WPL 3807F01280 Contact Us For Availability
9
SCREW WPL 7101P07460 Contact Us For Availability
9
NUT, WING WPL 7103P03060 Contact Us For Availability
9
ORIFICE, SEALED BURNER-LP WPL 7509P03360 Contact Us For Availability
9
ORIFICE, SEALED BURNER-NAT WPL 7509P03460 Contact Us For Availability
9
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
10
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
10
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
10
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P08660 Contact Us For Availability
10
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
10
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
11
COVER, MODULE WPL 4005F16780 Contact Us For Availability
11
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
11
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
11
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
11
RING, BLACK WPL 2014F00100 Contact Us For Availability
12
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
12
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
12
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
12
SCREW WPL 7101P25660 Contact Us For Availability
13
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
13
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
13
SCREW WPL 7101P00860 Contact Us For Availability
13
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
13
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
13
MIXER, AIR WPL 3411F00635 Contact Us For Availability
13
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
14
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
14
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
15
SEAL WPL 7212P00160 Contact Us For Availability
15
SCREW, THERMOSTAT WPL 7101P10160 Contact Us For Availability
15
THERMOSTAT WPL 7515P00860 Contact Us For Availability
15
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
15
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
16
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
16
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
16
TOP, MAIN COFFEE WPL 2001F06398 Contact Us For Availability
16
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
17
HOUSING WPL 4001F01611 Contact Us For Availability
17
TUBE, MANIFOLD FEED WPL 7506P09060 Contact Us For Availability
17
TUBE, MANIFOLD FEED WPL 7506P10060 Contact Us For Availability
17
LINING, BROILER WPL 2404F02123 Contact Us For Availability
17
SCREW WPL 7101P05860 Contact Us For Availability
18
INSERT WPL 3413F00211 Contact Us For Availability
18
TUBE, REGULATOR WPL 7506P09860 Contact Us For Availability
18
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
19
KNOB, THERM WPL 7711P18560 Contact Us For Availability
19
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
19
LINK, BROILER WPL 7807P00160 Contact Us For Availability
20
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
20
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
20
PANEL, DRAWER (COFF) WPL 2416F02578 Contact Us For Availability
21
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
21
BULB, OVEN WPL 7407P02660 Contact Us For Availability
21
TUBE, MANIFOLD WPL 7506P09260 Contact Us For Availability
22
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
22
LINING, INNER SIDE WPL 4009W05980 Contact Us For Availability
22
NUT, NYLON WPL 7103P04560 Contact Us For Availability
22
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
23
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
23
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
23
WIRE, IGNITER FRONT WPL 5110A82460 Contact Us For Availability
23
WIRE, IGNITER REAR WPL 5110A82560 Contact Us For Availability
23
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
23
SCREW, OVEN DOOR WPL 7101P08360 Contact Us For Availability
24
PAN, BROIL WPL 3401F00411 Contact Us For Availability
24
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
24
SCREW WPL 7101P12360 Contact Us For Availability
25
TRIM ASSY, MANIFOLD WPL 7712A05160 Contact Us For Availability
25
REGULATOR, PRESSURE WPL 7510P02660 Contact Us For Availability
25
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
26
PANEL, SIDE COFFEE WPL 2618F05278 Contact Us For Availability
26
SUPPORT WPL 3807F12034 Contact Us For Availability
26
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
26
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
27
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
27
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
27
PIN, HINGE WPL 7113P00260 Contact Us For Availability
27
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
27
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
28
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
28
RACK, OVEN WPL 7801P03060 Contact Us For Availability
28
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
29
RETAINER WPL 3804F01050 Contact Us For Availability
29
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
29
SPRING WPL 7803P00260 Contact Us For Availability
29
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
29
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
29
SPRING WPL 7803P01460 Contact Us For Availability
30
COVER WPL 4005F08880 Contact Us For Availability
30
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
33
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
34
TRACK WPL 3404A00151 Contact Us For Availability
34
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
34
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
34
SCREW WPL 7101P11560 Contact Us For Availability
35
CORD, POWER WPL 7402P02460 Contact Us For Availability
36
MANUAL, U WPL 8112P00860 Contact Us For Availability
37
WPL 8112P03360 WPL 8112P03360 Contact Us For Availability
× ![]()
