Model Whirlpool 3121WTA GAS RANGE – Common Parts & Diagrams

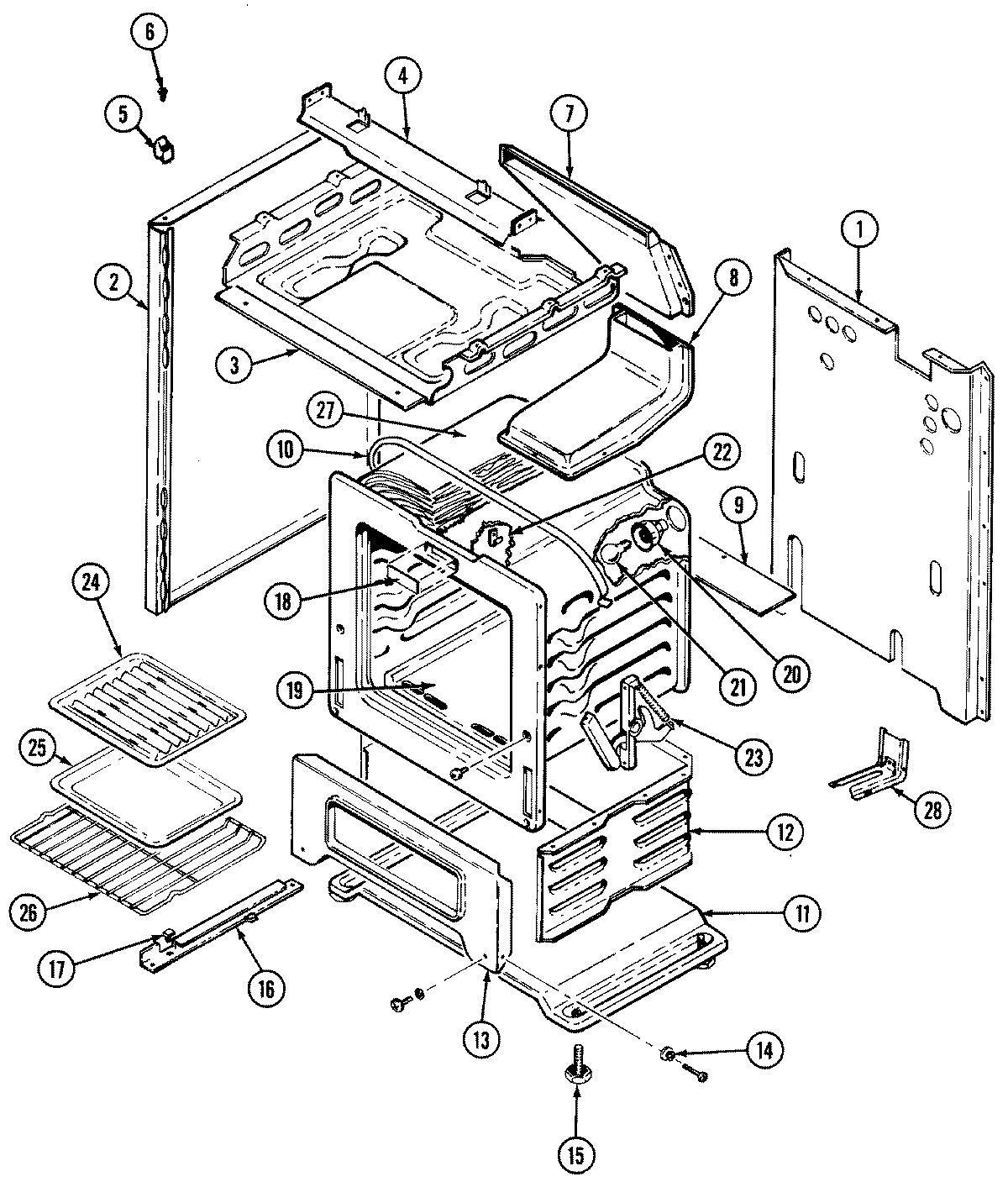

01 - BODY/OVEN

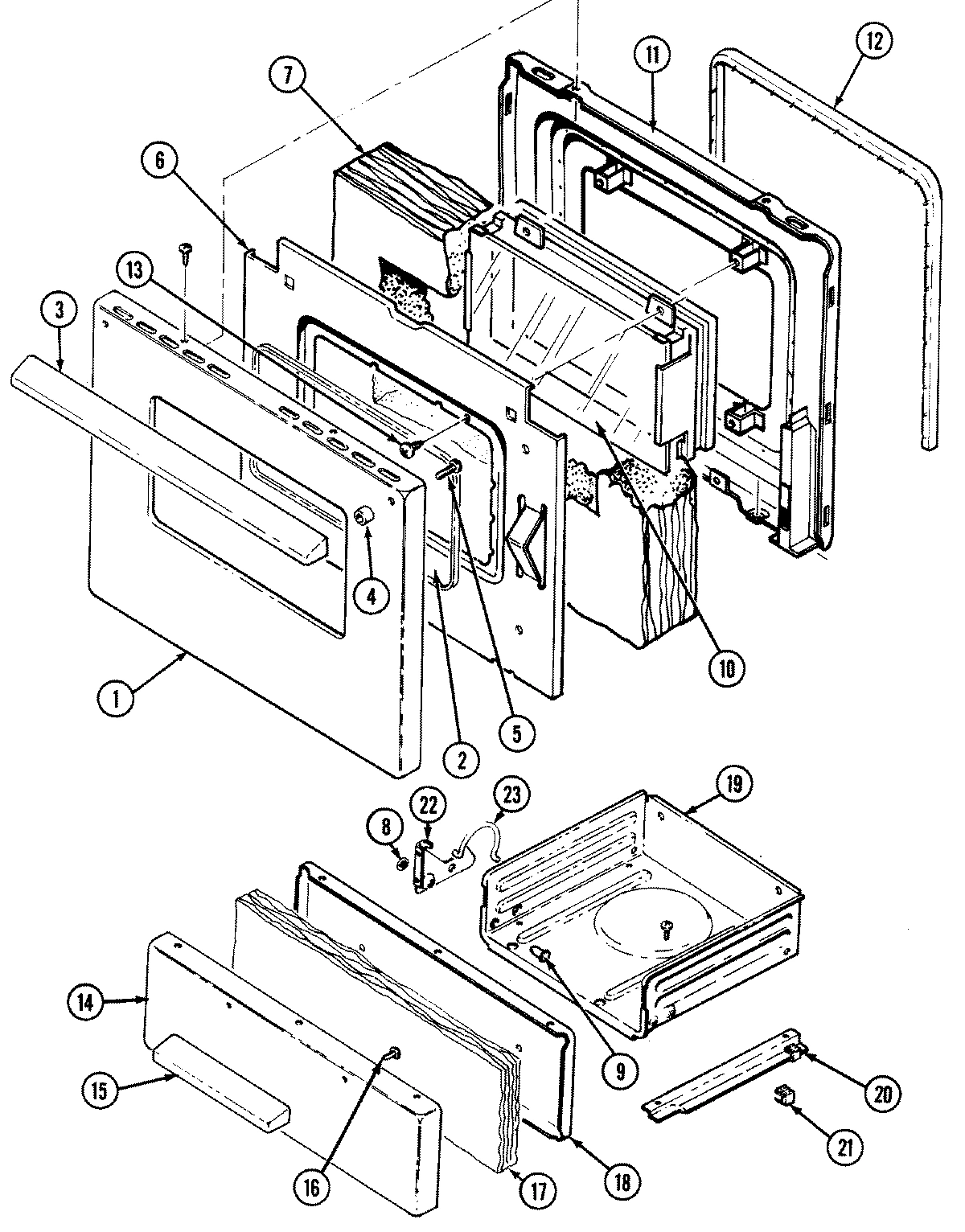

03 - DOOR/DRAWER (3121WT, 3121WTV)

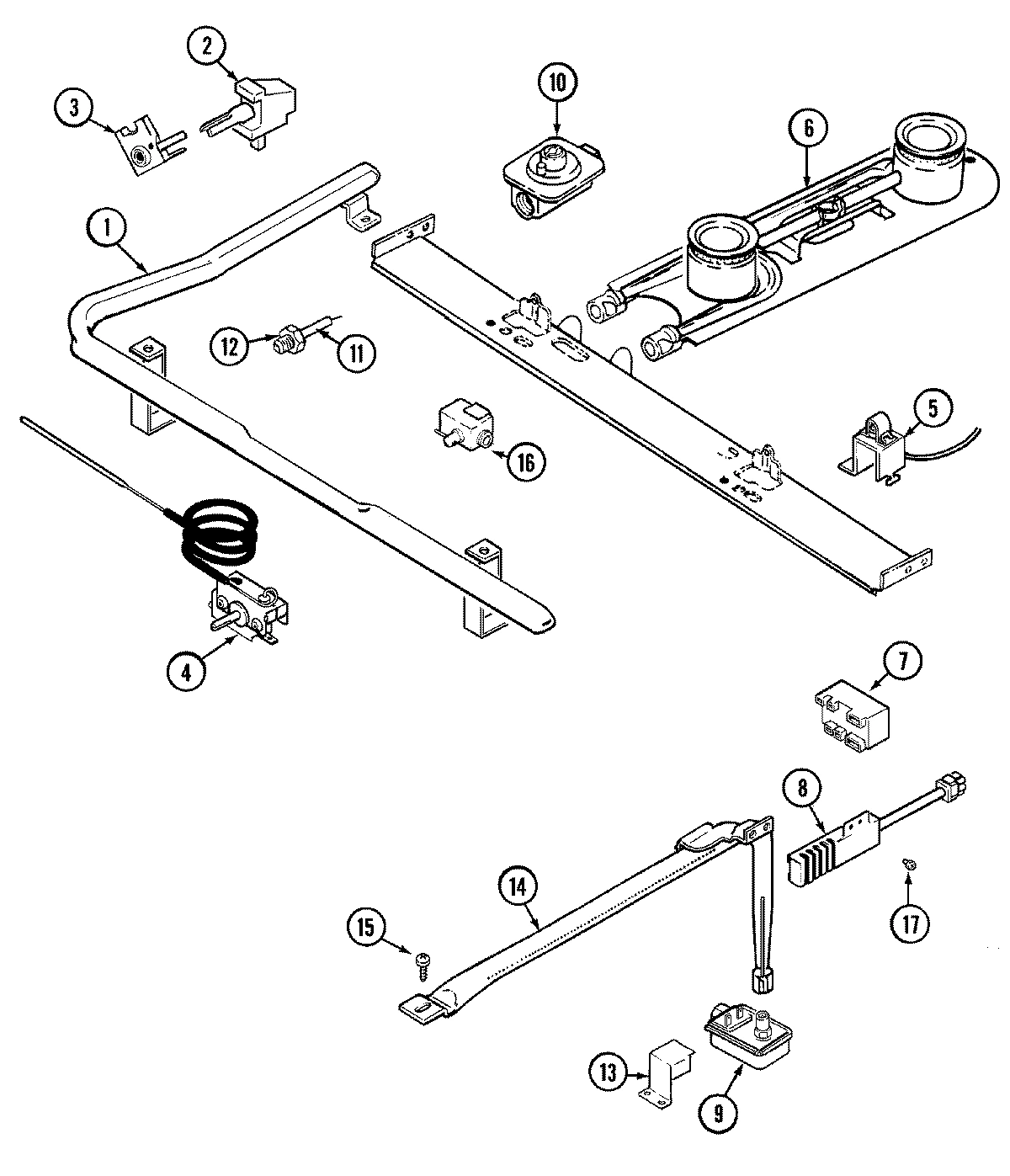

04 - GAS CONTROLS

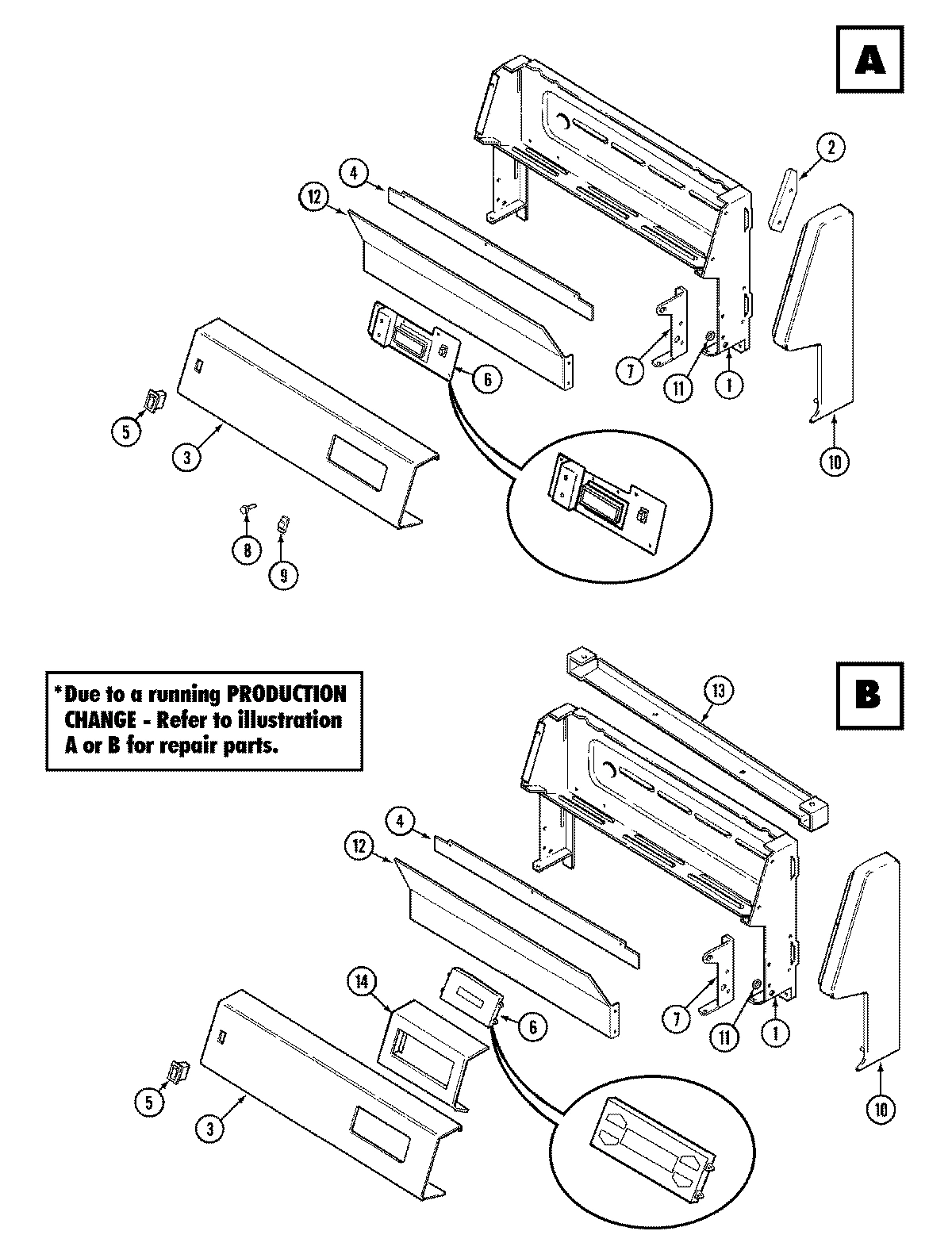

02 - CONTROL PANEL

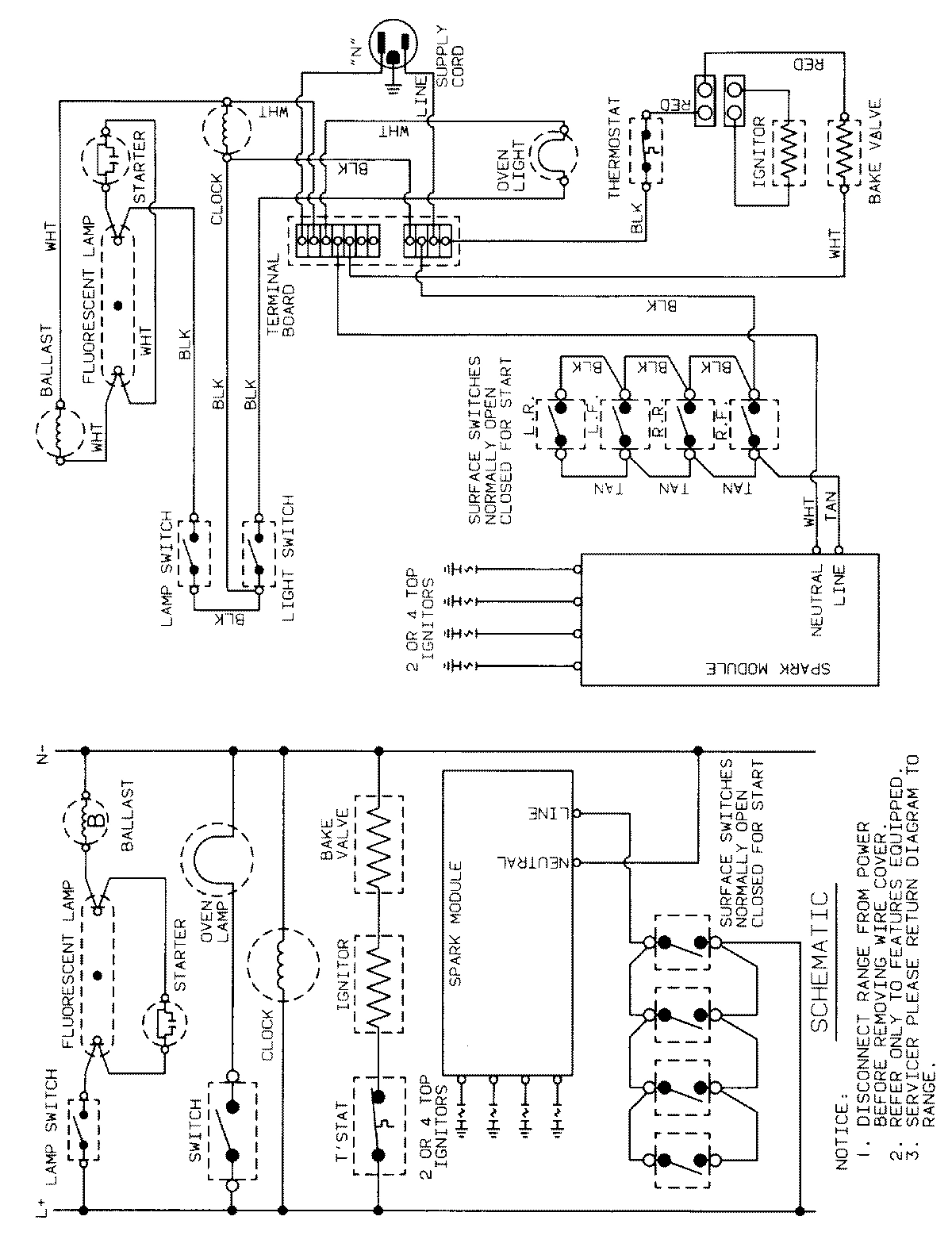

05 - WIRING INFORMATION
Common parts from model Whirlpool 3121WTA GAS RANGE
1
BACK, MAIN WPL 4002F13880 Contact Us For Availability
1
PANEL, DOOR (ALM) WPL 2401F09774 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P15960 Contact Us For Availability
1
HOUSING, BACKGUARD WPL 4001F08851 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
2
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
2
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
3
BOX, BURNER WPL 4011F22480 Contact Us For Availability
3
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
3
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
3
KIT, CONTROL PANEL (BLK) WPL 12001144 Contact Us For Availability
3
KIT, CONTROL PANEL (WHT) WPL 12001147 Contact Us For Availability
3
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
3
PANEL, CONTROL (WHT) WPL 74002607 Contact Us For Availability
3
PANEL, CONTROL (BLK) WPL 7703P56860 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
4
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
4
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
THERMOSTAT WPL 7404P08760 Contact Us For Availability
4
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
5
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP (RT) WPL 7432P03160 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
5
SWITCH, ROCKER (WHT) WPL 7403P31460 Contact Us For Availability
5
PLUG, HOLE WPL 7718P00960 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
6
BURNER, TOP WPL 3412A00419 Contact Us For Availability
6
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
6
SCREW WPL 7101P29360 Contact Us For Availability
6
CLOCK (WHT) WPL 7602P11760 Contact Us For Availability
6
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
7
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
7
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
7
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
NUT, GRIP WPL 7103P02260 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
8
BUTTON, SET (BLK) WPL 7711P46860 Contact Us For Availability
8
BUTTON, SET (WHT) WPL 7711P47360 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
9
VALVE, OVEN WPL 7501P14460 Contact Us For Availability
9
BUTTON, SLIDE (BLK) WPL 7711P46960 Contact Us For Availability
9
BUTTON, SLIDE (WHT)----NA WPL 7711P47260 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
WINDOW ASY. WPL 7907P01560 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
10
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
10
END CAP (RT-BLK) WPL 7726P04660 Contact Us For Availability
10
END CAP (LT-BLK) WPL 7726P05060 Contact Us For Availability
10
END CAP, CTRL PANEL (RT-WHT) WPL 7726P07560 Contact Us For Availability
10
END CAP (LT-WHT) WPL 7726P07660 Contact Us For Availability
10
END CAP (RT-WHT) WPL 7726P07760 Contact Us For Availability
10
END CAP (LT-WHT) WPL 7726P07860 Contact Us For Availability
10
END CAP (RT-BLK) WPL 7726P09560 Contact Us For Availability
10
END CAP (LT-BLK) WPL 7726P09660 Contact Us For Availability
11
BASE, MAIN WPL 4003W02880 Contact Us For Availability
11
LINING DOOR WPL 2402W18519 Contact Us For Availability
11
TUBING WPL 3414F11444 Contact Us For Availability
11
NUT, SPEED WPL 7103P04460 Contact Us For Availability
12
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
12
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
13
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
13
COVER, VALVE WPL 4005F33451 Contact Us For Availability
13
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
14
SCREW WPL 7101P30060 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
PANEL, DRAWER (ALM) WPL 2403F02874 Contact Us For Availability
14
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
14
HARNESS, CONTROL PANEL WPL 5180D13860 Contact Us For Availability
14
BRACKET, CLOCK WPL 74001728 Contact Us For Availability
15
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
15
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
15
COVER, THERMOSTAT WPL 4005F42351 Contact Us For Availability
15
MANUAL, USE & CARE WPL 16007436 Contact Us For Availability
15
MANUAL, USE & CARE WPL 8113P04260 Contact Us For Availability
16
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
16
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
16
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
16
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
17
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
17
INSULATION WPL 4804F02560 Contact Us For Availability
18
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
18
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
19
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
19
RETAINER WPL 3804F01050 Contact Us For Availability
19
BOTTOM, OVEN WPL 5504A00119 Contact Us For Availability
19
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
20
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
20
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
20
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
21
BULB, OVEN WPL 7407P02660 Contact Us For Availability
21
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
21
GLIDE, DRAWER REAR WPL 8016P01260 Contact Us For Availability
22
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
22
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
22
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
23
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
23
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
23
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
23
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
24
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
25
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
26
RACK, OVEN WPL 7801P03660 Contact Us For Availability
27
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
27
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
28
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
28
HARNESS, SUPPLY WPL 5185D25060 Contact Us For Availability
28
HARNESS, BURNER BOX WPL 5195D07860 Contact Us For Availability
28
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
28
CORD, POWER WPL 7402P04360 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001339 Contact Us For Availability
× ![]()
