Model Whirlpool 31203PAQ GAS RANGE – Common Parts & Diagrams
02 - DOOR/DRAWER (31203PAx)

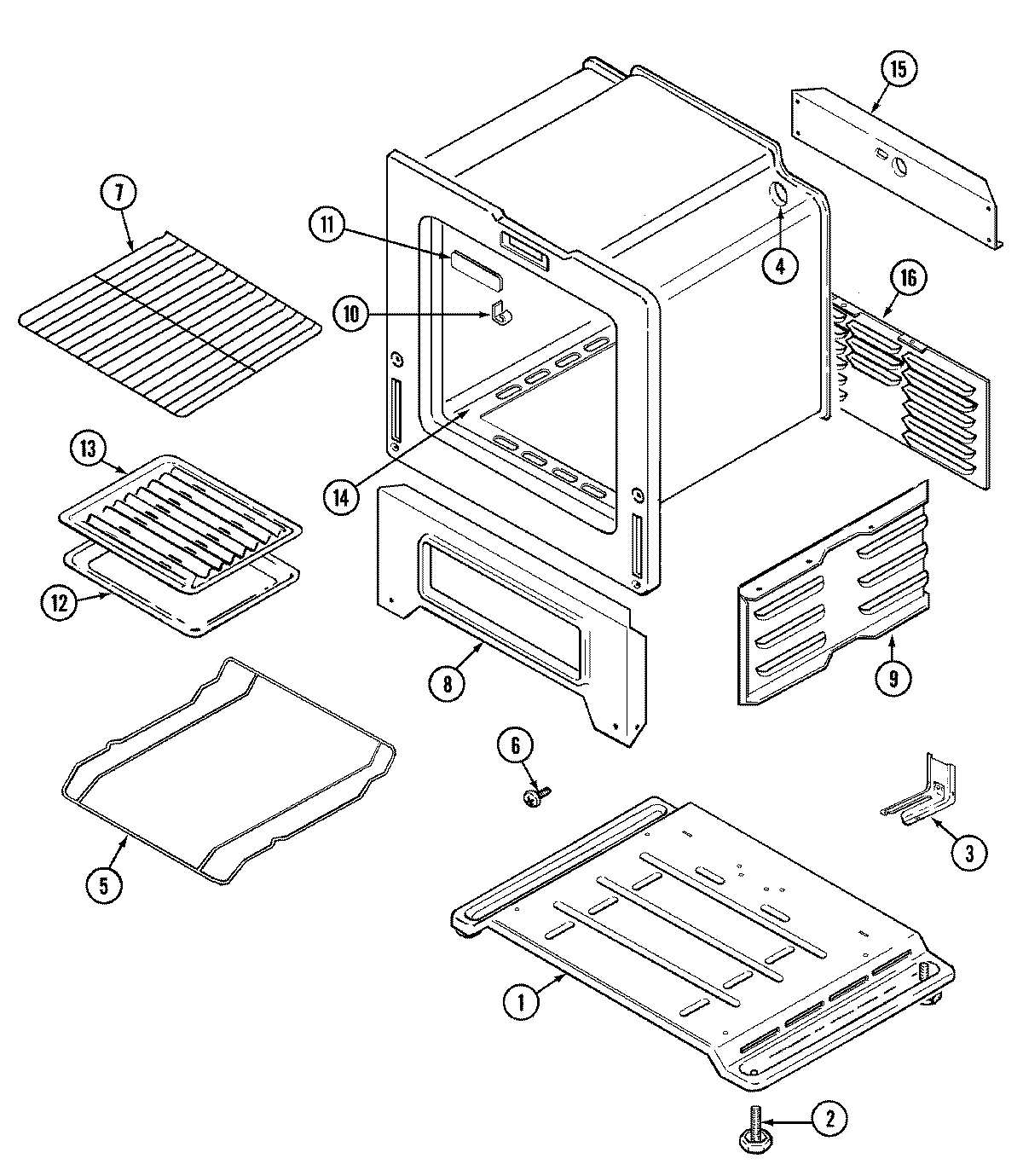

04 - OVEN/BASE
01 - CONTROL PANEL/TOP ASSEMBLY
05 - WIRING INFORMATION

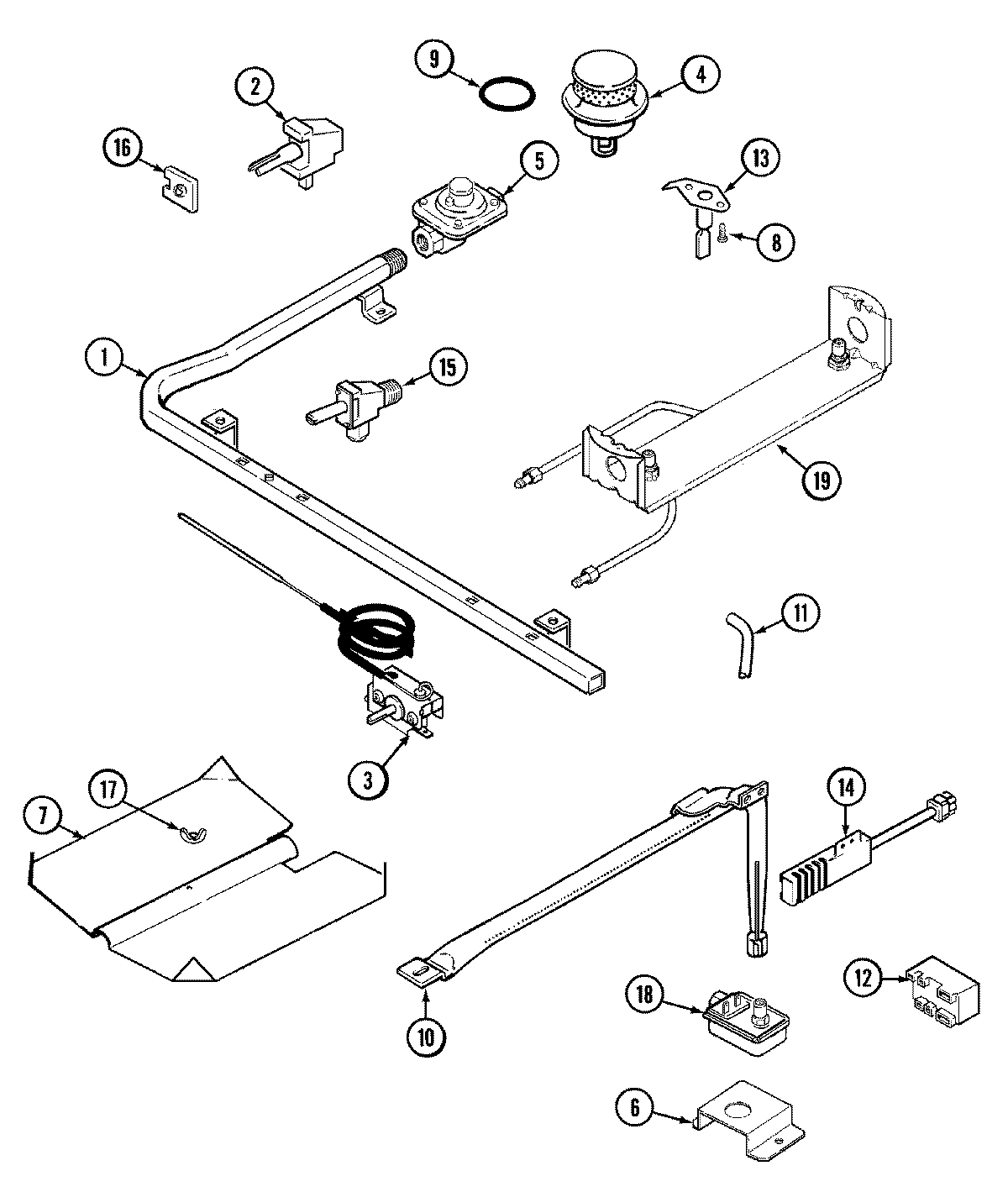

03 - GAS CONTROLS
Common parts from model Whirlpool 31203PAQ GAS RANGE
1
BASE, MAIN WPL 74001064 Contact Us For Availability
1
CLIP, SPACER WPL 74002409 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74005047 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74002454 Contact Us For Availability
2
BRACKET, PANEL (LT) WPL 74002402 Contact Us For Availability
2
BRACKET, PANEL (RT) WPL 74002403 Contact Us For Availability
2
VALVE, BURNER WPL 74002455 Contact Us For Availability
3
PIN, MAIN TOP HINGE WPL 74002404 Contact Us For Availability
3
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
COVER, HOLE WPL 74002380 Contact Us For Availability
4
PANEL, CONTROL (BSQ) WPL 74005105 Contact Us For Availability
4
BURNER, SEALED (TAUPE) WPL 74003966 Contact Us For Availability
5
HANDLE, DOOR (BSQ) WPL 74005054 Contact Us For Availability
5
HANDLE, DOOR (BSQ) WPL 74007089 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
5
SCREW (6ABX1/2 3/16) WPL 74004982 Contact Us For Availability
5
END CAP, PANEL (LT-BSQ) WPL 74005107 Contact Us For Availability
5
END CAP, PANEL (RT-BSQ) WPL 74005108 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
TOP, MAIN (BSQ) WPL 74005050 Contact Us For Availability
6
BRACKET, OVEN VALVE WPL 74005051 Contact Us For Availability
7
GLIDE WPL 8016P01560 Contact Us For Availability
7
LINING, DOOR WPL 74003240 Contact Us For Availability
7
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
8
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
8
OVEN FRONT, LOWER WPL 74003007 Contact Us For Availability
8
CLIP, TOP LOCKING WPL 74004827 Contact Us For Availability
9
KNOB, VALVE (BSQ) WPL 74005115 No Longer Available
9
PANEL, DRAWER (BSQ) WPL 74005046 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
9
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
10
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
GRATE (TAUPE) WPL 74003514 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
11
LINING, DRAWER WPL 74002397 Contact Us For Availability
11
LINING, DRAWER WPL 74007553 Contact Us For Availability
11
PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability
11
PANEL, MANIFOLD (BSQ) WPL 74005117 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
TUBING, VALVE (3/8``) WPL 74002456 Contact Us For Availability
12
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
KNOB, THERMOSTAT (BSQ) WPL 74005116 Contact Us For Availability
13
HINGE, DRAWER WPL 74002398 Contact Us For Availability
13
HINGE, DRAWER WPL 74007560 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
SHIELD, SIGHT WPL 74002447 Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
14
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
IGNITER, OVEN WPL 7432P07560 Contact Us For Availability
15
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
15
MANUAL, USE & CARE WPL 74004367 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
16
MANUAL, USE & CARE (FRCH) WPL 16008701 Contact Us For Availability
16
SWITCH, IGNITER WPL 74002384 Contact Us For Availability
17
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
17
HARNESS, WIRE (SPARK) WPL 74007014 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
18
VALVE, OVEN WPL 74002387 Contact Us For Availability
18
VALVE, OVEN WPL 74005329 Contact Us For Availability
18
VALVE, OVEN WPL 74006281 Contact Us For Availability
19
ORIFICE FITTING ASSEMBLY WPL 5187D02660 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001767 Contact Us For Availability
× ![]()
