Model Maytag 3100PTW-KL GAS RANGE – Common Parts & Diagrams

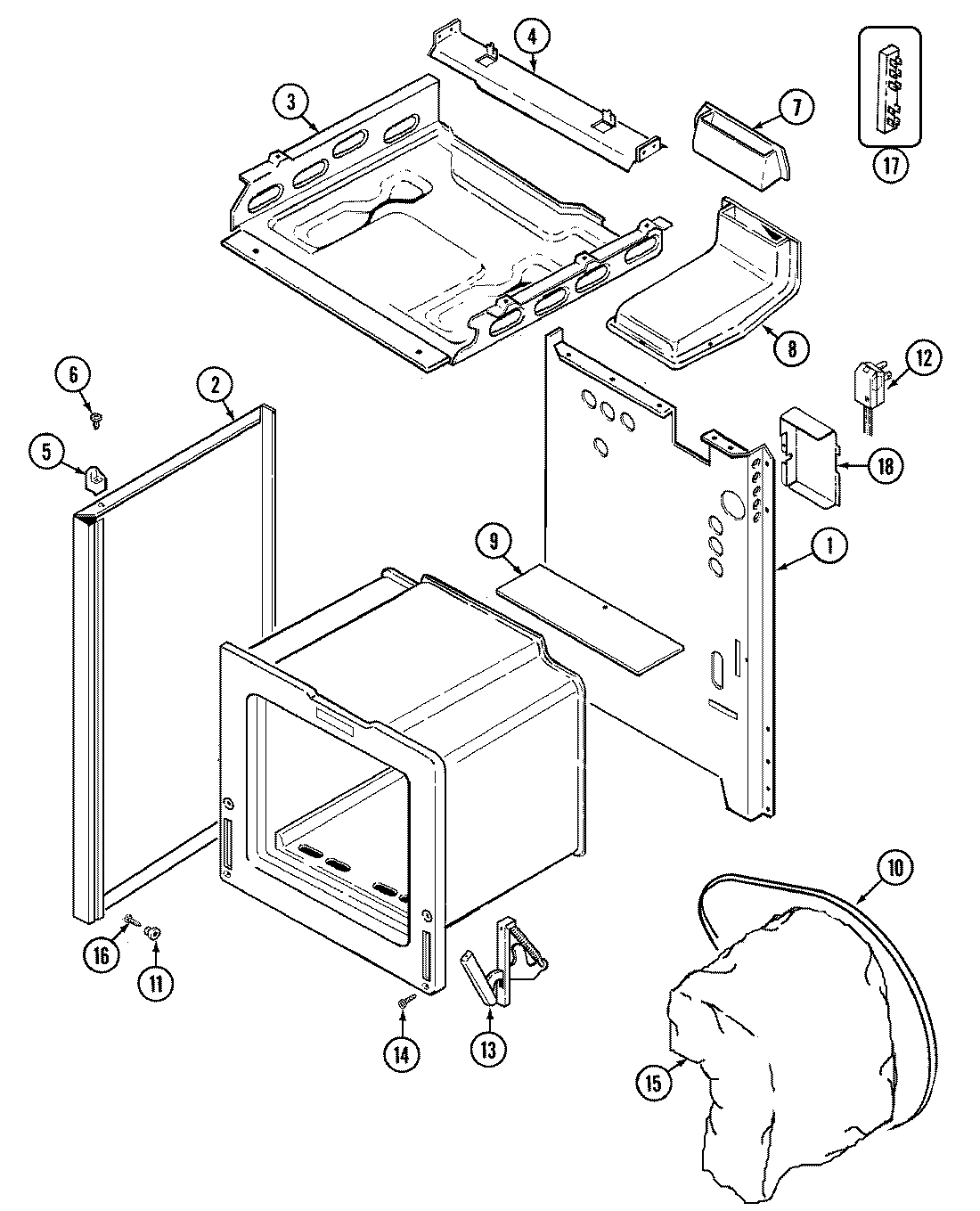

01 - BODY

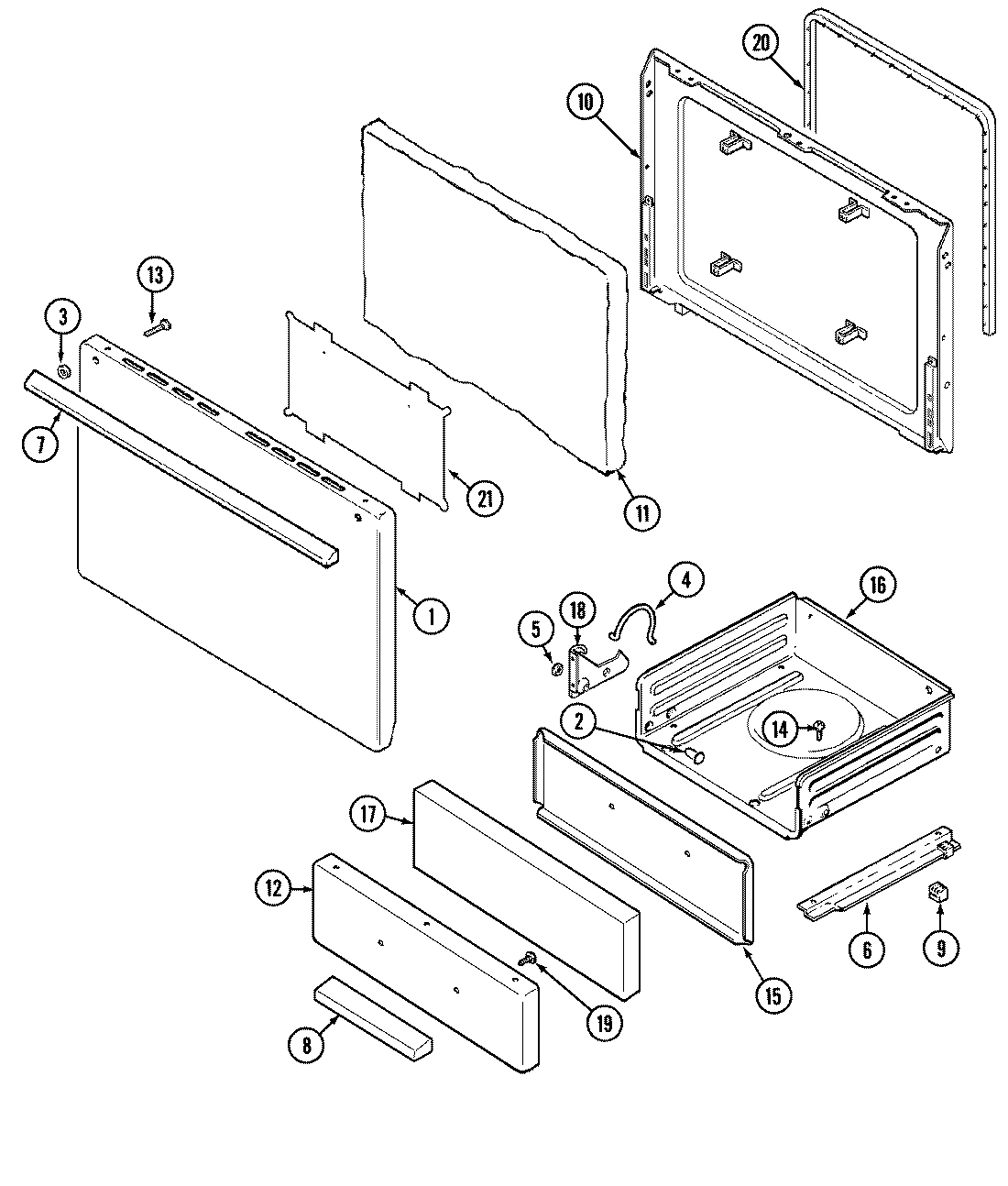

02 - DOOR/DRAWER

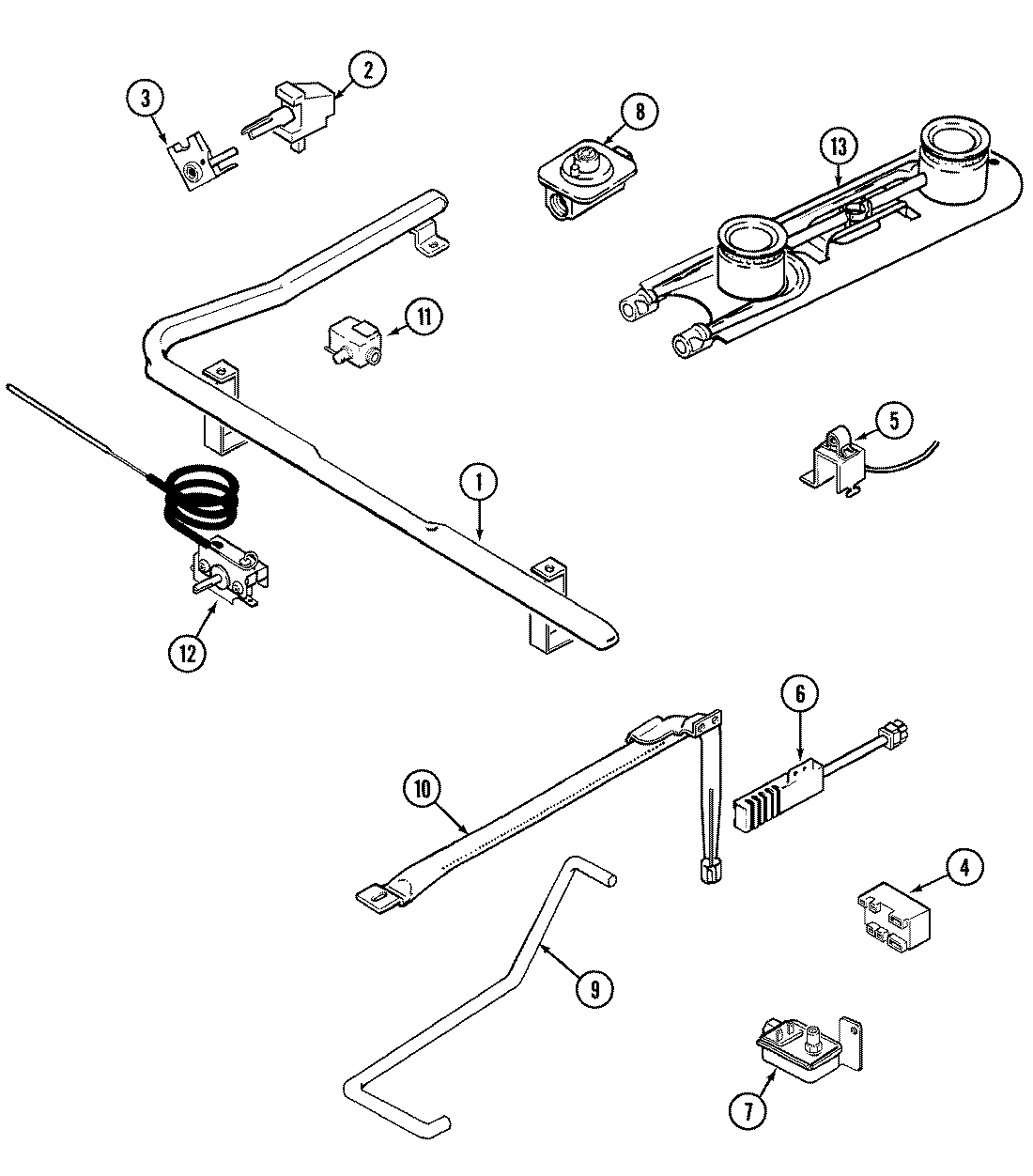

03 - GAS CONTROLS

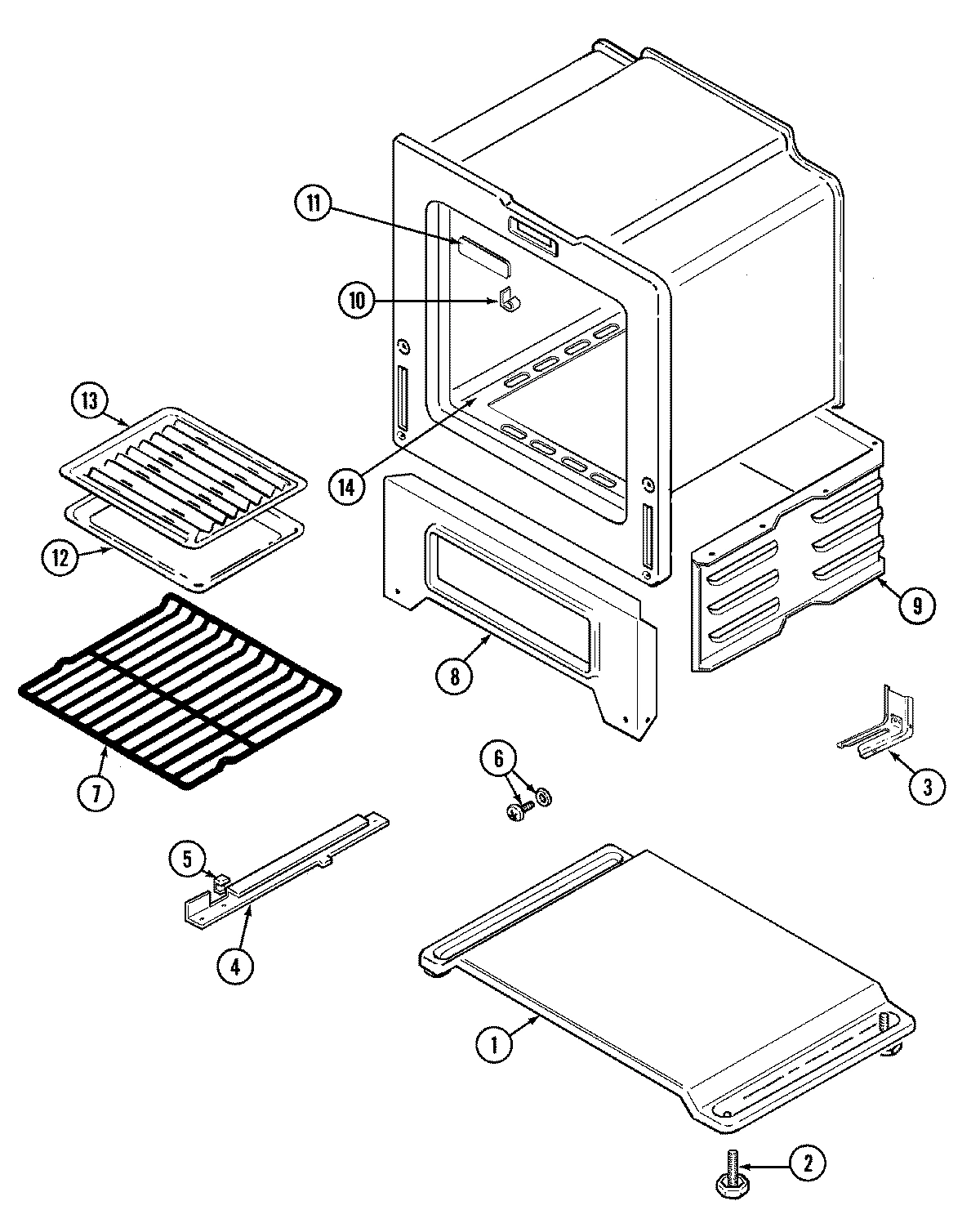

04 - OVEN/BASE

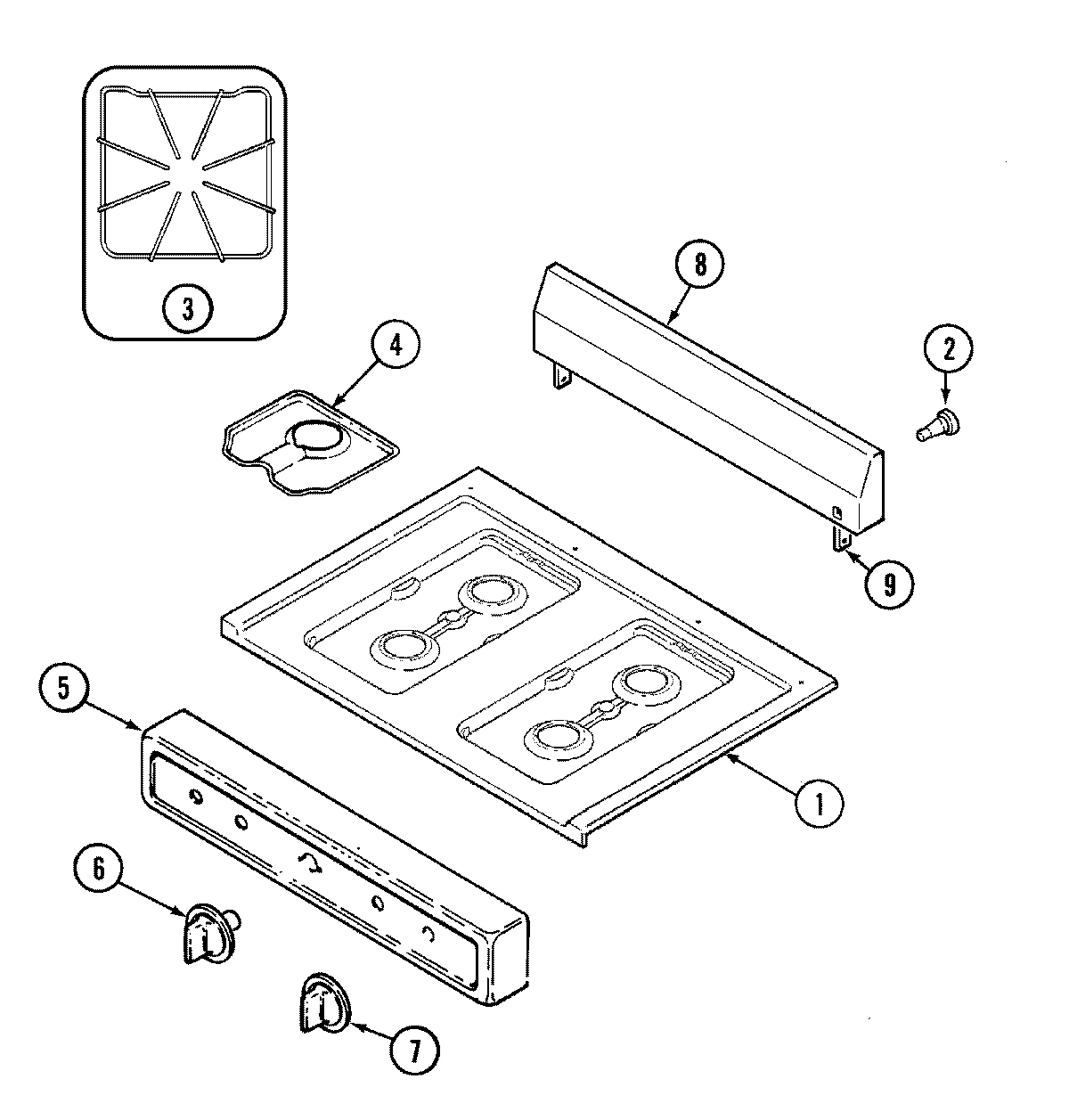

05 - TOP ASSEMBLY
06 - WIRING INFORMATION
Common parts from model Maytag 3100PTW-KL GAS RANGE
1
PANEL, DOOR (WHT) MAY 2401F096-71 Contact Us For Availability
1
MAY 7513P159-60 MAY 7513P159-60 Contact Us For Availability
1
MAY 4003W029-80 MAY 4003W029-80 Contact Us For Availability
1
MAY 2001F098-81 MAY 2001F098-81 Contact Us For Availability
2
MAY 74001311 MAY 74001311 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) MAY 8010P069-60 Contact Us For Availability
2
MAY 7113P012-60 MAY 7113P012-60 Contact Us For Availability
2
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
2
MAY 7502P175-60 MAY 7502P175-60 Contact Us For Availability
3
MAY 7403P284-60 MAY 7403P284-60 Contact Us For Availability
3
MAY 8010P084-60 MAY 8010P084-60 Contact Us For Availability
3
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
3
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
3
MAY 2003W026-00 MAY 2003W026-00 Contact Us For Availability
4
MAY 7803P064-60 MAY 7803P064-60 Contact Us For Availability
4
MAY 7803P065-60 MAY 7803P065-60 Contact Us For Availability
4
MAY 3807F432-45 MAY 3807F432-45 Contact Us For Availability
4
MAY 7431P006-60 MAY 7431P006-60 Contact Us For Availability
4
MAY 3404F018-51 MAY 3404F018-51 Contact Us For Availability
4
MAY 3404F021-51 MAY 3404F021-51 Contact Us For Availability
4
MAY 5401A433-60 MAY 5401A433-60 Contact Us For Availability
5
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
5
MAY 7103P022-60 MAY 7103P022-60 Contact Us For Availability
5
MAY 7432P008-60 MAY 7432P008-60 Contact Us For Availability
5
MAY 7432P031-60 MAY 7432P031-60 Contact Us For Availability
5
MAY 8016P010-60 MAY 8016P010-60 Contact Us For Availability
5
MAY 2616F085-09 MAY 2616F085-09 Contact Us For Availability
5
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
5
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
6
MAY 7731P085-60 MAY 7731P085-60 Contact Us For Availability
6
MAY 3404F022-51 MAY 3404F022-51 Contact Us For Availability
6
MAY 3404F023-51 MAY 3404F023-51 Contact Us For Availability
6
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
7
MAY 7701P030-60 MAY 7701P030-60 Contact Us For Availability
7
MAY 4005F433-51 MAY 4005F433-51 Contact Us For Availability
7
MAY 74001754 MAY 74001754 Contact Us For Availability
7
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
8
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
8
MAY 74001820 MAY 74001820 Contact Us For Availability
8
MAY 7701P012-60 MAY 7701P012-60 Contact Us For Availability
8
MAY 7510P052-60 MAY 7510P052-60 Contact Us For Availability
8
MAY 2201F077-19 MAY 2201F077-19 Contact Us For Availability
8
MAY 2601W349-09 MAY 2601W349-09 Contact Us For Availability
9
MAY 8016P011-60 MAY 8016P011-60 Contact Us For Availability
9
MAY 3807F416-51 MAY 3807F416-51 Contact Us For Availability
9
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
9
MAY 3414F114-44 MAY 3414F114-44 Contact Us For Availability
9
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
9
MAY 8312P016-60 MAY 8312P016-60 Contact Us For Availability
9
MAY 4016F044-45 MAY 4016F044-45 Contact Us For Availability
9
MAY 3801F242-51 MAY 3801F242-51 Contact Us For Availability
9
MAY 3801F243-51 MAY 3801F243-51 Contact Us For Availability
10
MAY 4820F001-59 MAY 4820F001-59 Contact Us For Availability
10
MAY 2402W211-19 MAY 2402W211-19 Contact Us For Availability
10
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
10
MAY 3403D023-45 MAY 3403D023-45 Contact Us For Availability
10
MAY 16000329 MAY 16000329 Contact Us For Availability
10
MAY 8113P042-60 MAY 8113P042-60 Contact Us For Availability
11
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
11
MAY 4804F050-60 MAY 4804F050-60 Contact Us For Availability
11
MAY 7502P002-60 MAY 7502P002-60 Contact Us For Availability
11
MAY 7718P013-60 MAY 7718P013-60 Contact Us For Availability
12
MAY 7404P087-60 MAY 7404P087-60 Contact Us For Availability
12
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
12
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
12
MAY 2403F028-71 MAY 2403F028-71 Contact Us For Availability
12
MAY 3604F177-51 MAY 3604F177-51 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY 7106P055-60 MAY 7106P055-60 Contact Us For Availability
13
MAY 7101P080-60 MAY 7101P080-60 Contact Us For Availability
13
MAY 3412A004-19 MAY 3412A004-19 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
14
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
14
MAY 5195D078-60 MAY 5195D078-60 Contact Us For Availability
14
MAY 3601F239-47 MAY 3601F239-47 Contact Us For Availability
14
MAY 5504A003-19 MAY 5504A003-19 Contact Us For Availability
15
MAY 4804F039-60 MAY 4804F039-60 Contact Us For Availability
15
MAY 4804F044-60 MAY 4804F044-60 Contact Us For Availability
15
MAY 2404F035-19 MAY 2404F035-19 Contact Us For Availability
15
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
15
MAY 7112P029-60 MAY 7112P029-60 Contact Us For Availability
16
MAY 74001449 MAY 74001449 Contact Us For Availability
16
MAY 3407F012-19 MAY 3407F012-19 Contact Us For Availability
17
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
17
MAY 4804F025-60 MAY 4804F025-60 Contact Us For Availability
18
MAY 4005F385-51 MAY 4005F385-51 Contact Us For Availability
18
MAY 3418F079-51 MAY 3418F079-51 Contact Us For Availability
18
MAY 3418F080-51 MAY 3418F080-51 Contact Us For Availability
21
MAY 3601F250-51 MAY 3601F250-51 Contact Us For Availability
NI
MAY 15001339 MAY 15001339 Contact Us For Availability
× ![]()
