Model Electrolux 31-3978-23-04 RANGE – Common Parts & Diagrams
02 - DOOR PARTS
03 - BROILER PARTS

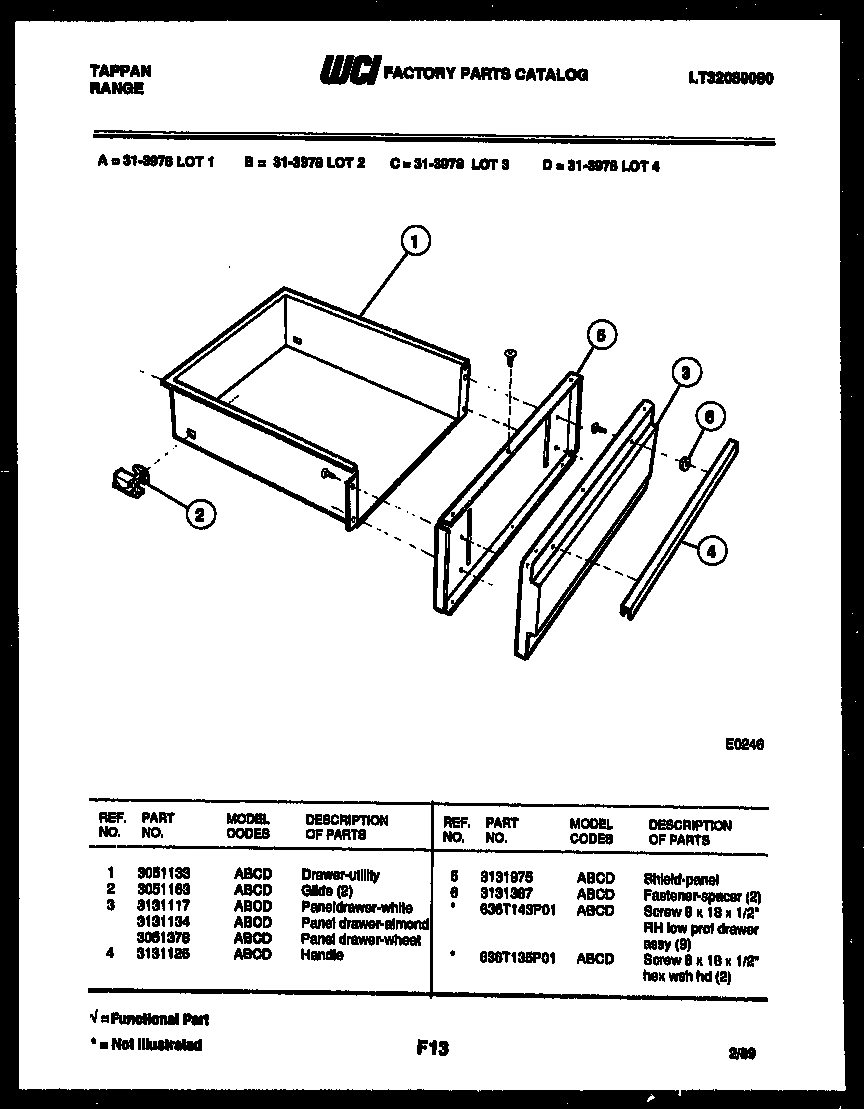

04 - DRAWER PARTS

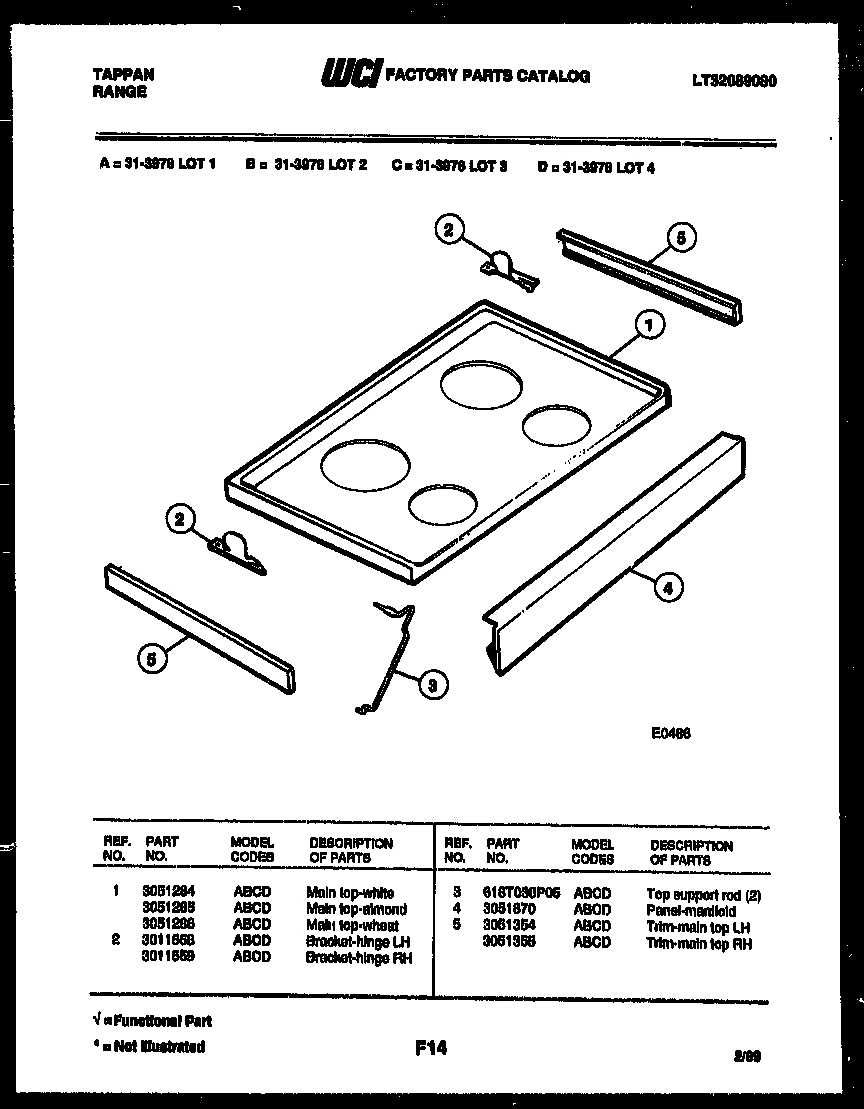

05 - COOKTOP PARTS
06 - BACKGUARD

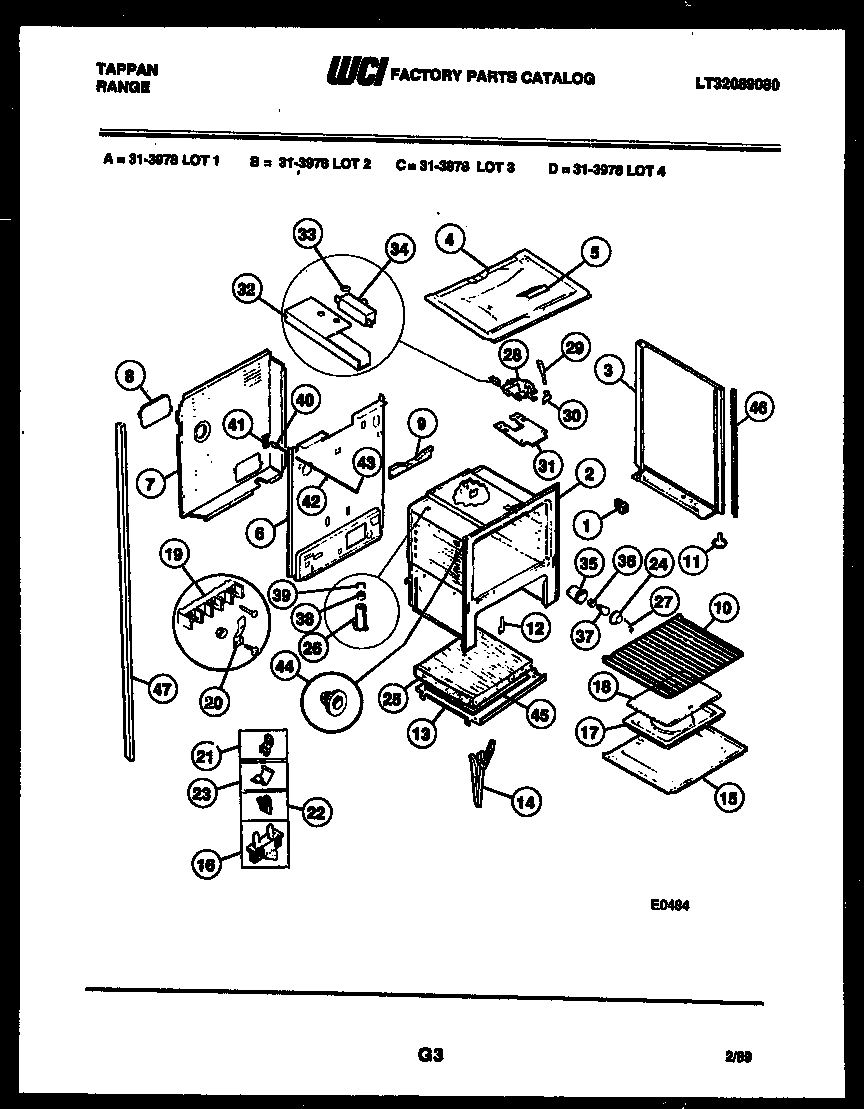

07 - BODY PARTS
Common parts from model Electrolux 31-3978-23-04 RANGE
*16842
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3051284 WCI 3051284 Contact Us For Availability
1
MAIN TOP, ALMOND WCI 3051285 Contact Us For Availability
1
MAIN TOP, WHEAT WCI 3051286 Contact Us For Availability
1
WCI 3016779 WCI 3016779 Contact Us For Availability
2
WCI 3011558 WCI 3011558 Contact Us For Availability
2
WCI 3011559 WCI 3011559 Contact Us For Availability
2
WCI 3051219 WCI 3051219 Contact Us For Availability
3
WCI 3131321 WCI 3131321 Contact Us For Availability
3
PANEL, DRAWER, WHEAT WCI 3051378 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
WCI 3131134 WCI 3131134 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
PANEL-CONTROL WCI 3051871 Contact Us For Availability
3
WCI 3201837 WCI 3201837 Contact Us For Availability
3
PANEL, BODYSIDE (RH), ALMOND WCI 3200790 Contact Us For Availability
3
PANEL, BODYSIDE (LH), ALMOND WCI 3200793 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3051870 WCI 3051870 Contact Us For Availability
4
TRIM, LOWER SPLASHER WCI 3051874 Contact Us For Availability
5
WCI 3051165 WCI 3051165 Contact Us For Availability
5
ELEMENT, OVEN BAKE WCI 3051388 Contact Us For Availability
5
WCI 3201724 WCI 3201724 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
WCI 3051355 WCI 3051355 Contact Us For Availability
5
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
6
LINER WCI 3131393 Contact Us For Availability
6
LINER WCI 3202147 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
FASTENER, GLASS (2) WCI 3131607 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
8
WCI 148T190P02 WCI 148T190P02 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
9
WCI 3051115 WCI 3051115 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
10
GLASS-CLOCK WCI 277T219P02 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
12
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
12
WCI 3051315 WCI 3051315 Contact Us For Availability
12
WCI 3201732 WCI 3201732 Contact Us For Availability
13
SCREW-HNDL MTG (2) WCI 3016728 Contact Us For Availability
13
THERMOSTAT, OVEN WCI 3051322 Contact Us For Availability
13
THERMOSTAT, OVEN WCI 3201733 Contact Us For Availability
14
SCREW-DR MTG (3) WCI 636T139P02 Contact Us For Availability
14
WCI 3051456 WCI 3051456 Contact Us For Availability
14
KNOB-CONTROL (4) WCI 3051487 Contact Us For Availability
14
KNOB-SELECTOR SWITCH WCI 3051490 Contact Us For Availability
14
WCI 3201797 WCI 3201797 Contact Us For Availability
14
KNOB-SELECTOR SWITCH WCI 3201798 Contact Us For Availability
15
FASTENER, 8 AU TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability
15
WCI 3131142 WCI 3131142 Contact Us For Availability
15
WCI 636T143P05 WCI 636T143P05 Contact Us For Availability
15
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
16
INSULATION, WOOL WCI 3131322 Contact Us For Availability
16
WCI 3091461 WCI 3091461 Contact Us For Availability
16
INDICATOR LITE, OVEN WCI 3091462 Contact Us For Availability
16
INDICATOR LITE, CLEAN (BLUE) WCI 3201726 Contact Us For Availability
16
INDICATOR LITE, OVEN (BLACK) WCI 3201727 Contact Us For Availability
16
INDICATOR LITE, LOCK (RED) WCI 3201728 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
17
RETAINER-CLOCK GL (2) WCI 612T123P01 Contact Us For Availability
18
THERMOSTAT-OVEN S/C WCI 3051324 Contact Us For Availability
19
ANGLE SUPPORT S/C THERMO WCI 3131467 Contact Us For Availability
20
BEZEL SWITCH WCI 3051727 Contact Us For Availability
21
CAP, END LH WCI 3051134 Contact Us For Availability
21
CAP, END RH WCI 3051135 Contact Us For Availability
23
BULB-FLUOR WCI 3131275 Contact Us For Availability
24
RECEPTACLE-FLUOR LT LH WCI 3051222 Contact Us For Availability
24
RECEPTACLE-FLUOR LT RH WCI 3051223 Contact Us For Availability
27
SUPPORT-FLUOR RECEPT MOUNTING WCI 3131277 Contact Us For Availability
28
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
28
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
29
WCI 3131466 WCI 3131466 Contact Us For Availability
30
WCI 3131237 WCI 3131237 Contact Us For Availability
× ![]()
