Model Electrolux 30KPMAWAN5 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - DOOR PARTS

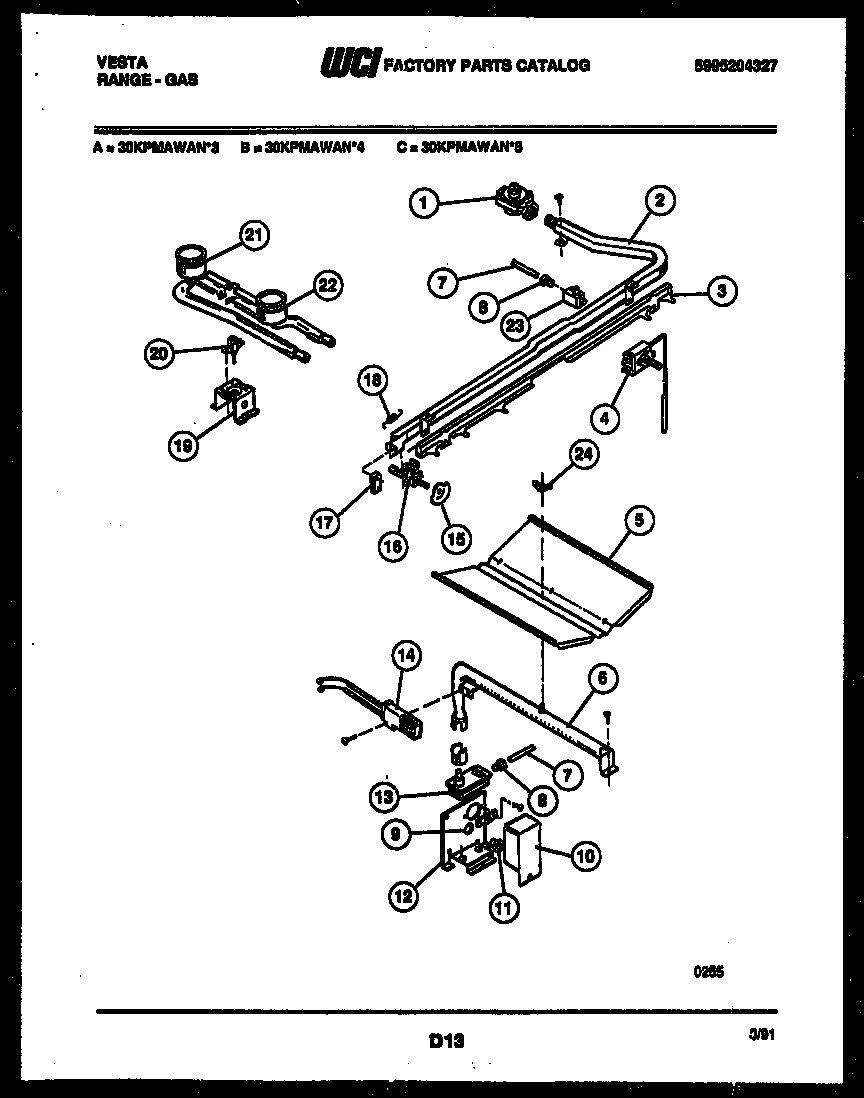

04 - BURNER, MANIFOLD AND GAS CONTROL

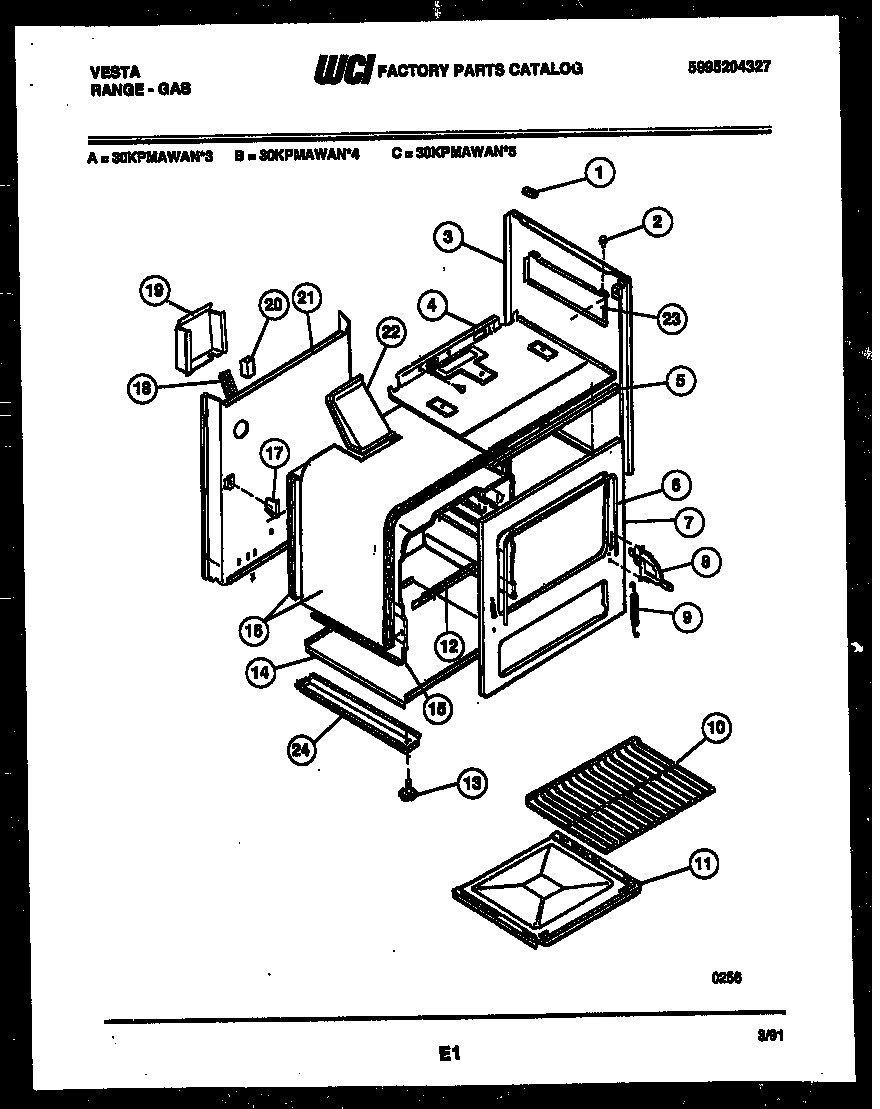

05 - BODY PARTS

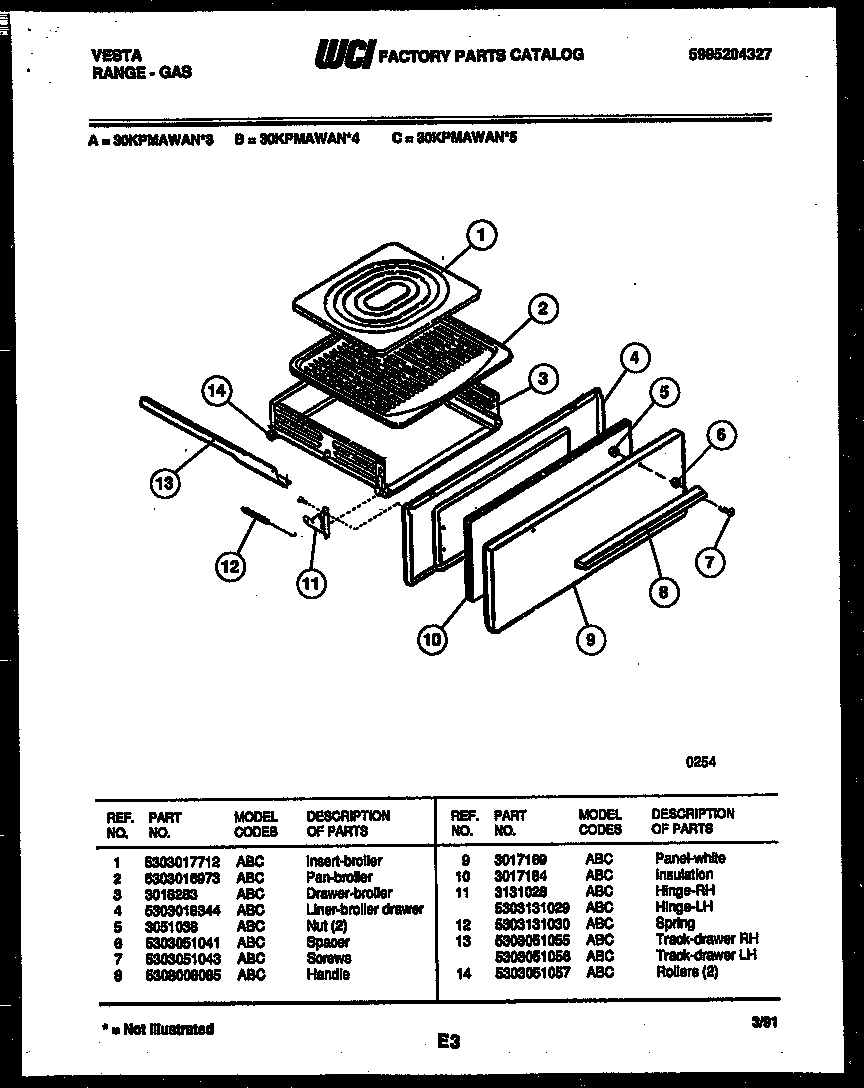

06 - BROILER DRAWER PARTS
Common parts from model Electrolux 30KPMAWAN5 RANGE
*30364
WCI 191SO18F271 WCI 191SO18F271 Contact Us For Availability
*30364
CLIP - BACKSPLASH (2) WCI 3131791 Contact Us For Availability
*30364
WCI 3934059 WCI 3934059 Contact Us For Availability
1
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
1
INSERT-BROILER WCI 5303017712 Contact Us For Availability
2
MANIFOLD WCI 5308013906 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
3
SLIDE BAR WCI 3131856 Contact Us For Availability
3
SIDE BODY-WHITE (2) WCI 5303051061 Contact Us For Availability
4
KNOB-TOP VALVE WCI 5308013898 Contact Us For Availability
4
WCI 5303210474 WCI 5303210474 Contact Us For Availability
4
WCI 3017174 WCI 3017174 Contact Us For Availability
4
WCI 5303018344 WCI 5303018344 Contact Us For Availability
4A
WCI 5300009126 WCI 5300009126 Contact Us For Availability
5
WCI 5303131019 WCI 5303131019 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
5
SUPT-CONTROL PANEL WCI 3131811 Contact Us For Availability
6
WCI 5303202752 WCI 5303202752 Contact Us For Availability
6
SPACER WCI 5303051041 Contact Us For Availability
6
FRONT FRAME-BRONZE WCI 3205578 Contact Us For Availability
7
Seal,oven door WCI 5308008022 Contact Us For Availability
7
PANEL-WHITE WCI 3017039 Contact Us For Availability
7
TUBE-3/8 FEED WCI 5303009495 Contact Us For Availability
8
WCI 5308008085 WCI 5308008085 Contact Us For Availability
8
NUT-3/8 LOXIT WCI 5303131064 Contact Us For Availability
8A
HINGE ASSY-RH WCI 5303204670 Contact Us For Availability
9
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
9
SPRING OVEN DOOR (2) WCI 5303009435 Contact Us For Availability
9
PANEL - WHITE WCI 3017169 Contact Us For Availability
10
RACK OVEN (2) WCI 5303015714 Contact Us For Availability
10
CVR-OVEN SAFETY VALVE WCI 3131088 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
11
SNAP-BUSHING WCI 5301316432 Contact Us For Availability
11
LINER-OVEN-BOTTOM WCI 3018282 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11A
HINGE - LH WCI 5303131029 Contact Us For Availability
12
SUPT-OVEN SAFETY VALVE WCI 3131069 Contact Us For Availability
12
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
12
SPRING WCI 5303131030 Contact Us For Availability
13
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
13
WCI 5303051055 WCI 5303051055 Contact Us For Availability
13A
LEG LEVELER (4) (NON-ILLUSTRATED) WCI 318175510 No Longer Available
13A
WCI 5303051056 WCI 5303051056 Contact Us For Availability
14
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
14
ROLLERS (2) WCI 5303051057 Contact Us For Availability
15
CAM-VALVE (4) WCI 5308008002 Contact Us For Availability
15
LINER LH WCI 3018285 Contact Us For Availability
15A
LINER RH WCI 3018284 Contact Us For Availability
15B
WCI 3018347 WCI 3018347 Contact Us For Availability
15C
WCI 3018995 WCI 3018995 Contact Us For Availability
16
WCI 5303131057 WCI 5303131057 Contact Us For Availability
16
WCI 3017171 WCI 3017171 Contact Us For Availability
16A
WCI 3017172 WCI 3017172 Contact Us For Availability
17
MICRO SWITCH WCI 5303131094 Contact Us For Availability
17
SUPPORT-OVEN REAR (2) WCI 3051096 Contact Us For Availability
18
SPRING-SLIDE WCI 5303131096 Contact Us For Availability
18
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
19
WCI 3203964 WCI 3203964 Contact Us For Availability
19
WCI 08013953 WCI 08013953 Contact Us For Availability
20
IGNITER-TOP BURNER 36`` WCI 3203970 Contact Us For Availability
21
Burner,top ,rear WCI 5303131079 No Longer Available
21
MAIN BACK WCI 5303013340 Contact Us For Availability
22
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
22
VENT BOX WCI 3017173 Contact Us For Availability
23
WCI 5303131099 WCI 5303131099 Contact Us For Availability
23
SHIELD-BURNER BOX RH WCI 5303131053 Contact Us For Availability
23A
SHIELD-BURNER BOX LH WCI 5303131054 Contact Us For Availability
24
NUT - WING WCI 08007979 Contact Us For Availability
24A
BASE RAIL RH WCI 5303210255 Contact Us For Availability
24B
BASE RAIL LH WCI 5303210256 Contact Us For Availability
× ![]()
