Model Electrolux 30KGMAWAN4 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - DOOR PARTS

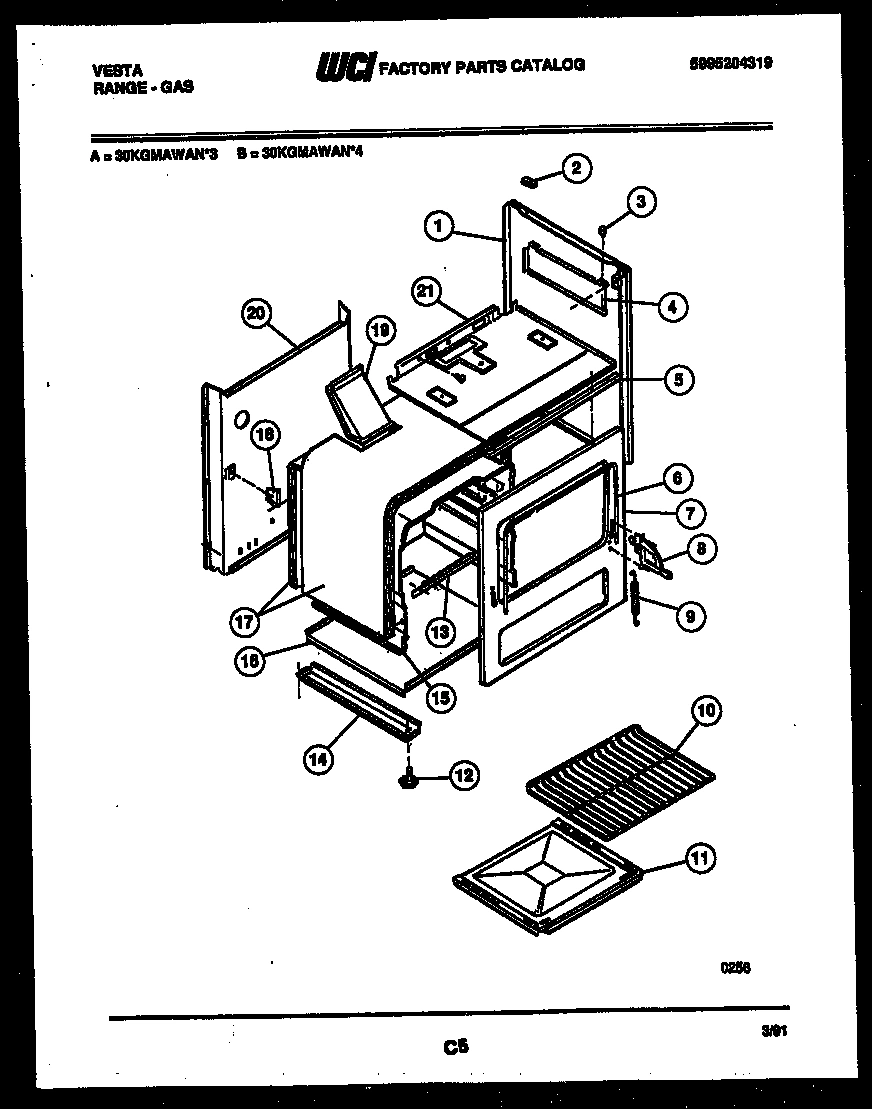

04 - BODY PARTS

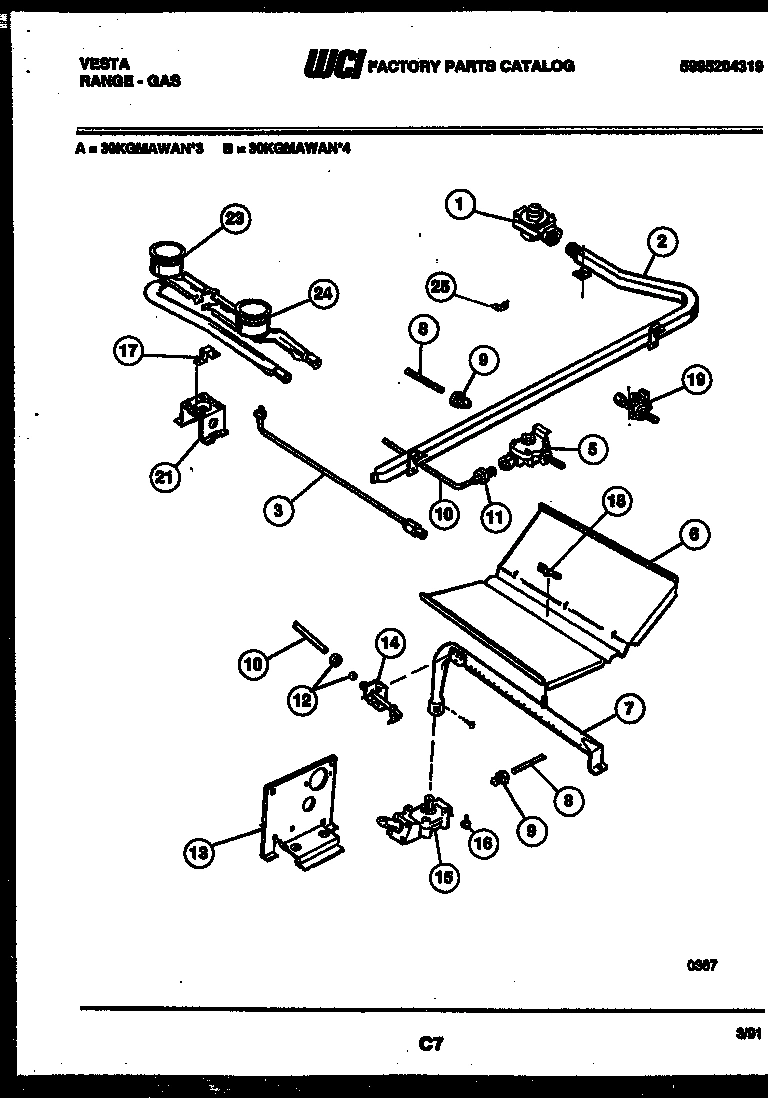

05 - BURNER, MANIFOLD AND GAS CONTROL

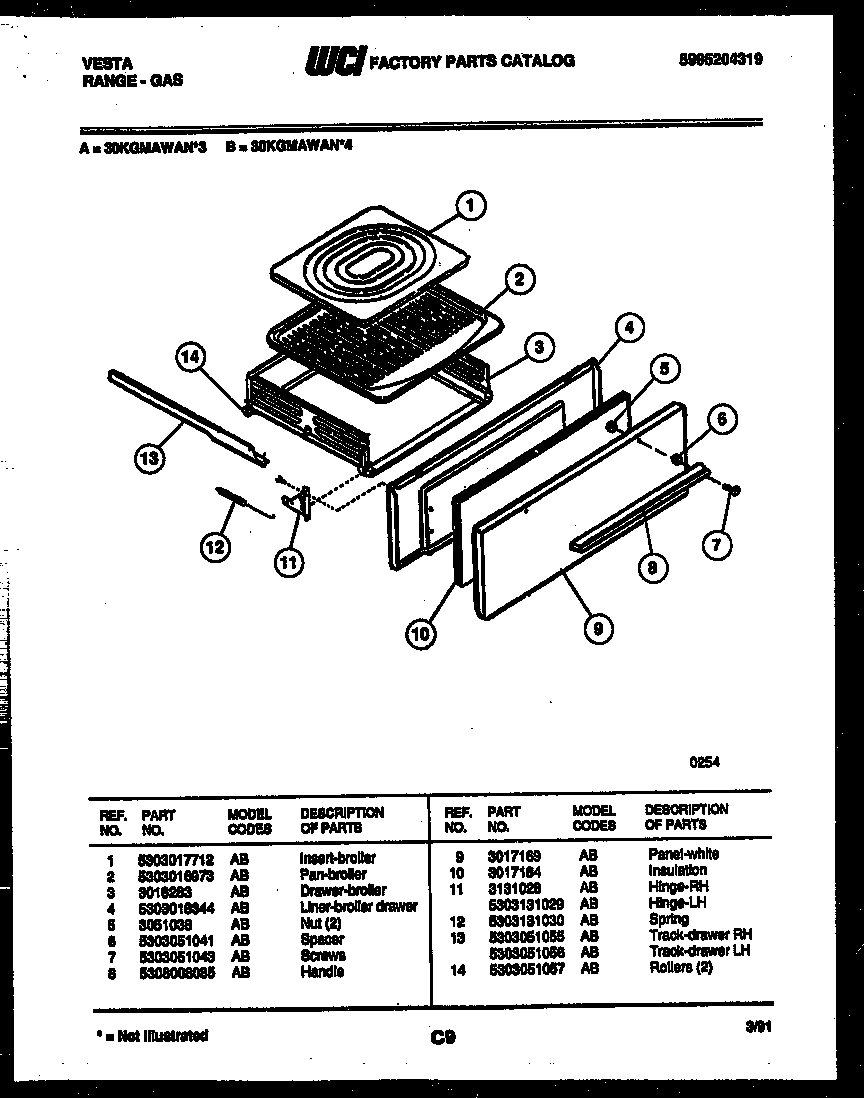

06 - BROILER DRAWER PARTS
Common parts from model Electrolux 30KGMAWAN4 RANGE
*30218
CLIP - B/S COVER WCI 3131791 Contact Us For Availability
*30218
WCI 3934059 WCI 3934059 Contact Us For Availability
1
PNL-B/S-WHITE WCI 5303051061 Contact Us For Availability
1
INSERT-BROILER WCI 5303017712 Contact Us For Availability
2
GROMMET-TOP REAR (4) WCI 3205587 Contact Us For Availability
2
WCI 5303017164 WCI 5303017164 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
3
GROMMET-TOP FRONT (2) WCI 3051063 Contact Us For Availability
3
WCI 5303131075 WCI 5303131075 Contact Us For Availability
4
KNOB-TOP VALVE WCI 5308013898 Contact Us For Availability
4
WCI 5303131053 WCI 5303131053 Contact Us For Availability
4
WCI 5303018344 WCI 5303018344 Contact Us For Availability
4A
WCI 5303131054 WCI 5303131054 Contact Us For Availability
5
WCI 5303131018 WCI 5303131018 Contact Us For Availability
5
SUPPORT - CONT PNL WCI 3131811 Contact Us For Availability
5
WCI 5308013927 WCI 5308013927 Contact Us For Availability
6
WCI 5308008022 WCI 5308008022 Contact Us For Availability
6
SPACER WCI 5303051041 Contact Us For Availability
6
WCI 5303131061 WCI 5303131061 Contact Us For Availability
7
PANEL-WHITE WCI 3017039 Contact Us For Availability
7
FRAME - FRONT WCI 3205578 Contact Us For Availability
7
WCI 5308013855 WCI 5308013855 Contact Us For Availability
8
WCI 5308008085 WCI 5308008085 Contact Us For Availability
8
HINGE-DOOR RH WCI 5303204670 Contact Us For Availability
8
TUBE-FEED OVEN WCI 5303009490 Contact Us For Availability
9
WCI 5303009435 WCI 5303009435 Contact Us For Availability
9
WCI 5303131064 WCI 5303131064 Contact Us For Availability
9
PANEL - WHITE WCI 3017169 Contact Us For Availability
10
WCI 5303015714 WCI 5303015714 Contact Us For Availability
10
TUBE-PILOT FEED OVEN WCI 5303131063 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
11
WCI 3018282 WCI 3018282 Contact Us For Availability
11
WCI 3131074 WCI 3131074 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11A
HINGE - LH WCI 5303131029 Contact Us For Availability
12
NUT WCI 5300269018 Contact Us For Availability
12
SPRING WCI 5303131030 Contact Us For Availability
13
WCI 3131038 WCI 3131038 Contact Us For Availability
13
WCI 3131069 WCI 3131069 Contact Us For Availability
13
WCI 5303051055 WCI 5303051055 Contact Us For Availability
13A
WCI 5303051056 WCI 5303051056 Contact Us For Availability
14
WCI 3205598 WCI 3205598 Contact Us For Availability
14
ROLLERS (2) WCI 5303051057 Contact Us For Availability
14A
Rail,base ,RH WCI 5303210255 Contact Us For Availability
14B
RAIL-BASE, LH WCI 5303210256 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15
WCI 5308013942 WCI 5308013942 Contact Us For Availability
15A
WCI 3018285 WCI 3018285 Contact Us For Availability
15B
WCI 3018347 WCI 3018347 Contact Us For Availability
15C
WCI 3018995 WCI 3018995 Contact Us For Availability
16
WCI 3011645 WCI 3011645 Contact Us For Availability
16
WCI 3131067 WCI 3131067 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17
WCI 3131078 WCI 3131078 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
SUPPORT-OVEN REAR (2) WCI 3051096 Contact Us For Availability
18
NUT - WING WCI 08007979 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
19
WCI 5303131057 WCI 5303131057 Contact Us For Availability
20
WCI 5303013340 WCI 5303013340 Contact Us For Availability
21
BOX - BURNER WCI 3017174 Contact Us For Availability
21
WCI 5303016870 WCI 5303016870 Contact Us For Availability
23
WCI 5303131079 WCI 5303131079 Contact Us For Availability
24
WCI 5303131080 WCI 5303131080 Contact Us For Availability
25
WCI 5300009126 WCI 5300009126 Contact Us For Availability
× ![]()
