Model Electrolux 30IPCDWAN6 RANGE – Common Parts & Diagrams

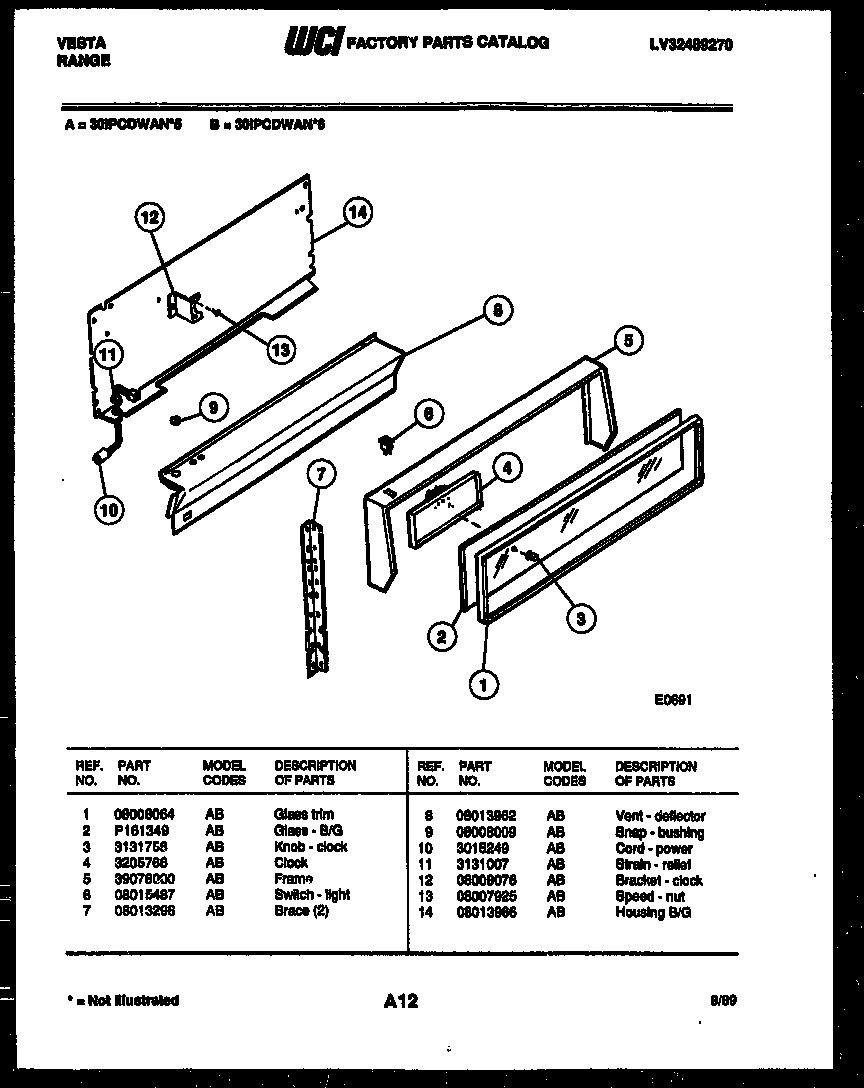

02 - BACKGUARD

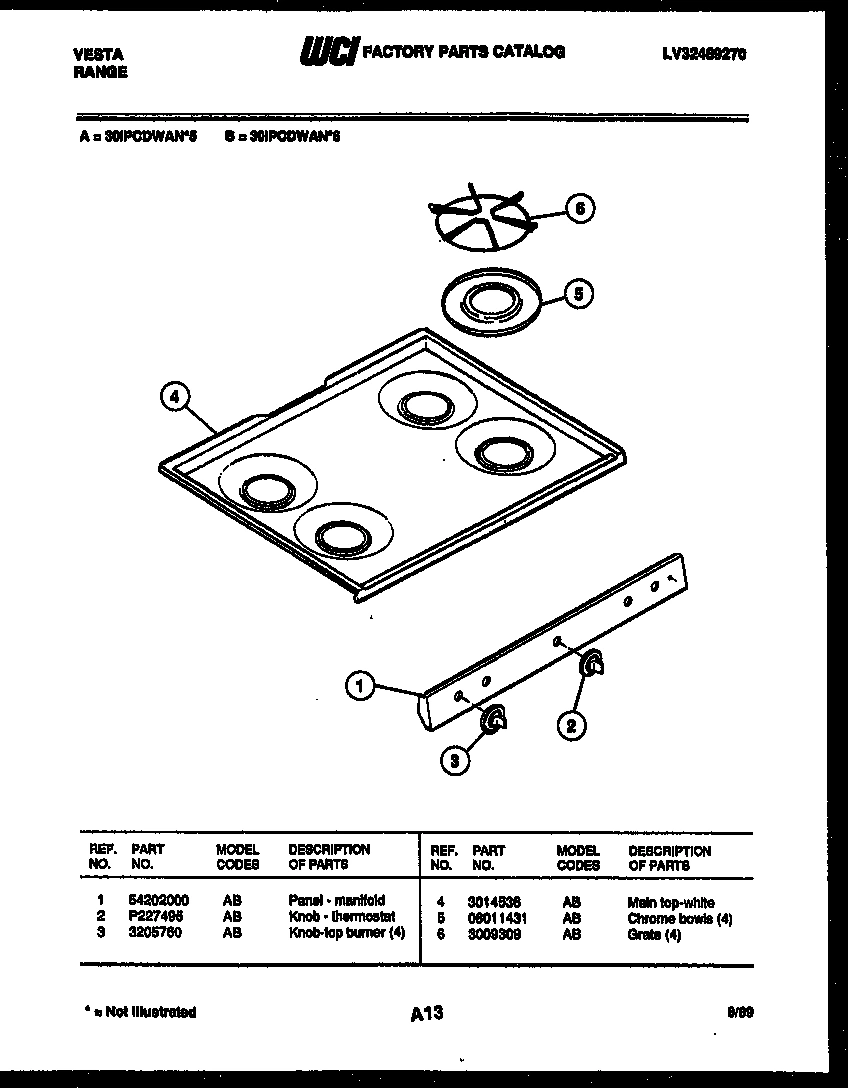

03 - COOKTOP PARTS

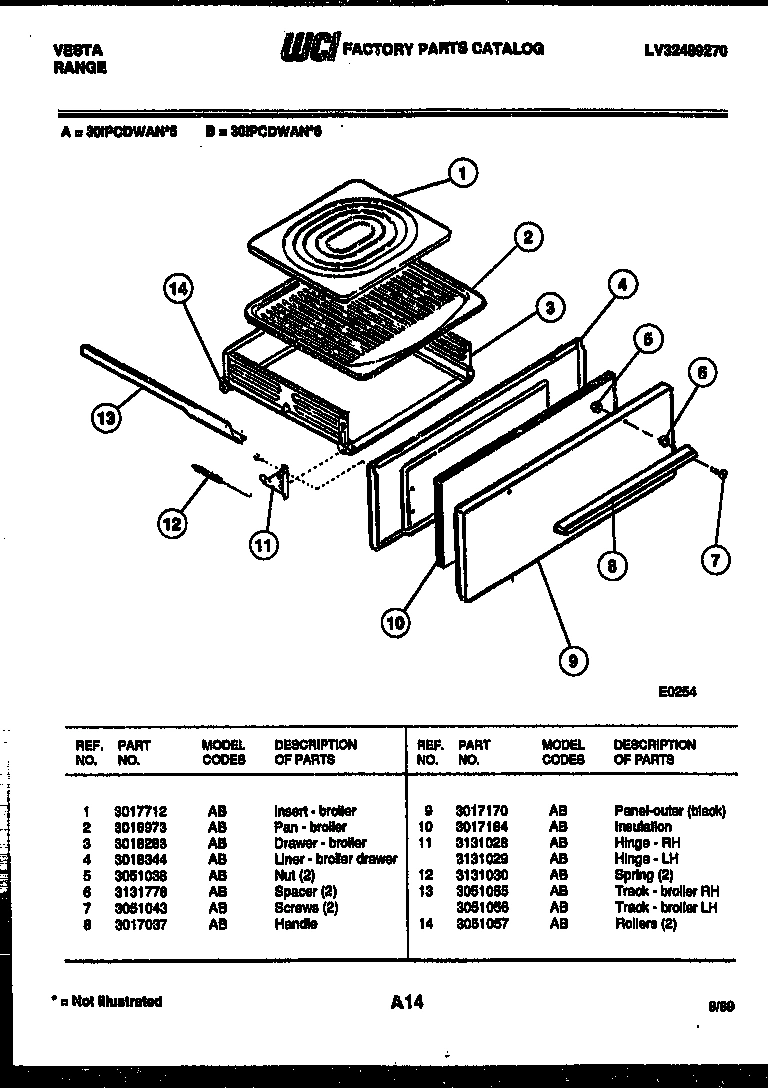

04 - BROILER DRAWER PARTS

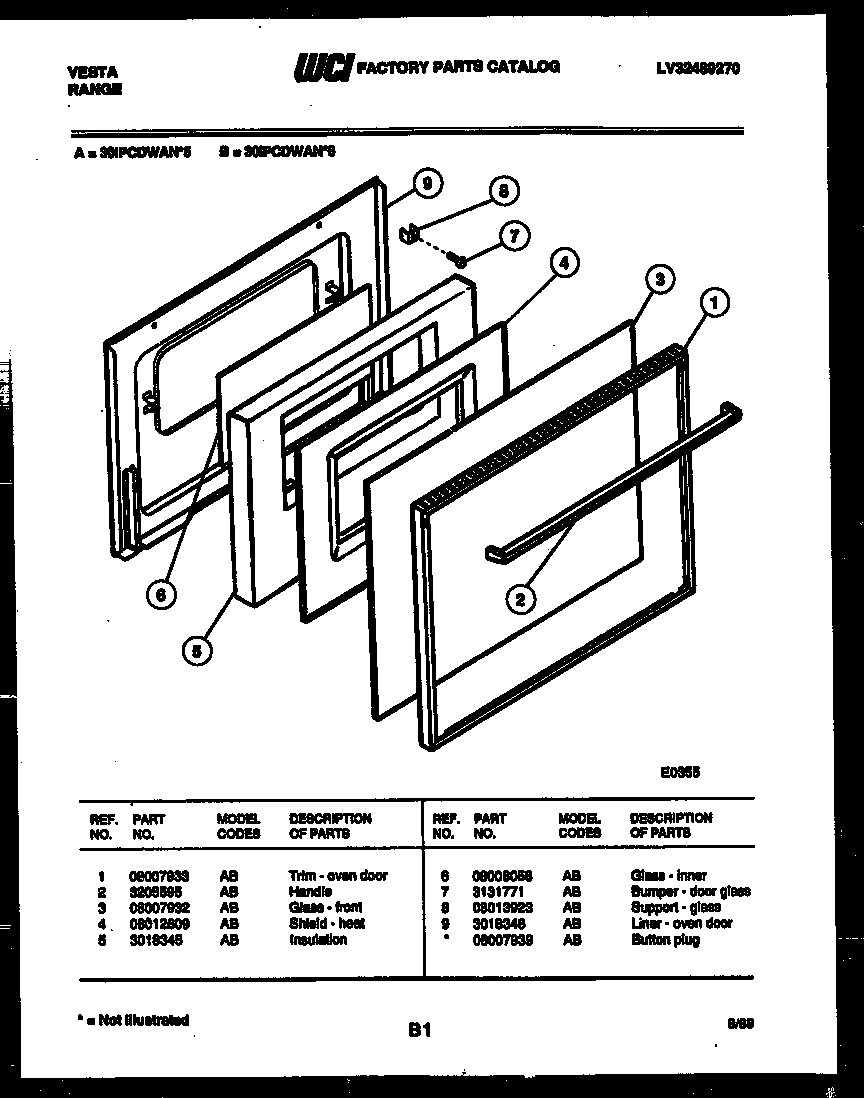

05 - DOOR PARTS

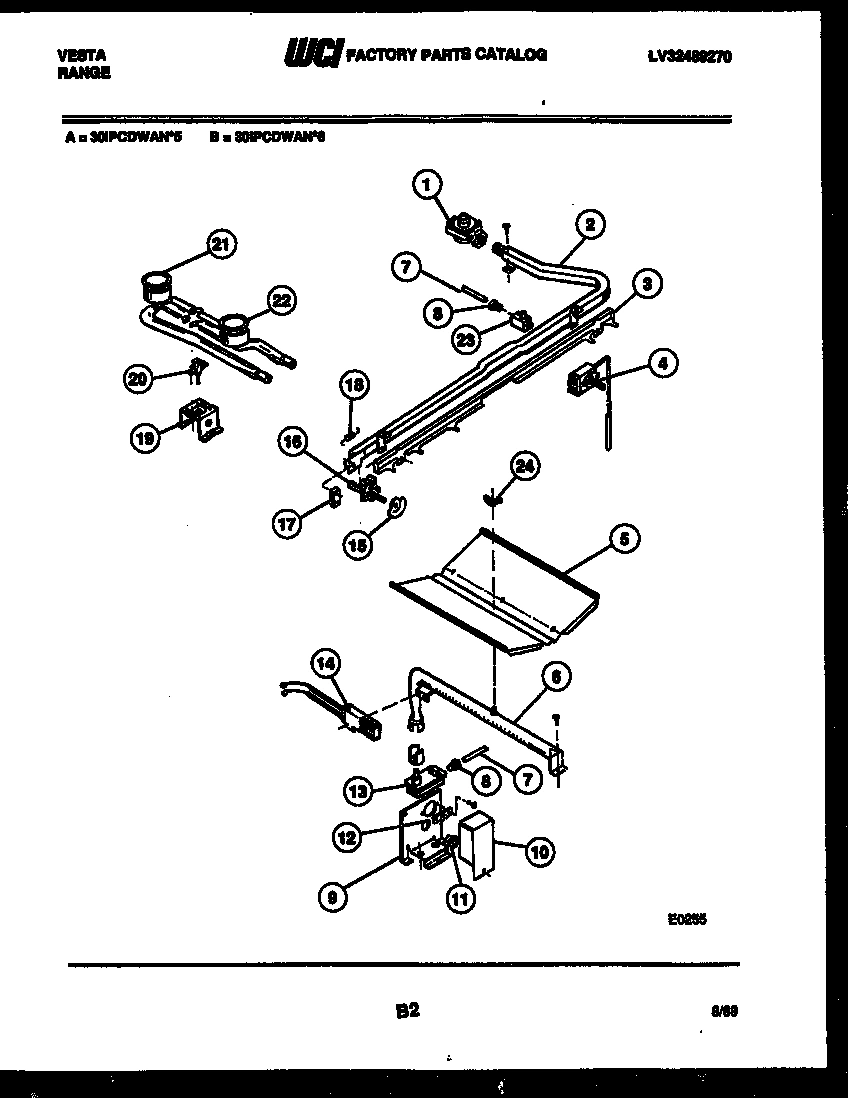

06 - BURNER, MANIFOLD AND GAS CONTROL

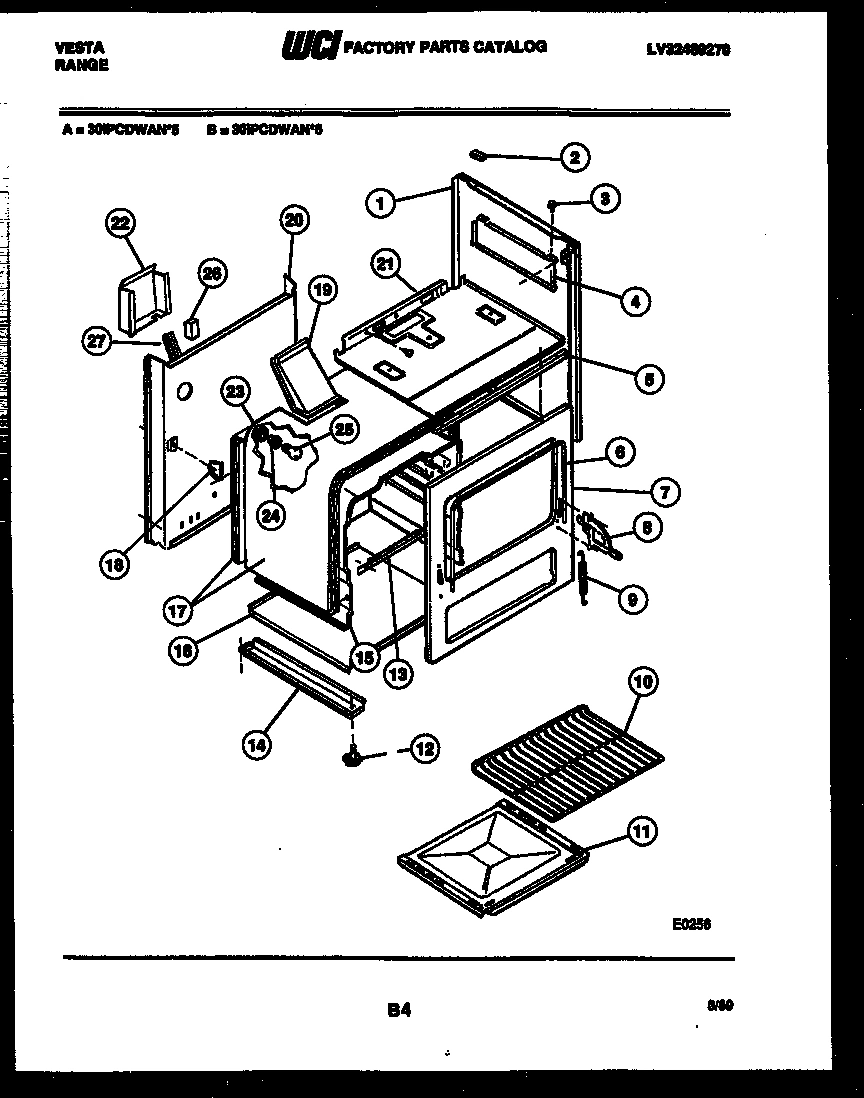

07 - BODY PARTS
Common parts from model Electrolux 30IPCDWAN6 RANGE
*30833
WCI 08007939 WCI 08007939 Contact Us For Availability
1
WCI 54202000 WCI 54202000 Contact Us For Availability
1
INSERT-BROILER WCI 3017712 Contact Us For Availability
1
TRIM - OVEN DOOR WCI 08007933 Contact Us For Availability
1
PANEL - SDE (WHITE) WCI 3051061 Contact Us For Availability
2
WCI P161349 WCI P161349 Contact Us For Availability
2
WCI P227495 WCI P227495 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
2
WCI 3205595 WCI 3205595 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
GROMMET-TOP REAR (2) WCI 3205589 Contact Us For Availability
3
WCI 3131756 WCI 3131756 Contact Us For Availability
3
WCI 3205760 WCI 3205760 Contact Us For Availability
3
WCI 08007932 WCI 08007932 Contact Us For Availability
3
WCI 3131856 WCI 3131856 Contact Us For Availability
3
GROMMET-TOP FRONT (2) WCI 3051063 Contact Us For Availability
4
WCI 3205766 WCI 3205766 Contact Us For Availability
4
WCI 3014536 WCI 3014536 Contact Us For Availability
4
WCI 3018344 WCI 3018344 Contact Us For Availability
4
WCI 08012609 WCI 08012609 Contact Us For Availability
4
THERMOSTAT WCI 08013926 Contact Us For Availability
4
WCI 3131053 WCI 3131053 Contact Us For Availability
4A
CLIP - CAPILLARY BULB (NON-ILLUSTRATED) WCI 9126 Contact Us For Availability
4A
WCI 3131054 WCI 3131054 Contact Us For Availability
5
WCI 39078000 WCI 39078000 Contact Us For Availability
5
WCI 08011431 WCI 08011431 Contact Us For Availability
5
WCI 3018345 WCI 3018345 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
6
GRATE (4) WCI 3009309 Contact Us For Availability
6
WCI 3131778 WCI 3131778 Contact Us For Availability
6
WCI 08008058 WCI 08008058 Contact Us For Availability
6
WCI 3202752 WCI 3202752 Contact Us For Availability
6
WCI 08008022 WCI 08008022 Contact Us For Availability
7
WCI 08013296 WCI 08013296 Contact Us For Availability
7
WCI 3131771 WCI 3131771 Contact Us For Availability
7
WCI 3009495 WCI 3009495 Contact Us For Availability
7
FRAME - FRONT WCI 3205578 Contact Us For Availability
8
VENT - DEFLECTOR WCI 08013962 Contact Us For Availability
8
WCI 3017037 WCI 3017037 Contact Us For Availability
8
WCI 08013923 WCI 08013923 Contact Us For Availability
8
WCI AP269017 WCI AP269017 Contact Us For Availability
8
HINGE - DOOR RH WCI 3204670 Contact Us For Availability
9
WCI 08008009 WCI 08008009 Contact Us For Availability
9
PANEL - OUTER BLACK WCI 3017170 Contact Us For Availability
9
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
9
WCI 08007985 WCI 08007985 Contact Us For Availability
9
WCI 08008028 WCI 08008028 Contact Us For Availability
10
CORD - POWER WCI 3015249 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
WCI 08007986 WCI 08007986 Contact Us For Availability
10
RACK (2) WCI 3015714 Contact Us For Availability
11
WCI 3131007 WCI 3131007 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11
WCI 3051101 WCI 3051101 Contact Us For Availability
11
WCI 3018282 WCI 3018282 Contact Us For Availability
11A
HINGE - LH WCI 3131029 Contact Us For Availability
12
WCI 08008076 WCI 08008076 Contact Us For Availability
12
SPRING (2) WCI 3131030 Contact Us For Availability
12
SUPT-OVEN SAFETY VALVE WCI 3131069 Contact Us For Availability
12
SCREW - LEVELLING (4) WCI 3051080 Contact Us For Availability
13
WCI 08007925 WCI 08007925 Contact Us For Availability
13
TRACK - BROILER RH WCI 3051055 Contact Us For Availability
13
WCI 08009419 WCI 08009419 Contact Us For Availability
13
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
13A
TRACK - BROILER LH WCI 3051056 Contact Us For Availability
14
HOUSING B/G WCI 08013966 Contact Us For Availability
14
ROLLERS (2) WCI 3051057 Contact Us For Availability
14
RAIL - BASE (2) WCI 08068047 Contact Us For Availability
15
WCI 3131859 WCI 3131859 Contact Us For Availability
15
WCI 3018709 WCI 3018709 Contact Us For Availability
15
WCI 3018710 WCI 3018710 Contact Us For Availability
15A
WCI 3018713 WCI 3018713 Contact Us For Availability
15B
WCI 3018712 WCI 3018712 Contact Us For Availability
16
WCI 3205761 WCI 3205761 Contact Us For Availability
16
WCI 3011645 WCI 3011645 Contact Us For Availability
17
MICRO - SWITCH WCI 3131094 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
WCI 3131096 WCI 3131096 Contact Us For Availability
18
SUPPORT-REAR (2) WCI 3051096 Contact Us For Availability
19
WCI 3203964 WCI 3203964 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
20
WCI 3207970 WCI 3207970 Contact Us For Availability
20
WCI 3013340 WCI 3013340 Contact Us For Availability
21
BURNER - TOP REAR WCI 3131079 Contact Us For Availability
21
BURNER BOX BOTTOM WCI 3017174 Contact Us For Availability
21A
ANTI - TIP BRACKET (NON-ILLUSTRATED) WCI 3934059 Contact Us For Availability
21B
CLIP B/S CORNER (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
22
BURNER - TOP FRONT WCI 3131080 Contact Us For Availability
22
WCI 08013953 WCI 08013953 Contact Us For Availability
23
WCI 3051511 WCI 3051511 Contact Us For Availability
23
WCI 3131099 WCI 3131099 Contact Us For Availability
24
NUT - WING WCI 08007979 Contact Us For Availability
27
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
× ![]()
