Model Electrolux 30DPMDWEN2-23 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

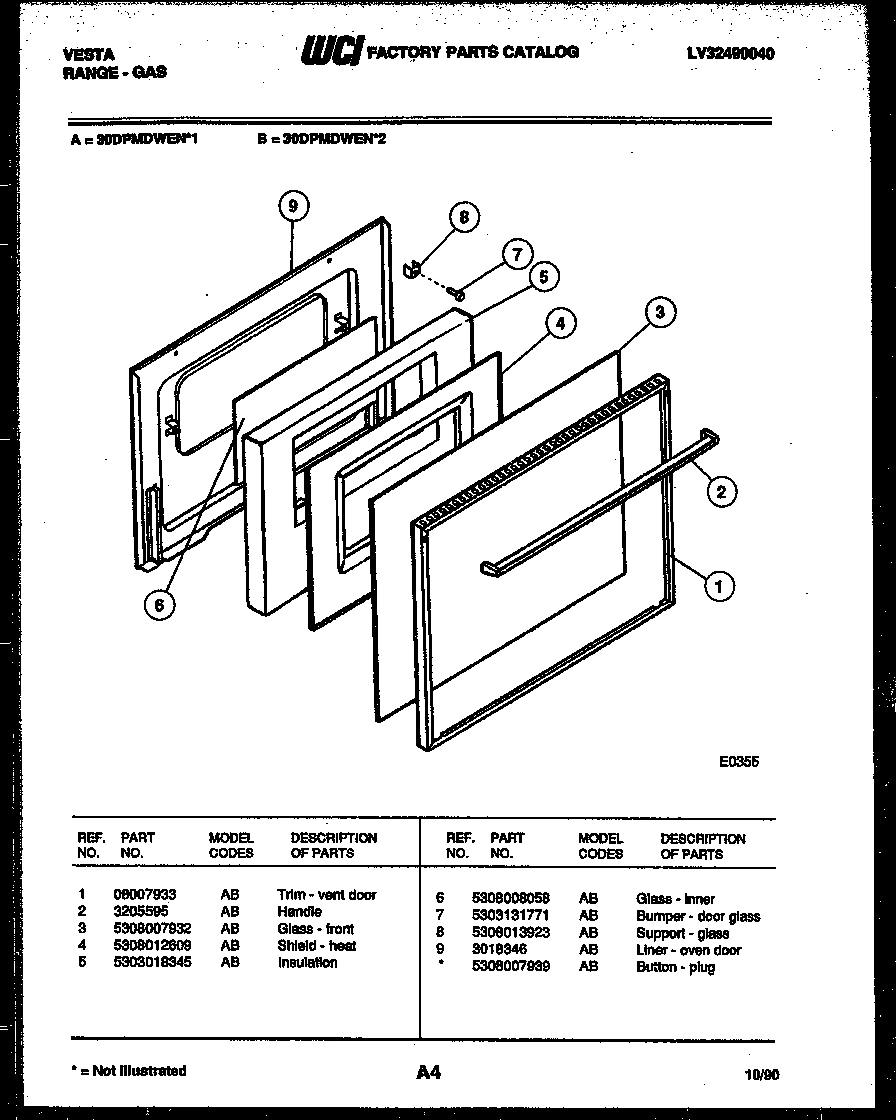

04 - DOOR PARTS

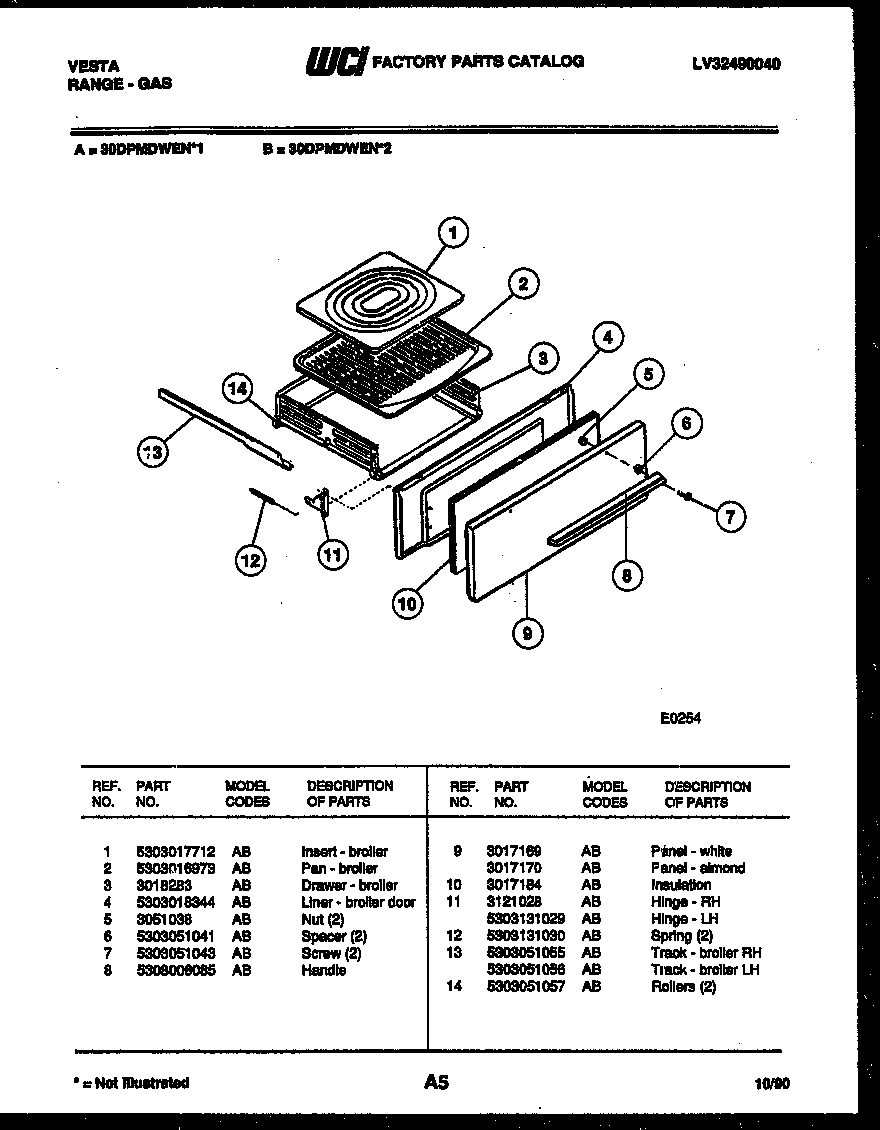

05 - BROILER DRAWER PARTS

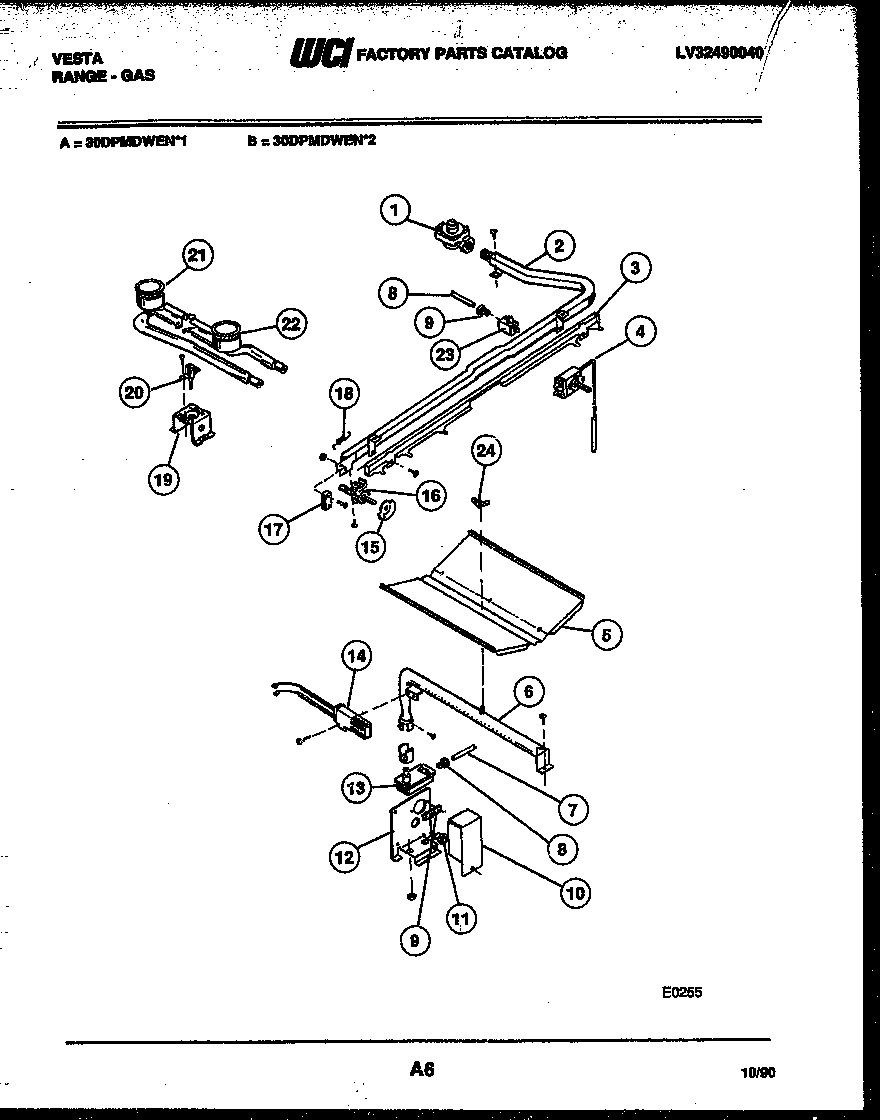

06 - BURNER, MANIFOLD AND GAS CONTROL

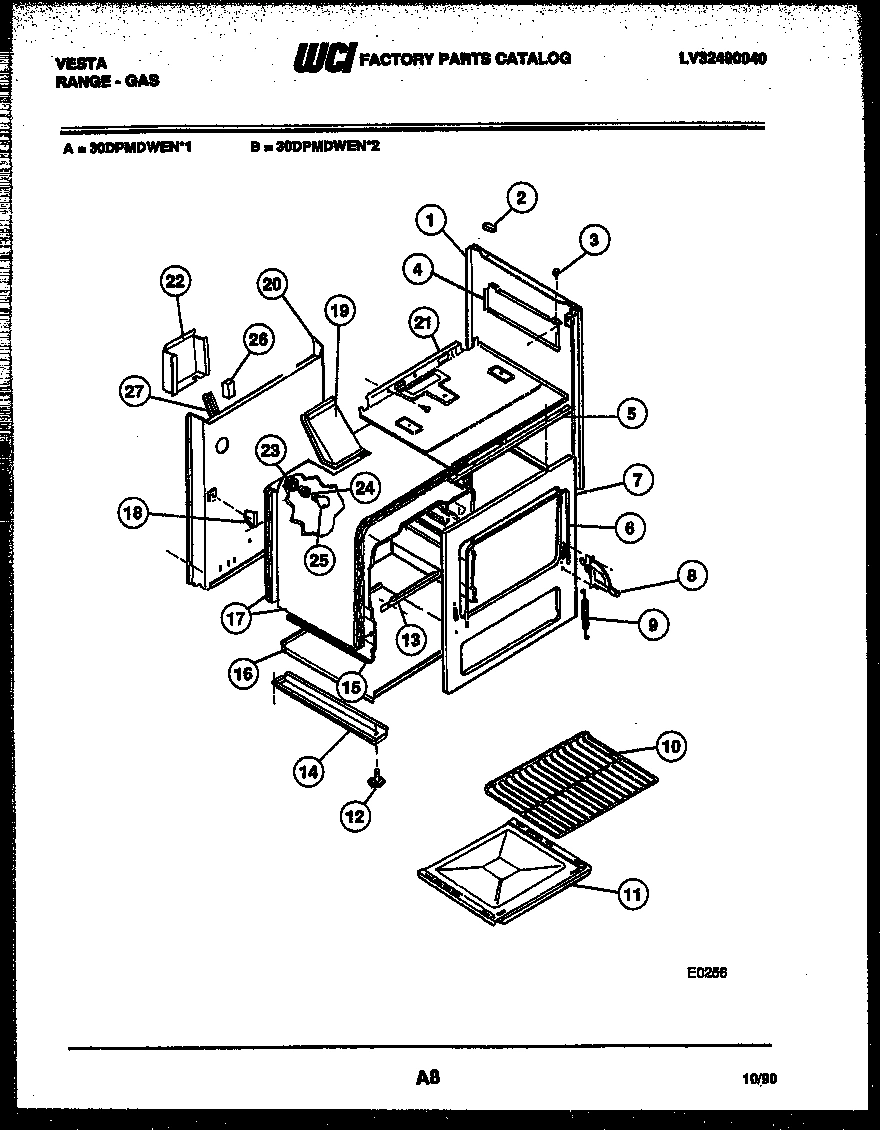

07 - BODY PARTS
Common parts from model Electrolux 30DPMDWEN2-23 RANGE
*37441
WCI 5308007939 WCI 5308007939 Contact Us For Availability
*37450
WCI 5303212856 WCI 5303212856 Contact Us For Availability
1
WCI 3018684 WCI 3018684 Contact Us For Availability
1
WCI 08007933 WCI 08007933 Contact Us For Availability
1
INSERT-BROILER WCI 5303017712 Contact Us For Availability
1
PANEL SIDE - ALMOND WCI 5308014019 Contact Us For Availability
2
WCI 5303131019 WCI 5303131019 Contact Us For Availability
2
WCI 3205595 WCI 3205595 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
2
WCI 5308013906 WCI 5308013906 Contact Us For Availability
2
GROMMET-TOP REAR (2) WCI 3205587 Contact Us For Availability
3
KNOB-TOP BURNER (4) WCI 5308013898 Contact Us For Availability
3
GLASS - FRONT WCI 5308007932 Contact Us For Availability
3
SLIDE BAR WCI 3131856 Contact Us For Availability
3
GROMMET-TOP FRONT (2) WCI 3051063 Contact Us For Availability
4
WCI 5308014033 WCI 5308014033 Contact Us For Availability
4
WCI 5308012609 WCI 5308012609 Contact Us For Availability
4
LINER BROILER DOOR WCI 5303018344 Contact Us For Availability
4
WCI 5308013926 WCI 5308013926 Contact Us For Availability
4
WCI 5303131053 WCI 5303131053 Contact Us For Availability
4A
WCI 5300009126 WCI 5300009126 Contact Us For Availability
4A
WCI 5303131054 WCI 5303131054 Contact Us For Availability
5
GRATE (4) WCI 3131011 Contact Us For Availability
5
WCI 5303018345 WCI 5303018345 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
5
SUPPORT CNTRL. PNL WCI 3131811 Contact Us For Availability
6
WCI 5303202752 WCI 5303202752 Contact Us For Availability
6
WCI 5308008022 WCI 5308008022 Contact Us For Availability
6
WCI 5308008058 WCI 5308008058 Contact Us For Availability
6
SPACER (2) WCI 5303051041 Contact Us For Availability
7
WCI 5303131771 WCI 5303131771 Contact Us For Availability
7
WCI 5303009495 WCI 5303009495 Contact Us For Availability
7
FRAME - FRONT WCI 3205578 Contact Us For Availability
8
WCI 5308013923 WCI 5308013923 Contact Us For Availability
8
WCI 5308008085 WCI 5308008085 Contact Us For Availability
8
NUT-3/8 LOXIT WCI 5303131064 Contact Us For Availability
8
HINGE-DOOR RH WCI 5303204670 Contact Us For Availability
9
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
9
WCI 3017170 WCI 3017170 Contact Us For Availability
9
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
9
WCI 5308008028 WCI 5308008028 Contact Us For Availability
10
WCI 5303015714 WCI 5303015714 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
COVER - OVEN SAFETY VALVE WCI 3131088 Contact Us For Availability
11
WCI 3121028 WCI 3121028 Contact Us For Availability
11
WCI 08008051 WCI 08008051 Contact Us For Availability
11
WCI 3018282 WCI 3018282 Contact Us For Availability
11A
HINGE - LH WCI 5303131029 Contact Us For Availability
12
SCREW-LEVELING WCI 318175510 No Longer Available
12
SPRING (2) WCI 5303131030 Contact Us For Availability
12
SUPPORT-OVEN SAFETY VALVE WCI 3131069 Contact Us For Availability
13
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
13
TRACK - BROILER RH WCI 5303051055 Contact Us For Availability
13
SUPPORT-OV BTM WCI 3131038 Contact Us For Availability
13A
TRACK - BROILER LH WCI 5303051056 Contact Us For Availability
14
HOUSING - BACKGUARD WCI 5308013966 Contact Us For Availability
14
ROLLERS (2) WCI 5303051057 Contact Us For Availability
14A
BASE RAIL RH WCI 5303210255 Contact Us For Availability
14B
BASE RAIL LH WCI 5303210256 Contact Us For Availability
15
CAM-VALVE (4) WCI 5308008002 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15A
WCI 3018285 WCI 3018285 Contact Us For Availability
15B
WCI 3018347 WCI 3018347 Contact Us For Availability
15C
WCI 3018286 WCI 3018286 Contact Us For Availability
16
WCI 5303131057 WCI 5303131057 Contact Us For Availability
16
WCI 3011645 WCI 3011645 Contact Us For Availability
17
WCI 5303131094 WCI 5303131094 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
18
SUPPORT-REAR (2) WCI 3051096 Contact Us For Availability
19
WCI 3203964 WCI 3203964 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
20
IGNITOR-TOP BURNER 36`` WCI 3203970 Contact Us For Availability
20
WCI 5303013340 WCI 5303013340 Contact Us For Availability
21
Burner,top ,rear WCI 5303131079 No Longer Available
21
BURNER-BOX BTM WCI 3017174 Contact Us For Availability
21A
ANTI - TIP BRACKET (NON-ILLUSTRATED) WCI 3934059 Contact Us For Availability
21B
CLIP B/S CORNER (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
22
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
22
WCI 08013953 WCI 08013953 Contact Us For Availability
23
WCI 3051511 WCI 3051511 Contact Us For Availability
23
WCI 5303131099 WCI 5303131099 Contact Us For Availability
24
NUT - WING WCI 08007979 Contact Us For Availability
27
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
× ![]()
