Model Electrolux 30DPMBWAP6 RANGE – Common Parts & Diagrams
02 - COVER

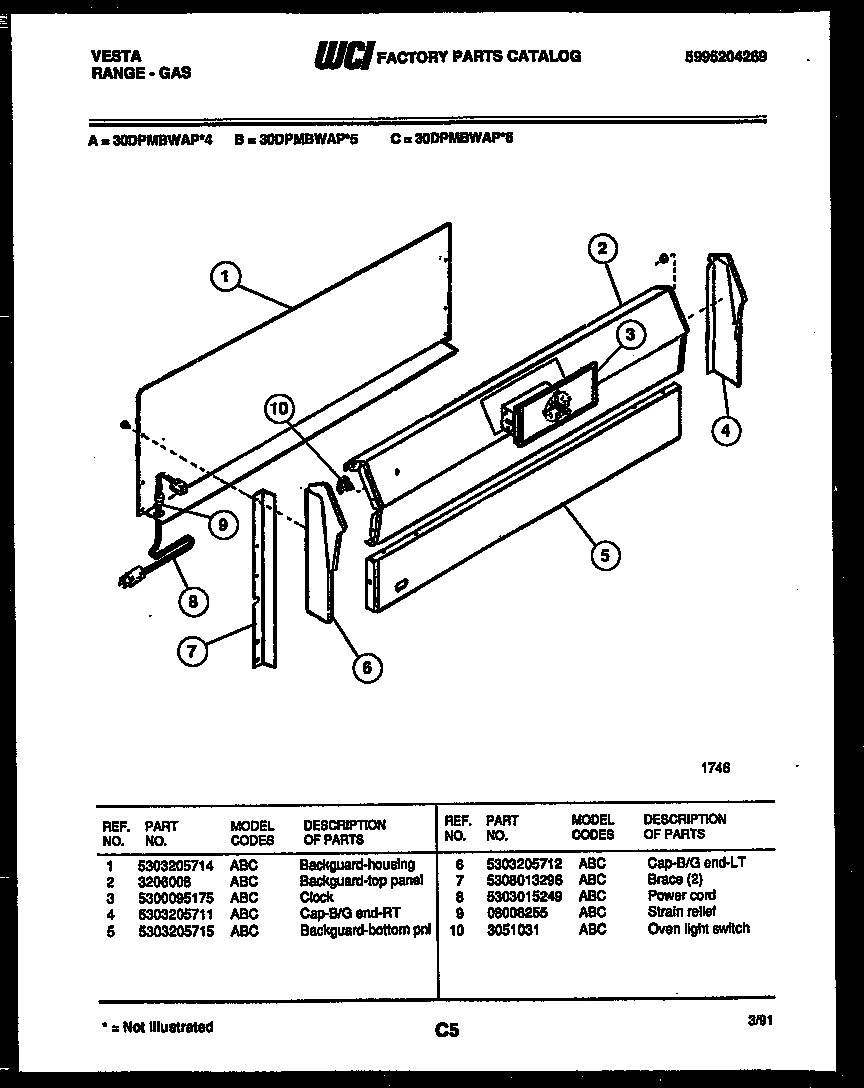

03 - BACKGUARD

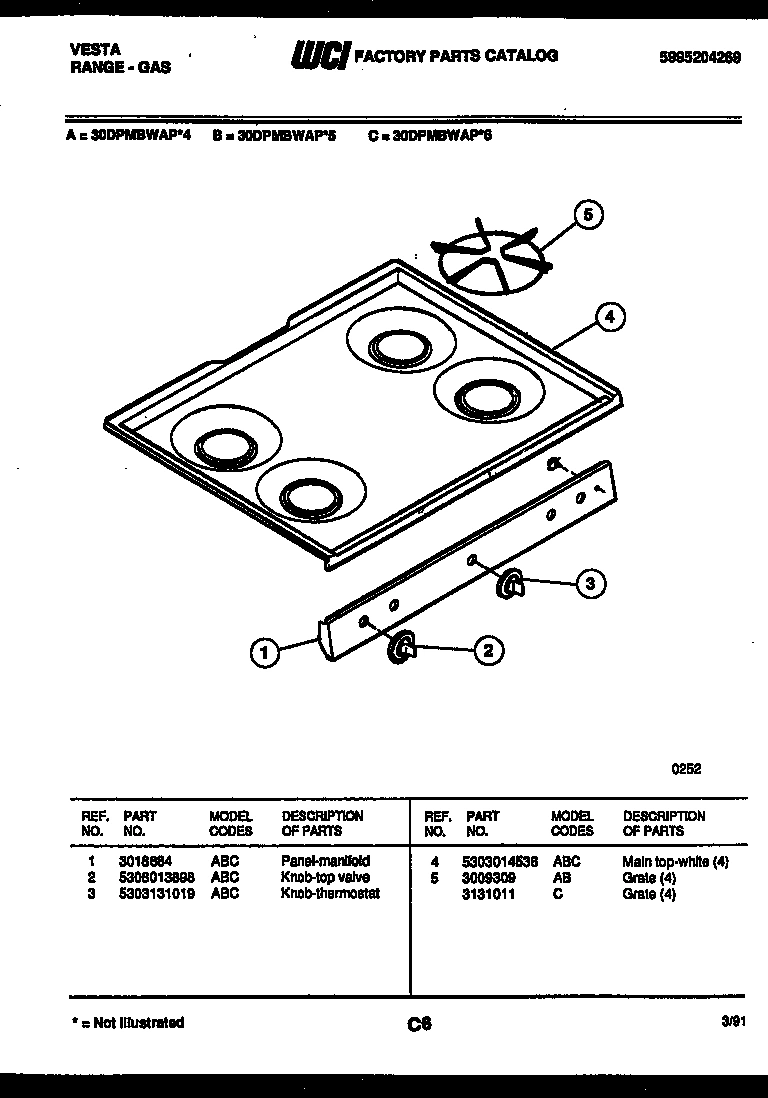

04 - COOKTOP
05 - BURNER/MANIFOLD
06 - BODY

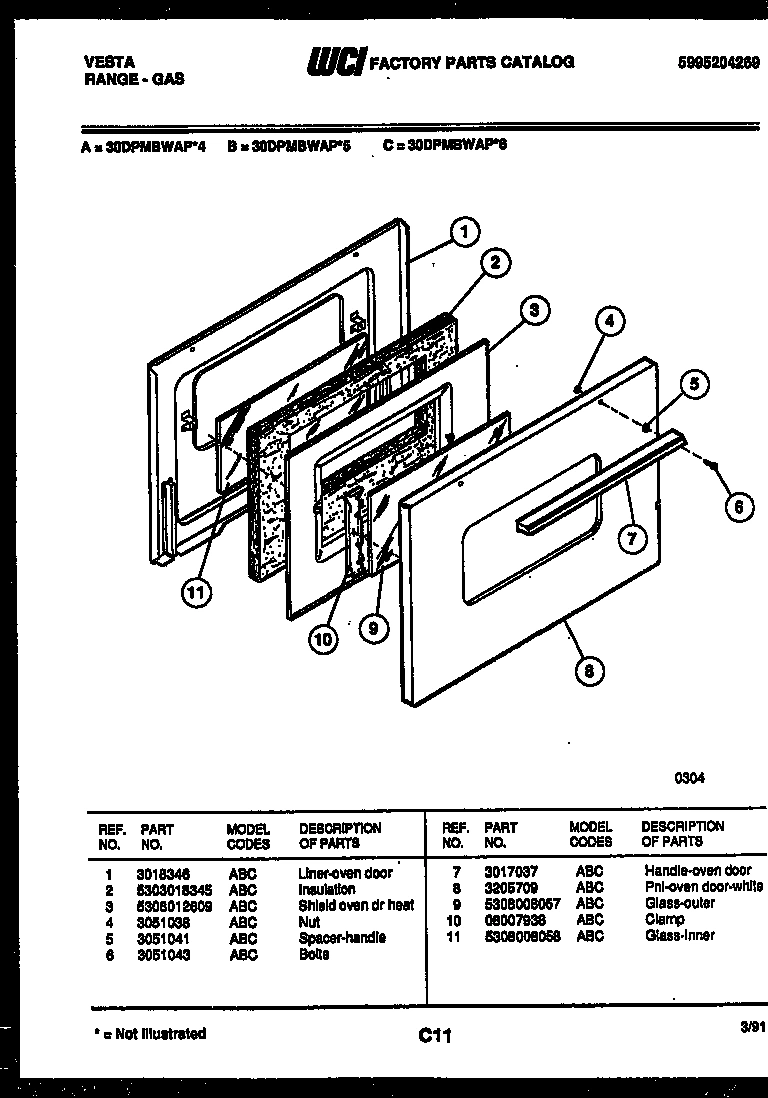

07 - DOOR
08 - BROILER DRAWER
Common parts from model Electrolux 30DPMBWAP6 RANGE
*30996
WCI 191S018F271 WCI 191S018F271 Contact Us For Availability
*30996
WCI 3934059 WCI 3934059 Contact Us For Availability
1
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
1
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
1
INSERT-BROILER WCI 5303017712 Contact Us For Availability
2
KNOB-TOP VALVE WCI 5308013898 Contact Us For Availability
2
MANIFOLD WCI 5308013906 Contact Us For Availability
2
GROMMET PLASTIC WCI 3051063 Contact Us For Availability
2
WCI 5303018345 WCI 5303018345 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
3
WCI 5303131019 WCI 5303131019 Contact Us For Availability
3
WCI 5303210474 WCI 5303210474 Contact Us For Availability
3
B/S PANEL-WHITE WCI 5303051061 Contact Us For Availability
3
SHIELD OVEN DR HEAT WCI 5308012609 Contact Us For Availability
4
MAIN TOP-WHITE (4) WCI 5303014536 Contact Us For Availability
4
SLIDE BAR WCI 3131856 Contact Us For Availability
4
WCI 3017174 WCI 3017174 Contact Us For Availability
4
WCI 5303018344 WCI 5303018344 Contact Us For Availability
5
GRATE (4) WCI 3131011 Contact Us For Availability
5
CAM-VALVE WCI 5308008002 Contact Us For Availability
5
SUPT-CONTROL PANEL WCI 3131811 Contact Us For Availability
5
SPACER-HANDLE WCI 3051041 Contact Us For Availability
5
WCI 3017184 WCI 3017184 Contact Us For Availability
6
WCI 5303131094 WCI 5303131094 Contact Us For Availability
6
FRONT FRAME-BRONZE WCI 3205578 Contact Us For Availability
7
Seal,oven door WCI 5308008022 Contact Us For Availability
7
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
7
HANDLE OVEN DOOR WCI 3017037 Contact Us For Availability
7
SPACER WCI 5303051041 Contact Us For Availability
8
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
8
PNL - OVEN DOOR (WHITE) WCI 3205709 Contact Us For Availability
8A
HINGE ASSY-RH WCI 5303204670 Contact Us For Availability
9
WCI 5300009126 WCI 5300009126 Contact Us For Availability
9
SPRING-OVEN DOOR (2) WCI 5308008028 Contact Us For Availability
9
WCI 5308008057 WCI 5308008057 Contact Us For Availability
9
WCI 5308008085 WCI 5308008085 Contact Us For Availability
10
WCI 5303131099 WCI 5303131099 Contact Us For Availability
10
LINER-RT SIDE WCI 3018284 Contact Us For Availability
10
CLAMP WCI 08007938 Contact Us For Availability
10
WCI 08008080 WCI 08008080 Contact Us For Availability
10A
LINER-LT SIDE WCI 3018285 Contact Us For Availability
10B
WCI 3018347 WCI 3018347 Contact Us For Availability
10C
WCI 3018286 WCI 3018286 Contact Us For Availability
11
RACK OVEN (2) WCI 5303015714 Contact Us For Availability
11
WCI 5308008058 WCI 5308008058 Contact Us For Availability
11
HNG-BROILER DRWR RH WCI 3131028 Contact Us For Availability
11A
HNG-BROILER DRWR LH WCI 5303131029 Contact Us For Availability
12
TUBE-OVEN FEED WCI 5303009495 Contact Us For Availability
12
LINER-BOTTOM WCI 3018282 Contact Us For Availability
12
SPRING-BROILER WCI 5303131030 Contact Us For Availability
13
WCI 08007979 WCI 08007979 Contact Us For Availability
13
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
13
TRACK BROILER LT WCI 5303051055 Contact Us For Availability
13
TRACK BROILER LT WCI 5303051056 Contact Us For Availability
14
SCREW-LEVELING LEG WCI 318175510 No Longer Available
14
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
14
ROLLER WCI 5303051057 Contact Us For Availability
15
WCI 5303202752 WCI 5303202752 Contact Us For Availability
15A
WCI 530321055 WCI 530321055 Contact Us For Availability
15B
WCI 530321056 WCI 530321056 Contact Us For Availability
16
LOCK NUT WCI 5308007983 Contact Us For Availability
17
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
18
WCI 3051511 WCI 3051511 Contact Us For Availability
18
COVER-VALVE WCI 3131088 Contact Us For Availability
19
WCI 08008051 WCI 08008051 Contact Us For Availability
19
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
20
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
20
WCI 3017171 WCI 3017171 Contact Us For Availability
20A
WCI 3017172 WCI 3017172 Contact Us For Availability
21
WCI 5308009419 WCI 5308009419 Contact Us For Availability
21
Support,oven rear WCI 3051096 Contact Us For Availability
22
CHANNEL - WIRE WCI 3131046 Contact Us For Availability
23
WCI 3203964 WCI 3203964 Contact Us For Availability
24
IGNITER 36`` WCI 3203970 Contact Us For Availability
24
WCI 08013953 WCI 08013953 Contact Us For Availability
25
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
25
WCI 5303013340 WCI 5303013340 Contact Us For Availability
26
Burner,top ,rear WCI 5303131079 No Longer Available
26
VENT BOX WCI 3017173 Contact Us For Availability
27
SHIELD-BURNER BOX RT WCI 5303131053 Contact Us For Availability
27A
SHIELD-BURNER BOX LT WCI 5303131054 Contact Us For Availability
× ![]()
