Model Electrolux 30-7988-23-05 RANGE – Common Parts & Diagrams

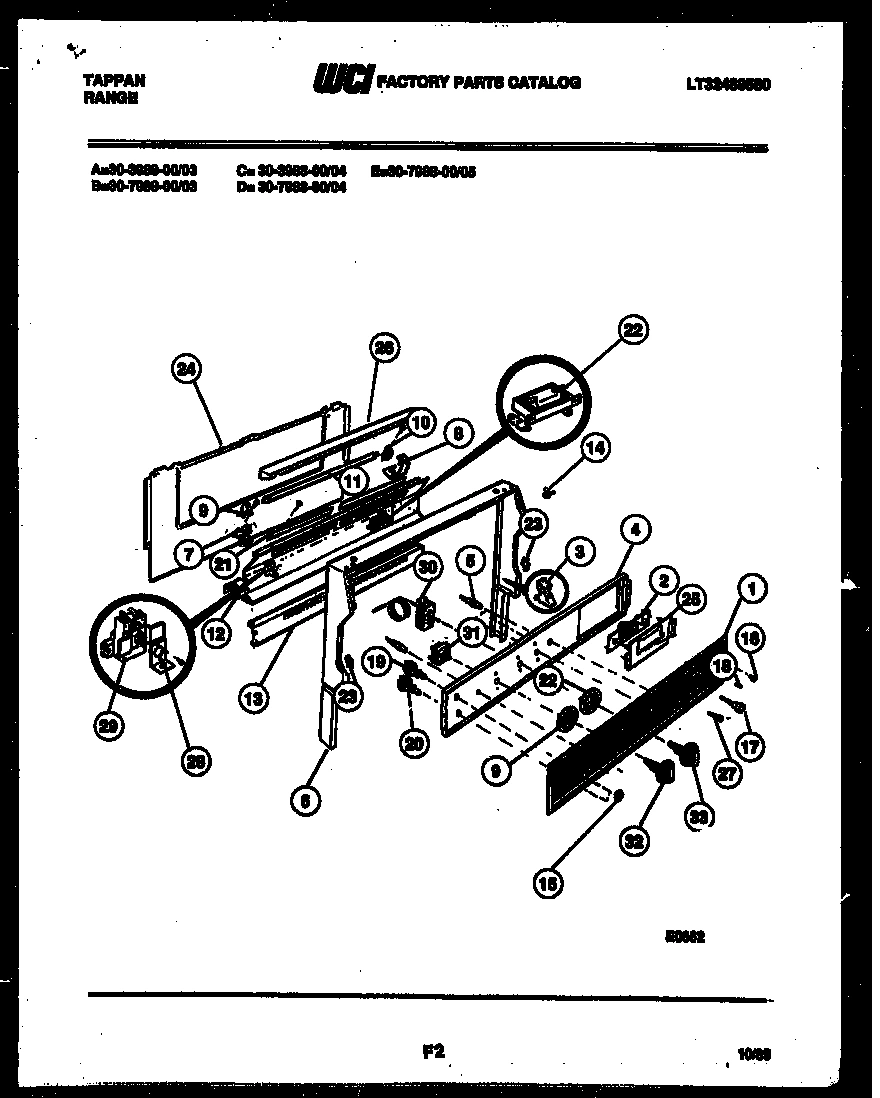

02 - BACKGUARD

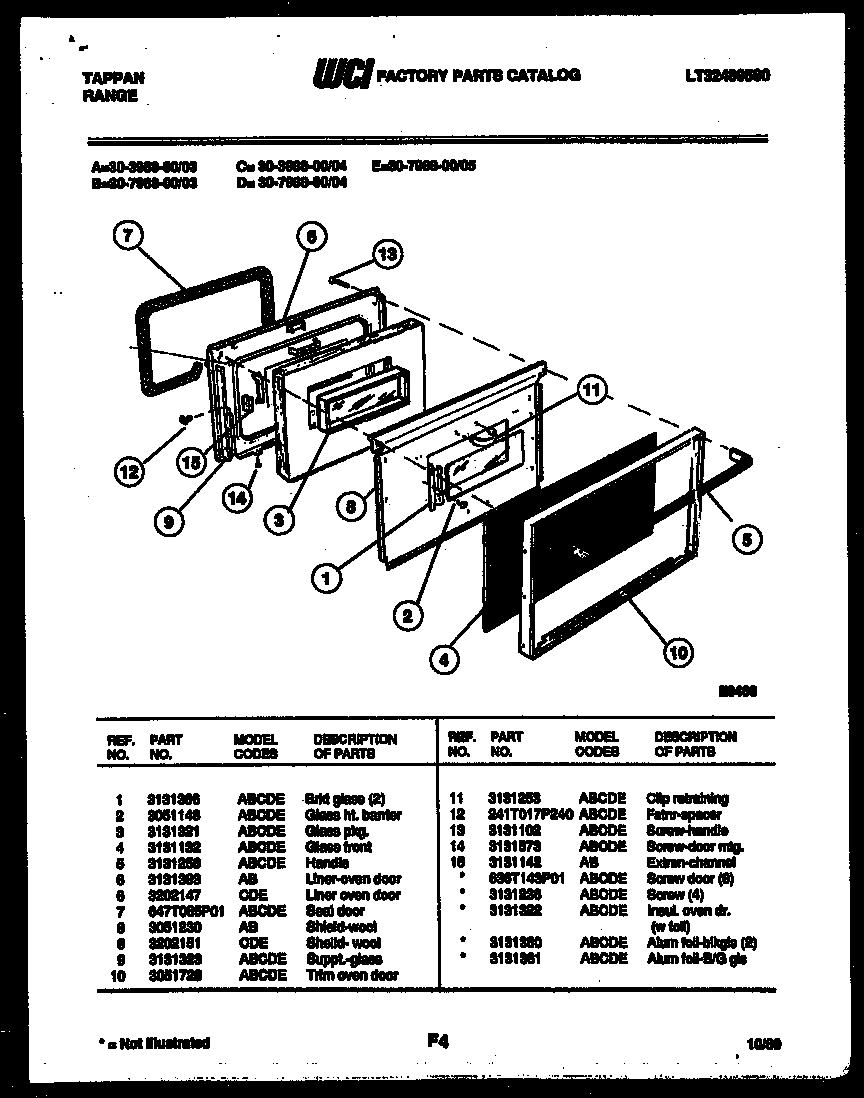

03 - DOOR PARTS

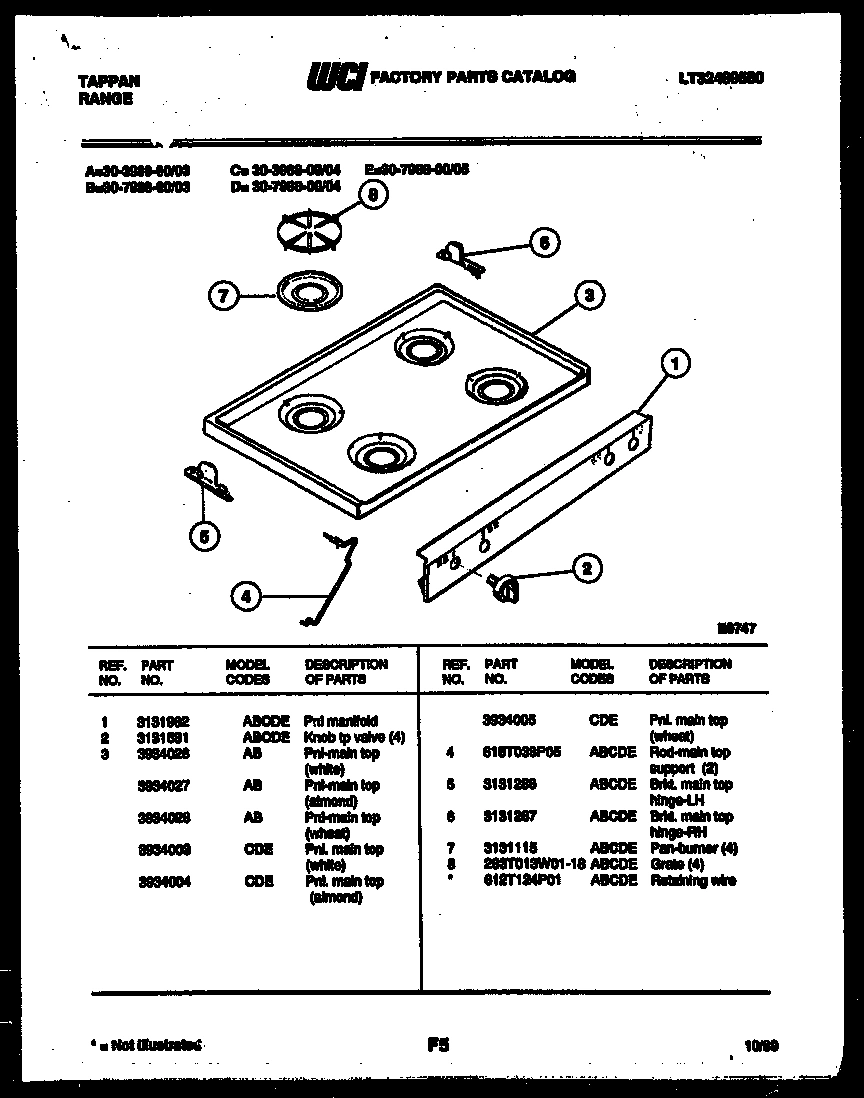

04 - COOKTOP PARTS

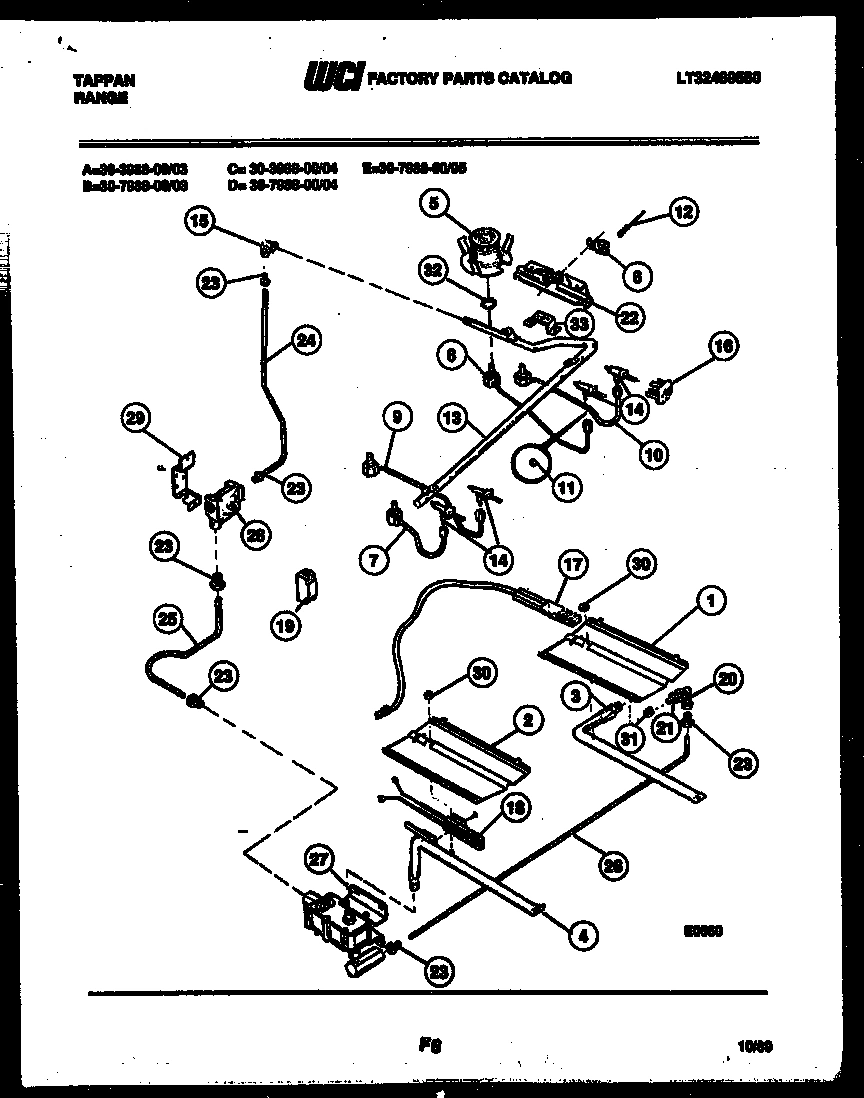

05 - BURNER, MANIFOLD AND GAS CONTROL

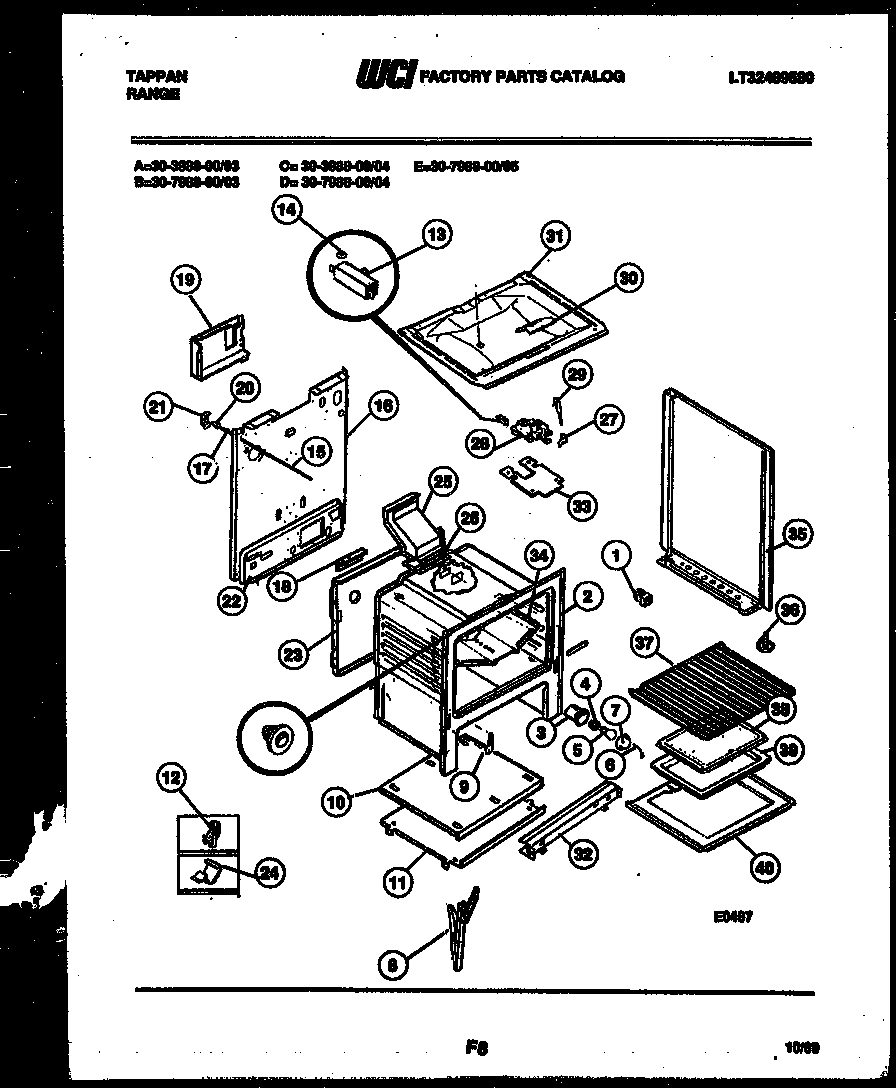

06 - BODY PARTS

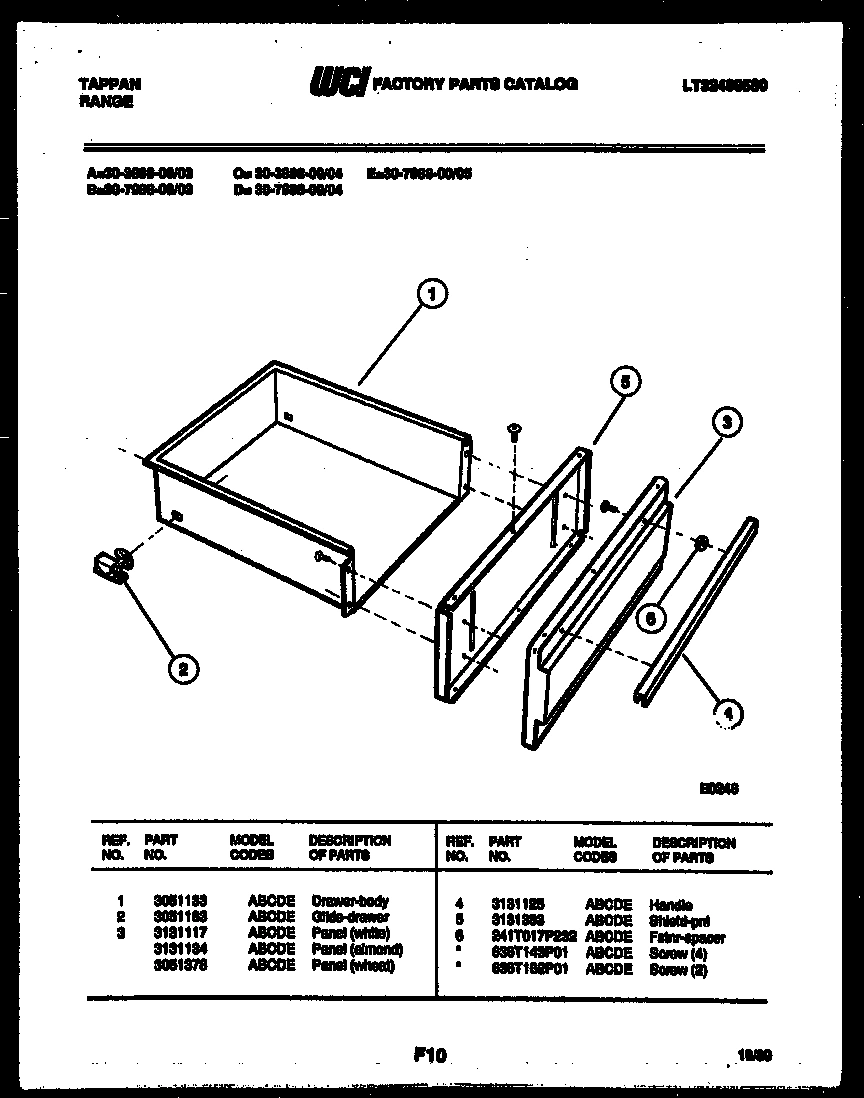

07 - DRAWER PARTS
Common parts from model Electrolux 30-7988-23-05 RANGE
*33652
WCI 3131236 WCI 3131236 Contact Us For Availability
*33652
INSUL. OVEN DR. (W FOIL) WCI 3131322 Contact Us For Availability
*33652
ALUM. FOIL-B/G GLS. WCI 3131361 Contact Us For Availability
*33653
RETAINING WIRE WCI 612T124P01 Contact Us For Availability
*33659
RIVET (4) WCI 3051420 Contact Us For Availability
*33665
WCI 241T017P255 WCI 241T017P255 Contact Us For Availability
*33665
INSULATION, BACK WCI 3131303 Contact Us For Availability
*33665
INSUL. TOUCH WCI 3131305 Contact Us For Availability
*33665
INSULATION TOP WRAP WCI 3200833 Contact Us For Availability
*33665
WCI 3200834 WCI 3200834 Contact Us For Availability
*33665
WCI 665T434F01 WCI 665T434F01 Contact Us For Availability
*33667
SCREW (2) WCI 636T162P01 Contact Us For Availability
1
BRKT GLASS (2) WCI 3131366 Contact Us For Availability
1
PNL MANIFOLD WCI 3131962 Contact Us For Availability
1
WCI 3131283 WCI 3131283 Contact Us For Availability
1
SPCR BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
2
GLASS HT. BARRIER WCI 3051148 Contact Us For Availability
2
KNOB TP. VALVE (4) WCI 3131581 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
3
WCI 3131321 WCI 3131321 Contact Us For Availability
3
PNL MAIN TOP-ALMOND WCI 3934004 Contact Us For Availability
3
WCI 079T028P01 WCI 079T028P01 Contact Us For Availability
3
WCI 3131363 WCI 3131363 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
4
PLATE MTD INSTR. WCI 554T400F02-18 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
ROD, MAIN TOP SUPPORT (2) WCI 618T038P05 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
WCI 3131963 WCI 3131963 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5
BRKT MAIN TOP HINGE-LH WCI 3131286 Contact Us For Availability
5
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
5
SHIELD-PNL WCI 3131383 Contact Us For Availability
6
WCI 3131436 WCI 3131436 Contact Us For Availability
6
WCI 3202147 WCI 3202147 Contact Us For Availability
6
BRKT MAIN TOP HINGE-RH WCI 3131287 Contact Us For Availability
6
RETAINER-IGNITER (4) WCI 3018617 Contact Us For Availability
6
WCI 3131104 WCI 3131104 Contact Us For Availability
6
FSTNR.-SPACER WCI 241T017P232 Contact Us For Availability
7
FLUOR, BRKT LH WCI 3131576 Contact Us For Availability
7
WCI 079T033H01 WCI 079T033H01 Contact Us For Availability
7
GLASS, OVEN LAMP WCI 3131298 Contact Us For Availability
8
CHANNEL DR. HINGE WCI 316007002 No Longer Available
8
FLUOR, BRKT RH WCI 3131577 Contact Us For Availability
8
SHEILD-WOOL WCI 3202151 Contact Us For Availability
8
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
9
COVER HINGE SUTOUT (2) WCI 3131570 Contact Us For Availability
9
RECTP FLUOR LIGHT-LH WCI 3051222 Contact Us For Availability
9
SUPPT.-GLASS WCI 3131323 Contact Us For Availability
9
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
10
RECPT, FLUOR, LIGHT RH WCI 3051223 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
10
WCI 079T033H04 WCI 079T033H04 Contact Us For Availability
10
SHLD. HEAT (UPPER) WCI 3131312 Contact Us For Availability
11
LAMP BULB FLUOR. WCI 3131275 Contact Us For Availability
11
CLIP RETRAINING WCI 3131253 Contact Us For Availability
11
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
11
SHLD HEAT LOWER WCI 3131313 Contact Us For Availability
12
PANEL, SPLASHER WCI 3131965 Contact Us For Availability
12
FSTNR.-SPACER WCI 241T017P240 Contact Us For Availability
12
IGNITER TOP 50`` WCI 3131105 Contact Us For Availability
12
CLP. THERM. BLB. (2) WCI 3131295 Contact Us For Availability
13
WCI 3131241 WCI 3131241 Contact Us For Availability
13
SCREW-HANDLE WCI 3131102 Contact Us For Availability
13
MANIFOLD, PIPE WCI 439T055P03 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
14
FSTNR-GLASS(2) WCI 241T049P01 Contact Us For Availability
14
SCREW DOOR MTG WCI 3131573 Contact Us For Availability
14
WCI 3017846 WCI 3017846 Contact Us For Availability
14
FSTNR PUSH ON (3) WCI 241T001P01 Contact Us For Availability
14A
STUD, SPACER (2) (NON-ILLUSTRATED) WCI 3051307 Contact Us For Availability
15
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
15
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
15
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
15A
NUT-COMPRSSN. (4) WCI 3131148 Contact Us For Availability
16
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
16
WCI 3131567 WCI 3131567 Contact Us For Availability
17
BTTN ELEC. CLOCK WCI 3131730 Contact Us For Availability
17
WCI 3051495 WCI 3051495 Contact Us For Availability
18
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
18
ANGLE, LIGHT SHIELD WCI 3131278 Contact Us For Availability
19
SWITCH-OVN LIGHT WCI 695T211P02 Contact Us For Availability
19
CHANNEL, LIGHT SHIELD WCI 3131294 Contact Us For Availability
20
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
20
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
20
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
21
WCI 3131145 WCI 3131145 Contact Us For Availability
21
HEX NUT WCI 3131358 Contact Us For Availability
21
BRKT LIGHT SWITCH WCI 3131289 Contact Us For Availability
22
WCI 3051115 WCI 3051115 Contact Us For Availability
22
WCI 1367355 WCI 1367355 Contact Us For Availability
22
SHIELD, REAR WALL WCI 3131590 Contact Us For Availability
23
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
23
FITTING, LOXIT (6) WCI 3131261 Contact Us For Availability
23
WCI 3131316 WCI 3131316 Contact Us For Availability
23A
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
24
WCI 665T444P01 WCI 665T444P01 Contact Us For Availability
24
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
24
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
25
WCI 3131556 WCI 3131556 Contact Us For Availability
25
WCI 3131109 WCI 3131109 Contact Us For Availability
25
WCI 3131296 WCI 3131296 Contact Us For Availability
26
SHIELD - FLUOR LIGHT WCI 3131137 Contact Us For Availability
26
TUBE-ALUM VALVE/MIXED WCI 3131364 Contact Us For Availability
26A
SHIELD-BL-METAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
26B
SCREW LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
27
SHAFT-ELECT. CLOCK WCI 3051347 Contact Us For Availability
27
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
28
ANGLE-S/C THERM. MTG WCI 3131467 Contact Us For Availability
28
WCI 368T027P01 WCI 368T027P01 Contact Us For Availability
29
THERMO-OVN S/C WCI 722T071P01 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
THERMO-BAKE WCI 3131964 Contact Us For Availability
30
WCI 3131101 WCI 3131101 Contact Us For Availability
31
SWITCH, SELECTOR WCI 3091345 Contact Us For Availability
31
SPUD NO 50 WCI 499T015P08 Contact Us For Availability
31
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
32
KNOB-SEL. SW. WCI 3131724 Contact Us For Availability
32
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
32
SHIELD-WOOL BFFL. WCI 3200835 Contact Us For Availability
33
WCI 3131725 WCI 3131725 Contact Us For Availability
33
SHIELD-LATCH WCI 3131314 Contact Us For Availability
34
WCI 3200836 WCI 3200836 Contact Us For Availability
35
PNL. B/S-ALMOND-RH WCI 3200790 Contact Us For Availability
35A
PNL. B/S-ALMOND-LH WCI 3200793 Contact Us For Availability
36
WCI 636M004P01 WCI 636M004P01 Contact Us For Availability
38
WCI 3131356 WCI 3131356 Contact Us For Availability
39
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
40
WCI 058T036F03-86 WCI 058T036F03-86 Contact Us For Availability
41
BTTN REMOTE SW. WCI 102T044P02 Contact Us For Availability
× ![]()
